TW2710/TW2712 Magnet Mount Multi-Constellation Antenna
The TW2710/TW2712 employs Tallysman’s
unique
Accutenna™
technology covering the
BeiDou B1, Galileo E1, GPS L1, GLONASS L1 and
SBAS (WAAS, QZSS, EGNOS & MSAS) frequency
band (1557 to 1606 MHz). ). It is especially
designed for precision industrial, agricultural
and military applications. It provides truly
circular response over its entire bandwidth
thereby producing superior multipath signal
rejection.
The TW2710/TW2712 features a dual-feed
wideband patch element, with one LNA per
feed, a mid section Combiner and SAW filter,
and a final output gain stage.
An optional tight pre-filter is available, part
number TW2712 to protect against saturation
by high level sub-harmonics and L-Band
signals.
The TW2710/TW1712 is housed in a compact,
industrial-grade weather-proof, magnet mount
enclosure, and is available with a variety of
connectors.

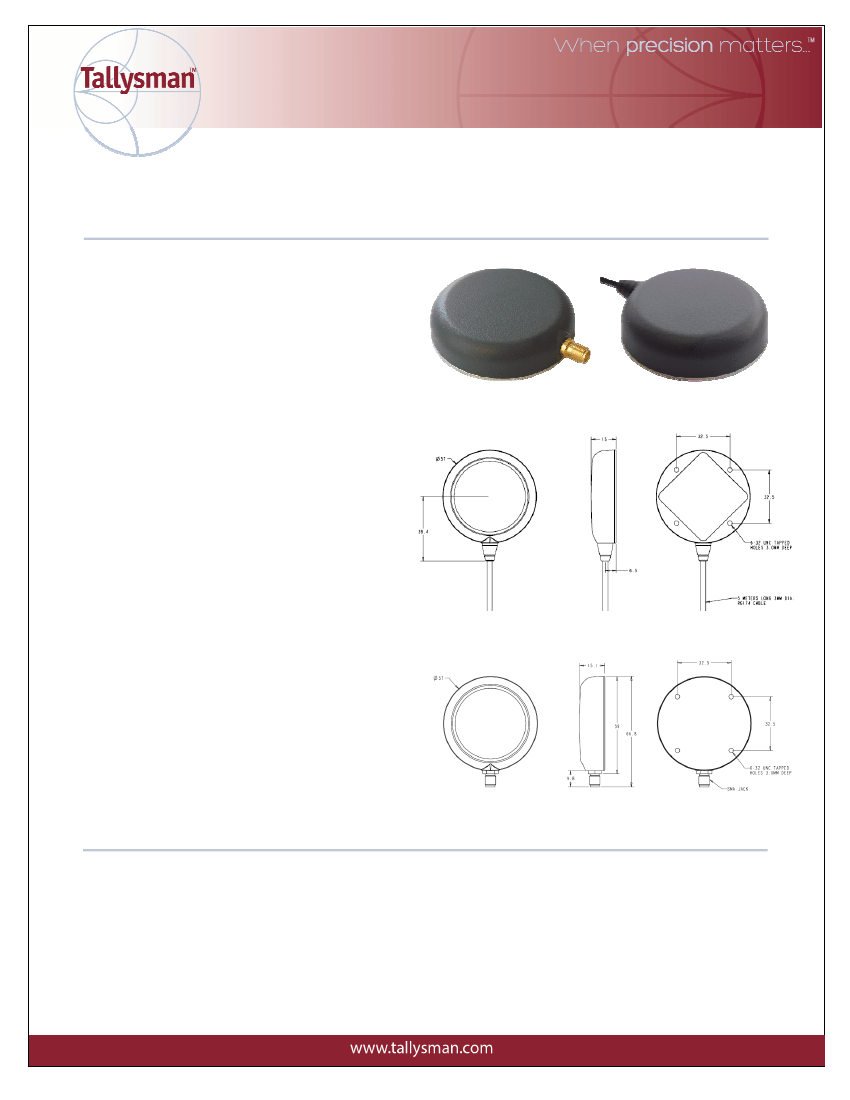

Dimensions (mm)
Dimensions (mm)
Applications
•
•
•
•
•
•
High Accuracy & Mission Critical GNSS
Precision Agriculture, Mining & Construction
Military & Security
Avionics
Law Enforcement & Public Safety
Fleet Management & Asset Tracking
Features
•
•
•
•
•
•
•
Covers B1 / E1 /L1 / G1 Frequencies
Great axial ratio: 1 typ., 3 dB max
Low noise LNA: ≤1 dB
High rejection SAW filter
LNA gain: 28 dB typ.
Low current: 15 mA typ.
Wide voltage input range: 2.5 to 16 VDC
Benefits
•
•
•
•
•
•
Excellent multipath rejection
Increased system accuracy
Excellent signal to noise ratio
Great out of band signal rejection
Ideal for harsh environments
RoHS compliant
TW2710/TW2712 Magnet Mount Multi-Constellation Antenna
Specifications
Vcc = 3V, over full bandwidth, T=25°C
Antenna
Architecture
2 dB Bandwidth
Antenna Gain (with 100mm ground plane)
Axial Ratio at Zenith over full bandwidth
Dual, Quadrature Feeds
49 MHz
4.75 dBic
<2 dB typ,
≤
3 dB max
Electrical
Architecture
Filtered LNA Frequency Bandwidth
Polarization
LNA Gain
Gain flatness
Out-of-Band Rejection
<1500 MHz
<1540 MHz
>1640 MHz
VSWR (at LNA output)
Noise Figure
Supply Voltage Range (over coaxial cable)
Supply Current
ESD Circuit Protection
One LNA per feed line, mid section SAW filter
1557 to 1606 MHz
RHCP
28 dB min. (TW2710) 26dB min. (TW2712)
+/- 2 dB, 1557 to 1606 MHz
>40 dB (TW2710)
>70dB (TW2712)
>20 dB (TW2710)
>40dB (TW2712)
>45 dB (TW2710)
>70dB (TW2712)
<1.5:1
≤1 dB typ. (TW2710)
3.5dB typ (TW2712)
+2.5 to 16 VDC nominal (12VDC recommended maximum)
15 mA typ., 22mA max. (@85°C)
15 KV air discharge
Mechanicals & Environmental
Mechanical Size
Connectors
Cable
Operating Temp. Range
Enclosure
Weight
Attachment Method
Environmental
Shock
Vibration
57 mm dia. x 15 mm H
Please refer to Ordering Information, below
RG174
-40°C to +85°C
Radome: ASA Plastic, Base: Zamak white metal
110g
Magnet or permanent (pre-tapped 4 x 6-32 UNC)
IP67 and RoHS compliant
Vertical axis: 50G, other axes: 30G
3 axis, sweep = 15 min, 10 to 200 Hz sweep: 3G
Ordering Information
TW2710 – Multi-Constellation antenna,
TW2712 – Multi-Constellation antenna
33-2710-xx-yyyy
33-2712-xx-yyyy
Where xx = connector type and yyyy = cable length in mm
Please refer to the Ordering Guide
(http://www.tallysman.com/orderingguide.php)
for the current and complete list of available
connectors.
Tallysman Wireless Inc
106 Schneider Road, Unit 3
Ottawa ON K2K 1Y2 Canada
Tel 613 591 3131
Fax 613 591 3121
sales@tallysman.com
The information provided herein is intended as a guide only and is subject to change without notice. This document is not to be regarded as a guarantee
of performance. Tallysman Wireless Inc. hereby disclaims any or all warranties and liabilities of any kind. © 2011 Tallysman Wireless Inc. All rights
reserved.
Rev 2.0
