HRN-0118
Horn Antenna
Product Overview

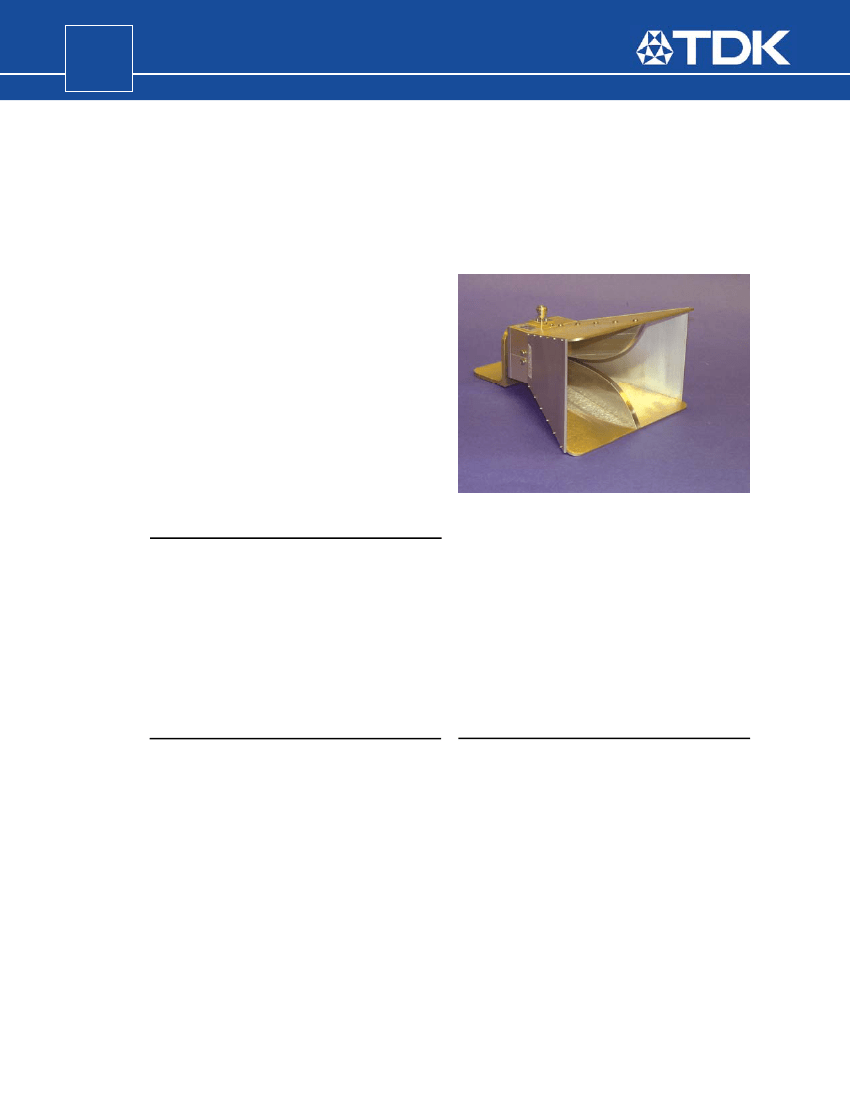

The TDK HRN-0118 Horn Antenna is a wide
band, double-ridged horn used to transmit and
receive microwave signals over the frequency
range of 1 GHz to 18 GHz.
The HRN-0118 generates high electric fields re-
quired for radiated immunity and emissions meas-
urements, and features high gain, low VSWR, mod-
erate power handling (500W), and a robust me-
chanical design.
Features
Operating frequency of 1 GHz to 18 GHz
High gain
Low VSWR
Robust mechanical design
The TDK HRN-0118 Horn Antenna is designed
specifically for radiated emissions and immuni-
ty measurements in EMC test environments.
The HRN-0118 provides optimal performance
over the frequency range of 1 GHz to 18 GHz.
Applications
Options
Emissions testing
Immunity testing
Antenna Tripod TRI-150R
The TDK TRI-150R antenna tripod is a manual-
ly adjusted tripod (100 cm to 150 cm) de-
signed for quick and easy mounting in EMC
test environments.
1101 Cypress Creek Road
Cedar Park, Texas 78613, USA
1-512-258-9478
FAX 1-512-258-0740
PRODUCTS
P
HRN-0118
Horn Antenna
Electrical Characteristics
Frequency Range:
VSWR:
Polarization:
Power Handling:
Feedpoint Impedance:
1 GHz to 18 GHz
<1.5:1 average
Linear
500W
50 ohms (nominal)

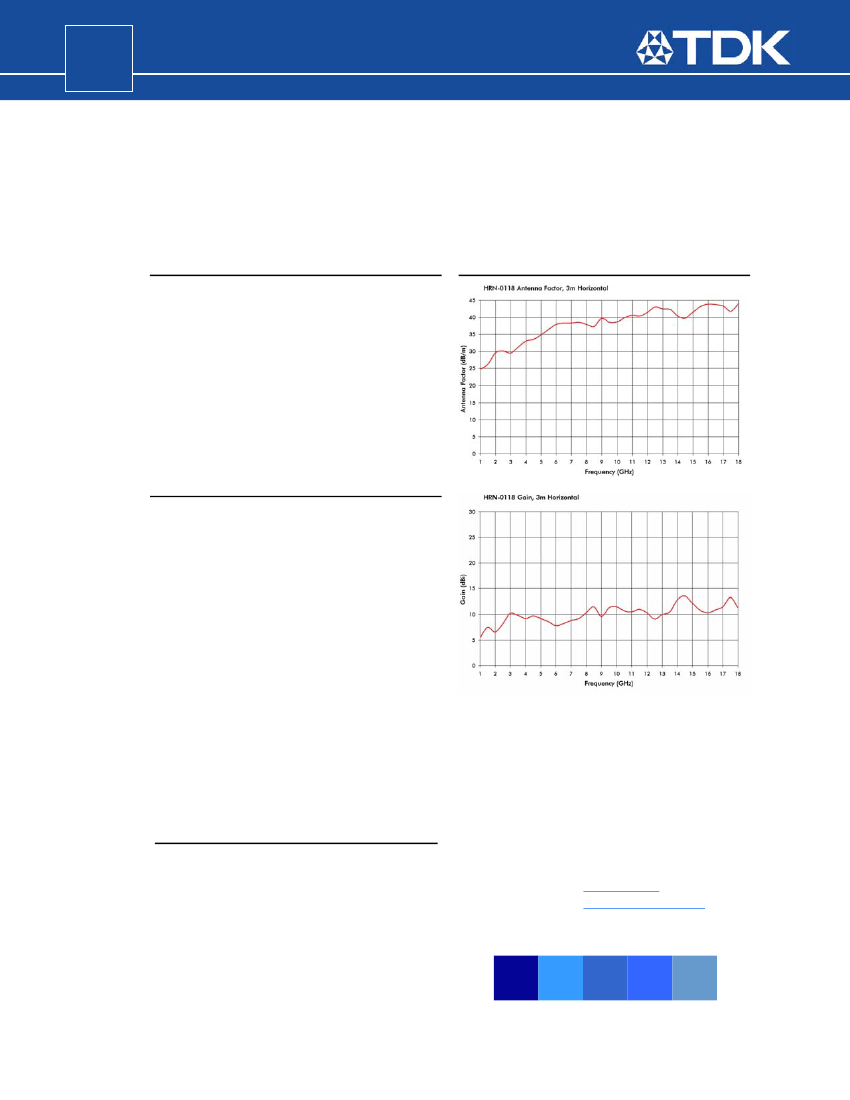

Antenna Data
Mechanical Specifications
Width:
Depth:
23.4 cm (9.21 in)
29 cm (11.54 in) with
mounting bracket
21 cm (8.27 in) without
mounting bracket
14.5 cm (5.71 in)
1.9 kg (4.2 lbs) with
mounting bracket
Aluminum with a gold
chromate finish
Type N female
Height:
Weight:
Construction:
RF Connector:
To place an order or to learn more about the
TDK products that best meet your needs, con-
tact your TDK sales representative:
TDK RF Solutions Inc.
1101 Cypress Creek Rd.
Cedar Park, Texas 78613 USA
Phone:
1-512-258-9478
Fax:
1-512-258-0740
E-mail:
info@tdkrf.com
World Wide Web:
www.tdkrfsolutions.com
