RK-Wi.232FHSS-25/250 User’s Manual

Rev 1.0.0

905 Messenger Lane,

Moore, OK 73170

405-794-7730

www.radiotronix.com

-i-

RK-Wi.232FHSS-25/250 Rapid Development Kit

User’s Manual (Preliminary)

Table of Contents

Description ...............................................................................................................................3

RApid Development

Kit Setup .................................................................................................3

2.1

Windows USB Driver Installation. .................................................................................. 4

Introduction to the RK-Wi.232FHSS Evaluation Software.......................................................5

3.1

COM Port Setup and Selection. ..................................................................................... 5

3.2

Wireless Chat Page. ...................................................................................................... 5

3.3

Non-Volatile Register Page............................................................................................ 6

3.4

Volatile Register Page.................................................................................................... 6

3.5

Diagnostic Window......................................................................................................... 7

Using the Evaluation Software.................................................................................................7

4.1

Setting Register Values.................................................................................................. 7

4.2

Power Mode. .................................................................................................................. 7

4.3

Receive Diagnostic. ....................................................................................................... 7

4.4

Transmit Diagnostic. ...................................................................................................... 7

4.5

FHSS Transmit Diagnostic............................................................................................. 8

Additional Operational Notes ...................................................................................................8

5.1

Microsoft Windows / Hilgraeve HyperTerminal. ............................................................. 8

PCB Layout Diagrams .............................................................................................................9

6.1

RK-Wi.232FHSS Evaluation (Rapid Development) Board Layout................................. 9

6.2

Wi.232FHSS-250 EVM (EValuation Module) Layout................................................... 10

Wi.232FHSS-25 EVM (EValuation Module) Layout ..............................................................11

6.3

Schematic Diagrams..............................................................................................................13

7.1

Wi.232FHSS-250 EVM (EValuation Module) Schematic Diagram .............................. 13

7.2

Wi.232FHSS-25 EVM (EValuation Module) Schematic Diagram ................................ 14

7.3

RK-Wi.232FHSS Evaluation (Rapid Development) Schematic Diagram..................... 15

NOTES...................................................................................................................................16

- 2 -

12/11/2006

RK-Wi.232FHSS-25/250 Rapid Development Kit

User’s Manual (Preliminary)

1 Description

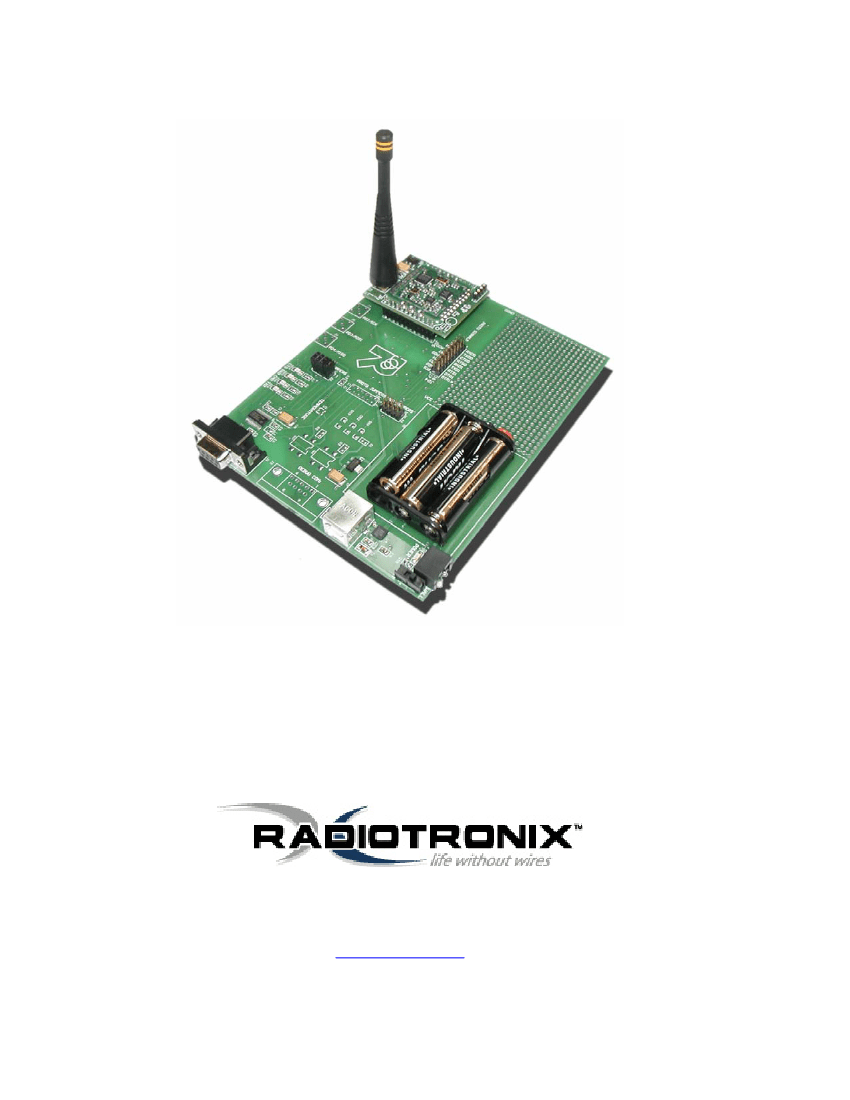

The RK-Wi.232FHSS-250 is a rapid-development/evaluation kit for the Wi.232FHSS-250 data

transceiver.

Included in the kit is:

•

1-Rapid Development Case.

1-Rapid Development Utility and Documentation CD.

2-Wi.232FHSS-250 Rapid Development Boards.

2-Wi.232FHSS-250 -or- 2-Wi.232FHSS-25 Transceiver Modules mounted on EVM’s*.

2-900 MHz antennas.

2-RS-232 cables.

2-USB cables.

6-AAA batteries.

Startup Guide.

* An EVM is a Wi.232FHSS module pre-mounted on a small PCB with onboard antenna connector

and power supply regulator.

RApid Development

Kit Setup

•

Insert the AAA batteries into the evaluation PCB, observing the correct polarity.

Insert an EVM into one of the evaluation boards, observing the correct orientation (see later in

this document). The correct orientation of the EVM is with the antenna connector closest to the

edge of the evaluation board. Make sure the module is seated fully and correctly.

Insert the other EVM into the other evaluation board, also observing the correct polarity.

Connect antennas to EVM’s.

Connect evaluation boards to computers. If using USB communications, populate USB jumpers

and remove RS-232 jumpers. If using RS-232 communications, populate RS-232 jumpers and

remove USB jumpers.

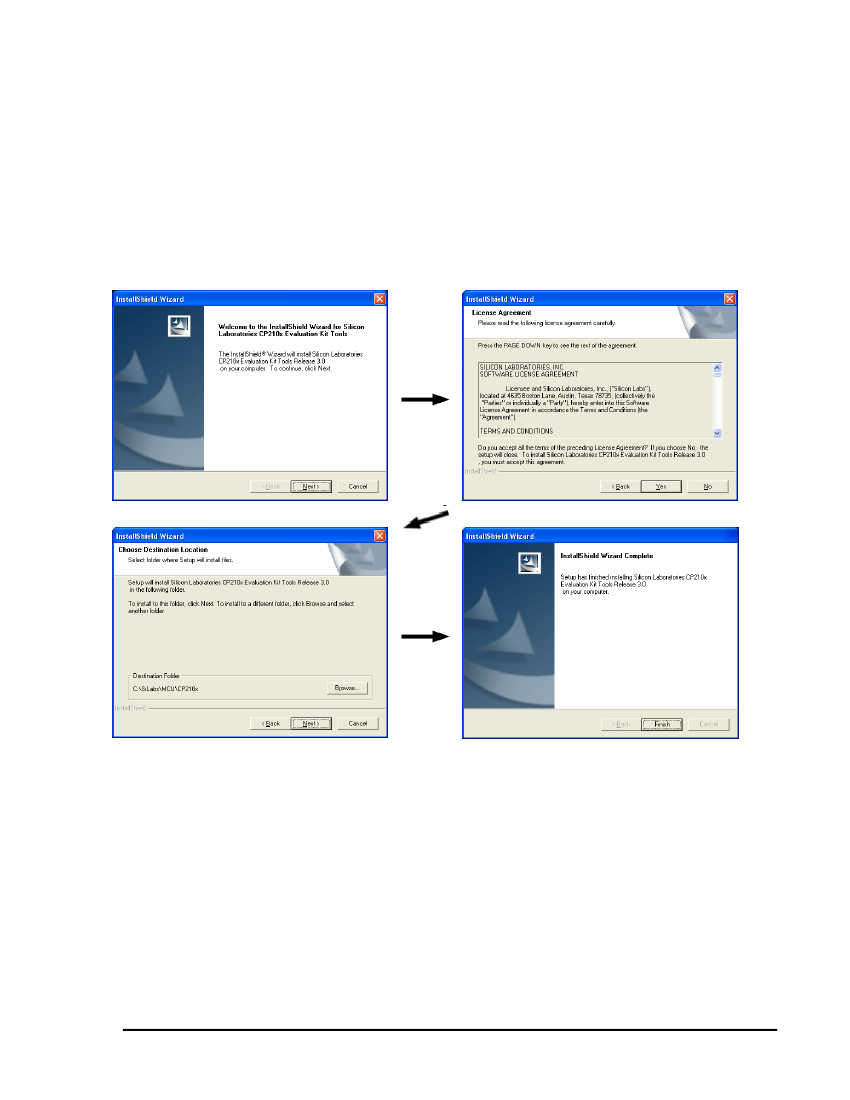

Install the RK-Wi.232FHSS Windows software. If already installed, skip this step.

Select the type of module provided in this kit (Wi.232FHSS-25 LP or Wi.232FHSS-250)

Select COM port and 2400 baud operation. Navigate to the “Wireless Chat” tab.

Power-On both evaluation boards, verifying that the version/copyright information is echoed to the

screen from both modules.

Chat back and forth between evaluation boards, verifying that serial and RF communications are

successful.

IMPORTANT NOTE FOR HYPERTERMINAL USERS:

See section 4.1

•

- 3 -
