Voltage Transducer LV 100-1000
For the electronic measurement of voltages : DC, AC, pulsed...,
with a galvanic isolation between the primary circuit (high voltage)
and the secondary circuit (electronic circuit).
V
PN
=
1000 V
Electrical data
V
PN
V
P
I
PN
R
M
Primary nominal r.m.s. voltage
Primary voltage, measuring range
Primary nominal r.m.s. current
Measuring resistance
with ± 15 V
I
SN
K
N
V
C
I
C
V
d
@ ± 1000 V
max
@ ± 1500 V
max
1000
V
0 .. ± 1500
V
10
mA
R
M min
R
M max
0
0
170
90
Ω
Ω
Features
•
Closed loop (compensated) voltage
transducer using the Hall effect
•
Insulated plastic case recognized
according to UL 94-V0
•
Primary resistor
R
1
incorporated into
the housing.
Secondary nominal r.m.s. current
Conversion ratio
Supply voltage (± 5 %)
Current consumption
R.m.s. voltage for AC isolation test, 50 Hz, 1 mn
50
mA
1000 V / 50 mA
± 15
V
10 +
I
S
mA
6
kV
Advantages
•
Excellent accuracy
•
Very good linearity
•
Low thermal drift
•
High immunity to external
interference.
Accuracy - Dynamic performance data
X
G
ε
L
Overall Accuracy @
V
PN
,
T
A
= 25°C
Linearity
Offset current @
I
P
= 0,
T
A
= 25°C
Thermal drift of
I
O
Response time @ 90 % of
V
P max
± 0.7
< 0.1
Typ
Max
± 0.2
± 0.3
%
%
mA
mA
µs
Applications
•
AC variable speed drives and servo
motor drives
•
Static converters for DC motor drives
•
Uninterruptible Power Supplies
(UPS)
•
Power supplies for welding
applications.
I
O
I
OT
t
r
0°C .. + 70°C
± 0.2
110
General data
T
A
T
S
N
P
R
1
R
S
m
Ambient operating temperature
Ambient storage temperature
Turns ratio
Total primary power loss
Primary resistance @
T
A
= 25°C
Secondary coil resistance @
T
A
= 70°C
Mass
Standards
1)
0 .. + 70
- 25 .. + 85
10000 : 2000
10
100
60
850
EN 50178
°C
°C
W
k
Ω
Ω
g
Note :
1)
A list of corresponding tests is available
981030/6
LEM Components
w w w .lem.com

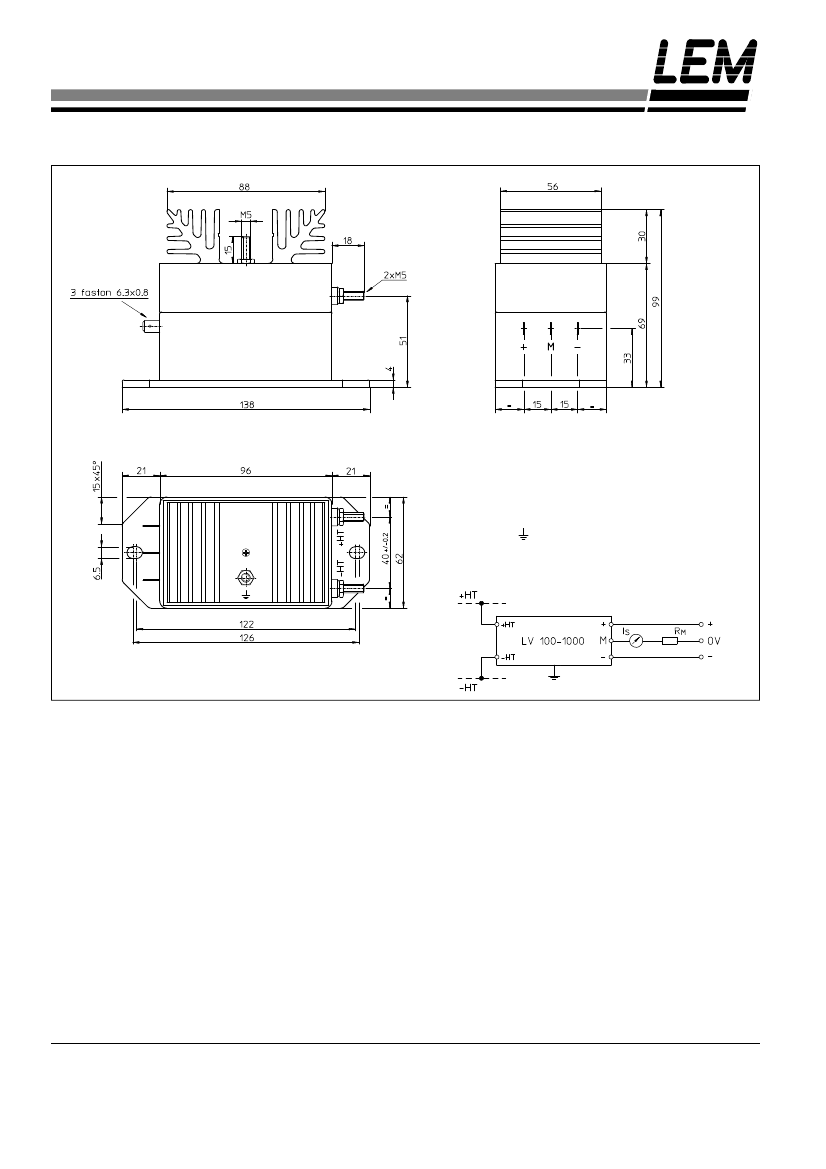

Dimensions LV 100-1000
Front view
(in mm. 1 mm = 0.0394 inch)
Left view
Secondary terminals
Terminal + : supply voltage + 15 V
Terminal M : measure
Terminal - : supply voltage - 15 V
Terminal
: ground or earth
Connection
Top view
Mechanical characteristics
•
General tolerance
•
Fastening
•
Connection of primary
•
Connection of secondary
•
Connection to the ground
•
Fastening torque
± 0.3 mm
2 holes
∅
6.5 mm
M5 threaded studs
Faston 6.3 x 0.8 mm
M5 threaded stud
2.2 Nm or 1.62 Lb. -Ft.
Remarks
•
I
S
is positive when
V
P
is applied on terminal +HT.
•
The primary circuit of the transducer must be linked to the
connections where the voltage has to be measured.
•
This is a standard model. For different versions (supply
voltages, turns ratios, unidirectional measurements...),
please contact us.
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without previous notice.
