25.4mm (1.0 INCH) SINGLE DIGIT NUMERIC
DISPLAY
Part Number: SA10-21GWA
Green
Features
1.0 inch digit height.
Low current operation.
Excellent character appearance.
High light output.
Easy mounting on P.C. boards or sockets.
Mechanically rugged.
Standard : gray face, white segment.
RoHS compliant.
Description
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.

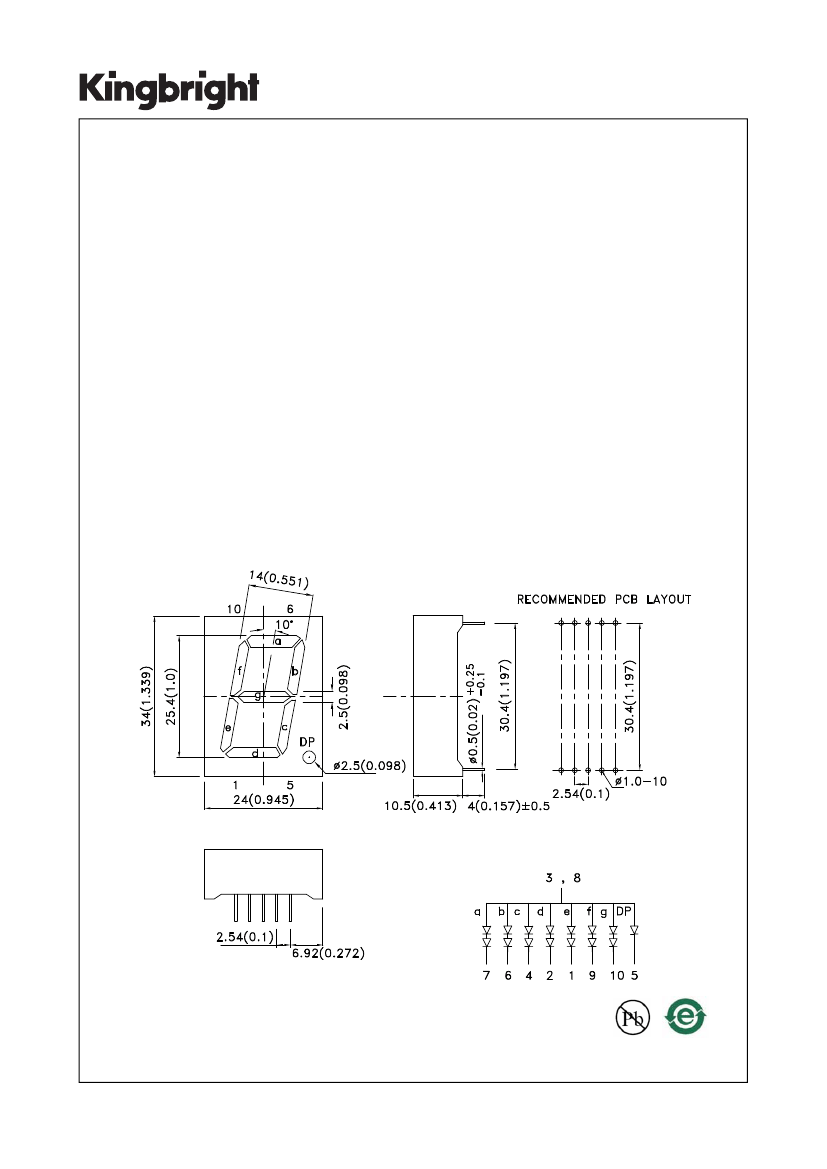

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ± 0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAM9667
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Joe Lee
DATE: APR/20/2013
DRAWN: Q.M.Chen
PAGE: 1 OF 7
ERP: 1301000160
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
14000
SA10-21GWA
Green (GaP)
White Diffused
*5600
Note:
1. Luminous intensity/ luminous Flux: +/-15%.
* Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Description
Typ.
37000
*12000
Common Anode,
Rt.Hand Decimal
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
(DP)
Reverse Current
(Per chip)
Device
Green
Green
Green
Green
Green
Green
Typ.
565
568
30
15
4.4
(2.2)
5.0
(2.5)
10
(10)
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
(V
R
=5V)
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
(DP)
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
(Per chip)
Operating / Storage Temperature
Lead Solder Temperature[2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Green
125
(62.5)
25
140
5
(5)
-40°C To +85°C
260°C For 3-5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAM9667
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Joe Lee
DATE: APR/20/2013
DRAWN: Q.M.Chen
PAGE: 2 OF 7
ERP: 1301000160
Green
SA10-21GWA
SPEC NO: DSAM9667
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Joe Lee
DATE: APR/20/2013
DRAWN: Q.M.Chen
PAGE: 3 OF 7
ERP: 1301000160
SPEC NO: DSAM9667
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Joe Lee
DATE: APR/20/2013
DRAWN: Q.M.Chen
PAGE: 4 OF 7
ERP: 1301000160

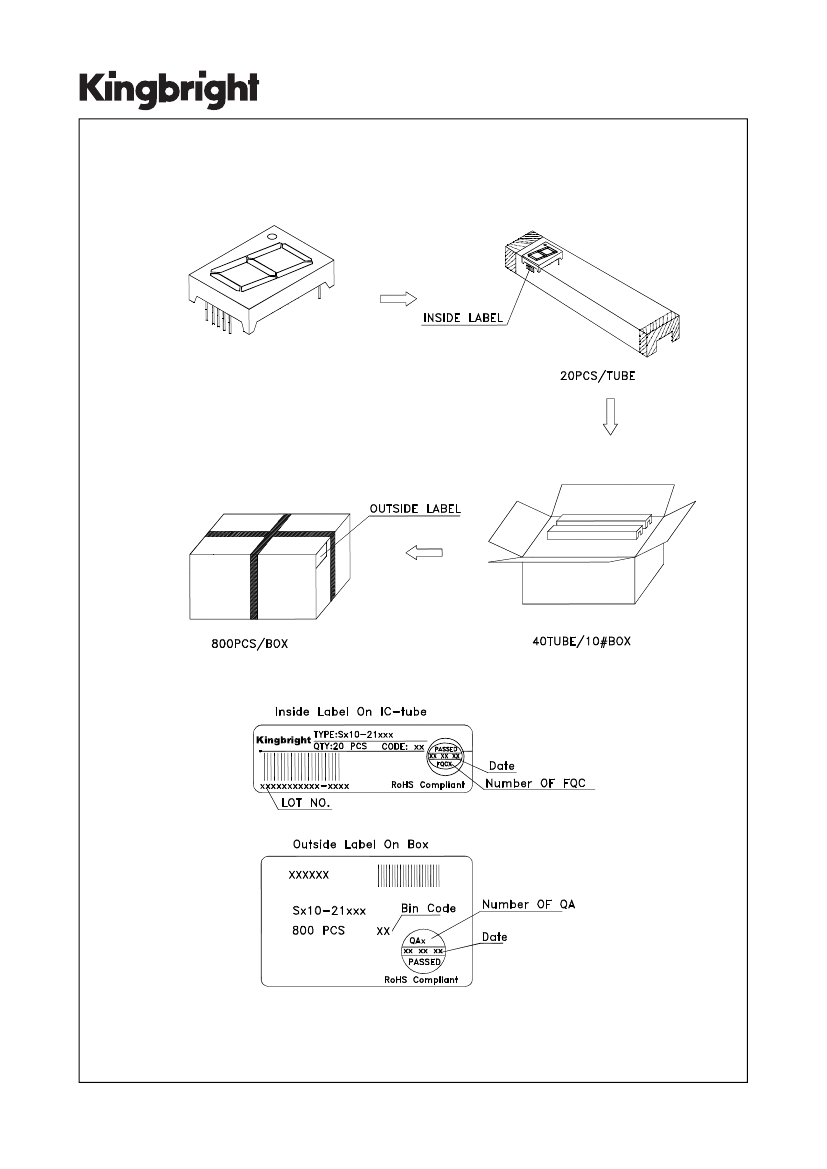

PACKING & LABEL SPECIFICATIONS
SA10-21GWA
SPEC NO: DSAM9667
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Joe Lee
DATE: APR/20/2013
DRAWN: Q.M.Chen
PAGE: 5 OF 7
ERP: 1301000160
