SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
ABC'S DWG NO.
SB0805□□□□L□-□□□
PAGE: 1
SMD POWER INDUCTOR
ABC'S ITEM NO.

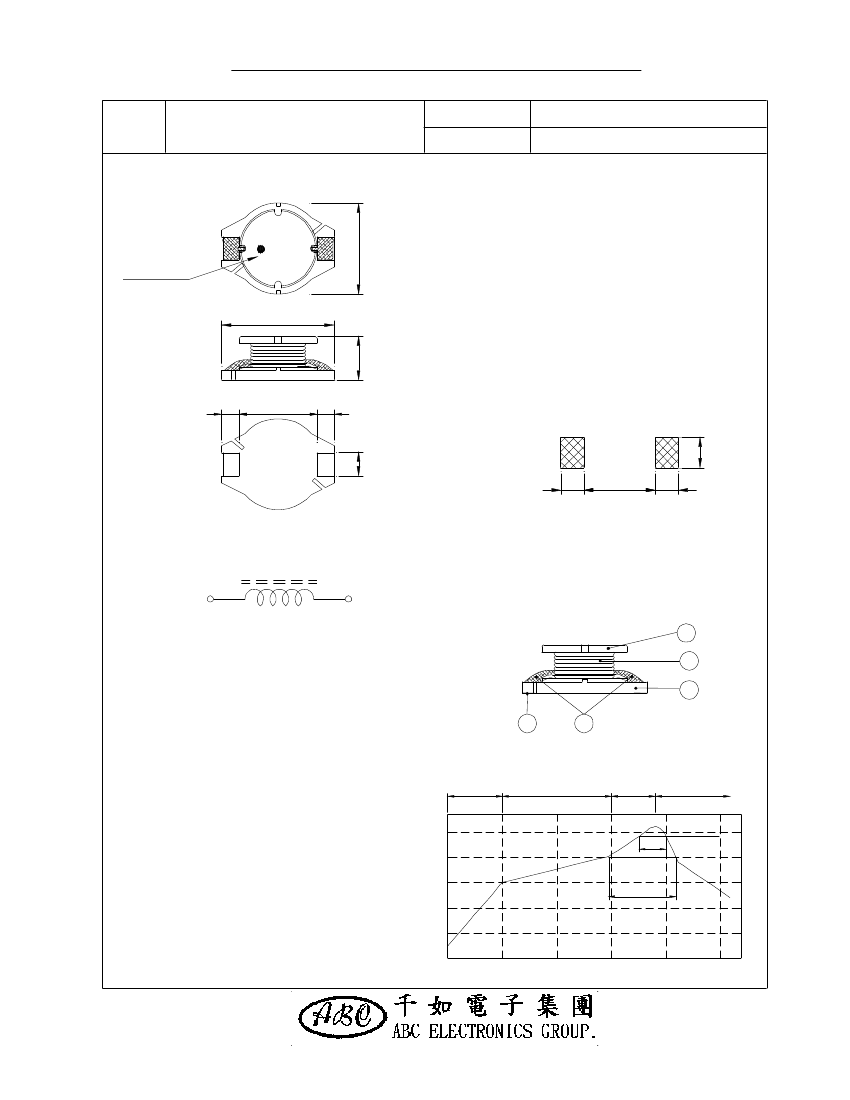

Ⅰ﹒CONFIGURATION
& DIMENSIONS：
A
B
C
D
E
F
G
H
I
: 8.0±0.3
: 10.5±0.3
: 5.0±0.3
: 2.1±0.2
: 2.0±0.2
: 6.0±0.3
: 5.7 ref.
: 2.2 ref.
: 2.4 ref.
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
101
Marking
dot is start winding
& Inductance code
B
C
D
F
D
A
E
I
G
( PCB Pattern )
I
Ⅱ﹒SCHEMATIC
DIAGRAM：
Ⅲ﹒MATERIALS：
a﹒Core：Ferrite DR core
b﹒Wire：Enamelled copper wire
（class
F）
c﹒Base：LCP E4008
d﹒Terminal：Cu/Ni/Sn
e﹒Adhesive：Epoxy resin
f﹒Solder wire：Sn97/Cu3 Alloys
g﹒Remark：Products comply with RoHS'
requirements
250
50s ec max.
a
b
c
d
Peak Temp：260℃ max.
Max time above 230℃
：50sec
max.
Max time above 200℃
：70sec
max.
Temperatu re
Rising Area
+4.0
℃
/ sec max.
Pre heat Area
150 ~ 200
℃
/ 60 ~ 120sec
Reflow Area
+2.0 ~ 4.0
℃
/ sec max.
Forced Cooling Area
-(1.0 ~ 5.0)
℃
/ sec max.
Peak Temperature:
260
℃
230
℃
e
Ⅳ﹒GENERAL
SPECIFICATION：
a﹒Temp. rise 40℃ max.
b﹒Storage temp.：-40℃ ~ +125℃
c﹒Operating temp.：-40℃ ~ +105℃
d﹒Resistance to solder heat：260℃. 10 secs.
AR-001A
Temperature (
℃
)
200
150
70sec max.
100
50
0
50
100
150
Time ( seconds )
H
200
250
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
ABC'S DWG NO.
SB0805□□□□L□-□□□
PAGE: 2
SMD POWER INDUCTOR
ABC'S ITEM NO.
Ⅴ﹒ELECTRICAL
CHARACTERISTICS：
Inductance
(uH)
0.1 V / 100 KHz
3.3±20%
4.7±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±15%
68.0±15%
100.0±15%
150.0±15%
220.0±15%
330.0±15%
B：Taping Reel
@ Inductance VS. DC Current Curve
10 3
7
5
3
2
221
101
Dwg. No.
SB08053R3ML□-□□□
SB08054R7ML□-□□□
SB08056R8ML□-□□□
SB0805100ML□-□□□
SB0805150ML□-□□□
SB0805220ML□-□□□
SB0805330ML□-□□□
SB0805470YL□-□□□
SB0805680YL□-□□□
SB0805101YL□-□□□
SB0805151YL□-□□□
SB0805221YL□-□□□
SB0805331YL□-□□□
RDC
(Ω)
max.
0.022
0.028
0.040
0.050
0.070
0.100
0.145
0.200
0.270
0.400
0.560
0.860
1.500
Irms
(A)
max.
5.00
4.20
3.40
3.00
2.40
2.00
1.72
1.40
1.20
1.00
0.75
0.62
0.46
Isat
(A)
typ.
5.20
4.00
3.40
2.80
2.30
1.85
1.54
1.28
1.15
0.92
0.75
0.62
0.50
1).
□：Packaging
information
…
A：Bulk
2)."-
□□□
":Reference code
3). Irms base on Temp. rise 40
℃
max.
4). Isat base on
△
L / L0A=10% typ.
Inductance（uH）
10 2
7
5
3
2
10 1
7
5
3
2
10 0
10 1
330
100
3R3
2
3
5 7 10 2
2
3
5 7 10 3
2
3
5 7 10 4
DC Current (mA)
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
ABC'S DWG NO.
SB0805□□□□L□-□□□
PAGE: 3
SMD POWER INDUCTOR
ABC'S ITEM NO.

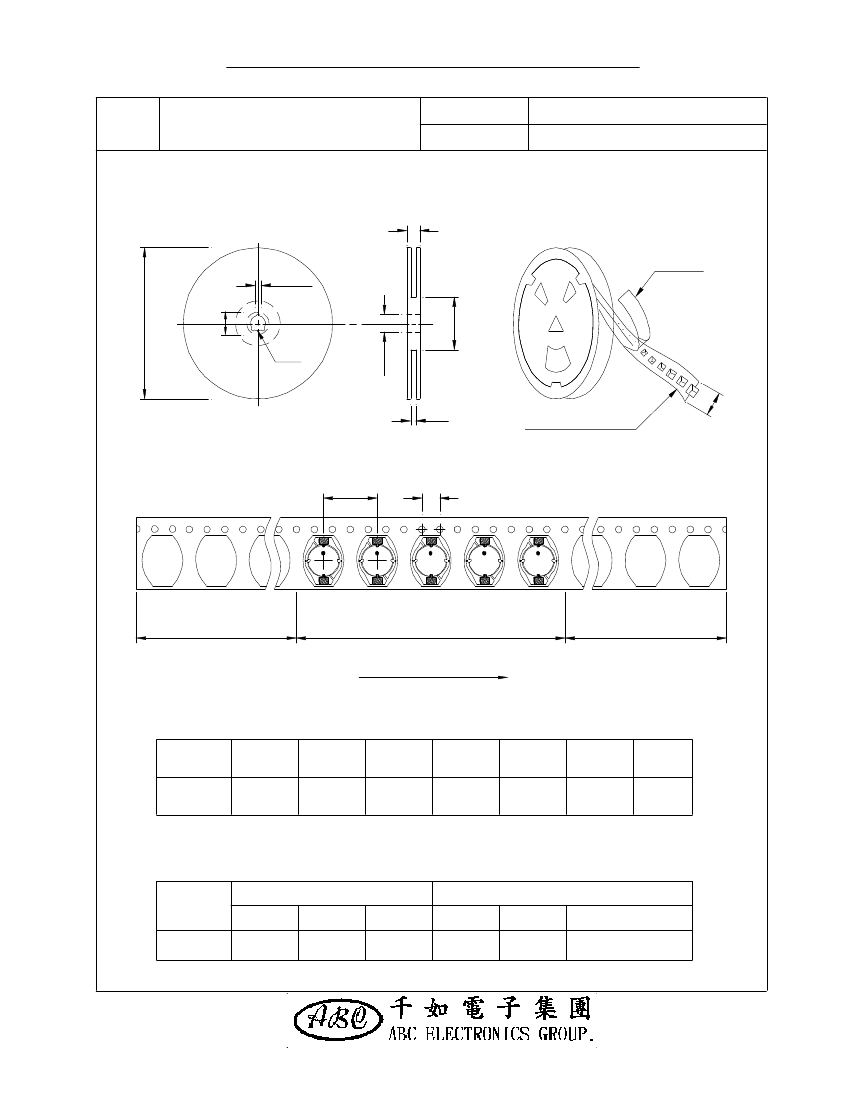

Ⅵ﹒PACKAGING
INFORMATION：
1. Configuration :
T
Cover tape
2.0±0.5
A
N
∮
C
∮
C
B
G
Embossed carrier
※Carrier
tape width：D
P:12 m/m
End
4 m/m
Start
Leader
no component
200 m/m Min.
Components
User direction of feed
Trailer
no component
400 m/m Min.
2. Dimensions
Style
13 - 24
A
330
B
21±0.8
C
13±0.5
D
24
G
26
+0
N
50
-0
Unit:m/m
T
30.4
3. Q'TY & G.W. Per package
Inner : Reel
Series
SB0805
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
Outer : Carton
G.W. (Kg)
Size (cm)
800
880
13 - 24
3,200
4.5
40 x 40 x 24
AR-001A
D
101
101
101
101
101
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
ABC'S DWG NO.
SB0805□□□□L□-□□□
PAGE: 4
SMD POWER INDUCTOR
ABC'S ITEM NO.
Ⅶ﹒DWGING
NUMBER EXPRESSION：
S
B
0
8
0
5
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Code
A
B
Inner package
T.B.D.
T / R ( Reel package )
Inner package Q'TY
T.B.D.
800
pcs
Remark
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
ABC'S DWG NO.
SB0805□□□□L□-□□□
PAGE: 5
SMD POWER INDCTOR
ABC'S ITEM NO.
Ⅷ﹒RELIABILITY
TEST：
Test item
Specification
Test condition
Preheat : 155
℃
/ 4 hours.
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. : 235±5℃
Flux : Rosin
Dip time : 5±0.5 seconds
Solderability
More than 95% of the
terminal electrode
Shall be covered
With fresh solder.
Thermal shock test
( Temp. cycle )
Electrical oharacteristics shall
not change more
than
±20%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
-40
℃
30 minutes
+105
℃
30 minutes
Humidity Test
Temperature : 40±2℃
Humidity : 90±5%
Time : 1000 hours
High temp.
Resistance test
Temperature : 105±5℃
Applied current : Per spec.
Time : 96 hours
AR-001A
