LBN7053

Description
70mhz saw filter 6mhz bandwi
File Size135KB,3 Pages
ManufacturerSIPAT
Websitehttp://www.sipatsaw.com/
Download Datasheet View All

LBN7053 Overview

70mhz saw filter 6mhz bandwi

China Electronics Technology Group Corporation
No.26 Research Institute
70MHz SAW Filter
6MHz Bandwidth
Part Number: LBN7053
www.sipatsaw.com
SIPAT Co., Ltd.

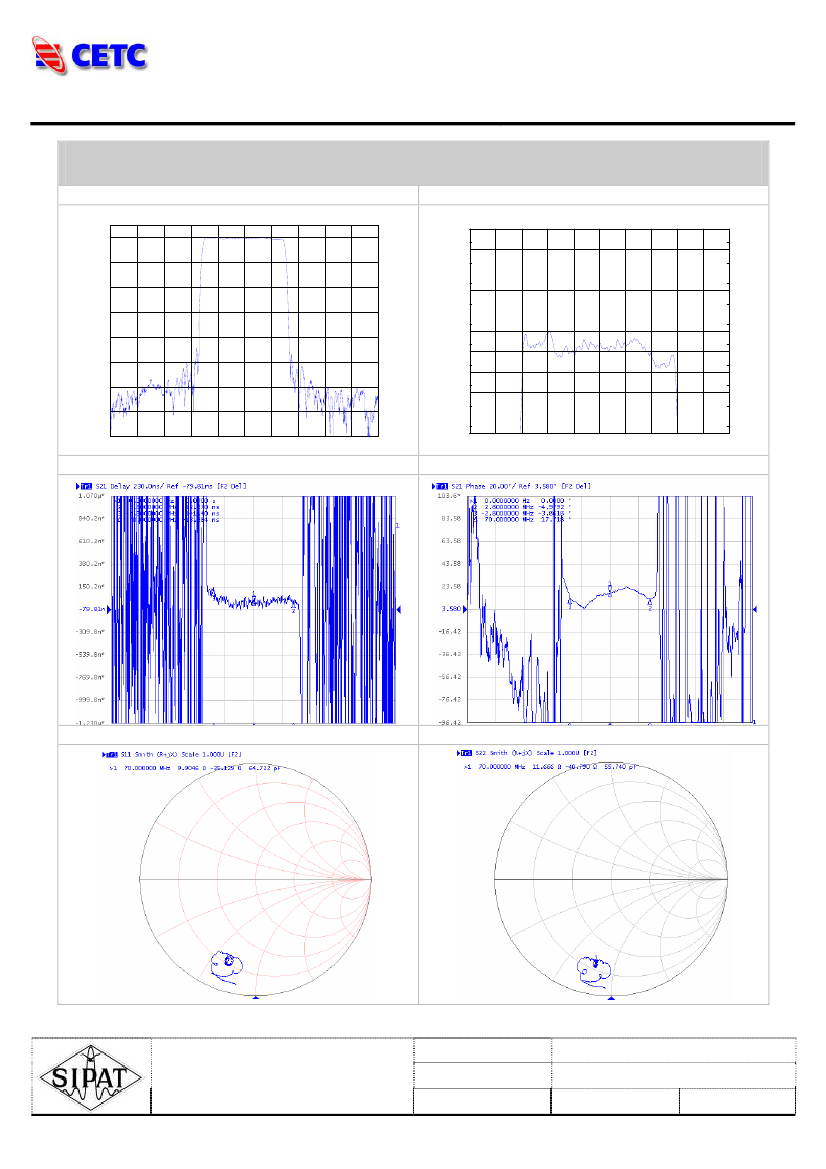

Specifications
Parameter
Center Frequency
Insertion Loss
1 dB Bandwidth
3 dB Bandwidth
35 dB Bandwidth
40 dB Bandwidth
45 dB Bandwidth
Passband Variation
Absolute Delay
Ultimate Rejection(f0±5MHz)
Material Temperature coefficient
Ambient Temperature
Package Size
Unit
MHz
dB
MHz
MHz
MHz
MHz
MHz
dB
usec
Minimum
69.95
-
-
6
-
-
-
-
-
47
Typical
70
22.2
5.9
6.08
6.69
6.72
6.78
0.9
3.85
56
-6.58
25
Maximum
70.05
24
-
-
6.8
-
7.2
1
4
-
dB
KHz/°C
°C

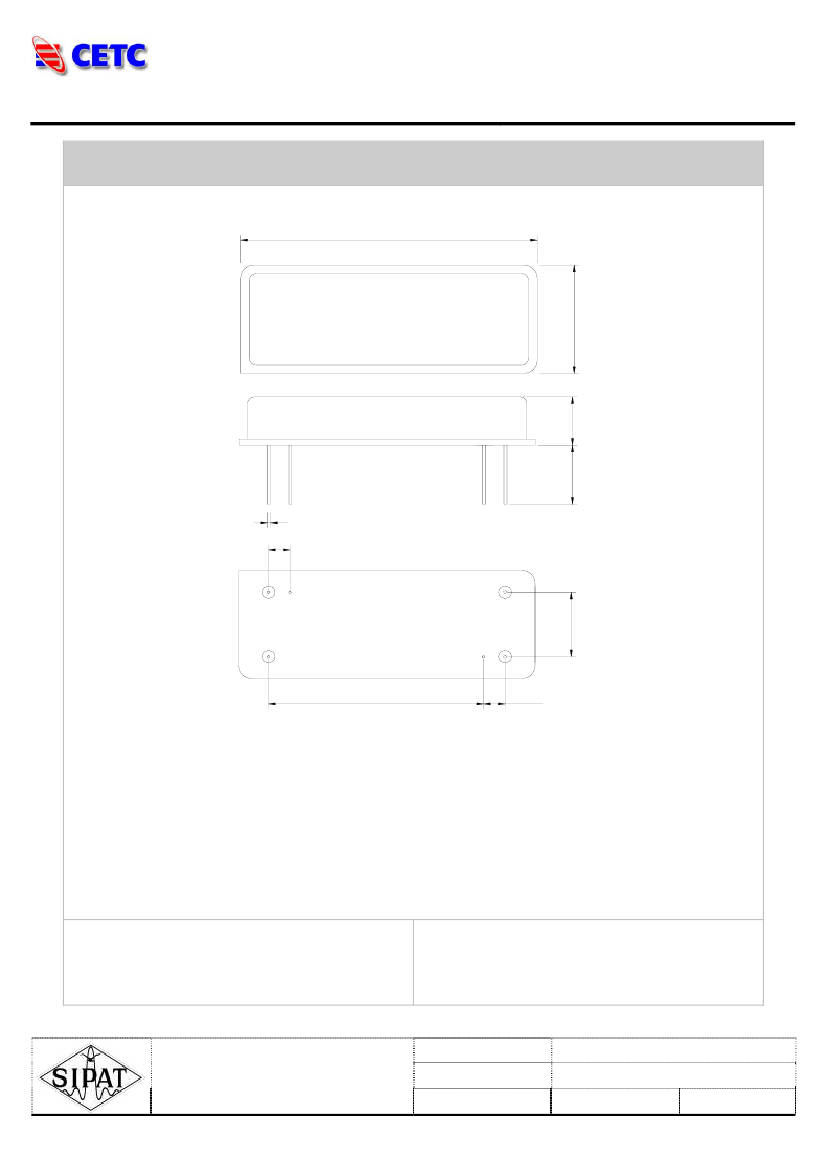

DIP3512 (35.2x12.7x5.2mm3)
Notes:
1. All specifications are based on the test circuit shown
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure
electrical compliance over temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift
and manufacturing tolerances
4. This is the optimum impedance in order to achieve the performance show

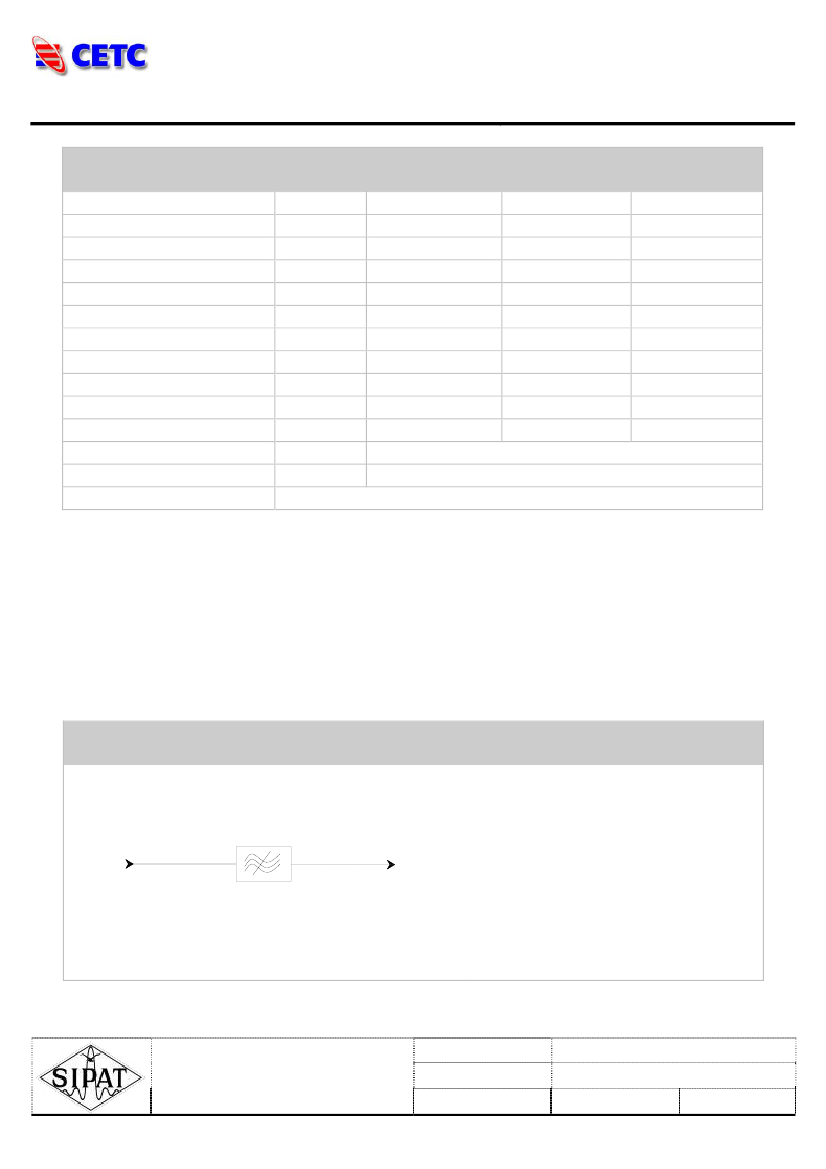

Matching Configuration
Source/Load Impedance=50 ohm
INPUT
50
Ω
OUTPUT
50
Ω
Notes - Component values may change depending
on board layout.
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
LBN7053
2006-10-10
1.0
Page
1/3
Phone: +86-23-62808818
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
