China Electronics Technology Group Corporation
No.26 Research Institute
70MHz SAW Filter
16MHz Bandwidth
Part Number:LBN70A17
www.sipatsaw.com
SIPAT Co., Ltd.
Specifications
Parameter
Center Frequency
Insertion Loss
1 dB Bandwidth
3 dB Bandwidth
35 dB Bandwidth
40 dB Bandwidth
45 dB Bandwidth
50 dB Bandwidth
55 dB Bandwidth
Passband Variation
Absolute Delay
Ultimate Rejection(f0±15MHz)
Material Temperature coefficient
Ambient Temperature
Package Size
Unit
MHz
dB
MHz
MHz
MHz
MHz
MHz
MHz
MHz
dB
usec
Minimum
69.9
-
-
16.4
-
-
-
-
-
-
-
55
Typical
70
26.2
16.3
16.47
17.12
17.17
17.21
17.25
17.3
0.6
3.75
60
-6.58
25
Maximum
70.1
27
-
16.5
17.2
-
17.6
18.4
26.4
1
5
-
dB
KHz/°C
°C
DIP3512 (35.2x12.7x5.2mm3)
Notes:
1. All specifications are based on the test circuit shown
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure
electrical compliance over temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift
and manufacturing tolerances
4. This is the optimum impedance in order to achieve the performance show

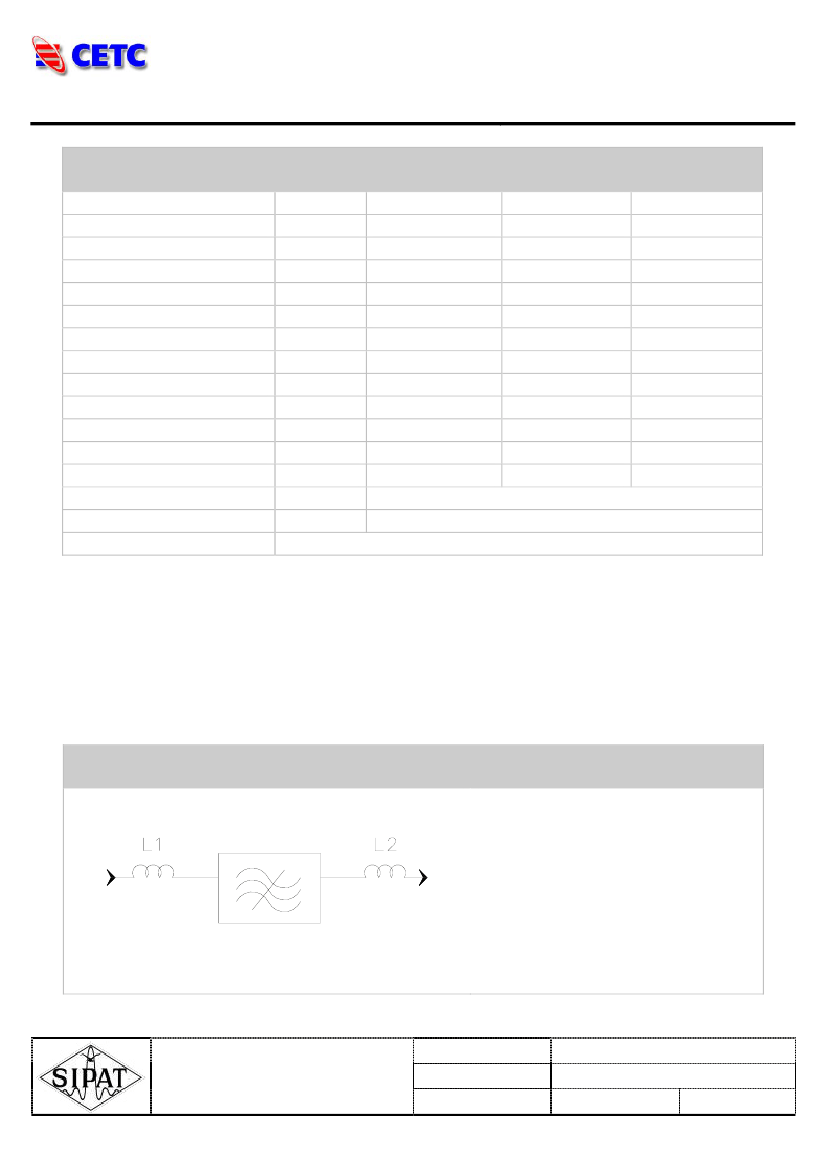

Matching Configuration
L1=L2=82nH
Source/Load Impedance=50 ohm
Notes - Component values may change depending
on board layout.
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
LBN70A17
2006-3-7
1.0
Page
1/3
Phone: +86-23-62920684
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
70MHz SAW Filter
16MHz Bandwidth
Part Number:LBN70A17
www.sipatsaw.com
SIPAT Co., Ltd.

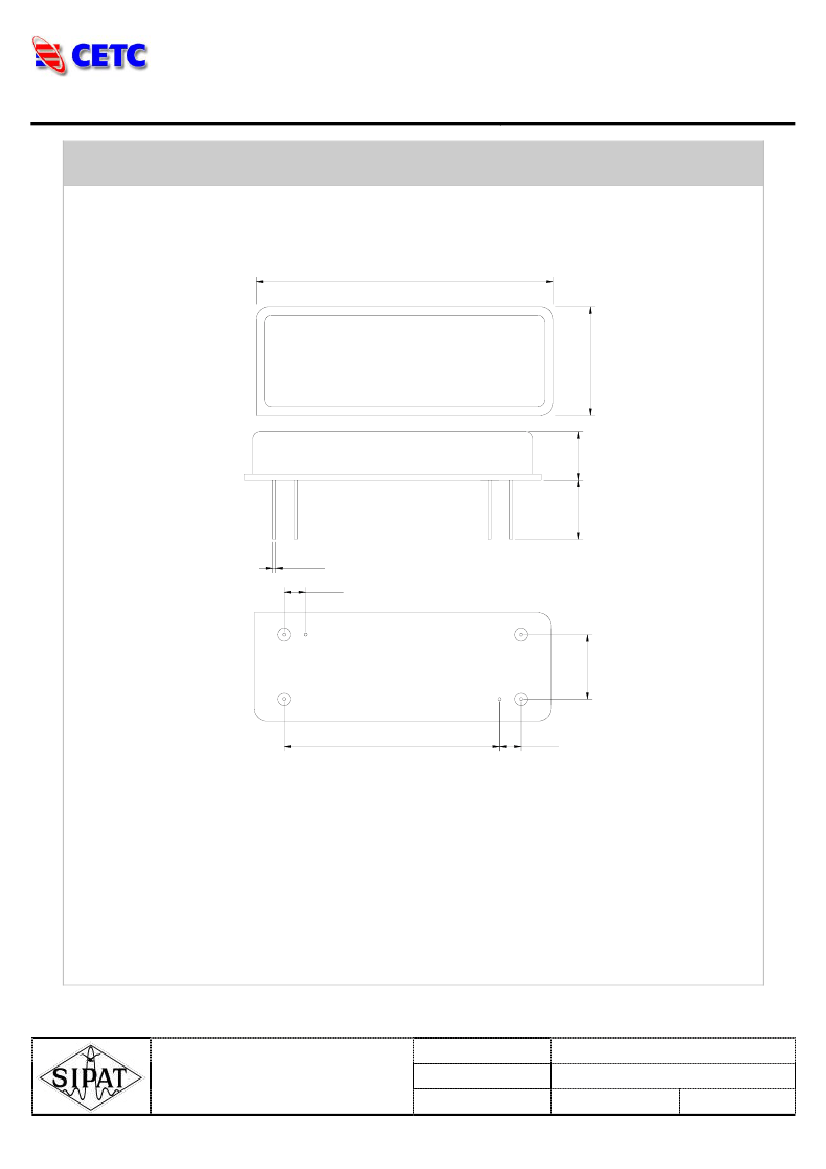

Package Dimension
35.00±0.5
0.35±0.05
2.54±0.2
25.40±0.2
2.54±0.2
7.62±0.2
7.00
5.70
12.80±0.5
3
2
1
SIPAT Co., Ltd.
Phone: +86-23-62920684
4
5
Part Number
Rev. Date
Rev.
6
Input:1
Output:5
LBN70A17
2006-3-7
1.0
Page
2/3
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
70MHz SAW Filter
16MHz Bandwidth
Part Number:LBN70A17
www.sipatsaw.com
SIPAT Co., Ltd.

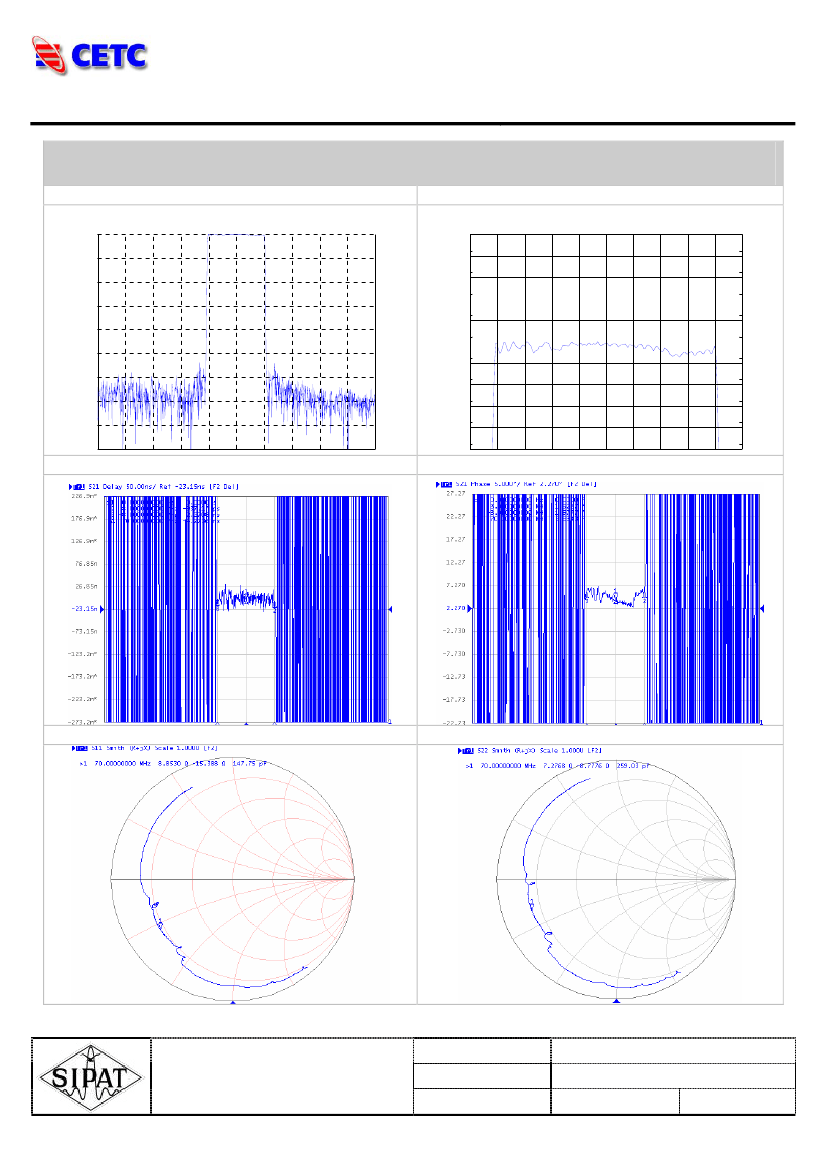

Typical Performance
Frequency Respond
-26.2138
-22
-36.2138
-23
-46.2138
-24
-56.2138
-25
-66.2138
-26
-76.2138
Passband Respond
-27
-86.2138
-28
-96.2138
-29
-106.2138
-30
-31
38
46
54
62
70
78
86
94
102
60
62
64
66
68
70
72
74
76
78
80
Group Delay Variation(f0±8MHz)
Phase Linearity(f0±8MHz)
Smith Chart S11
Smith Chart S22
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
LBN70A17
2006-3-7
1.0
Page
3/3
Phone: +86-23-62920684
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
