70MHz SAW Filter
24MHz Bandwidth
Part Number: LBN70A24
www.sipatsaw.com
SIPAT Co., Ltd.

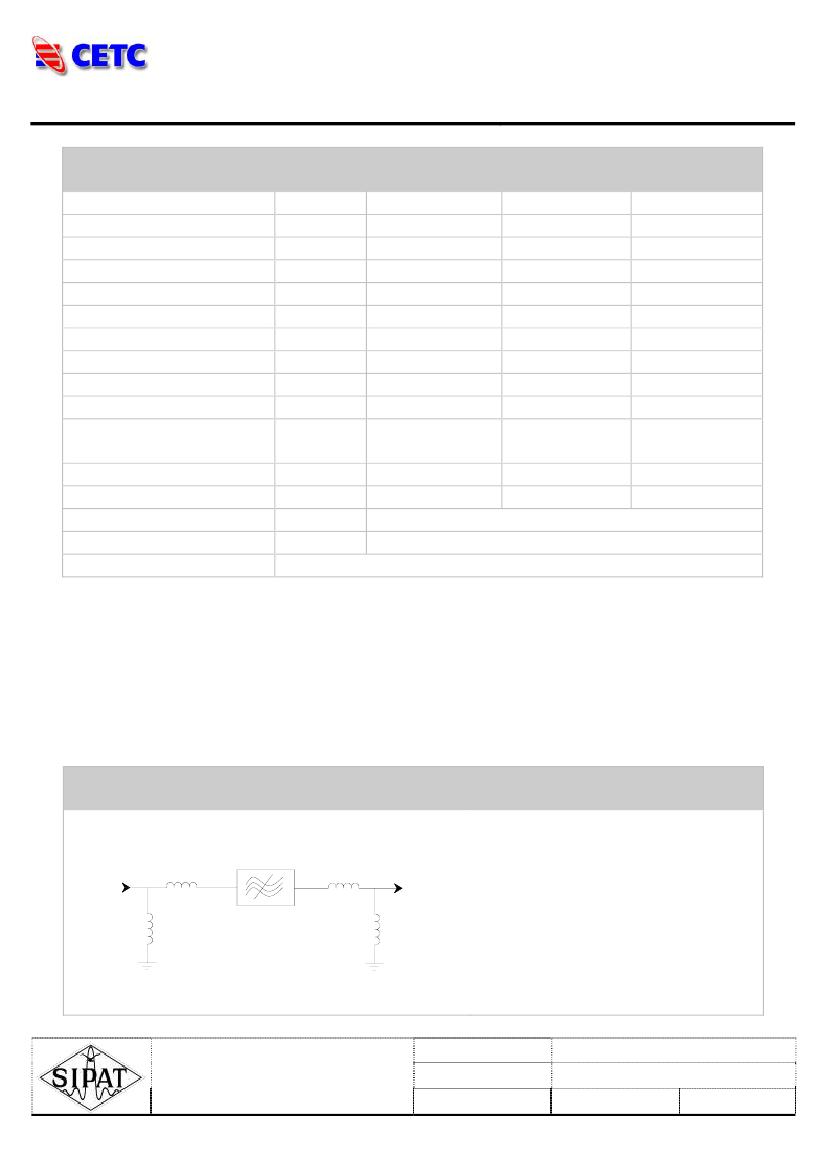

Specifications
Parameter
Center Frequency
Insertion Loss
3 dB Bandwidth
35 dB Bandwidth
40 dB Bandwidth
45dB Bandwidth
50dB Bandwidth
55dB Bandwidth
Near Rejection
Ultimate Rejection
(outside f0
±
25MHz)
Passband Variation
Absolute Delay
Material Temperature coefficient
Ambient Temperature
Package Size
dB
usec
KHz/°C
°C
-
-
0.7
3.73
-6.58
25
DIP3512 (35.2x12.7x5.2mm3)
1.5
4
Unit
MHz
dB
MHz
MHz
MHz
MHz
MHz
MHz
Minimum
69.9
-
24.4
-
-
-
-
-
45
50
Typical
70
30
24.5
25.25
25.3
25.34
25.39
25.43
52
55
Maximum
70.1
31
24.6
25.3
-
25.7
26.5
34.5
-
-
dB
dB
Notes:
1. All specifications are based on the test circuit shown
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure
electrical compliance over temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift
and manufacturing tolerances
4. This is the optimum impedance in order to achieve the performance show
Matching Configuration
INPUT
50
Ω
L1
L2
L3
L1=180nH L2=56nH
OUTPUT
50
Ω
L4
Notes - Component values may change depending
on board layout.
L3=82nH
L4=330nH
Source/Load Impedance=50 ohm
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
LBN70A24
2006-7-3
2.0
Page
1/3
Phone: +86-23-62808818
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
70MHz SAW Filter
24MHz Bandwidth
Part Number: LBN70A24
www.sipatsaw.com
SIPAT Co., Ltd.

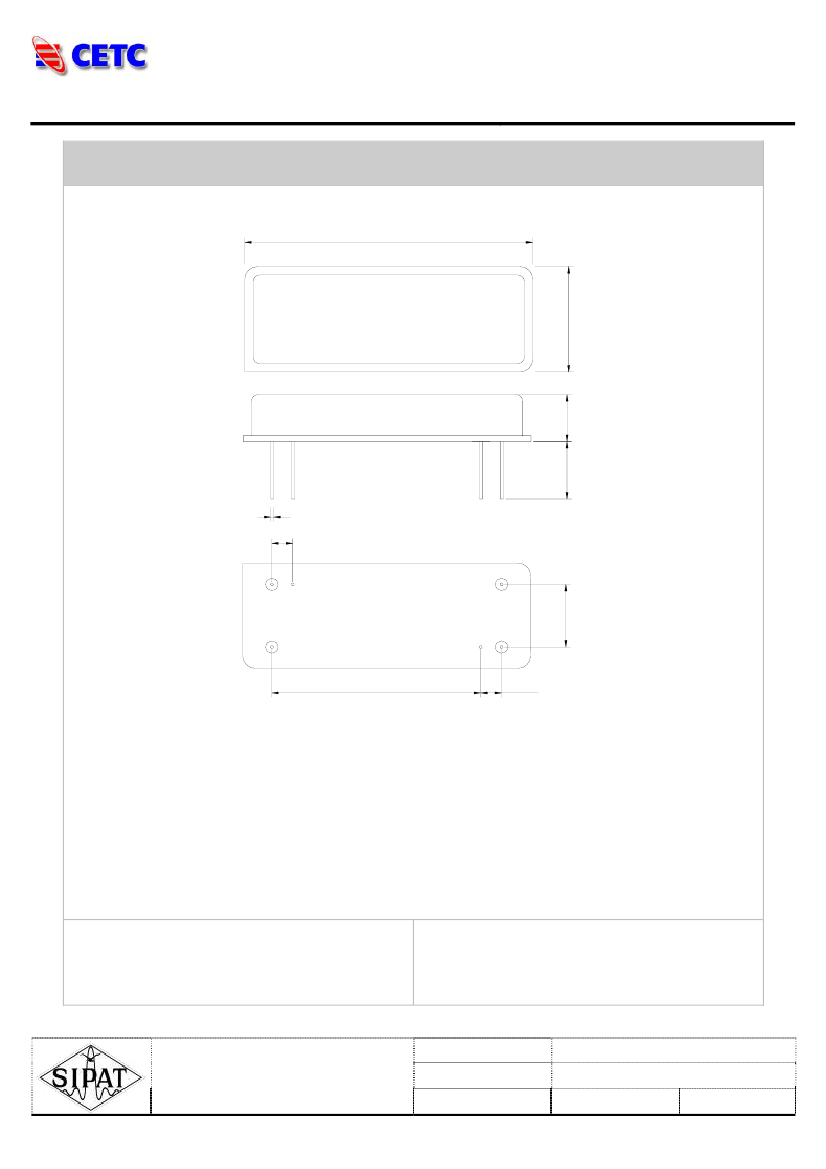

Package Dimension
35.00±0.5
12.80±0.5
0.35±0.05
2.54±0.2
25.40±0.2
2.54±0.2
Package:DIP3512
7.62±0.2
7.00
5.70
3
6
2
1
4
5
Unit:mm
Input
Output
Ground
1
5
2,3,4,6
Package: DIP3512
Unit: mm
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
LBN70A24
2006-7-3
2.0
Page
2/3
Phone: +86-23-62808818
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
70MHz SAW Filter
24MHz Bandwidth
Part Number: LBN70A24
www.sipatsaw.com
SIPAT Co., Ltd.

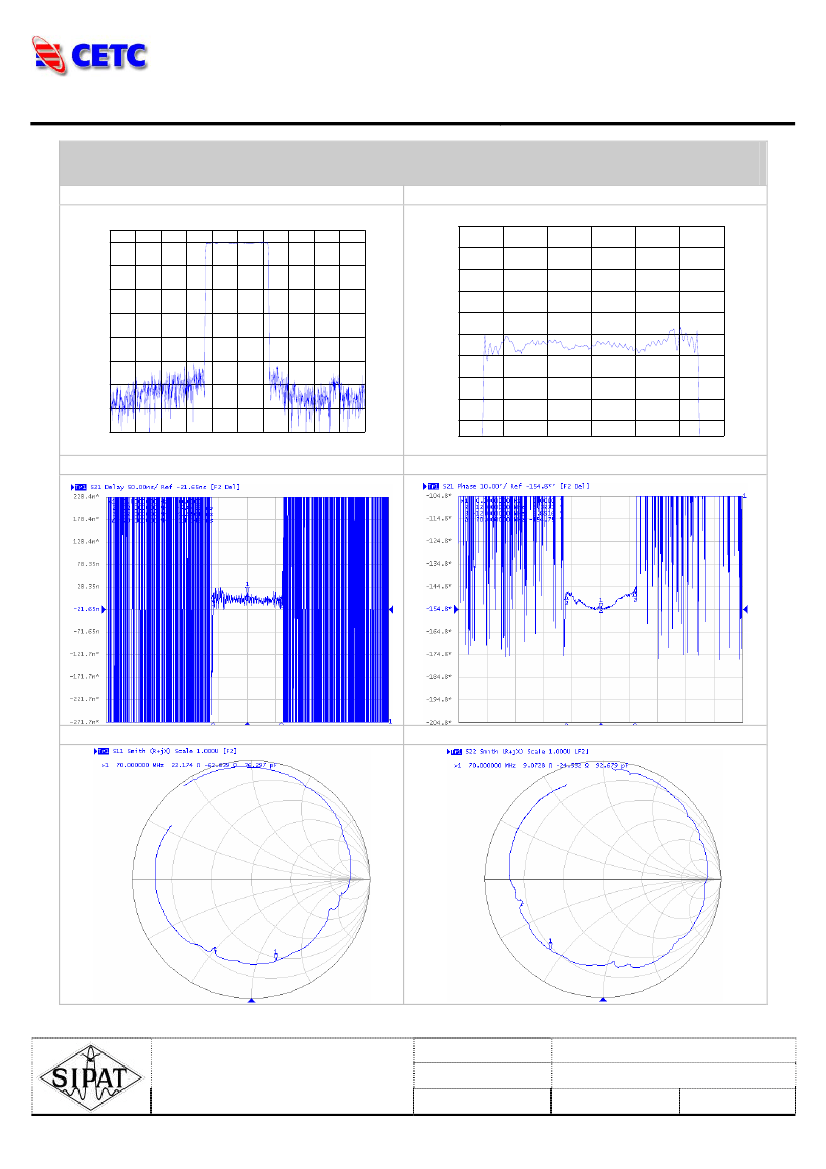

Typical Performance
Frequency Respond
-27.5
-29.8516
Passband Respond
-28
-39.8516
-28.5
-49.8516
-29
-59.8516
-29.5
-69.8516
-30
-79.8516
-30.5
-31
-89.8516
-31.5
-99.8516
-32
-109.8516
30
40
50
60
70
80
90
100
110
55
60
65
70
75
80
85
Group Delay Variation(f0±12MHz)
Phase Linearity(f0±12MHz)
Smith Chart S11
Smith Chart S22
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
LBN70A24
2006-7-3
2.0
Page
3/3
Phone: +86-23-62808818
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
