LBN70A07 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LBN70A07

Preview

LBN70A07: Description70mhz saw filter 6mhz bandwidth; File Size418KB，3 Pages; ManufacturerSIPAT; Websitehttp://www.sipatsaw.com/

Download Datasheet View All

LBN70A07 Overview

70mhz saw filter 6mhz bandwidth

Preview

Download Datasheet

View All

China Electronics Technology Group Corporation

No.26 Research Institute

70MHz SAW Filter

6MHz Bandwidth

Part Number:LBN70A07

www.sipatsaw.com

SIPAT Co., Ltd.

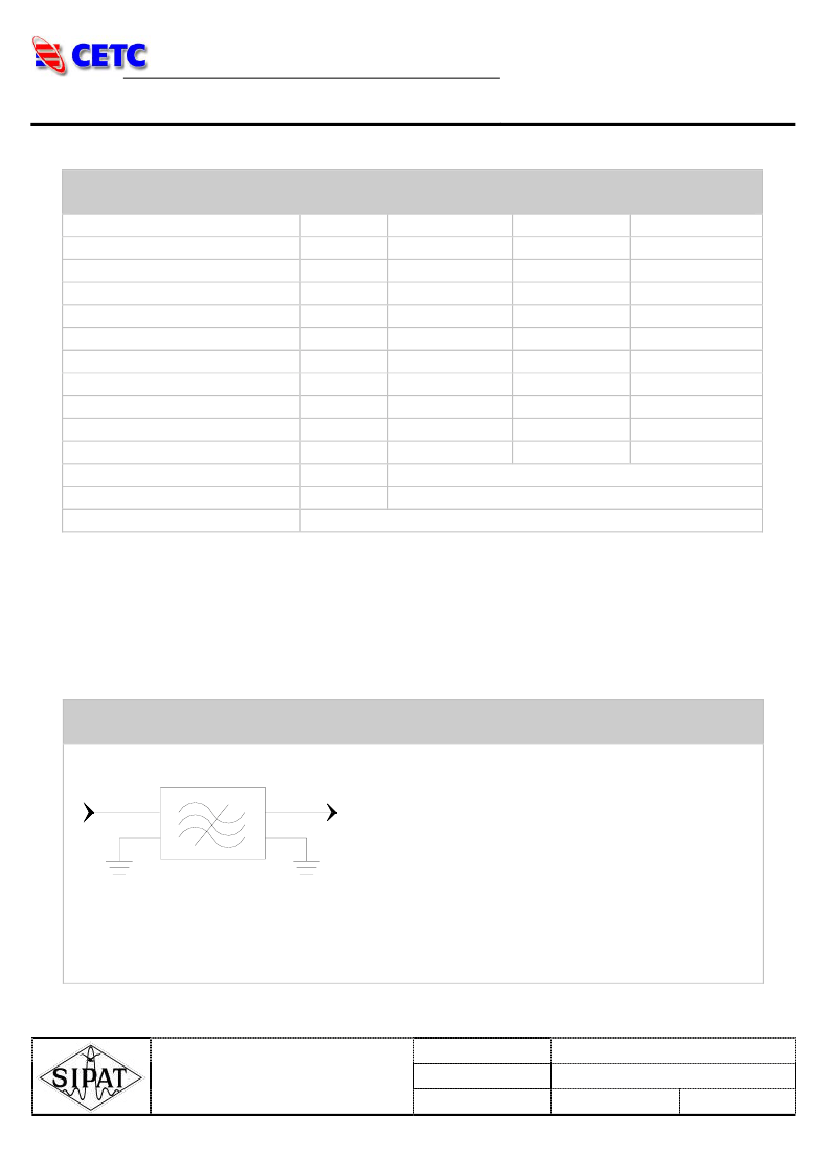

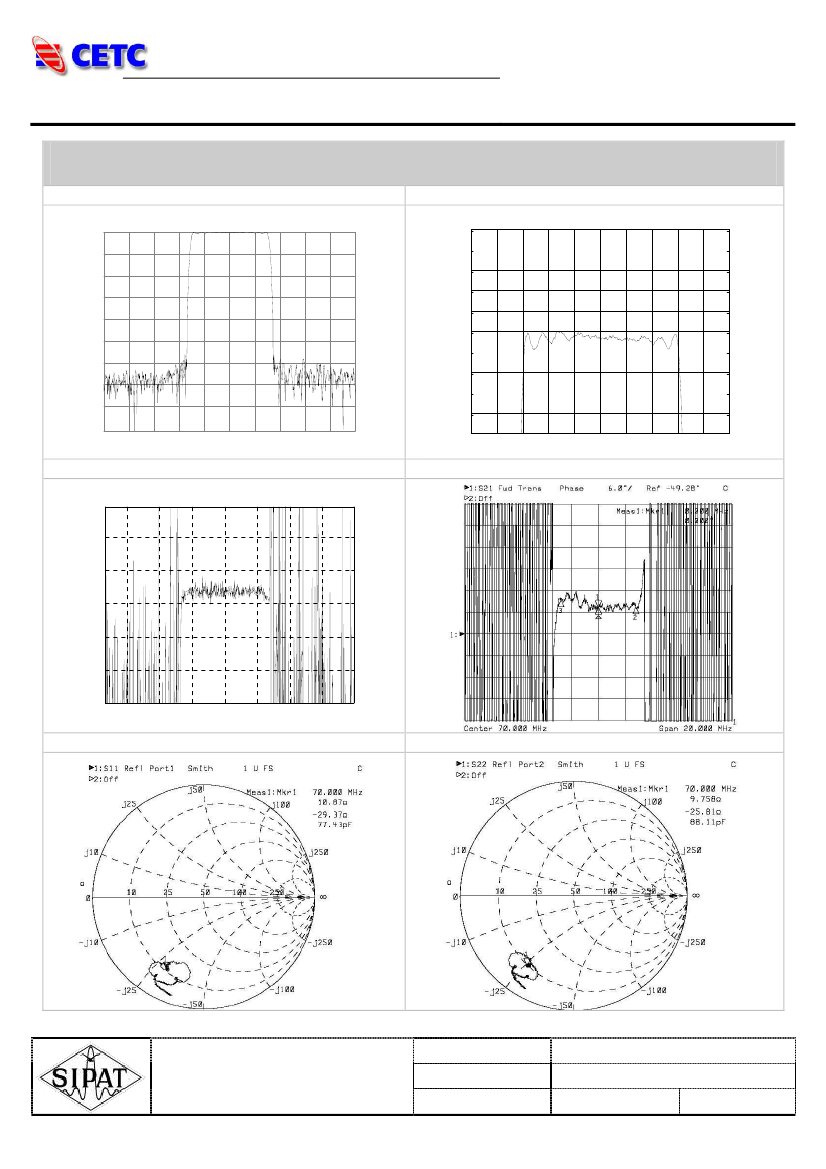

Specifications

Parameter

Center Frequency

Insertion Loss

2 dB Bandwidth

3 dB Bandwidth

35 dB Bandwidth

40 dB Bandwidth

45 dB Bandwidth

Passband Variation

Absolute Delay

Ultimate Rejection(f0±4MHz)

Material Temperature coefficient

Ambient Temperature

Package Size

Unit

MHz

Minimum

69.92

Typical

Maximum

70.08

6.07

6.14

6.76

6.79

6.82

3.68

6.8

7.2

1.5

usec

KHz/°C

°C

-6.58

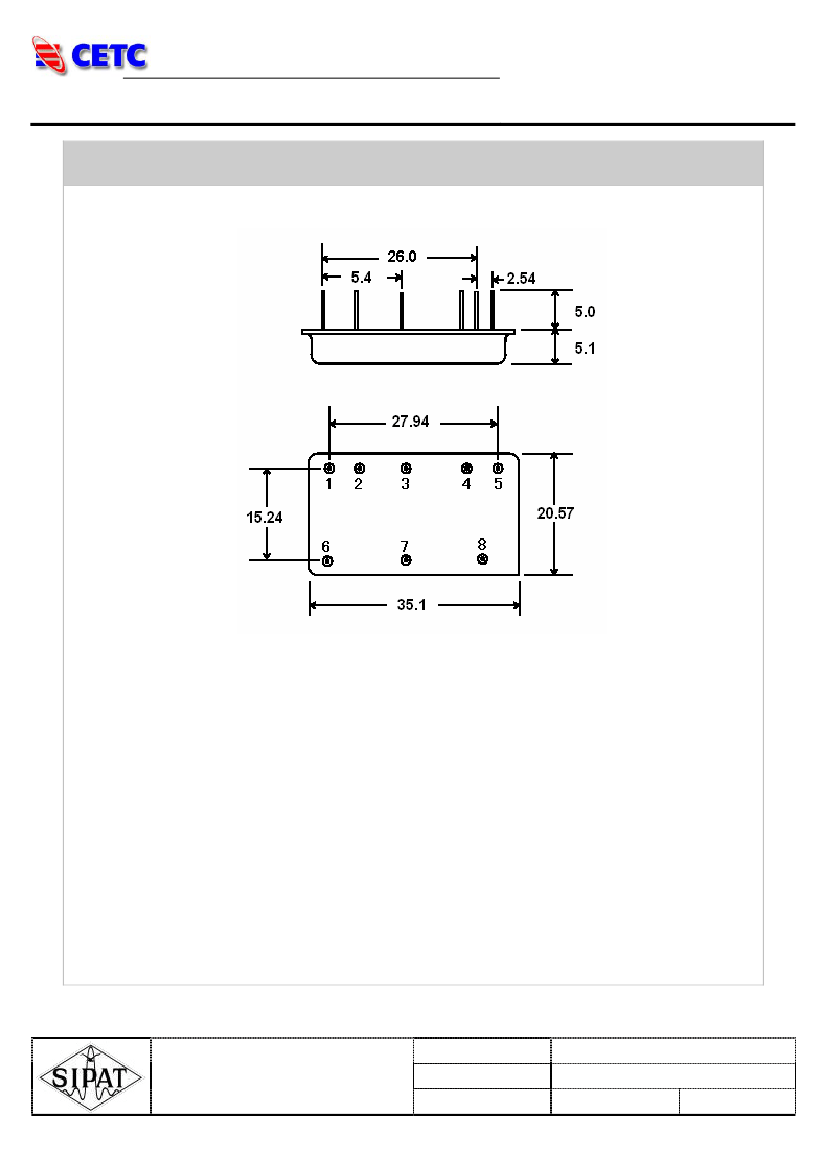

DIP3520(35.1x20.57x5.1mm3)

Notes:

1. All specifications are based on the test circuit shown

2. In production, devices will be tested at room temperature to a guardbanded specification to ensure

electrical compliance over temperature

3. Electrical margin has been built into the design to account for the variations due to temperature drift

and manufacturing tolerances

4. This is the optimum impedance in order to achieve the performance show

Matching Configuration

Source/Load Impedance=50 ohm

Notes - Component values may change depending

on board layout.

SIPAT Co., Ltd.

( CETC No. 26 Research Institute )

Nanping Huayuan Road No. 14

Chongqing, China, 400060

Part Number

Rev. Date

Rev.

LBN70A07

2005-8-18

1.0

Page

1/3

Phone: +86-23-62920684

Fax: +86-23-62805284

www.sipatsaw.com / sawmkt@sipat.com
