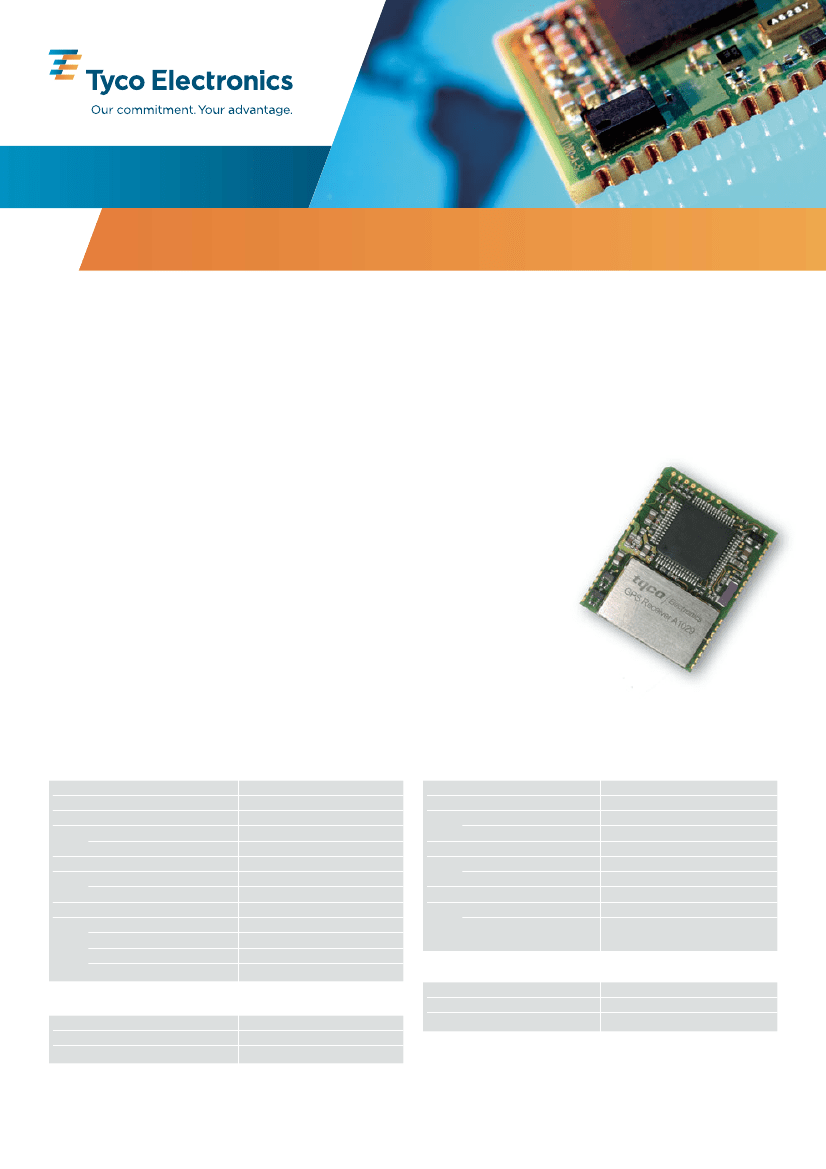

Get your Position!
A1029-C Miniaturized GPS Module
Providing accurate PVT (Position, Velocity and Time) information and fully equipped
with almost countless functions and features, the A1029-C is the flexible GPS receiver
module from Tyco Electronics. WAAS/EGNOS/MSAS is supported in order to improve
position accuracy and assisted GPS data is received via serial interface to cut down
start up times. In situations where the satellite signals are blocked, sensor signals that
are connected to the module with a minimum of effort will help to further calculate
positions (Dead Reckoning). Furthermore, the A1029-C offers an accurate one pulse
per second (1PPS) signal synchronized to Universal Time (UTC).
Highly sensitive
Accurate positioning
Fast TTFF (Time To First Fix)
Temperature fluctuations compensated
SBAS support
A-GPS support
W
W
W
W
W
W
-156 dBm tracking
3 m CEP
< 60 s under cold start condition (typical)
TCXO technology
WAAS, EGNOS, MSAS
Almanac, Ephemeris, Position, Time
Performance
Channels
Frequency
Sensitivity
Tracking
Acquisition
Position accuracy (horizontal)
Stand alone
Differential
1)
Time to first fix
Obscuration recovery
2)
Hot start
3)
Warm start
4)
Cold
5)
12 parallel tracking
L1 – 1575 MHz
-156 dBm
-138 dBm
3 m CEP
< 1 m CEP
1s
<3s
< 32 s
< 45 s
Power
Input voltage
Current draw
Operational (1 fix/s)
Standby
Antenna supply via VANT
Voltage range
Max. allowed current
6)
Antenna current monitor
ANSTANT high
ANSTANT low
3.0 to 3.6 VDC
< 50 mA (typical)
< 30
µA
(typical)
up to 5.2 V
50 mA
9 mA < l
ant
< 16 mA (typical)
l
ant
out of above
specified range
Environment
Temperature
Operating/storage
Humidity
-40°C to +85°C
Non-condensing
Mechanicals
Dimensions
Weight
22 mm x 28 mm x 3.2 mm
0.87” x 1.10” x 0.12”
2 g, < 0.1 oz
1) Assumes a benign multipath environment and differential corrections once
per second.
2) The receiver’s calibrated clock is not stopped, thus it knows precise time
(to the
µs
level).
3) The receiver has estimates of time/date/position and valid almanac and ephemeris
data.
4) The receiver has estimates of time/date/position and almanac.
5) The receiver has no estimate of time/date/position, and no recent almanac.
6) An external current limiter is suggested to avoid damage in fault conditions.
Communications
Standard GPS
Software
NMEA message
switchable
Baudrate (in baud)
Geodetic datum
Projection
Boot loader
GGA, GSA, GSV, VTG, RMC
4800 (default) to 57600
WGS84 standard and
258 map datums
UTM
Easy firmware update
through serial port
Serial Ports
Tx0
Rx0
Tx2
Rx2
3.3V CMOS compatible
NMEA output
NMEA input
Test report output
RTCM input (DGPS)

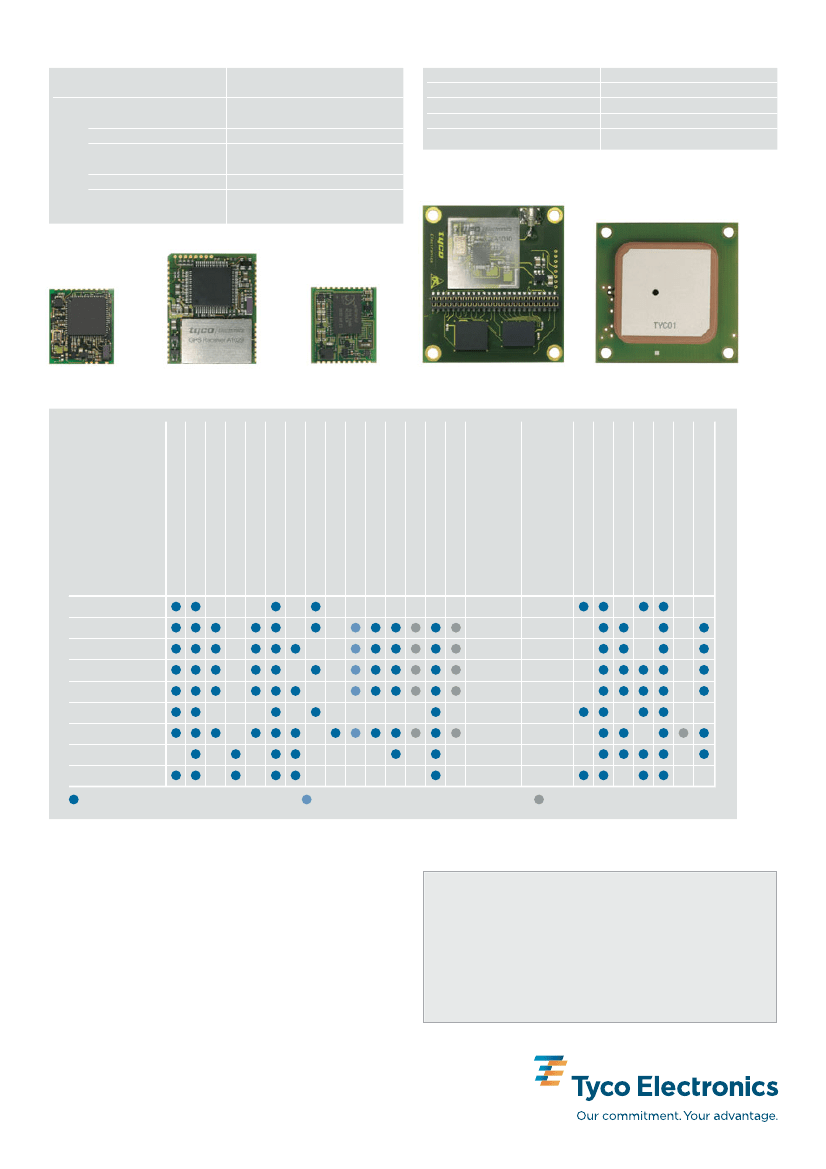

Products shown in actual size
A1037-A
A1029-A/-C
A1080-A
Differential GPS RTCM input
A1030-A
A1035-C/-D
A1037-A
A1029-A
A1029-B
A1029-C
A1029-D
A1080-A
A1030-A
A1035-C
A1035-D
Standard firmware: revision 1xx
Standard firmware: revision 2xx
With custom firmware support
80k/16k 3 MIPS
80k/16k 3 MIPS
80k/16k 3 MIPS
80k/16k 3 MIPS
4M/2M
3 MIPS
80k/16k 3 MIPS
The information provided herein is believed to be reliable at press time. Tyco Electronics Power Systems
assumes no responsibility for inaccuracies or omissions. Tyco Electronics Power Systems assumes no
responsibility for the use of this information, and all such information shall be entirely at the users own
risk. Prices and specifications are subject to change without notice. Tyco Electronics Power Systems
does not authorize or warrant any of its products for use in life-support devices and / or systems.
Your Partner:
Headquarters EMEA:
Tyco Electronics
Power Systems
Finsinger Feld 1
85521 Ottobrunn, Germany
Tel.: +49 (0)89 6089-838
Fax: +49 (0)89 6089-835
gps@tycoelectronics.com
www.tycoelectronics.com/gps
Copyright © 2007, Tyco Electronics, Raychem GmbH, Power Systems · Printed in Hungary · TEC.PS-014-0507.2-E
Memory free flash (byte)
Antenna status detection
Antenna patch onboard
Connection solderable
Flash, programmable
Connection plug-in
GPS/UTC raw data
Antenna passive
Dead reckoning
free SRAM (byte)
available power
UTM projection
Antenna active
SBAS support
USB interface
Assisted GPS
Data logging
UART NMEA
I2C interface
SPI interface
Processor:
TCXO
1 PPS
GPIO
ROM
