Get your Position!
A1035 Smart
GPS
Antenna Modules
The A1035 antenna module family is based on Tyco's GPS receiver A1029-A incorporating
STMicroelectronics' STA2051 base-band chip and SiGe's SE4100L downconverter. The family
comprises three modules for different kind of applications: Automotive, Bluetooth and Consumer.
All modules offer an antenna for optimum signal reception and performance. The A1035-A takes
advantage of the integral CAN controller within the STA2051. A CAN transceiver and an RS232
interface allow the transmission of position, velocity and time information over long distance in
a cost-effective way. In combination with a wide voltage input range this module is ideally suited
for automotive applications. The Bluetooth version A1035-B is optimized for use in navigation
applications. With the Bluetooth stack running in the STA2051 and the integration of the STLC2500
Bluetooth RF frontend module this combination provides the most integrated solution transmitting
the PVT information via SPP protocol stack. Finally the consumer version A1035-C is addressing
telematics applications where a board-to-board or cable connection to a smart antenna module
is required. Information can be exchanged via UART or SPI on CMOS TTL level.
W
W
W
W
W
W
Samples and off-the-shelf smart antenna solutions
Optimized designs for different applications (OEM versions)
Cost-efficient, fast and easy system integration
Best performance due to perfect trimming
Ultra-low power consumption
SBAS (WAAS/EGNOS/MSAS) support
Performance
Channels
Frequency
Position Accuracy
Stand alone
Differential
1
Time To First Fix
Obscuration recovery
2
Hot start
3
Warm start
4
Autonomous/Cold
5
Power-off start
6
12 parallel tracking
L1 - 1575 MHz
3 m CEP, SA off
< 1 m CEP
1s
<3s
< 32 s
< 60 s (Std.), < 45 s (TCXO)
varying

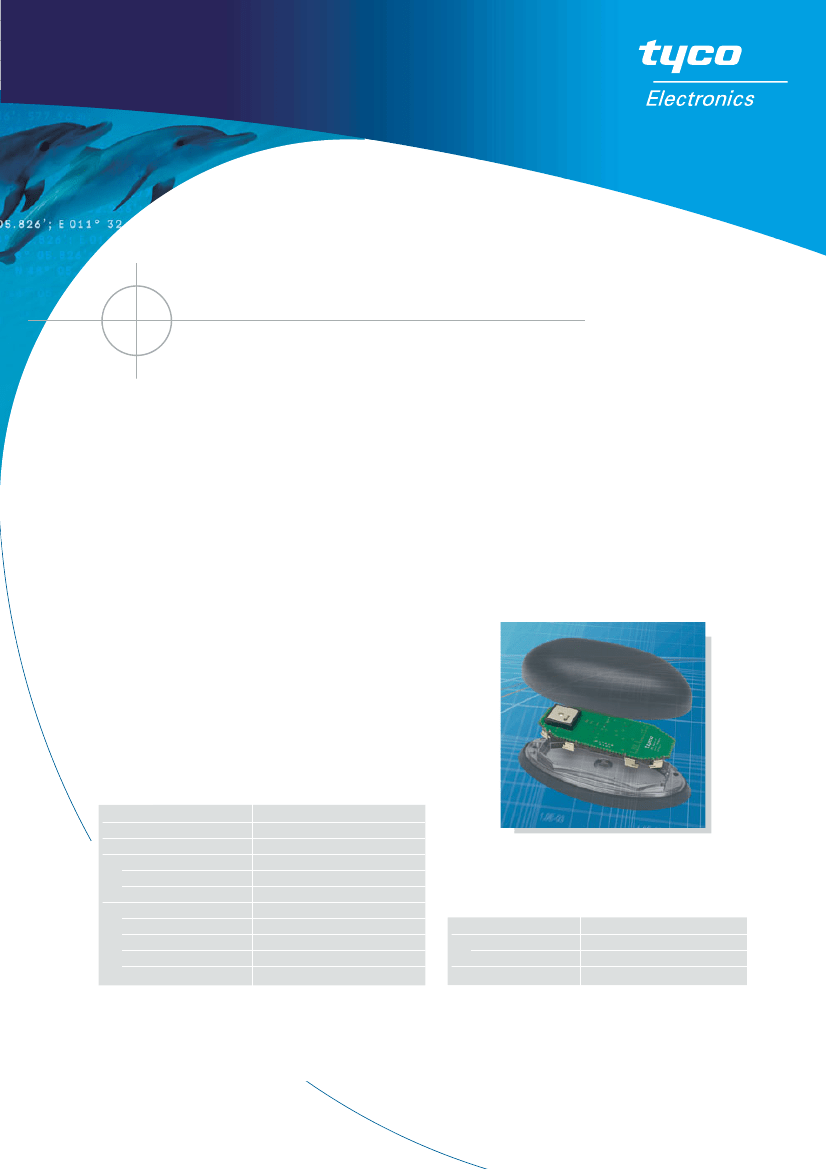

Example only, A 1035-A module
comes without housing
Environment
Temperature
Operating
Storage
Humidity
-40°C to +85°C
-40°C to +85°C
non-condensing
1)
2)
3)
4)
5)
6)
Assumes a benign multipath environment and differential corrections once per second.
The receiver’s calibrated clock is not stopped, thus it knows precise time (to the µs level).
The receiver has estimates of time/date/position and valid almanac and ephemeris data.
The receiver has estimates of time/date/position and almanac.
The receiver has no estimate of time/date/position, and no recent almanac.
Receiver is powered-off, clock stops. Start-up time depends on time to power on and power-on location.
A1035-A
Dimensions
Weight
Power
Connector
Protocols
60 mm x 36 mm x 11 mm (appr.)
2.36’’ x 1.42’’ x 0.43’’ (appr.)
24 g, 1.2 oz (appr.)
7 V to 30 V
9 pin cable connector with
Power/GND, CANbus and RS232
Proprietary or custom specific on
CANbus (PVT), NMEA (GGA, GSA,
GSV, RMC, VTG) on RS232
A1035-C
Dimensions
Weight
Power
Connector
35.6 mm x 35.6 mm x 11 mm (appr.)
1.4’’ x 1.4’’ x 0.43’’ (appr.)
11 g, 0.5 oz (appr.)
3.3 V ± 5%
9 pin board-to-board or cable
connector with Power/GND,
UART and SPI on CMOS TTL
Proprietary or custom specific
on SPI (PVT), NMEA (GGA, GSA,
GSV, RMC, VTG)
Copyright © 2005, Tyco Electronics, Raychem GmbH, Power Systems · Printed in Hungary · TEC.PS-018-1205.2-E
Protocols
A1035-B
Dimensions
Weight
Power
Connector
Protocols
60 mm x 36 mm x 11 mm
2.36’’ x 1.42’’ x 0.43’’
13 g, 0.6 oz (appr.)
5 V regulated
2 solder pads
SPP 1.1 with NMEA (GGA, GSA,
GSV, RMC, VTG)
Products
GPS antenna module for automotive
applications (12V PWR, CANbus)
DK1035-A
Demo kit for above with CD, cable set
A1035-B
GPS antenna module with Bluetooth
interface (5V PWR)
DK1035-B
Demo kit for above with CD
A1035-C
GPS antenna module (CMOS TTL PWR)
DK1035-C
Demo kit for above with CD, cable set

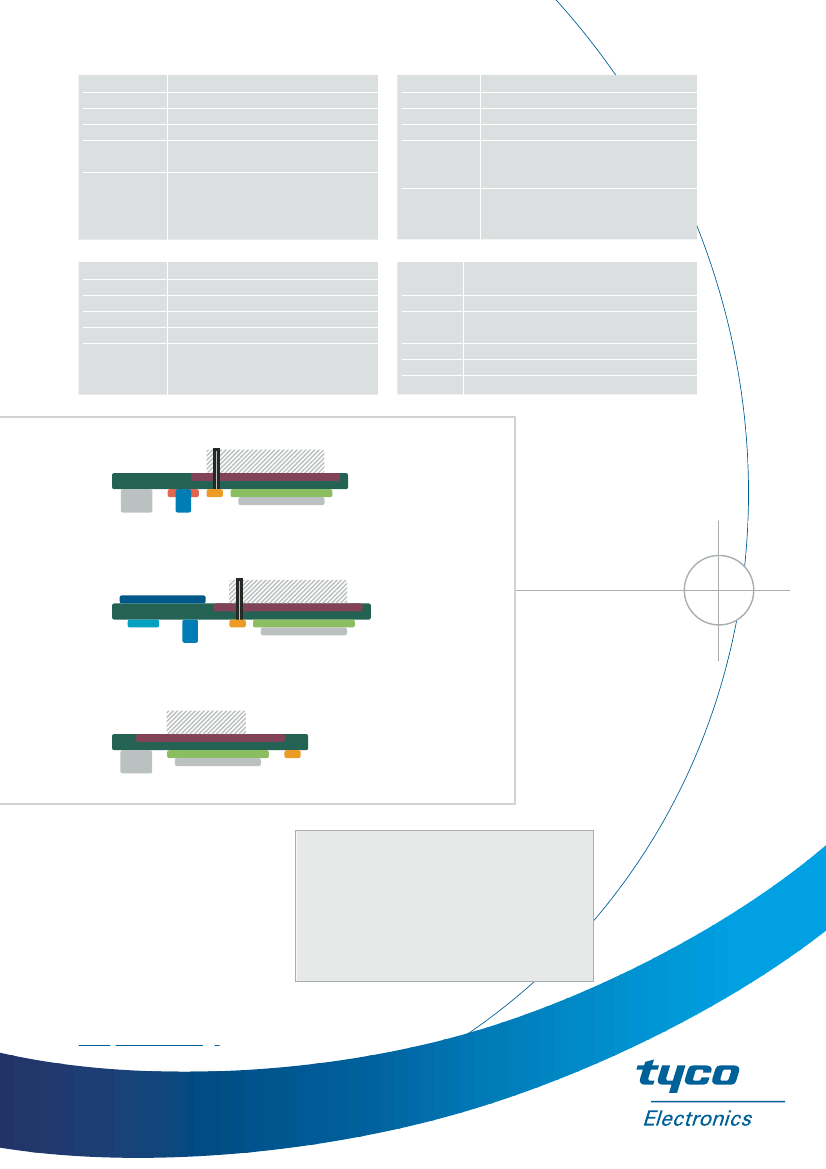

A1035-A
CAN transceiver
RS232 level shifter
GPS antenna patch
A1035-A
Connector
PSU LNA
GPS receiver
GPS antenna patch
Bluetooth antenna
A1035-B
BT-RF
STLC2500 PSU
ANTENNA
PRINCIPLES
LNA
GPS receiver
RangeStar GPS antenna/ceramic patch antenna
A1035-C
Connector
GPS receiver
LNA
The information provided herein is believed to be re-
liable at press time. Tyco Electronics, Power Systems
assumes no responsibility for inaccuracies or omis-
sions. Tyco Electronics, Power Systems assumes no
responsibility for the use of this information, and all
such information shall be entirely at the users own
risk. Prices and specifications are subject to change
without notice. Tyco Electronics, Power Systems
does not authorize or warrant any of its products for
use in life-support devices and / or systems.
Your Partner:
Tyco Electronics
Power Systems
Finsinger Feld 1
85521 Ottobrunn, Germany
Tel.:
+49 (0)89 6089-838
Fax:
+49 (0)89 6089-835
gps@tycoelectronics.com
www.tycoelectronics.com/gps
