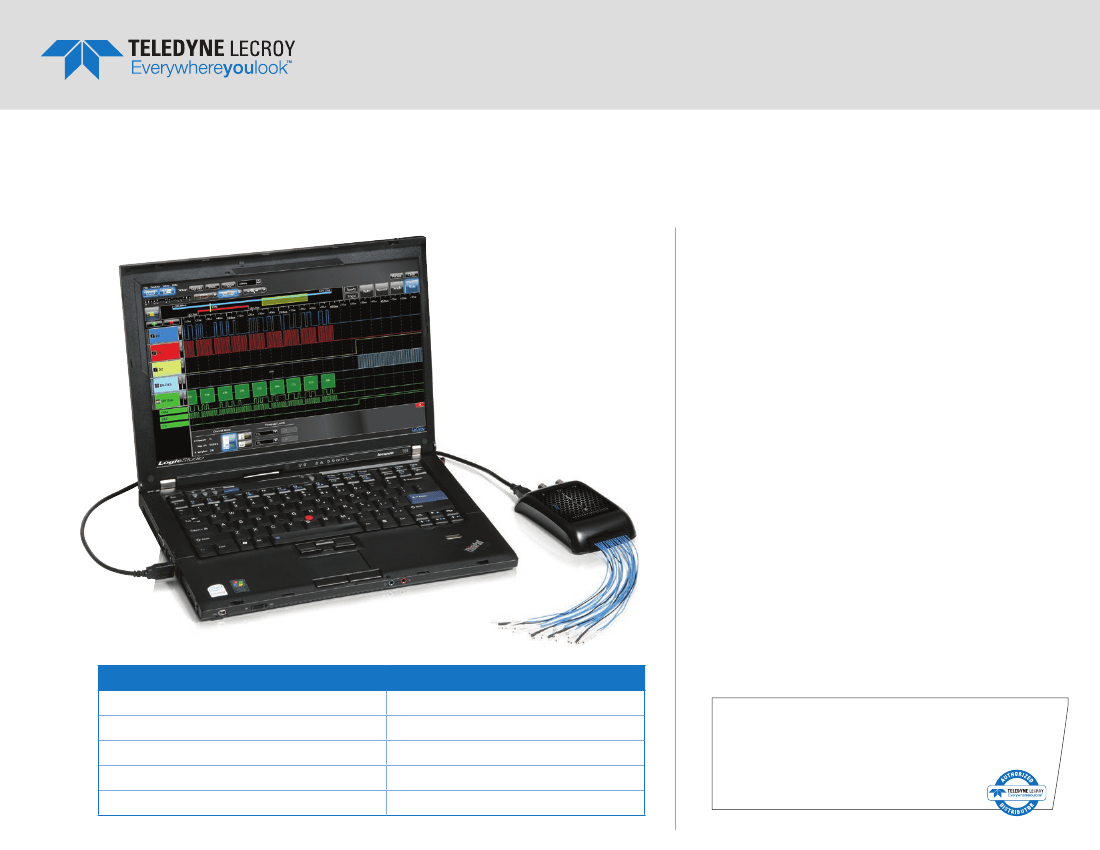

LogicStudio Logic Analyzer
Faster, Smarter Debug
•
Powerful Feature Set
— Timing cursors,
history mode and serial data protocol decoding
help debug the most complicated problems
•
Easy to Use
— Simple mouse operations
control every aspect of the user-interface
from panning and zooming waveforms to
configuring the trigger
•
Mixed Signal
— Turn your PC into an
MSO by connecting LogicStudio to any
of ten popular oscilloscopes from Teledyne
LeCroy, Tektronix and Agilent
•
Serial Bus Decode and Trigger
— Capture
and decode I
2
C, SPI and UART messages
•
Try it for Free
—
Key Specifications
Minimum Detectable Pulse Width
Channels
Memory
Sample Rate
Serial Bus Tools
3.75 ns
16
20 kpts/Ch, 40 kpts Interleaved
Up to 1 GS/s
I
2
C, SPI, UART
Visit teledynelecroy.com/logicstudio to
download the fully features demo version
For more information, please contact:
LogicStudio Logic Analyzer
Turn the PC into a MIxed
Signal Oscilloscope
LogicStudio is compatible with
10 popular oscilloscopes series from
Teledyne LeCroy, Tektronix and Agilent
covering bandwidths from 40 MHz up to

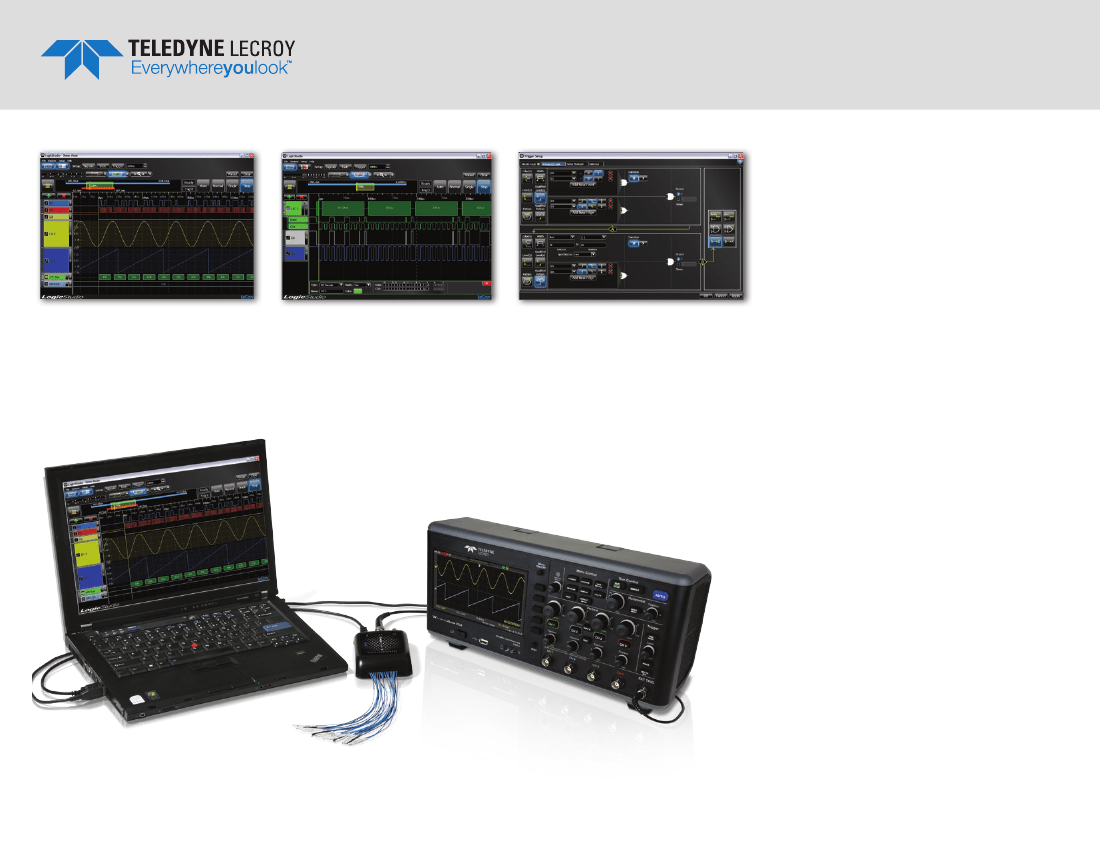

Turn any PC in to an MSO by
connecting LogicStudio to any
of ten popular oscilloscopes from
Teledyne LeCroy, Tektronix and
Agilent.
View decoded protocol information
for I
2
C, SPI and UART busses plus
trigger on data being transmitted on
the serial busses.
Create powerful trigger conditions
by combining edge, logic level, parallel
bus and serial bus triggers.
1 GHz. Connecting the instruments is easy
with the included USB and BNC cables,
make the connections and let the
software establish the link and begin
displaying waveforms.
Supported Oscilloscopes
Teledyne LeCroy
WaveJet 300A,
WaveAce 1000/2000
Tektronix
TDS1000B, TDS2000B,
TDS2000C, TDS3000C
DPO/MSO2000
DPO/MSO3000
DPO/MSO4000
DPO/MSO4000B
Agilent
DSO5000A
DSO/MSO6000A
DSO/MSO7000A
DSO/MSO7000B
LogicStudio-Fact-Sheet-11jun14
