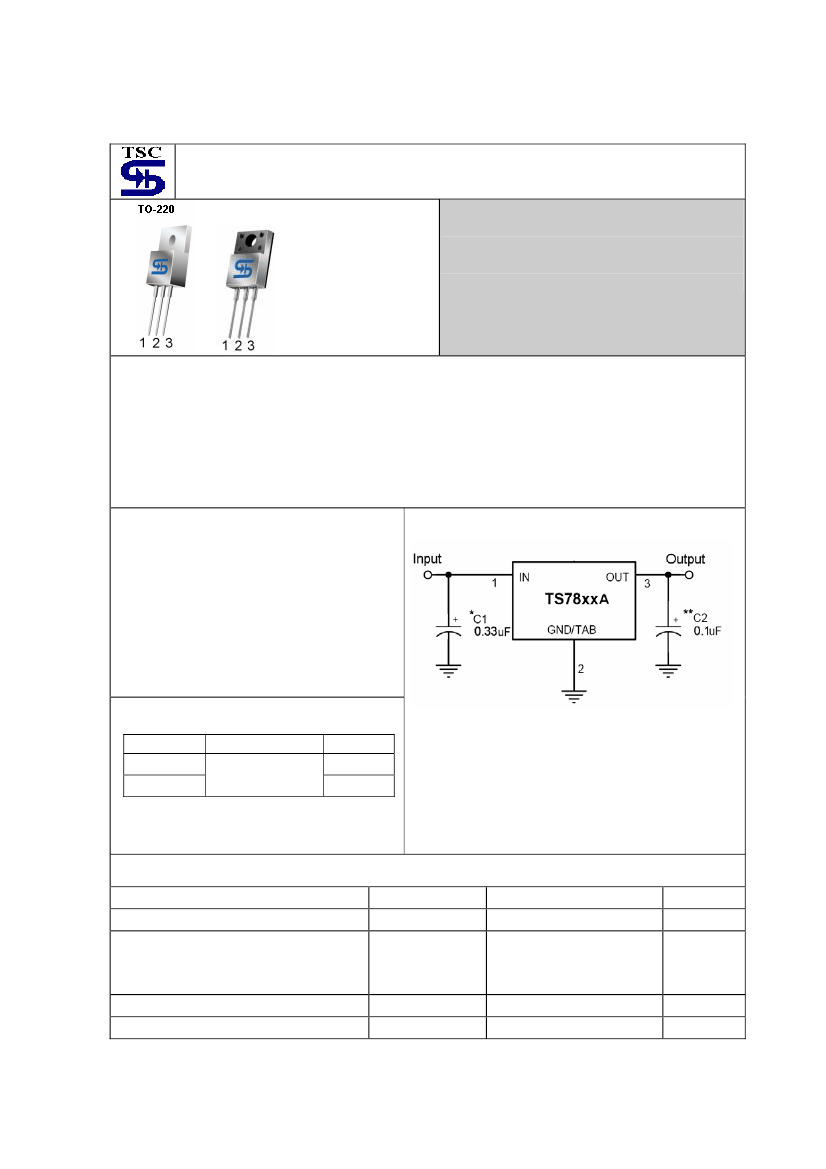

TS7800A series
3-Terminal Fixed Positive Voltage Regulator
ITO-220
Pin assignment:
1. Input
2. Ground
3.
Output
(Heatsink surface
connected to Pin 2)
Voltage Range 5V to 24V
Output Current up to 1.5A
General Description
These voltage regulators are monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of
applications including local, on-card regulation. These regulators employ internal current limiting, thermal shutdown, and
safe-area compensation. With adequate heatsink they can deliver output currents up to 1.5 ampere.
Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain
adjustable voltages and currents.
This series is offered in 3-pin TO-220, ITO-220 package.
Features
Output current up to 1.5A
No external components required
Internal thermal overload protection
Internal short-circuit current limiting
Output transistor safe-area compensation
Output voltage offered in 4% tolerance
Standard Application
Ordering Information
Part No.
TS78xxACZ
TS78xxACI
Operating Temp.
0 ~ +125 C
o
Package
TO-220
ITO-220
Note: Where xx denotes voltage option.
A common ground is required between the input and the
output voltages. The input voltage must remain typically 2.0V
above the output voltage even during the low point on the
Input ripple voltage.
XX = these two digits of the type number indicate voltage.
* = Cin is required if regulator is located an appreciable
distance from power supply filter.
** = Co is not needed for stability; however, it does improve
transient response.
Absolute Maximum Rating
Input Voltage
Input Voltage
Power Dissipation
TO-220
TO-220
ITO-220
Operating Junction Temperature Range
Storage Temperature Range
Note :
* TS7805 to TS7818
** TS7824
*** Follow the derating curve
Vin *
Vin **
Without heatsink
Pt ***
Without heatsink
T
J
T
STG
35
40
2
15
10
0 ~ +125
-65 ~ +150
o
o
V
V
W
C
C
TS7800A series
1-9
2003/12 rev. B
TS7805A Electrical Characteristics
(Vin=10V, Iout=500mA, 0 C≤Tj≤125 C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
o
o
Parameter
Output voltage
Symbol
o
Test Conditions
Tj=25 C
7.5V≤Vin≤20V, 10mA≤Iout≤1.5A,
PD≤15W
7.5V≤Vin≤25V
8V≤Vin≤12V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
o
Min
4.90
4.80
--
--
--
--
--
--
--
Typ
5
5
3
1
15
5
4.2
--
--
40
78
2
17
750
2.2
-0.6
Max
5.10
5.20
100
50
100
50
8
1.3
0.5
--
--
--
--
--
--
--
Unit
V
Vout
Line Regulation
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Output Resistance
Output Short Circuit Current
Peak Output Current
Temperature Coefficient of
Output Voltage
REGline
REGload
Iq
∆Iq
Vn
RR
Vdrop
Rout
Ios
Io peak
∆Vout/ ∆Tj
Tj=25
o
C
Tj=25
o
C
mV
Iout=0, Tj=25 C
7.5V≤Vin≤25V
10mA≤Iout≤1.5A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, 8V≤Vin≤18V
Iout=1.0A, Tj=25
o
C
f=1KHz
Tj=25 C
Tj=25 C
Iout=10mA, 0 C≤Tj≤125 C
o
o
o
o
o
mA
uV
dB
V
mΩ
mA
A
mV/
o
--
62
--
--
--
--
--
C
TS7806A Electrical Characteristics
(Vin=11V, Iout=500mA, 0 C≤Tj≤125 C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
o
o
Parameter
Output Voltage
Symbol
o
Test Conditions
Tj=25 C
8.5V≤Vin≤21V, 10mA≤Iout≤1.5A,
PD≤15W
8.5V≤Vin≤25V
9V≤Vin≤13V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
o
Min
5.88
6.76
--
--
--
--
--
--
--
Typ
6
6
5
1.5
14
4
4.3
--
--
45
75
2
19
550
2.2
-0.7
Max
6.12
6.24
120
60
120
60
8
1.3
0.5
--
--
--
--
--
--
--
Unit
V
Vout
Line Regulation
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Output Resistance
Output Short Circuit Current
Peak Output Current
Temperature Coefficient of
REGline
REGload
Iq
∆Iq
Vn
RR
Vdrop
Rout
Ios
Io peak
∆Vout/ ∆Tj
Tj=25 C
Tj=25 C
o
o
mV
Iout=0, Tj=25 C
8.5V≤Vin≤25V
10mA≤Iout≤1.5A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, 9V≤Vin≤19V
Iout=1.0A, Tj=25
o
C
f=1KHz
Tj=25 C
Tj=25 C
Iout=10mA, 0
o
C≤Tj≤125
o
C
o
o
o
mA
uV
dB
V
mΩ
mA
A
mV/
o
--
59
--
--
--
--
--
Output Voltage
Pulse testing techniques are used to maintain the junction temperature as close to the ambient temperature as
possible, and thermal effects must be taken into account separately.
This specification applies only for DC power dissipation permitted by absolute maximum ratings.
C
TS7800A series
2-9
2003/12 rev. B
TS7808A Electrical Characteristics
(Vin=14V, Iout=500mA, 0 C≤Tj≤125 C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
o
o
Parameter
Output Voltage
Symbol
o
Test Conditions
Tj=25 C
10.5V≤Vin≤23V,
10mA≤Iout≤1.5A, PD≤15W
10.5V≤Vin≤25V
11V≤Vin≤17V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
o
Min
7.84
7.68
--
--
--
--
--
--
--
Typ
8
8
6
2
12
4
4.3
--
--
52
72
2
16
450
2.2
-0.8
Max
8.16
8.32
160
80
160
80
8
1
0.5
--
--
--
--
--
--
--
Unit
V
Vout
Line Regulation
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Output Resistance
Output Short Circuit Current
Peak Output Current
Temperature Coefficient of
Output Voltage
REGline
REGload
Iq
∆Iq
Vn
RR
Vdrop
Rout
Ios
Io peak
∆Vout/ ∆Tj
Tj=25 C
Tj=25 C
o
o
mV
Iout=0, Tj=25 C
10.5V≤Vin≤25V
10mA≤Iout≤1.5A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, 11V≤Vin≤21V
Iout=1.0A, Tj=25
o
C
f=1KHz
Tj=25 C
Tj=25 C
Iout=10mA, 0
o
C≤Tj≤125
o
C
o
o
o
mA
uV
dB
V
mΩ
mA
A
mV/
o
--
56
--
--
--
--
--
C
TS7809A Electrical Characteristics
(Vin=15V, Iout=500mA, 0 C≤Tj≤125 C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
o
o
Parameter
Output Voltage
Symbol
o
Test Conditions
Tj=25 C
11.5V≤Vin≤23V,
10mA≤Iout≤1.5A, PD≤15W
11.5V≤Vin≤26V
12V≤Vin≤17V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
o
Min
8.82
8.64
--
--
--
--
--
--
--
Typ
9
9
6
2
12
4
4.3
--
--
52
72
2
16
450
2.2
-1
Max
9.18
9.36
180
90
180
90
8
1
0.5
--
--
--
--
--
--
--
Unit
V
Vout
Line Regulation
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Output Resistance
Output Short Circuit Current
Peak Output Current
Temperature Coefficient of
REGline
REGload
Iq
∆Iq
Vn
RR
Vdrop
Rout
Ios
Io peak
∆Vout/ ∆Tj
Tj=25
o
C
Tj=25 C
o
mV
Iout=0, Tj=25 C
11.5V≤Vin≤26V
10mA≤Iout≤1.5A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, 12V≤Vin≤22V
Iout=1.0A, Tj=25 C
f=1KHz
Tj=25 C
Tj=25 C
Iout=10mA, 0 C≤Tj≤125 C
o
o
o
o
o
o
mA
uV
dB
V
mΩ
mA
A
mV/
o
--
55
--
--
--
--
--
Output Voltage
Pulse testing techniques are used to maintain the junction temperature as close to the ambient temperature as
possible, and thermal effects must be taken into account separately.
This specification applies only for DC power dissipation permitted by absolute maximum ratings.
C
TS7800A series
3-9
2003/12 rev. B
TS7810A Electrical Characteristics
(Vin=16V, Iout=500mA, 0 C≤Tj≤125 C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
o
o
Parameter
Output Voltage
Symbol
o
Test Conditions
Tj=25 C
12.5V≤Vin≤25V,
10mA≤Iout≤1.5A, PD≤15W
12.5V≤Vin≤28V
13V≤Vin≤17V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
o
Min
9.8
9.6
--
--
--
--
--
--
--
Typ
10
10
7
2
12
4
4.3
--
--
70
71
2
18
400
2.2
-1
Max
10.2
10.4
200
100
200
100
8
1
0.5
--
--
--
--
--
--
--
Unit
V
Vout
Line Regulation
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Output Resistance
Output Short Circuit Current
Peak Output Current
Temperature Coefficient of
Output Voltage
REGline
REGload
Iq
∆Iq
Vn
RR
Vdrop
Rout
Ios
Io peak
∆Vout/ ∆Tj
Tj=25 C
Tj=25 C
o
o
mV
Iout=0, Tj=25 C
12.5V≤Vin≤28V
10mA≤Iout≤1.5A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, 13V≤Vin≤23V
Iout=1.0A, Tj=25
o
C
f=1KHz
Tj=25 C
Tj=25 C
Iout=10mA, 0
o
C≤Tj≤125
o
C
o
o
o
mA
uV
dB
V
mΩ
mA
A
mV/
o
--
55
--
--
--
--
--
C
TS7812A Electrical Characteristics
(Vin=19V, Iout=500mA, 0 C≤Tj≤125 C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
o
o
Parameter
Output Voltage
Symbol
o
Test Conditions
Tj=25 C
14.5V≤Vin≤27V,
10mA≤Iout≤1.5A, PD
≤15W
14.5V≤Vin≤30V
15V≤Vin≤19V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
Min
11.76
11.52
--
--
--
--
--
--
--
Typ
12
12
10
3
12
4
4.3
--
--
75
71
2
18
350
2.2
-1
Max
12.24
12.48
240
120
240
120
8
1
0.5
--
--
--
--
--
--
--
Unit
V
Vout
Line Regulation
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Output Resistance
Output Short Circuit Current
Peak Output Current
Temperature Coefficient of
REGline
REGload
Iq
∆Iq
Vn
RR
Vdrop
Rout
Ios
Io peak
∆Vout/ ∆Tj
Tj=25
o
C
Tj=25 C
o
o
mV
Tj=25 C, Iout=0
14.5V≤Vin≤30V
10mA≤Iout≤1.5A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, 15V≤Vin≤25V
Iout=1.0A, Tj=25 C
f=1KHz
Tj=25 C
Tj=25 C
Iout=10mA, 0 C≤Tj≤125 C
o
o
o
o
o
o
mA
uV
dB
V
mΩ
mA
A
mV/
o
--
55
--
--
--
--
--
Output Voltage
Pulse testing techniques are used to maintain the junction temperature as close to the ambient temperature as
possible, and thermal effects must be taken into account separately.
This specification applies only for DC power dissipation permitted by absolute maximum ratings.
C
TS7800A series
4-9
2003/12 rev. B
TS7815A Electrical Characteristics
(Vin=23V, Iout=500mA, 0 C≤Tj≤125 C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
o
o
Parameter
Output Voltage
Symbol
o
Test Conditions
Tj=25 C
17.5V≤Vin≤30V,
10mA≤Iout≤1.5A, PD
≤15W
17.5V≤Vin≤30V
18V≤Vin≤22V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
Min
14.70
14.40
--
--
--
--
--
--
--
Typ
15
15
12
3
12
4
4.3
--
--
90
70
2
19
230
2.2
-1
Max
15.30
15.60
300
150
300
150
8
1
0.5
--
--
--
--
--
--
--
Unit
V
Vout
Line Regulation
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Output Resistance
Output Short Circuit Current
Peak Output Current
Temperature Coefficient of
Output Voltage
REGline
REGload
Iq
∆Iq
Vn
RR
Vdrop
Rout
Ios
Io peak
∆Vout/ ∆Tj
Tj=25 C
Tj=25 C
o
o
o
mV
Tj=25 C, Iout=0
17.5V≤Vin≤30V
10mA≤Iout≤1.5A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, 18V≤Vin≤28V
Iout=1.0A, Tj=25
o
C
f=1KHz
Tj=25 C
Tj=25 C
Iout=10mA, 0
o
C≤Tj≤125
o
C
o
o
o
mA
uV
dB
V
mΩ
mA
A
mV/
o
--
54
--
--
--
--
--
C
TS7818A Electrical Characteristics
(Vin=27V, Iout=500mA, 0 C≤Tj≤125 C, Cin=0.33uF, Cout=0.1uF; unless otherwise specified.)
o
o
Parameter
Output Voltage
Symbol
o
Test Conditions
Tj=25 C
21V≤Vin≤33V, 10mA≤Iout≤1.5A,
PD
≤15W
21V≤Vin≤33V
22V≤Vin≤26V
10mA≤Iout≤1.5A
250mA≤Iout≤750mA
Min
17.64
17.28
--
--
--
--
--
--
--
Typ
18
18
15
5
12
4
4.5
--
--
110
70
2
22
200
2.2
-1
Max
18.36
18.72
360
180
360
180
8
1
0.5
--
--
--
--
--
--
--
Unit
V
Vout
Line Regulation
Load Regulation
Quiescent Current
Quiescent Current Change
Output Noise Voltage
Ripple Rejection Ratio
Voltage Drop
Output Resistance
Output Short Circuit Current
Peak Output Current
Temperature Coefficient of
REGline
REGload
Iq
∆Iq
Vn
RR
Vdrop
Rout
Ios
Io peak
∆Vout/ ∆Tj
Tj=25
o
C
Tj=25 C
o
o
mV
Tj=25 C, Iout=0
21V≤Vin≤33V
10mA≤Iout≤1.5A
10Hz≤f≤100KHz, Tj=25 C
f=120Hz, 21V≤Vin≤31V
Iout=1.0A, Tj=25 C
f=1KHz
Tj=25 C
Tj=25 C
Iout=10mA, 0 C≤Tj≤125 C
o
o
o
o
o
o
mA
uV
dB
V
mΩ
mA
A
mV/
o
--
54
--
--
--
--
--
Output Voltage
Pulse testing techniques are used to maintain the junction temperature as close to the ambient temperature as
possible, and thermal effects must be taken into account separately.
This specification applies only for DC power dissipation permitted by absolute maximum ratings.
C
TS7800A series
5-9
2003/12 rev. B
Analog electronics
京公网安备 11010802033920号
EEWORLD
