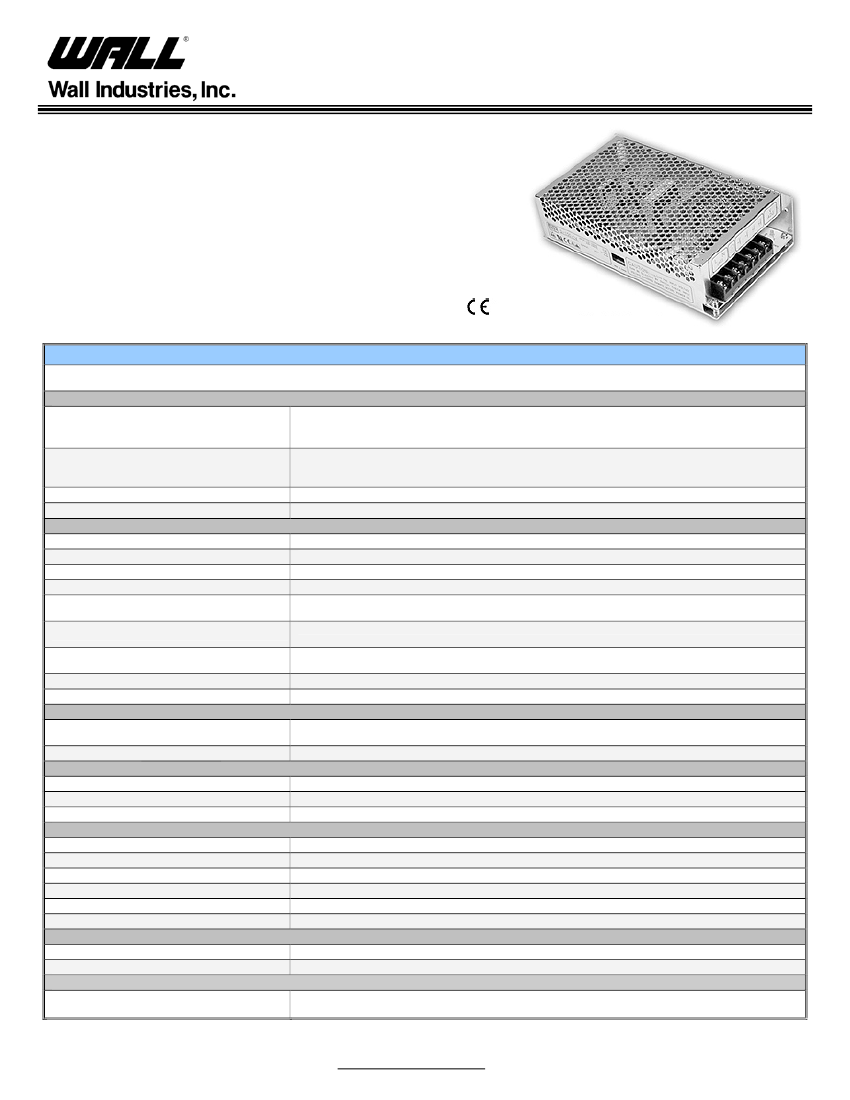

DCSD-150 Series
150 Watt
Single Output
Chassis Mount DC/DC Converter
FEATURES
●
105°C Output Capacitor
●
Low Cost, High Reliability
●
Compact Size, Light Weight
●
100% Full Load Burn-In Tested
●
Built-In EMI Filter, Low Ripple Noise
●
High Efficiency, Low Working Temperature
●
Short Circuit, Overload, and Over Voltage Protected
(for 24V and 48V input types)
SPECIFICATIONS:
DCSD-150 Series
All specifications are based on 25 C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
o
INPUT SPECIFICATIONS
Input Voltage
DCSD-150B:
DCSD-150C:
DCSD-150D:
DCSD-150B:
DCSD-150C:
DCSD-150D:
DCSD-150D:
DCSD-150D:
19 ~ 36VDC
36 ~ 72VDC
72 ~ 144VDC or 85~132VAC
8.5A at 24VDC
4.2A at 48VDC
2.1A at 96VDC
25A at 96VDC
<0.75mA at 120VAC
Input Current
Inrush Current
Leakage Current
OUTPUT SPECIFICATIONS
Output Voltage
Output Voltage Tolerance (See Note 3)
Voltage Adjustability
Output Current
Line Regulation
Load Regulation
Ripple & Noise
Output Power
Setup, Rise, Hold Up Time
See Table
±1%
See Table
See Table
12V outputs: ±0.5%
24V outputs: ±0.3%
12V outputs: ±0.5%
24V outputs: ±0.3%
12V outputs: 120mVp-p
24V outputs: 150mVp-p
See Table
DCSD-150D (only): 2s, 50ms, 10ms/20ms
12V outputs: 16.8 ~ 20V / 10% Load
24V outputs: 31.5 ~ 37.5V / 10% Load
105%~135% Type: Foldback Current Limiting Reset: Auto recovery.
See Table
1.5KVAC (input to output), 1.5KVAC (input to FG), 0.5KVAC (output to FG)
500VDC / 100MΩ (input to output, input to FG, output to FG)
-10°C to +60°C (refer to output derating curve)
-20°C to +85°C
20% to 90% RH
10% to 95% RH
10~500Hz, 2G 10min./1cycle, Period for 60min. each axes
±0.03%/°C (0°C~50°C)
850 grams
199(L) x 110(W) x 50(H) mm
PROTECTION
Over Voltage Protection
Over Load Protection
GENERAL SPECIFICATIONS
Efficiency
Withstand Voltage
Isolation Resistance
ENVIRONMENTAL SPECIFICATIONS
Working Temperature
Storage Temperature
Working Humidity
Storage Humidity
Vibration
Temperature Coefficient
PHYSICAL SPECIFICATIONS
Weight

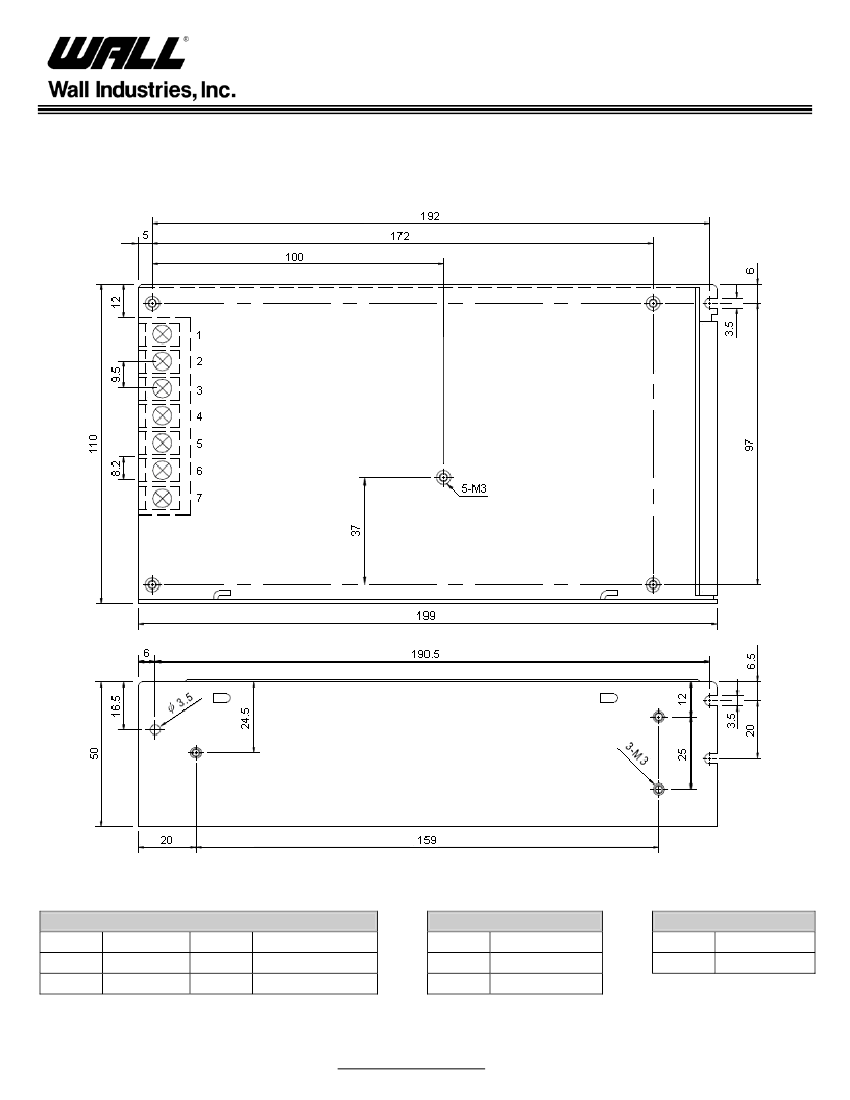

Dimensions
SAFETY & EMC
EMC Standards
EN55022 CLASS B (Radiation), EN61000-4-2,3,4,6,8 ENV50204 Verification for DCSD-150B/C
Series only, not including DCSD-150D series.
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
DCSD-150 Series
150 Watt
Single Output
Chassis Mount DC/DC Converter
OUTPUT VOLTAGE / CURRENT RATING CHART
Model
DCSD-150B-12
DCSD-150B-24
DCSD-150C-12
DCSD-150C-24
DCSD-150D-12
Input Voltage
24 VDC
(19 ~ 36 VDC)
48 VDC
(36 ~ 72 VDC)
Output
Voltage
12 VDC
24 VDC
12 VDC
24 VDC
12 VDC
24 VDC
Voltage
Rated Output
Output
Adjustability
Current
Ripple & Noise
11 ~ 16VDC
23 ~ 30VDC
11 ~ 16VDC
23 ~ 30VDC
11 ~ 16VDC
23 ~ 30VDC
12.5A
6.3A
12.5A
6.3A
12.5A
6.3A
120mVp-p
150mVp-p
120mVp-p
150mVp-p
120mVp-p
150mVp-p
Output
Power
150W
151.2W
150W
151.2W
150W
151.2W
Efficiency
75%
80%
77%
79%
77%
82%
96 VDC
DCSD-150D-24 (72 ~ 144 VDC)
NOTES
1. The DCSD-150 Series is designated as DCSD-150x-y where x can be
B
(19 ~ 36 VDC input voltage),
C
(36 ~ 72 VDC input voltage), or
D
(72 ~ 144 VDC input voltage) and y can be 12 or 24 for output voltage.
2. All parameters are specified at rated input, rated load and 25ºC 70% RH. ambient.
3. Tolerance includes setup tolerance, line regulation, and load regulation.
4. Ripple & noise are measured at 20MHz using a 12" twisted pair terminated with a 0.1uF & 47uF capacitor.
5. Line regulation is measured from low line to high line at rated load.
6. Load regulation is measured from 0% to 100% rated load.

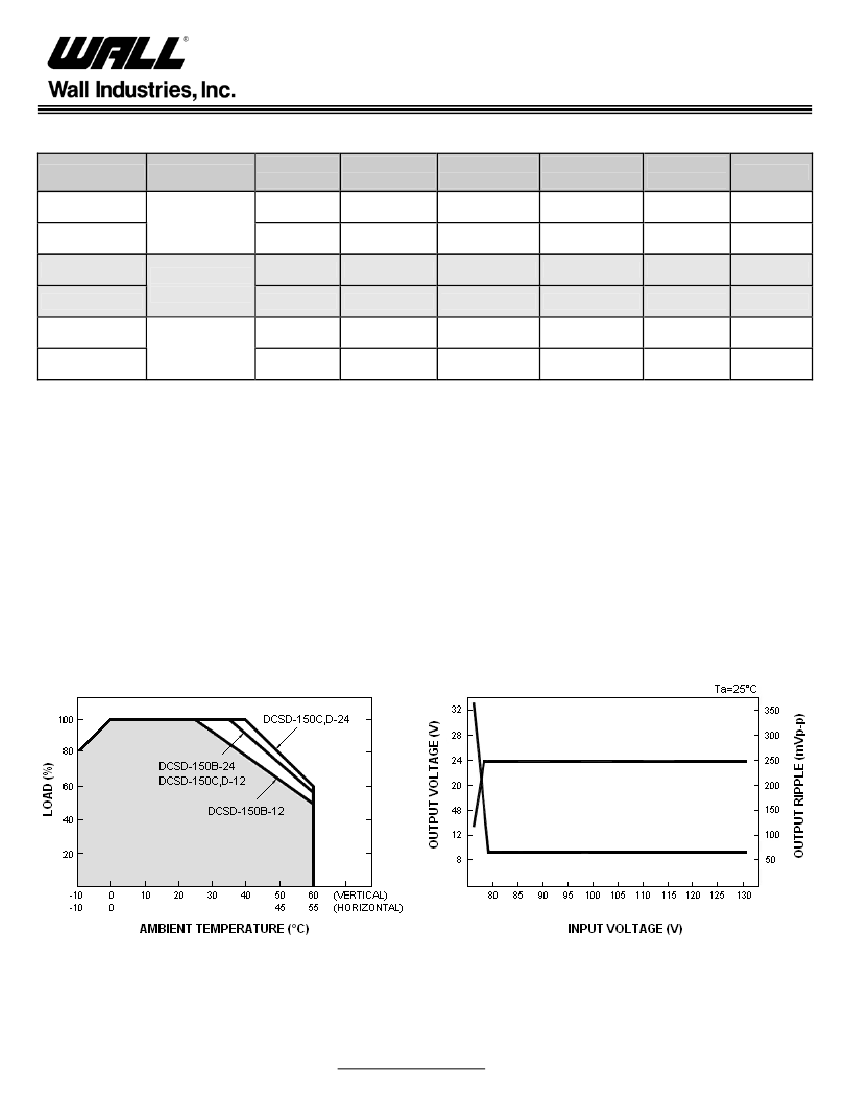

DERATING CURVE
STATIC CHARACTERISTICS (DCSD-100D-24)
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
