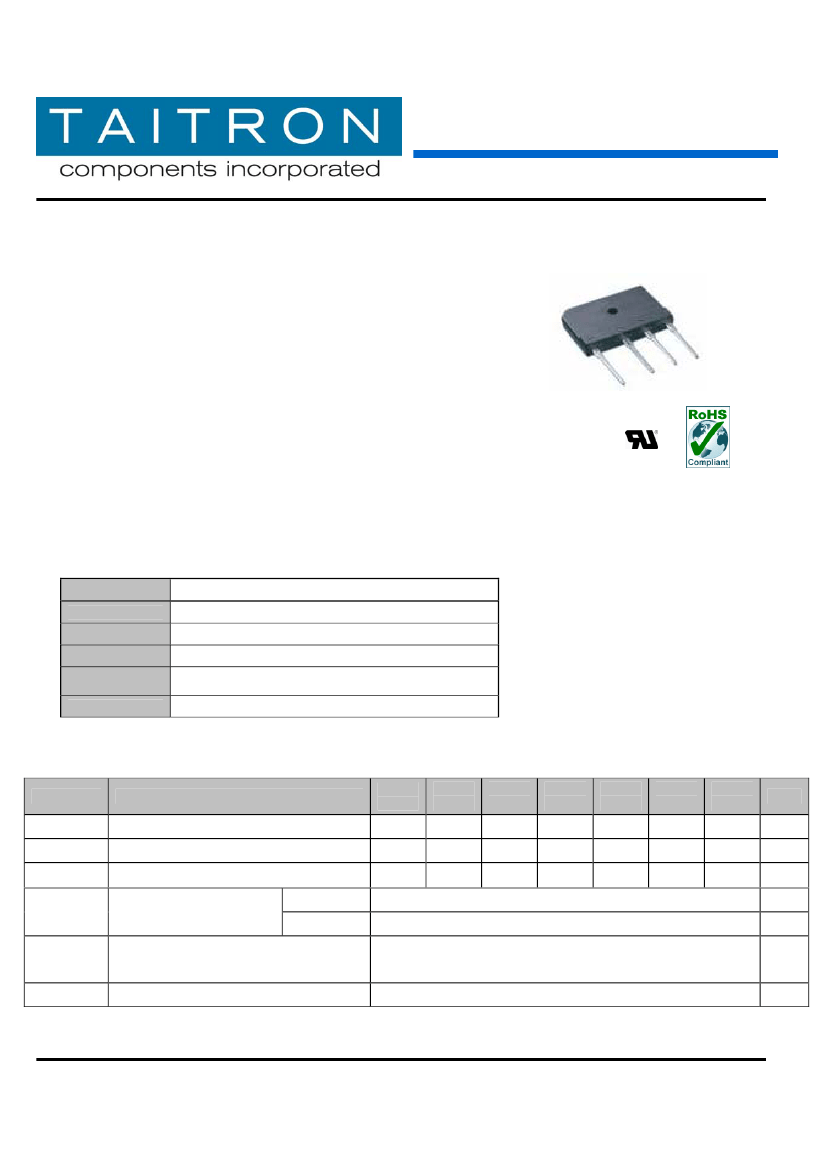

Single-Phase
Glass Passivated
Bridge Rectifier
GBJ10005 – GBJ1010
Single-Phase Glass Passivated Bridge Rectifier
Features
•
Plastic package has Underwriters Laboratory Flammability
Classification 94 V-0
•
Glass passivated die construction
•
High case dielectric strength of 1500 V
RMS
•
Low reverse leakage current
•
Ideal for printed circuit boards
•
Surge overload rating to 170A Peak
•
This series is UL recognized under component index,
File number E194718
•
RoHS Compliant
GBJ
Mechanical Data
Case:
Terminals:
Polarity:
Mounting:
Mounting
Torque:
Weight:
Molded Plastic
Plated leads solderable per MIL-STD-202, method 208
Molded on Body
Through Hole for #6 Screw
5.0 In-1bs Max.
6.6 grams
Maximum Ratings
(T
Ambient
=25ºC unless noted)
Symbol
Description
Max. Repetitive Peak Reverse Voltage
Max. RMS Voltage
Max. DC Blocking Voltage
Max. Average Forward
Rectified Output Current
T
C
=100°C
T
A
=25°C
GBJ10
005
50
35
50
GBJ10
01
100
70
100
GBJ10
02
200
140
200
GBJ10
04
400
280
400
10
5.0
170
-55 to +150
A
°C
GBJ10
06
600
420
600
GBJ10
08
800
560
800
GBJ10
10
1000
700
1000
Unit
V
V
V
A
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
T
J,
T
STG
Peak Forward Surge Current
8.3ms single half sine-wave superimposed on
rated load(JEDEC method)
Operating and Storage Temperature Range
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. A/AH 2007-11-30
Page 1 of 4
Single-Phase Glass Passivated Bridge Rectifier
GBJ10005 – GBJ1010
Electrical Characteristics
(T
Ambient
=25ºC unless noted otherwise)
Symbol
Description
Max. Instantaneous Forward Voltage Drop
per leg at 5A DC
Max. DC Reverse Current
at Rated DC Blocking
Voltage per leg
T
A
=25°C
T
A
=125°C
GBJ10
005
GBJ10
01
GBJ10
02
GBJ10
04
1.05
10
250
22
GBJ10
06
GBJ10
08
GBJ10
10
Unit
V
μA
° C/W
V
F
I
R
R
θ-JA
Notes:
Typical Thermal Resistance Junction to case
(Note3)
1. Non-repetitive. For 1>1ms and <8.3ms.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
3. Thermal resistance from junction to case per leg. Unit mounted 100 x 100 x 1.6mm
aluminum plate heat sink.
4. Single phase, 60Hz, resistive or inductive load.
5. For capacitive load, derate current by 20%.

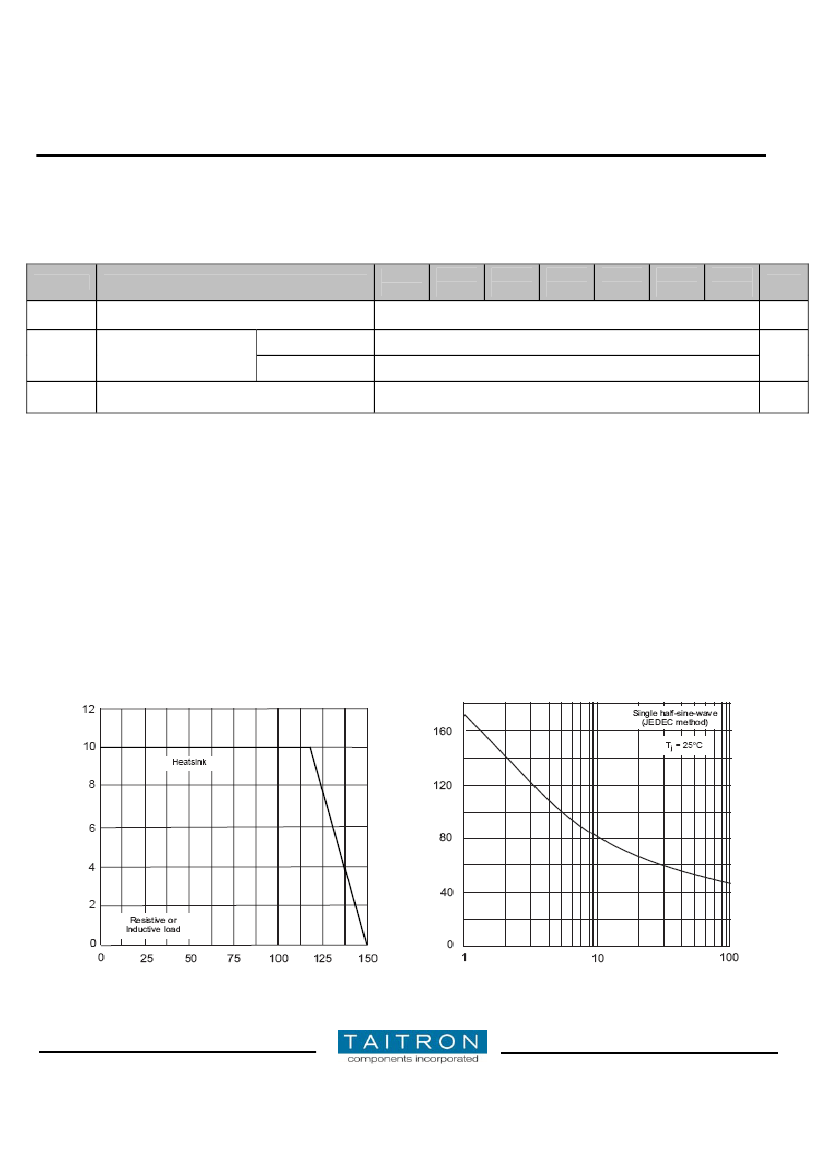

Typical Characteristics Curves
Fig.1- Derating Curve Output Rectified Current
Average Forward Output Current (A)
Peak Forward Surge Current (A)
Fig.2- Max. Non-Repetitive Peak Forward Surge Current
per leg
Ambient Temperature (°C)
Number of Cycle at 60Hz
Rev. A/AH 2007-11-30
www.taitroncomponents.com
Page 2 of 4
Single-Phase Glass Passivated Bridge Rectifier
GBJ10005 – GBJ1010

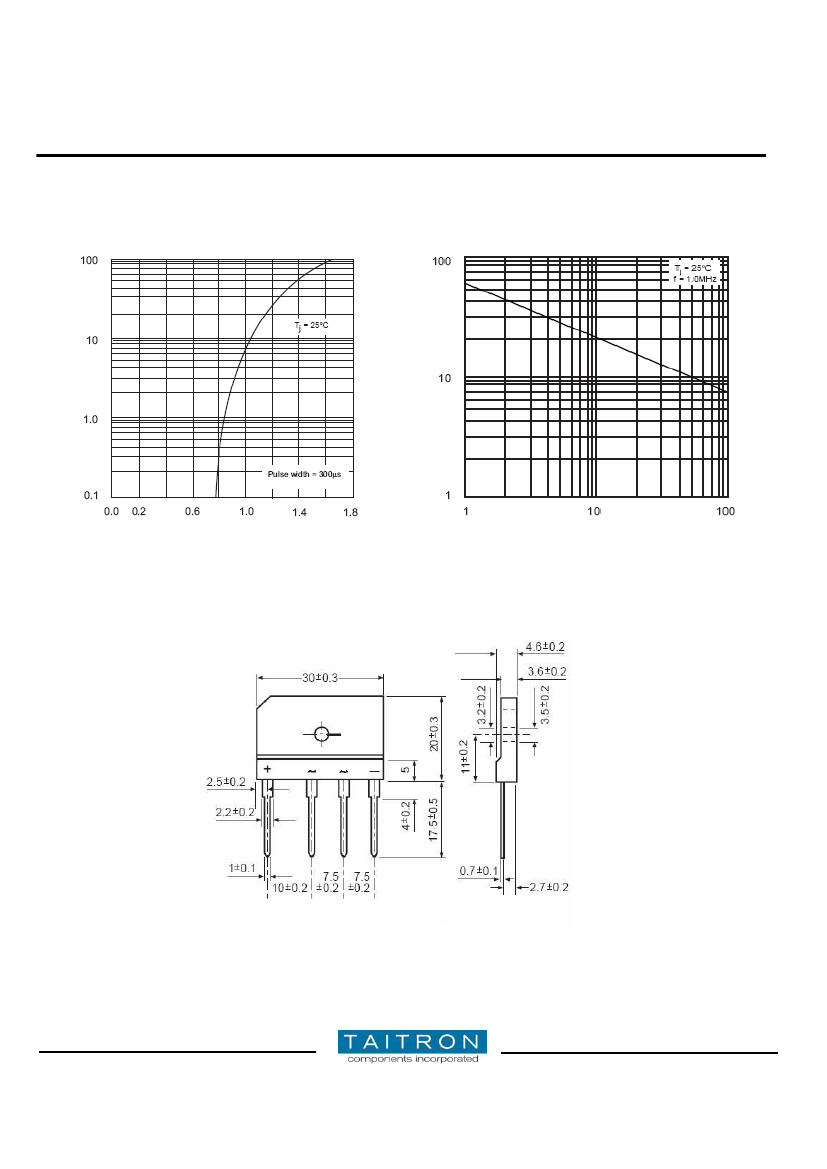

Fig.3- Typical Forward Characteristics
per leg
Instantaneous Forward
Current (A)
Fig.5- Typical Junction Capacitance per leg
Instantaneous Forward Voltage (V)
Junction Capacitance (pF)
Reverse Voltage (V)
Dimensions in mm
GBJ
Rev. A/AH 2007-11-30
www.taitroncomponents.com
Page 3 of 4
Single-Phase Glass Passivated Bridge Rectifier
GBJ10005 – GBJ1010
