DATA SHEET
LANS SERIES
•
•
•
•
•
16 pin SMD package
2000 Vrms isolation
MTBF > 1 million hours
short-circuit protection
up to 75% efficiency
TO 1.8 WATTS

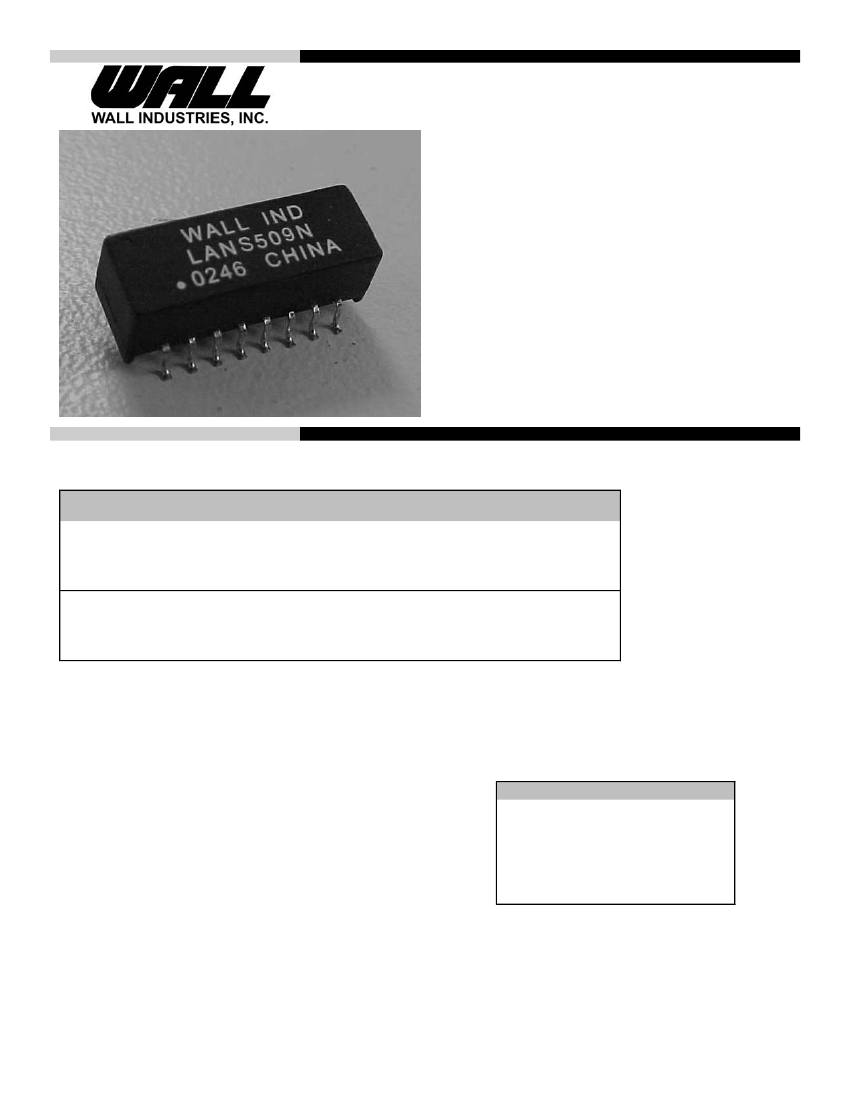

The LANS series offers the designer a 16-pin SMD
package for high speed production at an economi-
cal price. The 2000 Vrms isolation is appropriate
for medical and safety applications.
MODELS
MODEL NUMBER
INPUT VOLTAGE
(VDC)
OUTPUT VOLTAGE
(VDC)
OUTPUT CURRENT
(MA)
EFFICIENCY
LANS505NSMT
LANS509NSMT
LANS512NSMT
LANS515NSMT
LANS1205NSMT
LANS1209NSMT
LANS1212NSMT
LANS1215NSMT
5
5
5
5
12
12
12
12
5
9
12
15
5
9
12
15
360
200
150
120
360
200
150
120
70%
75%
75%
75%
70%
75%
75%
75%

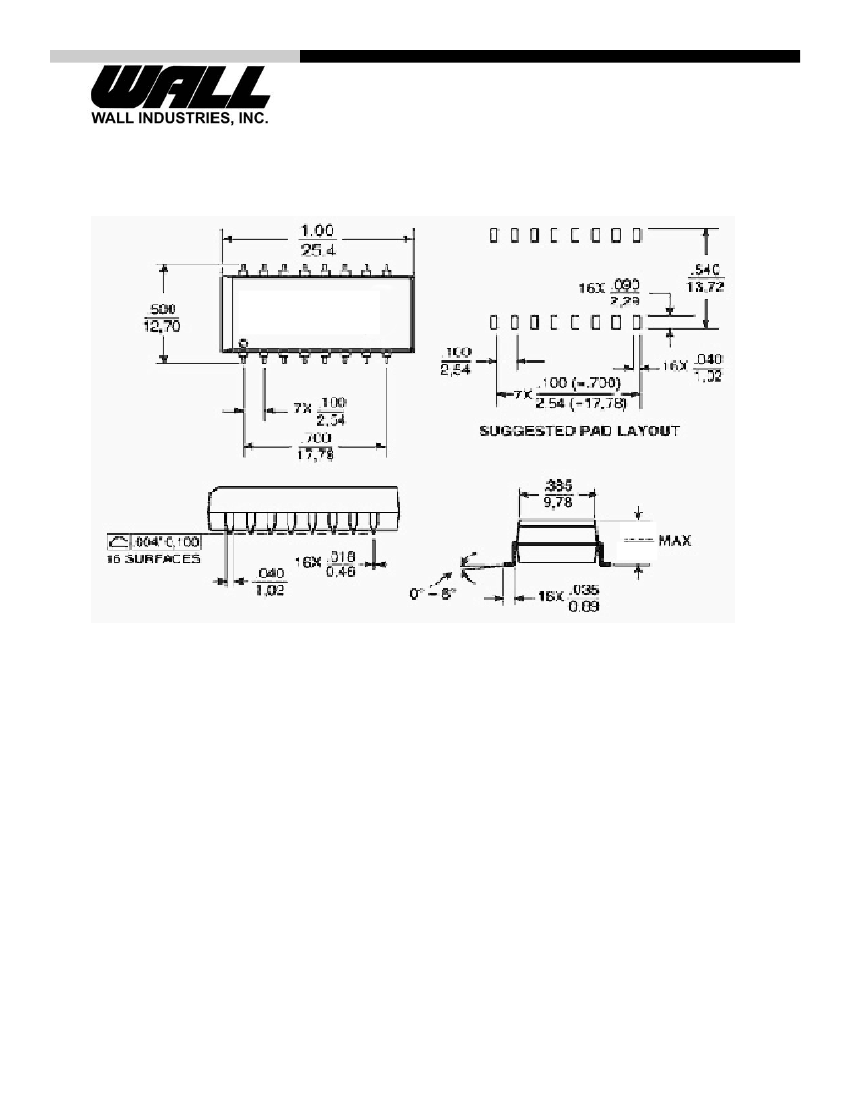

PIN CONNECTIONS
SINGLE
1
2
3
7
8
others
-Vin
N/C
+Vin
+Vout
-Vout
N/C
603 778 2300
www.wallindustries.com
2/18/04
1
DATA SHEET
LANS SERIES
SPECIFICATIONS
TO 1.8 WATTS
All specifications apply at 25ºC unless otherwise noted
.
SPECIFICATION
INPUT
Input Voltage Range
OUTPUT
Output Current
Voltage Accuracy
Line Regulation (10 to 100% F.L.)
Load Regulation (10-100% load)
Short Circuit Protection
Ripple/Noise (20MHz BW)
GENERAL
Efficiency
Isolation Voltage (input to output)
Isolation Resistance (input to output)
Switching Frequency
ENVIRONMENTAL
Operating Temperature (ambient)
Storage Temperature
Cooling
PHYSICAL
VALUE
5,12VDC +/-5%
see model information table
+/-5%
+/-1.2%
+/-10%
short term
100mV p-p
see table
2000Vrms
100mohms min@500VDC
100kHz
0°C to +70°C
-40°C to +100°C
natural convection
Dimensions
L 1.0 x W 0.385 x H 0.440 inches
Case Material
black plastic
due to advances in technology, specifications subject to change without notice.
603 778 2300
www.wallindustries.com
2/18/04
2
