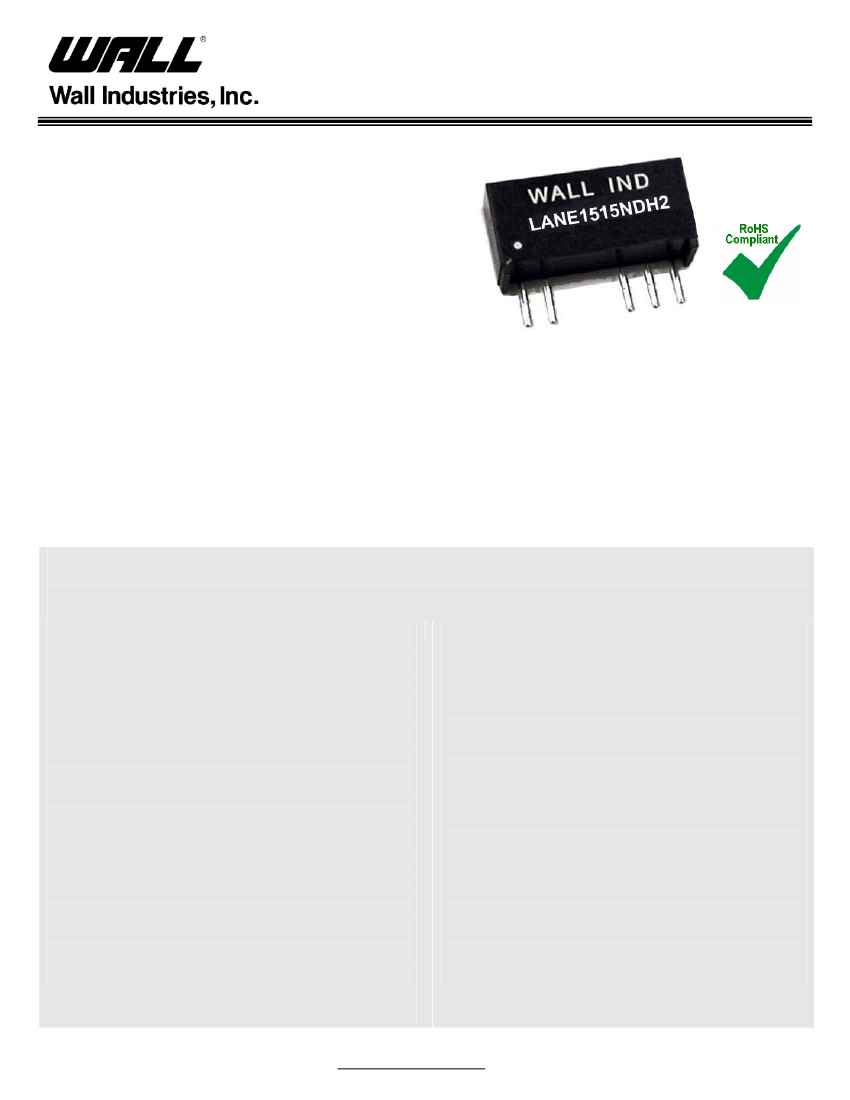

LANEH2 SERIES
3KVDC I/O Isolation
Single and Dual Output
2 Watt DC/DC Converter
FEATURES
●
7 Pin SIP Package
●
3000VDC Isolation
●
Single and Dual Outputs
●
Unregulated Output Types
●
UL 94V-0 Package Material
●
3.3, 5, 12, 15, 24, and 48VDC Input Voltages Available
DESCRIPTION
When your application demands low power, minimal board space, and a high level of input/output isolation is
necessary, the LANEH2 miniature converters offer superior solutions at an economical price. Users have a multitude
of options and operational ratings to choose from in custom-tailoring the converter to application demands.
Populating a scant 0.179 square inches of board space, the LANEH2 provides two watts of power while maintaining
specifications over the entire commercial operating temperature range.
SPECIFICATIONS:
LANEH2 Series
All specifications apply @ ±25°C ambient unless otherwise noted
INPUT SPECIFICATIONS
Input Voltage Range .......3.3V nom. input .......... 3.14 – 3.47 VDC
5V nom. input .............. 4.75 – 5.25VDC
12V nom. input ............. 11.4– 12.6VDC
15V nom. Input ........ 14.25 – 15.75VDC
24V nom. input ........... 22.8 – 25.2 VDC
48V nom. input ........... 45.6 – 50.4 VDC
GENERAL SPECIFICATIONS
Switching Frequency ............................................. 100KHz typical
Efficiency .....................................................................75% typical
Isolation Voltage (input to output) ..............3000VDC (2sec/0.5mA)
Isolation Resistance.................................. 1000MΩ min. (500VDC)
OUTPUT SPECIFICATIONS
Output Current ................................................................ see table
Output Voltage ................................................................ see table
Output Voltage Accuracy ....................................................... ±5%
Line Regulation ........................................1.2%/1% of Vin (typical)
Load Regulation (10% to 100% full load) .......................10% max.
Ripple/Noise (20MHz BW) ................................... 150mVp-p max.
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature .............................................. 0°C ~ +70°C
“I” suffix................................................................. -40°C ~ +85°C
Humidity.........................................................95% non-condensing
Cooling .............................................................Free air convection
PHYSICAL SPECIFICATIONS
Weight .....................................................Approximately 2.1 grams
Case Material......................................non-conductive black plastic
Dimensions ...............................19.50(L) x 7.10(W) x 10.00(H) mm
PROTECTION
Short Circuit Protection .................................................Short term
Due to advances in technology, specifications subject to change without notice
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
