PEM
Austin Semiconductor, Inc.
AS28F128J3M
Q-Flash
Plastic Encapsulated Microcircuit
128Mb, x8 and x16 Q-FLASH Memory
Even Sectored, Single Bit per Cell Architecture
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
100% Pin and Function compatible to Intel’s MLC Family
NOR Cell Architecture
2.7V to 3.6V VCC
2.7V to 3.6V or 5V VPEN (Programming Voltage)
Asynchronous Page Mode Reads
Manufacturer’s ID Code:
!
MT28F128J3MRG
Micron
0x2Ch
Industry Standard Pin-Out
Fully compatible TTL Input and Outputs
Common Flash Interface [CFI]
Scalable Command Set
Automatic WRITE and ERASE Algorithms
5.6us per Byte effective programming time
128 bit protection register
!
64-bit unique device identifier
!
64-bit user programmable OTP cells
Enhanced data protection feature with use of VPEN=VSS
Security OTP block feature
100,000 ERASE cycles per BLOCK
Automatic Suspend Options:
!
Block ERASE SUSPEND-to-READ
!
Block ERASE SUSPEND-to-PROGRAM
!
PROGRAM SUSPEND-to-READ
Available Operating Ranges:
[-ET] -40
o
C to +105
o
C
!
Enhanced
!
Mil-Temperature [-XT] -55
o
C to +125
o
C
A
A1

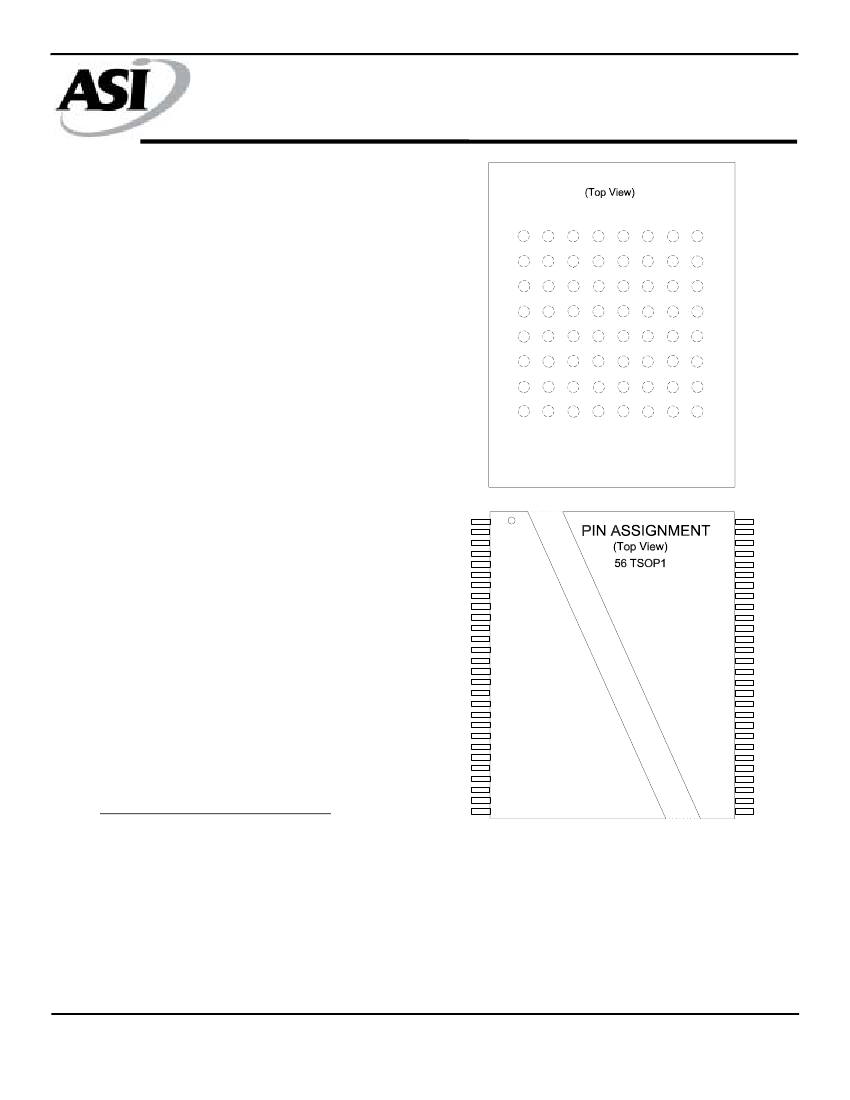

PIN ASSIGNMENT
1
2
3
4
5
6
7
8
A6
A8
VPEN
A13
VCC
A18
A22
B
A2
VSS
A9
CE0
A14
A25
A19
CE1
C
A3
A7
A10
A12
A15
DNU
A20
A21
D
A4
A5
A11
RP\
DNU
DNU
A16
A17
E
DQ8
DQ1
DQ9
DQ3
DQ4
DNU
DQ15
STS
F
BYTE\
DQ0
DQ10
DQ11 DQ12
DNU
DNU
OE\
G
A23
A0
DQ2
VCCQ
DQ5
DQ6
DQ14
WE\
H
CE2
DNU
VCC
VSS
DQ13
VSS
DQ7
A24
64-Ball FBGA
A22
CE1
A21
A20
A19
A18
A17
A16
VCC
A15
A14
A13
A12
CE0
VPEN
RP\
A11
A10
A9
A8
VSS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
NC
WE\
OE\
STS
DQ15
DQ7
DQ14
DQ6
VSS
DQ13
DQ5
DQ12
DQ4
VCCQ
VSS
DQ11
DQ3
DQ10
DQ2
VCC
DQ9
DQ1
DQ8
DQ0
A0
BYTE\
A23
CE2
•
For in-depth functional product detail and Timing Diagrams,
please reference Micron’s full product Datasheet:
MT28F640J3
Rev. L Dated 04/16/04
A7
A6
A5
A4
A3
A2
A1
General Description
ASI’s, AS28F128J3M Enhanced or Mil-Temp variant of Micron’s
Q-Flash family of devices, is a nonvolatile, electrically block-
erasable (FLASH), programmable memory device manufactured
using Micron’s 0.15um process technology.
This device
containing 134,217,728 bits organized as either 16,777,218 (x8)
or 8,388,608 bytes (x16). The device is uniformly sectored with
one hundred and twenty eight 128KB ERASE blocks.
This device features in-system block locking. They also have a
Common FLASH Interface [CFI] that permits software algorithms
to be used for entire families of devices. The software is device-
independent, JEDEC ID-independent with forward and backward
compatibility.
AS28F128J3MRG
Revision 5.0 11/23/04
Austin Semiconductor, Inc. reserves the right to change products or modify product specifications with appropriate notification
For Additional Products and Information visit out Web site at
www.austinsemiconductor.com
1
PEM
Austin Semiconductor, Inc.

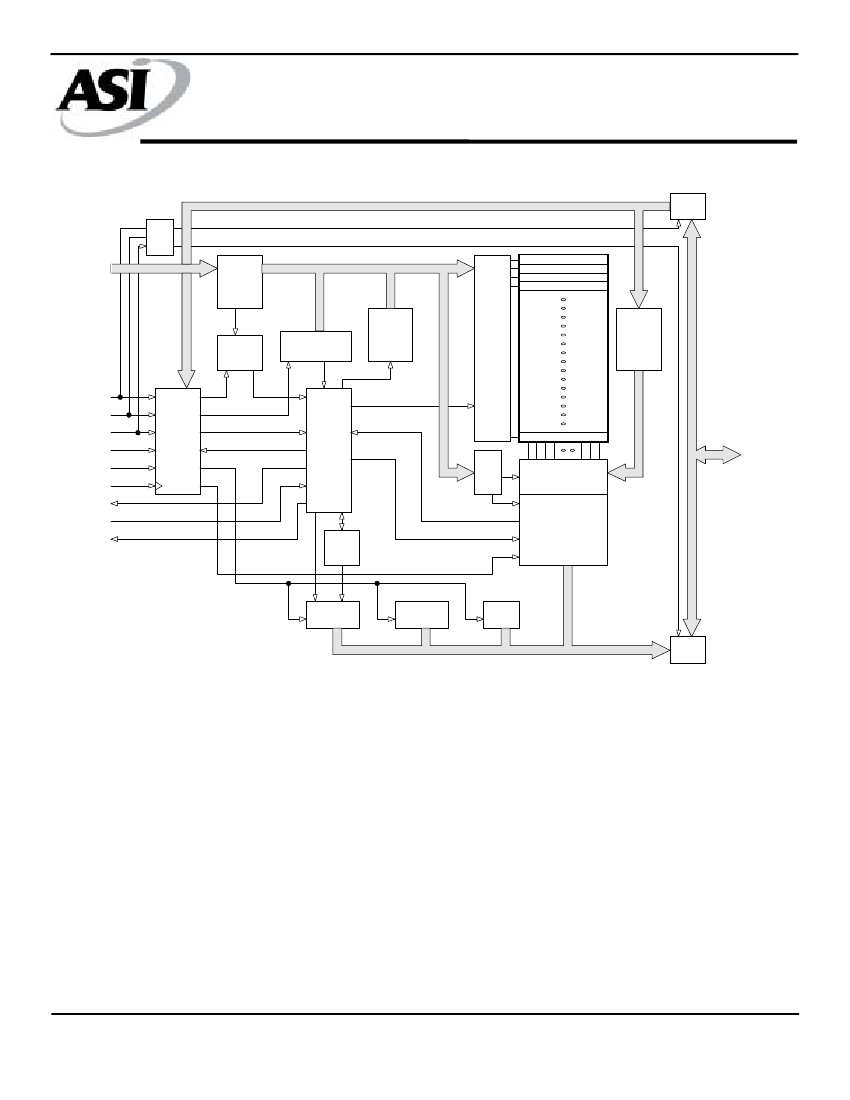

Functional Block Diagram:
Input
Buffer
I/O
CNTL
Logic
ADDR
Buffer/
Latch
128KB Memory Block (0)
128KB Memory Block (1)
128KB Memory Block (2)
128KB Memory Block (3)
X
Decode
ADDR.
Counter
Block
Erase
Control
WRITE
Buffer
AS28F128J3M
Q-Flash
Power
(Current)
Control
Bus
Configuration
Register [BCR]
CEx
OE\
WE\
RP\
WP\
CLK
STS
VPEN
WAIT
VPP
Switch
Pump
Sense Amplifiers
WRITE/ERASE Bit
Compare and
Verify
Command
Execution
Logic
[CEL]
128KB Memory Block (n)
DQ0-8 or
DQ0-15
Y
Dec.
Y - Select
Control
ISM
Status
Register
Identification
Register
Query
Output
Buffer
Additionally, the Scaleable Command Set [SCS] allows a single,
simple software driver in all host systems to work with all SCS
compliant FLASH memory devices. The SCS provides the fastest
system/device data transfer rates and minimizes the device and
system-level implementation costs.
To optimize the processor-memory interface, the device
accommodates VPEN, which is switchable during BLOCK
ERASE, PROGRAM, or LOCK BIT configurations and in
addition can be hard-wired to VCC all dependent on the end
application(s). VPEN is treated as an input pin to enable
ERASING, PROGRAMMING, and BLOCK LOCKING. When
VPEN is lower than the VCC lockout voltage (VLKO), all
program functions are disabled. BLOCK ERASE SUSPEND
mode enables the user to stop BLOCK ERASE to READ data
from or PROGRAM data to any other blocks. Similarly,
PROGRAM SUSPEND mode enables the user to SUSPEND
PROGRAMMING to READ data or execute code from any un-
suspended block(s).
AS28F128J3MRG
Revision 5.0 11/23/04
VPEN serves as an input with 2.7V, 3.3V or 5V levels for
application programming. VPEN in this Q-Flash device can
provide data protection when connected to ground. This pin also
enables PROGRAM or ERASE LOCKOUT functions/controls
during power transitions.
This device is an even-sectored device architecture offering
individual BLOCK LOCKING that can LOCK and UN-LOCK a
block using the SECTOR LOCK BITS command sequence.
Status [STS] is a logic signal output that gives an additional
indicator of the internal state machine [ISM] activity by providing
a hardware signal of both the status and status masking. This
status indicator minimizes central processing unit overhead and
system power consumption. In the default mode, STS acts as an
RY/BY\ pin. When LOW, STS indicates that the ISM is
performing a BLOCK ERASE, PROGRAM, or LOCK BIT
configuration. When HIGH, STS indicates that the ISM is ready
for a new command.
Austin Semiconductor, Inc. reserves the right to change products or modify product specifications with appropriate notification
For Additional Products and Information visit out Web site at
www.austinsemiconductor.com
2
PEM
Austin Semiconductor, Inc.
Three Chip Enable (CEx) pins are used for enabling and disabling
the device by activating the device’s control logic, input buffer,
decoders, and sense amplifiers.
BYTE\ enables the device to be used in x8 or x16 configuration.
Byte=Low (logic 0) selects and 8-bit mode with address zero (A0)
selecting the High or Low Byte and Byte=High (logic 1) selects
the 16-bit or Word mode. When the device is in Word mode,
address one (A1) becomes the low order address bit and address
zero (A0) becomes a no-connect (NC).
RP\ is used to reset the device. When the device is disabled and
RP\ is at VCC, the STANDBY mode is enabled. A reset time
(tRWH) is required after RP\ switches to a High (logic 1) and the
outputs become valid. Likewise, the device has a wake time (tRS)
from RP\ High until WRITES to the Command User Interface
[CUI] are recognized, RESETS the ISM and clears the status
register.
Capacitance
Parameter/Condition
Input Capacitance
Output Capacitance
Symbol
Cin
Cbyte
Cout
Typ
5
14
5
Max
8
16
12
Units
pF
pF
pF
AS28F128J3M
Q-Flash
Chip Enable Truth Table
CE2
VIL
VIL
VIL
VIL
VIH
VIH
VIH
VIH
CE1
VIL
VIL
VIH
VIH
VIL
VIL
VIH
VIH
CE0
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
Device
Enabled
Disabled
Disabled
Disabled
Enabled
Enabled
Enabled
Disabled
Absolute Maximum Ratings
Voltage
Temperature under
Bias
Storage Temperature
For VCCQ=2.7v to 3.6v
Voltage on any pin
Short Circuit Current
Min
-55
-65
-2
Max
125
125
5
100
Units
0
Notes
C
0
C
V
1
mA
Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may
cause permanent damage to the device. This is a stress rating only and functional
operation of the device at these or any other conditions greater than those
indicated in the operational sections of this specification is not implied. Exposure
to absolute maximum conditions for any duration or segment of time may affect
device reliability.
Pin Description Table:
Signal Name
Address
Symbol
Type
A0, A1, A2. A3,
Input
A4, A5, A6, A7
A8, A9, A10, A11
A12,A13,A14,A15
A16,A17,A18,A19
A20,A21,A22,A23
CE0, CE1, CE2
Input
Input
WE\
Input
RP\
OE\
BYTE\
VPEN
Input
Input
Input
Pin
32,28,27,26,
25,24,23,22,
20,19,18,17,
13,12,11,10,
8,7,6,5,
4,3,1,30
14,2,29
55
16
54
31
15
Notes
1: All specified voltages are with respect to GND. Minimum DC
voltage is -0.5v on input/output pins and -0.2v on Vcc and VPEN
pins. During transitions, this level may undershoot to -2.0v for
periods </= 20ns. Maximum DC voltage on input/output pins,
Vcc and VPEN is VCC+0.5V which, during transitions, may
overshoot to Vcc + 2.0v for periods <20ns.
Description
Address Inputs during READ and WRITE Operations. A0 is only
used in x8 mode and will be a NC in x16 mode.
Chip Enables
Write Enable
Reset/Power-Down
Output Enable
Byte Mode Control
Programming Voltage
Status Pin/Flag
STS
Output
53
Input/Output Voltage
Supply Voltage
Digital Ground
No Connect(s)
VCCQ
VCC
GND
NC
Supply
Supply
Supply
-
43
9, 37
21, 42, 48
1, 30, 56
Three Chip Enable pins for Multiple devices. See chart for function
Write Control
Reset/Power-Down, When Low the control pin resets the status Reg.
and ISM to array READ mode.
Ouput Enable control enable data output buffers when Low, and when
High the output buffers are disabled
Configuration Control pin. When High the device is in x16 mode, when
Low the device is in Byte mode (x8)
Necessary Voltage pin for Programming, Erasing or configuring lock
bits. Typically connected to VCC. When VPEN</=VPENLK, this
enables Hardware Write Protect.
Indicates the status of the ISM. When configured in level mode, STS
acts as a RY/BY\ pin. When configured in its pulse mode, it can
pulse to indicate PROGRAM and or ERASE completion.
Separate/Isolated Voltage supply for Input/Output bus. Allows
voltage matching to different interface standards.
Power Supply: 2.7V - 3.6V
Ground
No electrical connection or function
AS28F128J3MRG
Revision 5.0 11/23/04
Austin Semiconductor, Inc. reserves the right to change products or modify product specifications with appropriate notification
For Additional Products and Information visit out Web site at
www.austinsemiconductor.com
3
PEM
Austin Semiconductor, Inc.
Bus Operations:
MODE
Read Array
Output Disable
Standby
Reset/Power-Down
Read Identifier Codes
Read Query
Read Status (ISM off)
Read Status (ISN on)
Write
Notes
1
2
3
4
5
6
7
Refer to DC Characteristics. When VPEN</= VPENLK, memory contents can be read but not altered
X can be VIL or VIH for control and address pins, and VPENLK or VPENH for VPEN. See DC Characteristics for VPENLK and VPENH voltages
In default mode, STA is VOL when the ISM is executing internal Block Erase, Program, or lock bit configuration algorithms. It is VOH when the ISM
is not busy, in block erase suspend mode, program suspend mode, or reset/power-down mode.
See Read Identifier codes of the Micron Datasheet (DS)
See Read Query Mode Command section of the Micron Datasheet (DS)
Command Writes involving block erase, program, or lock bit configuration are reliably executed when VPEN=VPENH and VCC is within Specification
Refer to Table 4 on page 15 of the Micron Datasheet (DS)
RP\
VIH
VIH
VIH
VIL
VIH
VIH
VIH
VIH
VIH
CE0
Enabled
Enabled
Disabled
X
Enabled
Enabled
Enabled
Enabled
Enabled
CE1
Enabled
Enabled
Disabled
X
Enabled
Enabled
Enabled
Enabled
Enabled
CE2
Enabled
Enabled
Disabled
X
Enabled
Enabled
Enabled
Enabled
Enabled
OE\
VIL
VIH
X
X
VIL
VIL
VIL
VIL
VIH
WE\
VIH
VIH
X
X
VIH
VIH
VIH
VIH
VIL
VPEN
X
X
X
X
X
X
X
.
X
VPENH
DQ
Dout
High-Z
High-Z
High-Z
NOTES ADDRESS
1,2,3
X
X
X
X
See Figure 7 of Micron DS
See Figure 7 of Micron DS
X
X
X
STS Default Mode
High-Z (VOH with External PU)
X
X
High-Z (VOH with External PU)
High-Z (VOH with External PU)
High-Z (VOH with External PU)
X
X
X
AS28F128J3M
Q-Flash
4
5
Dout
Din
3,6,7
DC Electrical Characteristics:
(VDD=3.0v-5%/+10%,TA=Min/Max temperatures of Operational
Range chosen)
Symbol
Vcc
VccQ
ILI
ILO
VIL
VIH
VOL
VOH
VPENLK
VPENH
VLKO
ICC1
ICC2
ICC3
Parameter
Supply Voltage
Isolated Input/Output Supply
Input Load Current
Output Leakage Current
Input Low Voltage
Input High Voltage
Output Low Voltage
Output High Voltage
Program Voltage Lockout
Program Voltage
Vcc Lockout Voltage
Standby Current
Power-Down Current
Page Mode READ Current
Asynchronous READ Mode
Current
PROGRAM or set LOCK BITS
Current
BLOCL ERASE or CLEAR
BLOCK LOCK bits Current
PROGRAM SUSPEND or
BLOCK ERASE SUSPEND
Current
Test Conditions
Min
2.7
2.7
Max
3.6
3.6
+/- 1.0
+/-10.0
0.8
VCCQ+0.5
0.4
0.2
Units
V
V
uA
uA
V
V
V
V
V
V
V
V
V
uA
uA
uA
mA
mA
mA
mA
mA
mA
Notes
Vin=VccQ or GND, VCC=VCC Max., VCCQ = VCCQ Max
Vin=VccQ or GND, VCC=VCC Max., VCCQ = VCCQ Max
-0.5
2
VccQ=VccQ (MIN), IOL = 2mA
VccQ=VccQ (MIN), IOL = 100uA
VccQ=VccQ (MIN), IOH = 2.5mA
VccQ=VccQ (MIN), IOH = 100uA
1
1
1,2
1
3,4,5
4,5,6
1
0.85xVCCQ
VCCQ-0.2
0.8
3.6
CMOS Inputs; VCC= VCC (MAX), Device Enabled, RP\=VCCQ+/-0.2v
TTL Inputs; VCC=VCC (MAX): Device Enabled, RP\=VIH
RP\=GND,+/-0.2V; IOUT (STS)=0mA
CMOS Inputs; VCC=VCC(MAX); VCCQ=VCCQ(MAX) using standard 4-word
page mode READS; Device is enabled; f=5MHz; IOUT=0mA
CMOS Inputs; Vcc=Vcc(MAX); VCCQ=VCCQ(MAX) using standard 4-word
page mode READS; Device is enabled; Ff=33MHz; IOUT=0mA
CMOS Inputs; VCC=VCC(MAX); VCCQ=VCCQ(MAX) using standard work/byte
single READS; Device Enabled; f=5MHz; IOUT=0mA
CMOS Inputs, VPEN=VCC
TTL Inputs, VPEN=VCC
CMOS Inputs, VPEN=VCC
TTL Inputs, VPEN=VCC
Device is Disabled
2.2
50
90
50
3
8
9
17
17
17
17
220
2000
120
10
15
50
60
70
70
80
10
ICC4
ICC5
ICC6
ICC7
Notes
[1]
[2]
[3]
[4]
[5]
[6]
Sampled, not 100% tested
Includes STS
ICCWS and ICCES are specified with the device deselected. If the device is read or written while in ERASE SUSPEND mode,
the device's curent draw is ICCR or ICCW
BLOCK ERASE, PROGRAMMING, and LOCK BIT configurations are inhibited when VPEN</= VPENLK, and they are not
guaranteed in the range betwwn VPENLK (MAX) and VPENH (MIN), or above VPENH (Max)
Typically, VPEN is connected to VCC
VPENH (MIN) = 2.7v
AS28F128J3MRG
Revision 5.0 11/23/04
Austin Semiconductor, Inc. reserves the right to change products or modify product specifications with appropriate notification
For Additional Products and Information visit out Web site at
www.austinsemiconductor.com
4
PEM
Austin Semiconductor, Inc.
AS28F128J3M
Q-Flash
Memory Command Set Operations:
Command
READ ARRAY
READ IDENTIFIER CODES
READ QUERY
READ STATUS REGISTER
CLEAR STATUS REGISTER
WRITE TO BUFFER
WORD/BYTE PROGRAM
BLOCK ERASE
BLOCK ERASE/PROGRAM
SUSPEND
BLOCK ERASE/PROGRAM
RESUME
CONFIGURATION
SET BLOCK LOCK BITS
CLEAR BLOCK LOCK BITS
PROTECTION PROGRAM
Key:
[IA]
[ID]
[BA]
[QA]
[PA]
[QD]
[SRD]
Notes
[1]
[2]
[3]
[4]
Scalable or Basic Command
Set [SCS or BCS]
SCS / BCS
SCS / BCS
SCS
SCS / BCS
SCS / BCS
SCS / BCS
SCS / BCS
SCS / BCS
SCS / BCS
SCS / BCS
SCS
SCS
SCS
First Bus Cycle
Bus Cycles Operation
Address
1
WRITE
X
>/= 2
WRITE
X
2
1
>2
2
2
1
1
2
2
2
2
WRITE
WRITE
WRITE
WRITE
WRITE
WRITE
WRITE
WRITE
WRITE
WRITE
WRITE
WRITE
X
X
X
BA
X
BA
X
X
X
X
X
X
Data
FFh
90h
98h
70h
50h
E8h
40h or 10h
20h
B0h
D0h
B8h
60h
60h
C0h
WRITE
WRITE
WRITE
WRITE
X
BA
X
PA
CC
01h
D0h
PD
Second Bus Cycle
Operation
Address
Data
READ
READ
READ
WRITE
WRITE
WRITE
IA
QA
X
BA
PA
BA
ID
QD
SRD
N
PD
D0h
Notes
1
2
3, 4, 5
6, 7
5, 6
7, 8
7
Identifier Code address
Data read from identifier Code
Address within a Block
Query data base Address
Address of Memory location to be programmed
Data read from Query data base
Data read from Status Register
[5]
[6]
[7]
[8]
Following the READ IDENTIFIER CODES command, READ operations access manufacturer, device, and block lock codes.
If the ISM is running, only DQ7 is valid; DQ15-DQ8 and DQ6-DQ0 are placed in High-Z
After the WRITE-to-BUFFER command is issued, check the XSR to make sure a buffer is available for WRITING
The number of Bytes/words to be written to the write buffer = n+1, where n=byte/word count argument. Count ranges on this device
for byte mode are n=00H to n=1Fh and for word mode, n=0000h to 000Fh. The third and consecutive bus cycles, as determined by n,
are for writing data into the write buffer. The CONFIRM command (D0h) is expected after exactly n+1 WRITE cycles; any other
command at that point in the sequence aborts the WRITE-to-BUFFER operation.
The WRITE-to-BUFFER or ERASE operation does not begin until a CONFIRM command (D0h) is issued
Attempts to issue a BLOCK ERASE or PROGRAM to a locked block will fail
Etiher 40h or 10h is recognized by the ISM as the byte/word program setup
PROGRAM SUSPEND can be issued after either the WRITE-to-BUFFER or WORD/BYTE PROGRAM operation is inititated.
The CLEAR BLOCK LOCK BITS operation simultaneously clears all block lock bits.
AS28F128J3MRG
Revision 5.0 11/23/04
Austin Semiconductor, Inc. reserves the right to change products or modify product specifications with appropriate notification
For Additional Products and Information visit out Web site at
www.austinsemiconductor.com
5
京公网安备 11010802033920号
EEWORLD
