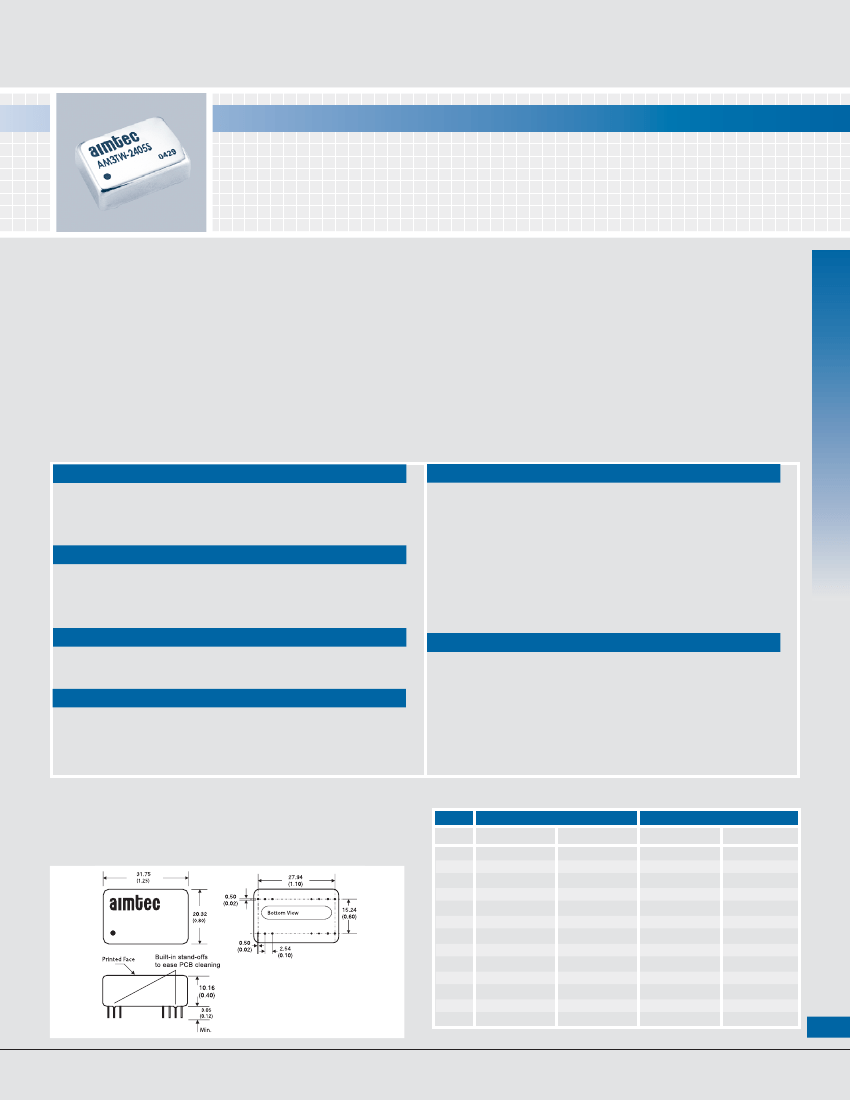

AM3TW Series
3 watt dc-dc converters
•
•
•
•
24-PIN DIP PACKAGE
LOW PROFILE METAL PACKAGE
HIGH EFFICIENCY UP TO 79%
WIDE 4:1 INPUT RANGE
•
•
•
•
INPUT/OUTPUT ISOLATION: 1500 & 3500VDC
OPERATING TEMPERATURE: -40°C ... +85°C
PIN-COMPATIBLE WITH MULTIPLE MANUFACTURERS
CONTINUOUS SHORT CIRCUIT PROTECTION
Our AM3TW series is a family of cost effective 3W single and dual
output DC-DC converters. These converters combine nickel-coated
copper package in a 24-pin DIP compatible case with high perform-
ance features such as 1500 & 3500VDC input/output isolation volt-
age, continuous short circuit protection with automatic restart and
tight line / load regulation. Wide range devices operate over 4:1
input voltage range providing stable output voltage. Devices are
encapsulated using flame retardant resin. Input voltages of 24
& 48VDC with output voltages of 3.3, 5, 7.2, 9, 12, 15, 18, 24,
±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18 & ±24VDC. High performance
features include high efficiency operation up to 79% and output
voltage accuracy of ±1% maximum. All models are packaged in a
low profile 31.75x20.32x10.16mm 24 pin DIP nickel-coated copper
case. Operation is specified over the full operating temperature
range of -40°C to +85°C with no derating required. Cooling is by
free-air convection.
ELECTRICAL SPECIFICATIONS
Input Specifications:
Voltage range
Filter
Isolation Specifications:
Rated voltage
Resistance
Capacitance
General Specifications:
Efficiency
Switching Frequency
Physical Specifications:
Dimensions
Weight
Case material
Specifications typical at +25°C, nominal input voltage, rated output current unless otherwise specified
24 VDC, 9~36VDC
48 VDC, 18~72VDC
p
(Pi) Network
1500 & 3500VDC
> 1000MOhm
80pF, typ.
75% to 79%
250KHz, typ. 100% load
31.75x20.32x10.16mm
1.25x0.8x0.4 inches
21g
Nickel-Coated Copper
Output Specifications:
Voltage accuracy
Voltage balance (Dual Output)
Ripple & noise (at 20MHz BW)
Short circuit protection
Short circuit restart
Line voltage regulation
Load voltage regulation
Temperature Coefficient
±1%, max.
±1%
60mVp-p, max.
Continuous
Automatic
±0.5%, max.
±0.5%, max.
±0.02%/°C, typ.
Environmental Specifications:
Operating temperature (ambient) -40°C ... +85°C
Storage temperature
-55°C +125ºC
Case temperature
+100°C, max.
Derating
None required
Humidity (non-condensing)
Up to 90%
Cooling
Free-air Convection
MTBF: >1 222000 hrs (MIL-HDBK-217F, Ground Benign, t=+25°C)
Specifications are subject to change without notification
OUTLINE DIMENSIONS
& PIN CONNECTIONS
Pin
1500VDC
Single
Dual
3500VDC
Single
Dual
1
2
3
9
10
11
12/13
14
15
16
22
23
24
+V Input
N.C.
N.C.
Omitted
-V Output
+V Output
-V Input
+V Output
-V Output
Omitted
N.C.
N.C.
+V Input
+V Input
-V Output
Common
Omitted
Common
+V Output
-V Input
+V Output
Common
Omitted
Common
-V Output
+V Input
Omitted
-V Input
-V Input
N.C.
Omitted
N.C.
Omitted
+V Output
Omitted
-V Output
+V Input
+V Input
Omitted
Omitted
-V Input
-V Input
Common
Omitted
-V Output
Omitted
+V Output
Omitted
Common
+V Input
+V Input
Omitted
Continued on next page
