Frontier Electronics Corp.

667 E. COCHRAN STREET, SIMI VALLEY, CA 93065

TEL: (805) 522-9998

FAX: (805) 522-9989

E-mail: frontiersales@frontierusa.com

Web: frontierusa.com

SMD Balun Transformer—

SBT203-series

A. Electrical specifications:

Part No.

SBT203-11

SBT203-21

Turn Ratio

1:1

2:1

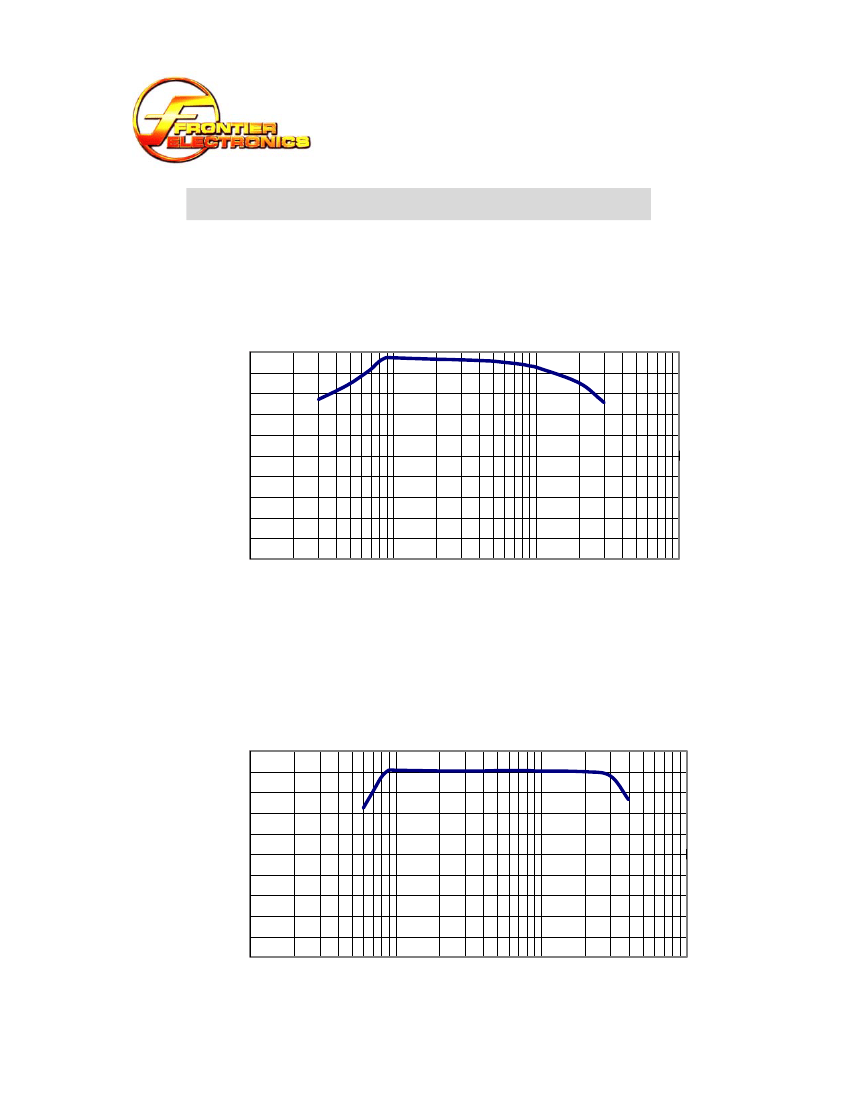

Insertion Loss 3 dB Max.

@3~300MHz

@6~400MHz

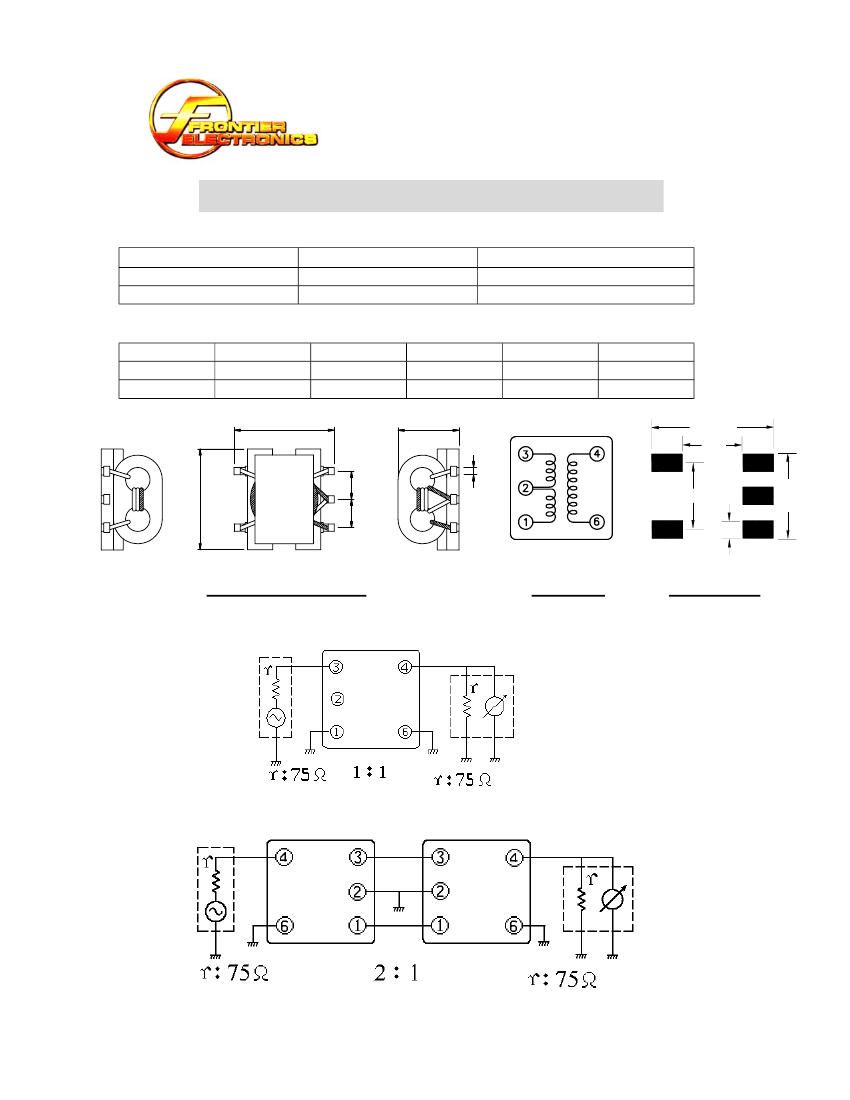

B. Mechanical dimensions: (Unit: mm)

Dimension

Tolerance

4.4

Max.

5.50

Max.

1.50

± 0.30

3.20

Max.

0.50

± 0.15

6.20mm

2.90mm

3.0 mm

3.8

0.80 mm

Mechanical dimension

Schematic

Land Pattern

C. Test configuration and connection:

(a) SBT-203-11:

(b) SBT-203-21:

Note:

RoHS

compliant; for the

ROHS

parts, we add “-LFR” at the end of the P/N.

SMD Balun Transformer SBT203-series

Rev. A

Jan. 01, 2006. Page: 1 of 2
