HDU200-A-T033EK Overview

DC-DC converter 19a€? compatible eurocard triple output 200 watts switching mode power supplies

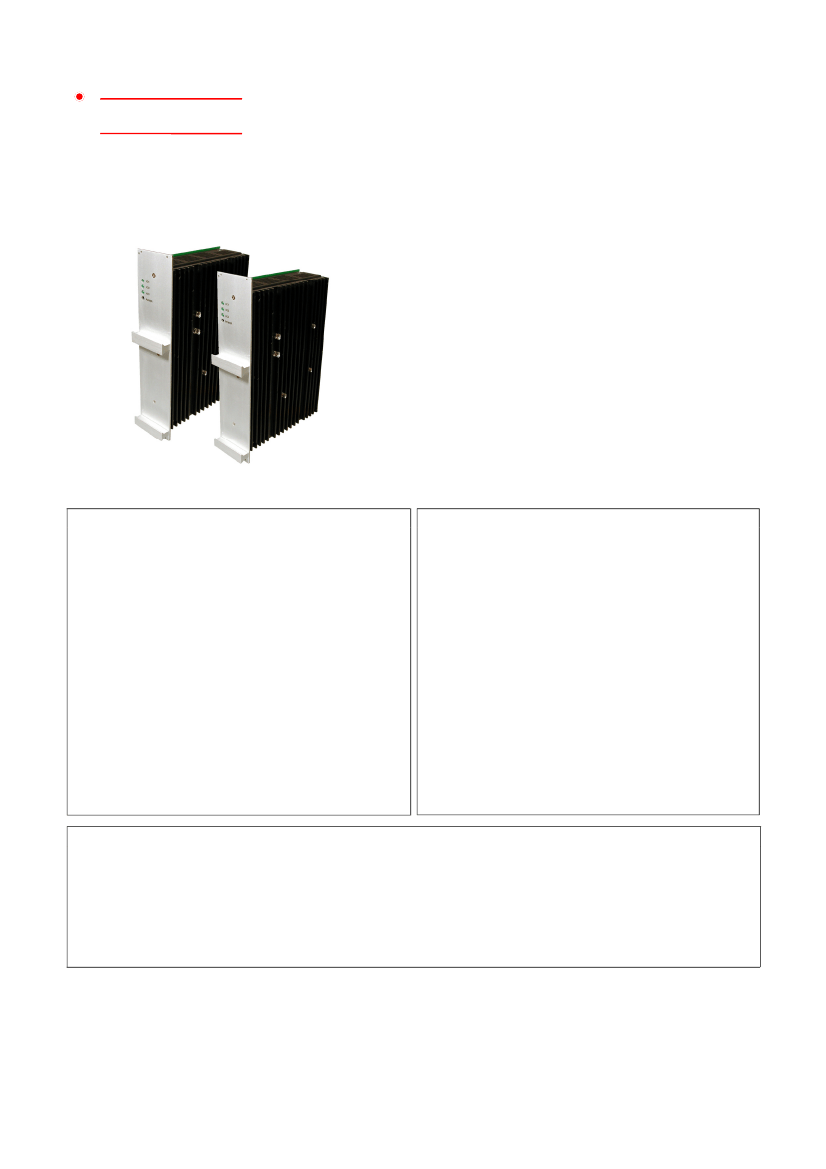

H HiTRON
DC-DC CONVERTER 19” COMPATIBLE EUROCARD TRIPLE OUTPUT
200 WATTS SWITCHING MODE POWER SUPPLIES HDU200 SERIES
FEATURES:
12/24/48VDC 2:1 INPUT RANGE
19" COMPATIBLE EUROCARD FORMAT
EMI MEET CISPR PUB. 22 & FCC CLASS A
MEET THE SAFETY STANDARDS
CE MARKING COMPLIANCE
6U X 12HP X 160MM VMEbus STANDARD
SPECIFICATION
INPUT SPECIFICATION
Input Voltage:
Three 2:1 ranges option.
A Range: 9-18Vdc nominal 12Vdc.
B Range: 18-36Vdc nominal 24Vdc.
C Range: 36-72Vdc nominal 48Vdc.
Input
Connector:
2pcs X DIN 41612 at rear.
Input Current:
@FL
@NL
HDU200-A: 23.0A
0.40A
HDU200-B: 11.3A
0.21A
HDU200-C: 5.0A
0.10A
Dielectric Withstand:
Meet IEC950.
EMI:
Meet CISPR PUB. 22 & FCC Class A.
Power-on Indicator:
LED at front panel.
Power OK Signal:
Installed.
Remote (Logic) Inhibit:
Installed.
Reflected Ripple Current:
Typ. 28mV pk-pk.
OUTPUT SPECIFICATION
Output Voltage:
See Ratings Chart.
Output Current:
See Ratings Chart.
Output Wattage:
Typ. 200 Watts for HDU200.
Output Connector:
2pcs X DIN 41612 at rear.
Output Indicator:
LEDs installed at front panel
for all outputs.
Line Regulation:
Typ. 0.2%.
Load Regulation:
Main VO1 typ. ±1.0%.
Aux. VO2 typ. ±2.0%. (M.A.)
Aux. VO3 typ. ±2-3.0%. (P.R.)
Noise & Ripple:
Typ. 120mV peak to peak.
OVP:
Built-in at main VO1 and VO2 (auto-recovery).
Adjustability:
Available at main output VO1 and
Aux. output VO2 (Mag. Amp.).
Remote Sense:
Available at VO1 only.
Overload Protection (OLP):
Fully protected against
output overload & short circuit. Typ. 120-140%.
Consult the factory for OLP setting.
GENERAL SPECIFICATION
Efficiency:
Typ. 71.0-73.0%
Switching Frequency:
Typ. 48K Hz.
Circuit Topology:
Push-pull circuit.
Transient Response:
Typ. 0.5mS following a 25%
load change.
Power Density:
1.2 Watts / Cubic Inch.
Operating Temperature:
0 to +50°C at full load.
Storage Temperature:
-20 to +85°C.
Temperature Coefficient:
Typ. 0.04% /°C.
Cooling:
Free air convection.

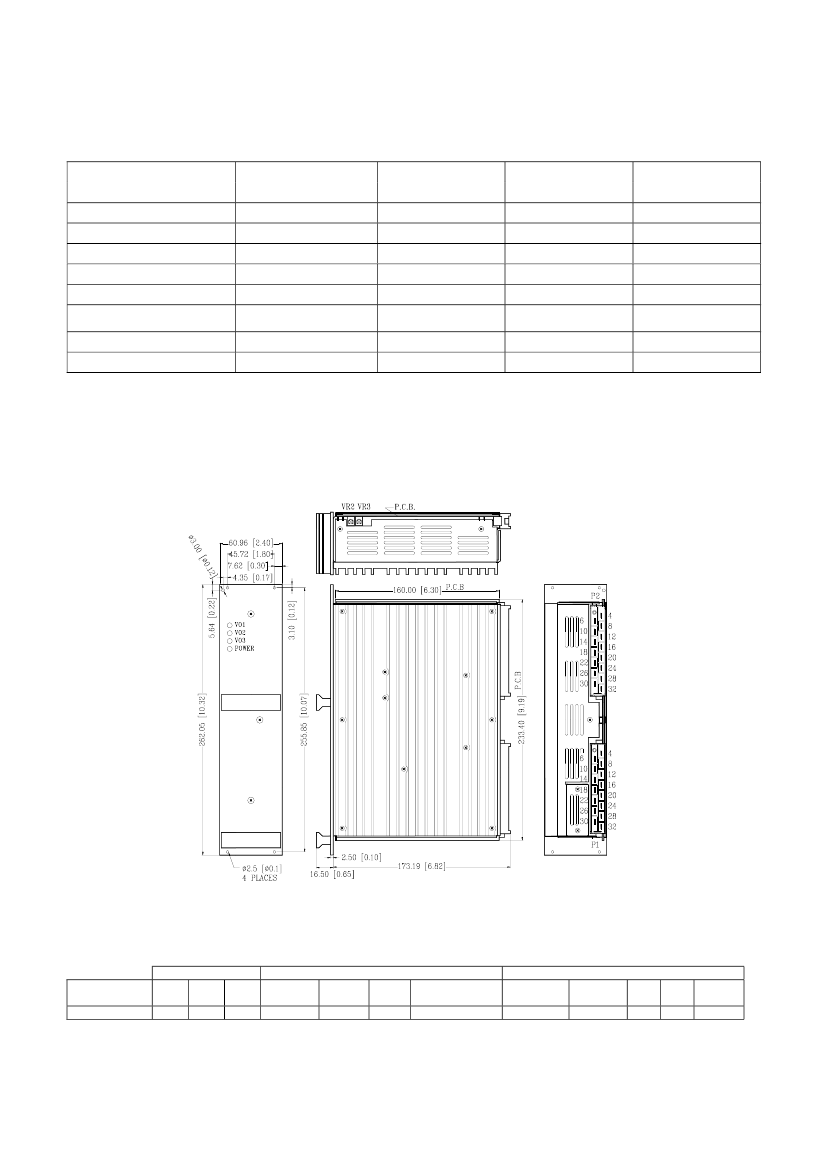

Construction:
12HP(TE)x6Ux160mm 19" compatible
Eurocard VMEbus standard.
-63-
