SL74HC75
Dual 2-Bit Transparent Latch
High-Performance Silicon-Gate CMOS
The SL74HC75 is identical in pinout to the LS/ALS75. The device
inputs are compatible with standard CMOS outputs; with pullup
resistors, they are compatible with LS/ALSTTL outputs.
This device consists of two independent 2-bit transparent latches
and can be used as temporary storage for binary information between
processing units and input/output or indicator units. Each latch stores
the input data while Latch Enable is at a logic low. The outputs follow
the data inputs when Latch Enable is at a logic high.
•
Outputs Directly Interface to CMOS, NMOS, and TTL
•
Operating Voltage Range: 2.0 to 6.0 V
•
Low Input Current: 1.0
µA
•
High Noise Immunity Characteristic of CMOS Devices
ORDERING INFORMATION
SL74HC75N Plastic
SL74HC75D SOIC
T
A
= -55° to 125° C for all packages
PIN ASSIGNMENT
LOGIC DIAGRAM
FUNCTION TABLE
PIN 5=V
CC
PIN 12 = GND
D
L
H
X
Inputs
Latch
Enable
H
H
L
Outputs
Q
L
H
Q0
Q
H
L
Q0
X = Don’t Care
Q0 = latched data
SLS
System Logic
Semiconductor
SL74HC75
MAXIMUM RATINGS
*
Symbol
V
CC
V
IN
V
OUT
I
IN
I
OUT
I
CC
P
D
Tstg
T
L
*
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage (Referenced to GND)
DC Output Voltage (Referenced to GND)
DC Input Current, per Pin
DC Output Current, per Pin
DC Supply Current, V
CC
and GND Pins
Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
Storage Temperature
Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)
Value
-0.5 to +7.0
-1.5 to V
CC
+1.5
-0.5 to V
CC
+0.5
±20
±25
±50
750
500
-65 to +150
260
Unit
V
V
V
mA
mA
mA
mW
°C
°C
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol
V
CC
V
IN
, V
OUT
T
A
t
r
, t
f
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage, Output Voltage (Referenced to GND)
Operating Temperature, All Package Types
Input Rise and Fall Time (Figure 1)
V
CC
=2.0 V
V
CC
=4.5 V
V
CC
=6.0 V
Min
2.0
0
-55
0
0
0
Max
6.0
V
CC
+125
1000
500
400
Unit
V
V
°C
ns
This device contains protection circuitry to guard against damage due to high static voltages or electric
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated
voltages to this high-impedance circuit. For proper operation, V
IN
and V
OUT
should be constrained to the range
GND≤(V
IN
or V
OUT
)≤V
CC
.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V ).
CC
Unused outputs must be left open.
SLS
System Logic
Semiconductor
SL74HC75
DC ELECTRICAL CHARACTERISTICS
(Voltages Referenced to GND)
V
CC
Symbol
Parameter
Test Conditions
V
Guaranteed Limit
25
°C
to
-55°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.98
5.48
0.1
0.1
0.1
0.26
0.26
±0.1
4.0
≤85
°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.84
5.34
0.1
0.1
0.1
0.33
0.33
±1.0
40
≤125
°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.7
5.2
0.1
0.1
0.1
0.4
0.4
±1.0
80
µA
µA
V
Unit
V
IH
Minimum High-Level
Input Voltage
Maximum Low -Level
Input Voltage
Minimum High-Level
Output Voltage
V
OUT
=0.1 V or V
CC
-0.1 V
I
OUT
≤
20
µA
V
OUT
=0.1 V or V
CC
-0.1 V
I
OUT
≤
20
µA
V
IN
=V
IH
or V
IL
I
OUT
≤
20
µA
V
IN
=V
IH
or V
IL
I
OUT
≤
4.0 mA
I
OUT
≤
5.2 mA
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
4.5
6.0
2.0
4.5
6.0
4.5
6.0
6.0
6.0
V
V
IL
V
V
OH
V
V
OL
Maximum Low-Level
Output Voltage
V
IN
= V
IL
or V
IH
I
OUT
≤
20
µA
V
IN
= V
IL
or V
IH
I
OUT
≤
4.0 mA
I
OUT
≤
5.2 mA
I
IN
I
CC
Maximum Input
Leakage Current
Maximum Quiescent
Supply Current
(per Package)
V
IN
=V
CC
or GND
V
IN
=V
CC
or GND
I
OUT
=0µA
SLS
System Logic
Semiconductor
SL74HC75
AC ELECTRICAL CHARACTERISTICS
(C
L
=50pF,Input t
r
=t
f
=6.0 ns)
V
CC
Symbol
t
PLH
, t
PHL
Parameter
Maximum Propagation Delay, D to Q (Figures 1
and 5)
Maximum Propagation Delay , D to Q
(Figures 1 and 5)
Maximum Propagation Delay ,Latch Enable to Q
(Figures 2 and 5)
Maximum Propagation Delay ,Latch Enable to Q
(Figures 2 and 5)
Maximum Output Transition Time, Any Output
(Figures 3 and 5)
Maximum Input Capacitance
Power Dissipation Capacitance (Per Latch)
C
PD
Used to determine the no-load dynamic power
consumption:
P
D
=C
PD
V
CC2
f+I
CC
V
CC
V
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
-
Guaranteed Limit
25
°C
to
-55°C
125
25
21
110
22
19
145
29
25
125
25
21
75
15
13
10
≤85°C
155
31
26
140
28
24
180
36
31
155
31
26
95
19
16
10
≤125°C
190
38
32
165
33
28
220
44
38
190
38
32
110
22
19
10
Unit
ns
t
PLH
, t
PHL
ns
t
PLH
, t
PHL
ns
t
PLH
, t
PHL
ns
t
TLH
, t
THL
ns
C
IN
pF
Typical @25°C,V
CC
=5.0 V
35
pF
TIMING REQUIREMENTS
(C
L
=50pF,Input t
r
=t
f
=6.0 ns)
V
CC
Symbol
t
SU
Parameter
Minimum Setup Time,
Input D to Latch Enable
(Figure 4)
Minimum Hold Time,Latch
Enable to D (Figure 4)
Minimum Pulse Width, Latch
Enable Input
(Figure 2)
Maximum Input Rise and Fall
Times (Figure 1)
V
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
25
°C
to
-55°C
100
20
17
25
5
5
80
16
14
1000
500
400
Guaranteed Limit
≤85°C
125
25
21
30
6
6
100
20
17
1000
500
400
≤125°C
150
30
26
40
8
7
120
24
20
1000
500
400
Unit
ns
t
h
ns
t
w
ns
t
r,
t
f
ns
SLS
System Logic
Semiconductor
SL74HC75

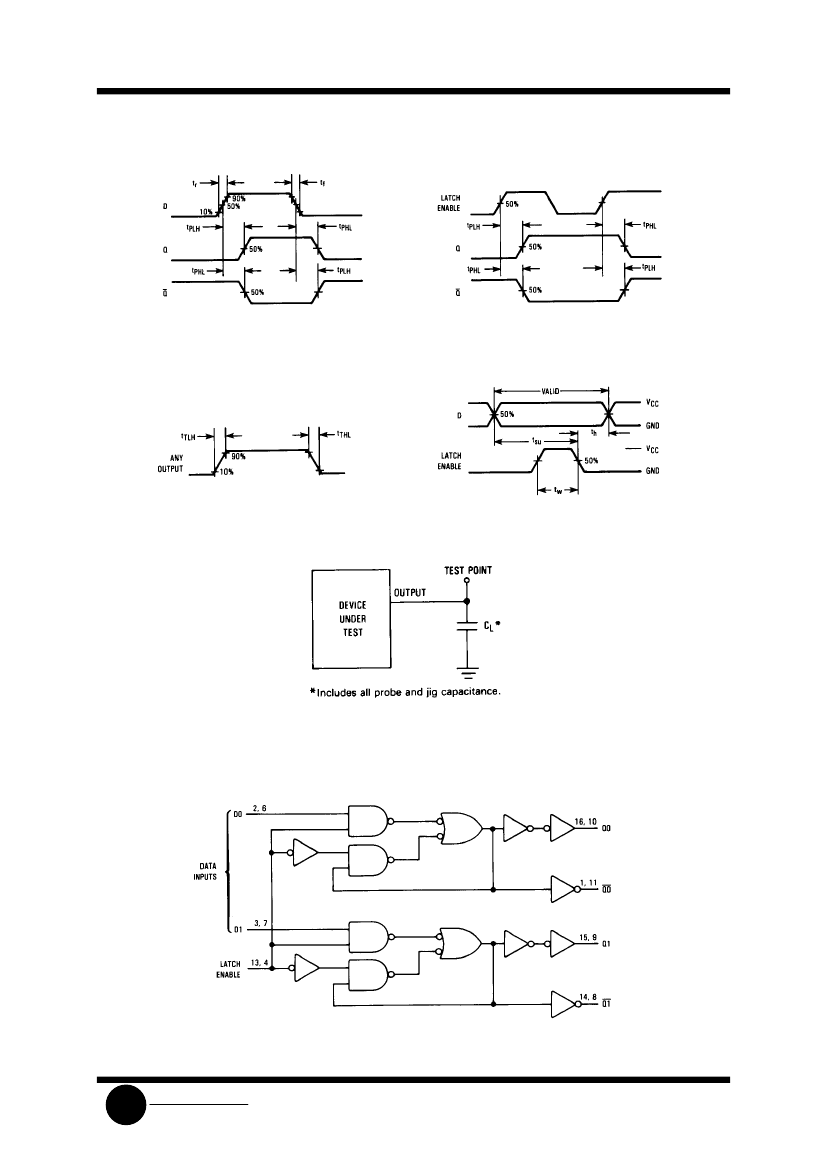

Figure 1. Switching Waveforms
Figure 2. Switching Waveforms
Figure 3. Switching Waveforms
Figure 4. Switching Waveforms
Figure 5. Test Circuit
EXPANDED LOGIC DIAGRAM
