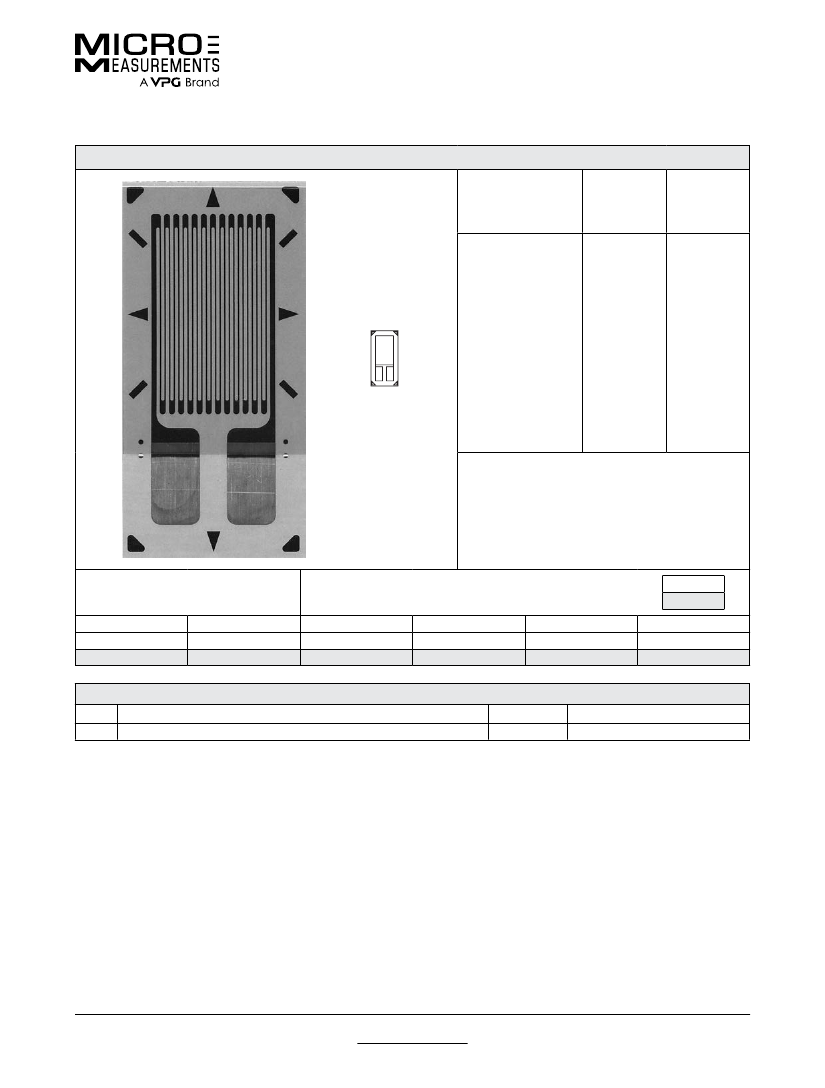

250UW
General Purpose Strain Gages—Linear Pattern
GAGE PATTERN DATA
GAGE
DESIGNATION
See Note 1
CEA-XX-250UW-120
CEA-XX-250UW-175
CEA-XX-250UW-350
CEA-XX-250UW-10C
RESISTANCE
(OHMS)
See Note 2
120 ±0.3%
175 ±0.3%
350 ±0.3%
1000 ±0.3%
OPTIONS
AVAILABLE
See Note 3
P2,
SP35
P2,
SP35
P2,
SP35
P2,
SP35
actual size
DESCRIPTION
General-purpose gage. Exposed solder tab area
0.10 x 0.07 in (2.5 x 1.8 mm). See also 250UN pattern.
GAGE DIMENSIONS
Gage Length
0.250
6.35
Overall Length
0.450
11.43
Legend
ES = Each Section
S = Section (S1 = Section 1)
Grid Width
0.180
4.57
CP = Complete Pattern
M = Matrix
Matrix Length
0.55
14.0
inch
millimeter
Matrix Width
0.27
6.9
Overall Width
0.180
4.57
GAGE SERIES DATA
—
See Gage Series datasheet for complete specifications
Series
CEA
Description
Universal general-purpose strain gages.
Strain Range
±5%
Temperature Range
–100° to +350°F (–75° to +175°C)
Note 1:
Insert desired S-T-C number in spaces marked XX.
Note 2:
Tolerance is increased when Option W, E, SE, LE, P, or SP35 is specified.
Note 3:
Products with designations and options shown in
bold
are not RoHS compliant.
Document No.: 11312
Revision: 30-Aug-2016
For technical questions, contact
mm@vpgsensors.com
www.micro-measurements.com
1
