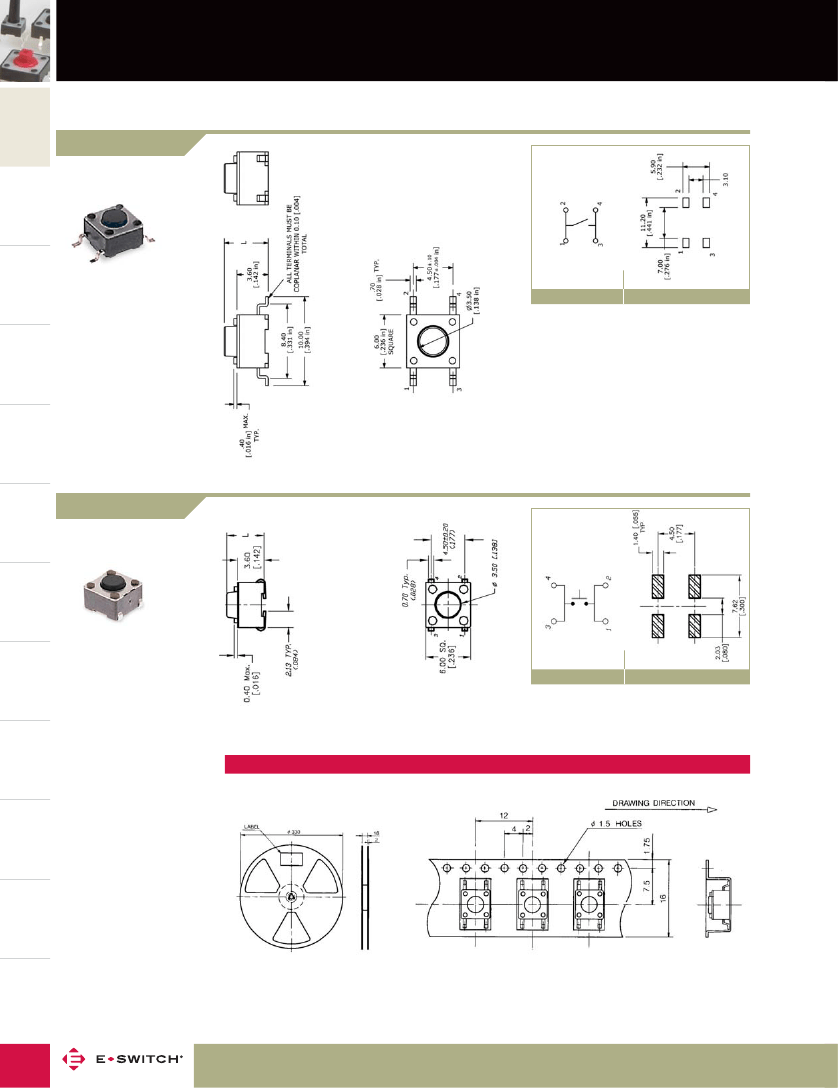

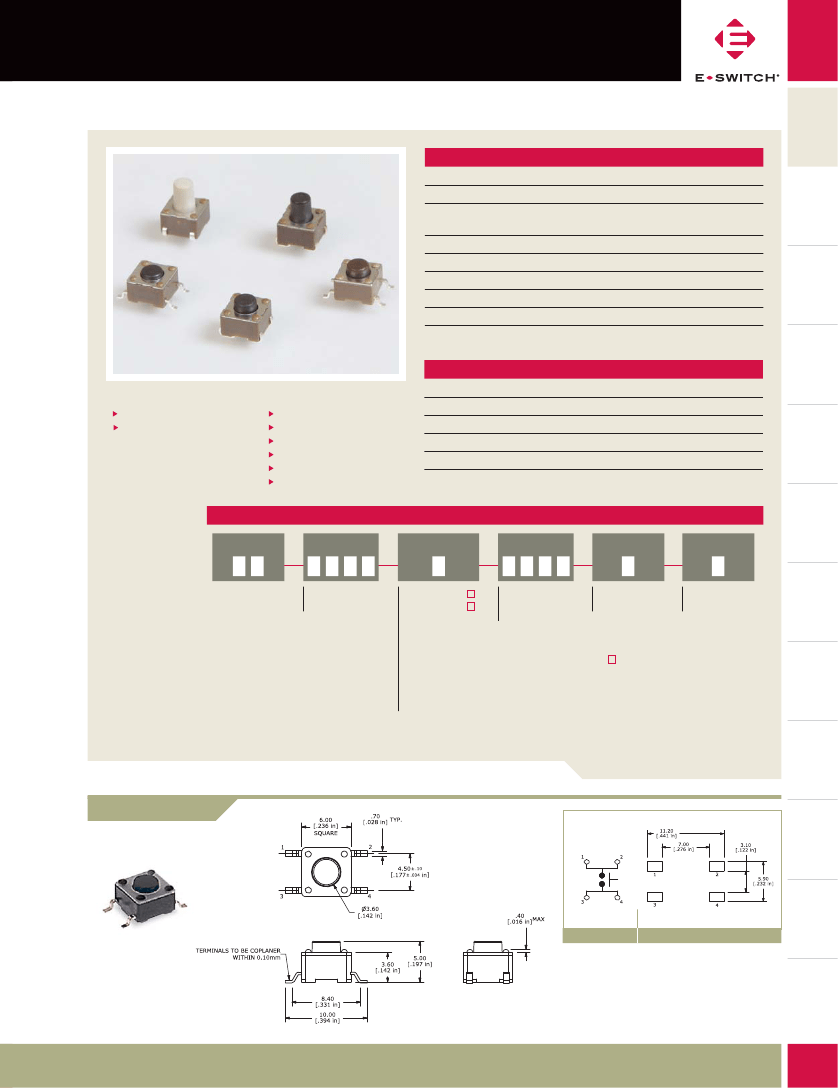

SERIES TL 3301 SWITCHES
SPECIFICATIONS
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Actuation Force:
Travel:
100,000 cycles typical
100mΩ max. initial @ 2-4 VDC
100mA for both silver and gold plated contacts
100MΩ min.
250 VAC
100 ± 50 gf, 160 ± 50 gf, 260 ± 50 gf
0.25 Typ
PUSHBUTTON
SWITCHES
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
SCHEMATIC
P.C. MOUNTING
KEYLOCK
SWITCHES
DIP
SWITCHES
SNAP-ACTION
SWITCHES
SLIDE
SWITCHES
ROCKER
SWITCHES
TOGGLE
SWITCHES
CONTACT
MATERIAL
TERMINATION
Q = Silver
R = Gold
G = Gull Wing
J = J-Lead
– Square Snap-on Actuator Head
“L” Dimension is 7.5mm
* Note: Not all actuator lengths
available with tape and reel
packaging. Please contact
E-Switch to confirm availability.
Specifications subject to change without notice.
Operating Temperature: -20°C to 70°C
MATERIALS
Housing:
PPS or Nylon
PPS or Nylon
Tin plated steel
Gold or silver plated phosphor bronze
Gold or silver plated brass
FEATURES & BENEFITS
SMT Design
Compatible with lead-free soldering
APPLICATIONS/MARKETS
Telecommunications
Consumer Electronics
Audio/visual
Medical
Testing/instrumentation
Computer/servers/peripherals
Actuator:
Bracket/Cover:
Contacts:
Terminals:
HOW TO ORDER
SERIES
MODEL NO.
ACTUATOR*
("L" Dimension)
OPERATING
FORCE
TL
LL
3301
T = 2.4mm
SP = 2.8 mm
N = 4.3mm
A = 5.0mm
E = 7.3mm
F = 7.0mm
C = 8.0mm
P = 8.5mm
B = 9.5mm
D =13.0mm
F100
F160
F260
Example Ordering Number
TL
_
3301_ N_ F160
_
Q
_
J
LL 3301
LONG LIFE
www.e-switch.com
info
@
e-switch.com
NAVIGATION
SWITCHES
Contact Rating:
50mA @ 12 VDC
TACT
SWITCHES
TACT SWITCHES SMT - 6mm x 6mm
▲
▲
▲
▲
▲
▲
13
