ADAM TECHNOLOGIES
SCREW MACHINE SOCKETS
& TERMINAL STRIPS
.100" [2.54] CENTERLINE
ICM & SICM SERIES
INTRODUCTION:

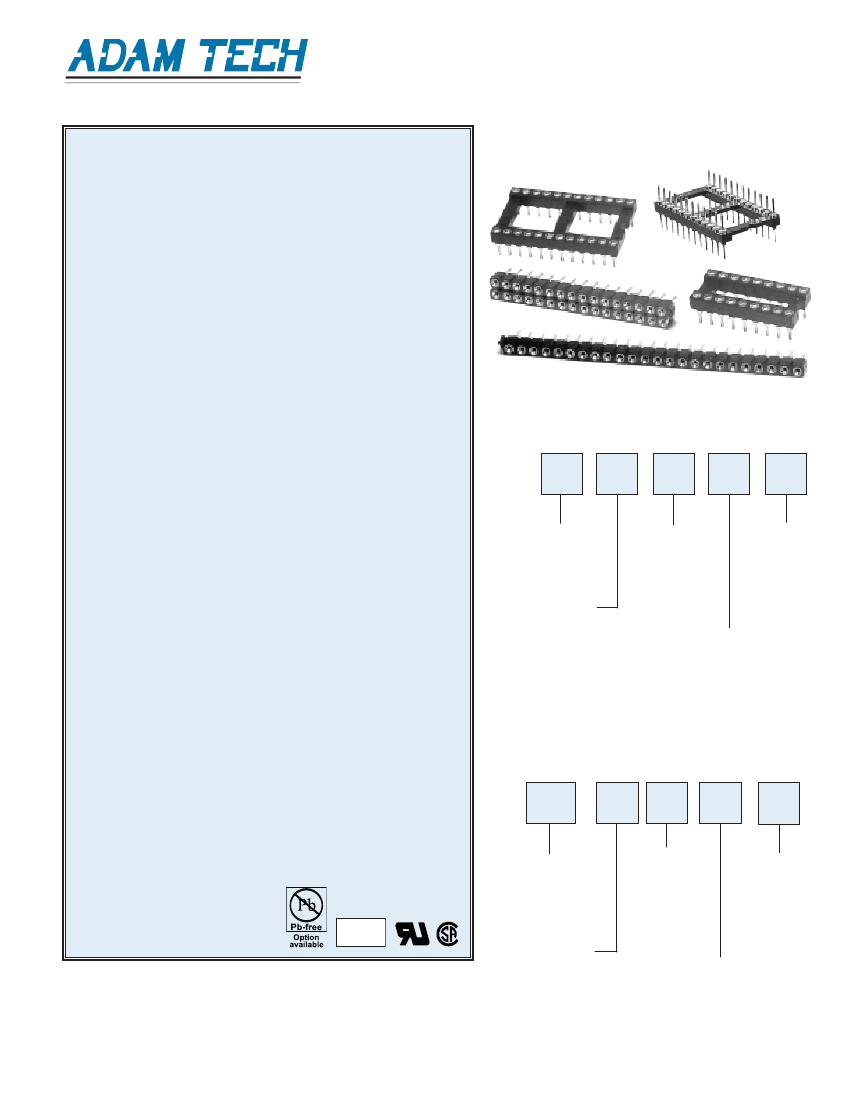

Adam Tech ICM Series Machine Pin Sockets and Terminal Strips
offer a full range of exceptional quality, high reliability DIP and SIP
package Sockets and Terminal Strips. Our sockets feature solid,
precision turned sleeves with a closed bottom design to eliminate flux
intrusion and solder wicking during soldering. Adam Tech’s stamped
spring copper insert provides an excellent connection and allows
repeated insertion and withdrawals. Plating options include choice of
gold, tin or selective gold plating. Our insulators are molded of
UL94V-0 thermoplastic and both Sockets and Terminal Strips are XY
stackable.
FEATURES:
High Pressure Contacts
Precision Stamped Internal Spring Contact
Anti-Solder Wicking design
Machine Insertable
Single or Dual Row
Low Profile
MATING COMPONENTS:
Any industry standard components with SIP or DIP leads
SPECIFICATIONS:
Material:
Insulator: PBT, Glass reinforced, rated UL94V-0
Insulator Color: Black
Contacts: Phosphor Bronze
Contact Plating:
Gold over Nickel underplate and Tin over copper underplate
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max.
Contact resistance: 30 mΩ max. initial
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Insertion force: 400 grams initial max with .025 dia. leads
Withdrawal force: 90 grams initial min with .025 dia. leads
Temperature Rating:
Operating temperature: -55°C to +105°C
PACKAGING:
Anti-ESD plastic tubes
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
ORDERING INFORMATION
IC SOCKETS
ICM
6
28
1
GT
SERIES INDICATOR
ICM
= Screw Machine
IC Socket
POSITIONS
06 Thru 48
ROW SPACING
3
= .300" row spacing
Positions: 06, 08, 14,
16, 18, 20, 24, 28
6
= .600" row spacing
Positions: 20, 24, 28,
32, 40, 48
PLATING
GT
= Gold
plated inner
contact with
tin plated
outer sleeve
TAIL LENGTH
1
= Standard
DIP Length
2
= Wire wrap
tails
ORDERING INFORMATION
SOCKETS & TERMINAL STRIPS
SMC
1
28
POSITIONS
Single Row:
2P-40P
Dual Row:
4P-80P
1
GT
RoHS
COMPLIANT
RoHS
L
U
COMPLIANT
®
OPTION AVAILABLE
SERIES INDICATOR
SMC
= Screw machine
contact socket
TMC
= Screw machine
terminal strip
®
®
D E
V
OPTIONS:
Add designator(s) to end of part number
RC
= RoHS compliant lead-free product with Hi-Temp insulator
BODY STYLE
1
= Single Row
2A
= Dual Row .100" x .100"
2B
= Dual Row .100" x .300"
2C
= Dual Row .100" x .600"
PLATING
GT
= Gold
inner contact
with tin sleeve
TT
= Tin
inner contact
with tin sleeve
LEAD LENGTH
1
= Standard .125" tail
2
= Wire wrap
909 Rahway Avenue • Union, New Jersey 07083 • TEL: 908-687-5000 • FAX: 908-687-5710 • WWW.ADAM-TECH.COM
139

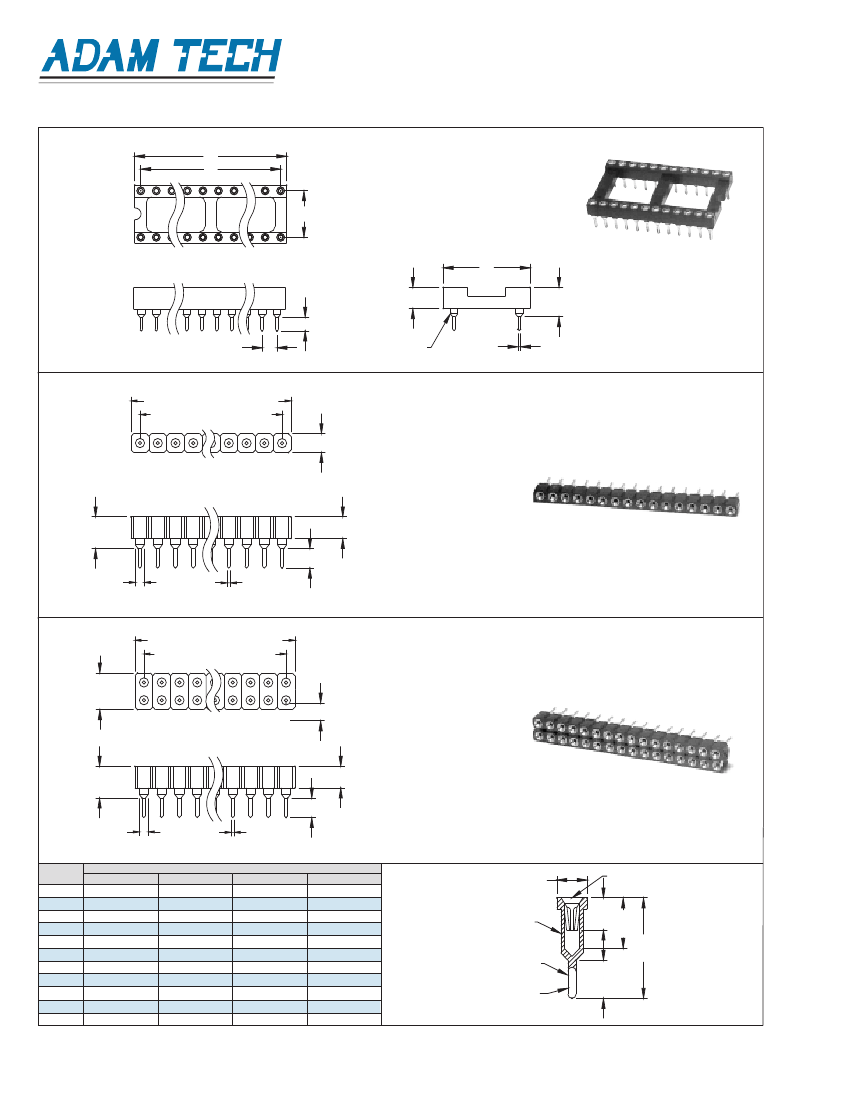

SCREW MACHINE SOCKETS
ADAM TECHNOLOGIES
ICM
ICM
A
B
.100" [2.54] CENTERLINE
ICM & SMC SERIES
D
ICM-624-1-GT
C
.118 [3.00]
.165 [4.20]
.100 [2.54]
.126 [3.20]
ø.052
[1.32]
ø.020
[0.50]
SMC-1
.100 [2.54] X NO. OF POSITIONS
.100 [2.54] X No. OF SPACES
.099 [2.52]
.165 [4.20]
.118 [3.00]
SMC-1-16-1-GT
ø .052
[ø 1.32]
ø .020
[0.50]
.126 [3.20]
SMC-2A
.100 [2.54] X NO. OF POSITIONS
.100 [2.54] X No. OF SPACES
.200 [5.08]
.100 [2.54]
.165 [4.20]
.118 [3.00]
SMC-2A-32-1-GT
ø .052
[ø 1.32]
ø .020
[0.50]
.126 [3.20]
POSITION
8
14
16
18
20
24
24
28
28
32
40
A
.400 [10.16]
.700 [17.78]
.800 [20.32]
.900 [22.86]
1.00 [25.40]
1.20 [30.48]
1.20 [30.48]
1.40 [35.56]
1.40 [35.56]
1.60 [40.64]
2.00 [50.80]
Dimensions
B
C
.300 [7.62]
.400 [10.16]
.600 [15.24]
.400 [10.16]
.700 [17.78]
.400 [10.16]
.800 [20.32]
.400 [10.16]
.900 [22.86]
.400 [10.16]
.400 [10.16]
1.10 [27.94]
.700 [17.78]
1.10 [27.94]
.400 [10.16]
1.30 [33.02]
.700 [17.78]
1.30 [33.02]
1.50 [38.10]
1.90 [48.26]
.700 [17.78]
.700 [17.78]
D
.300 [7.62]
.300 [7.62]
.300 [7.62]
.300 [7.62]
.300 [7.62]
.300 [7.62]
.600 [15.24]
.300 [7.62]
.600 [15.24]
.600 [15.24]
.600 [15.24]
Contact
Detail
ø.072 [1.83]
INSIDE GOLD
PLATED
.098
[2.50].146
[3.70]
.286
[7.27]
.111
[2.83]
ø.052
[1.32]
ø.020
[0.50]
OUTSIDE TIN
PLATED
140
909 Rahway Avenue • Union, New Jersey 07083 • TEL: 908-687-5000 • FAX: 908-687-5710 • WWW.ADAM-TECH.COM
