MODULAR JACKS AND PLUGS
KYCON
GA / GP Series
Ordering Information
GA
Series
4
Number of
Ports
6
Size of
Ports
4
Number of
Contacts
Plating
Options
Series
GA-Right Angle P.C.B. Mount
GP-Perpendicular P.C.B. Mount
Number of Ports
2, 3, 4, 5, 6, 7, 8

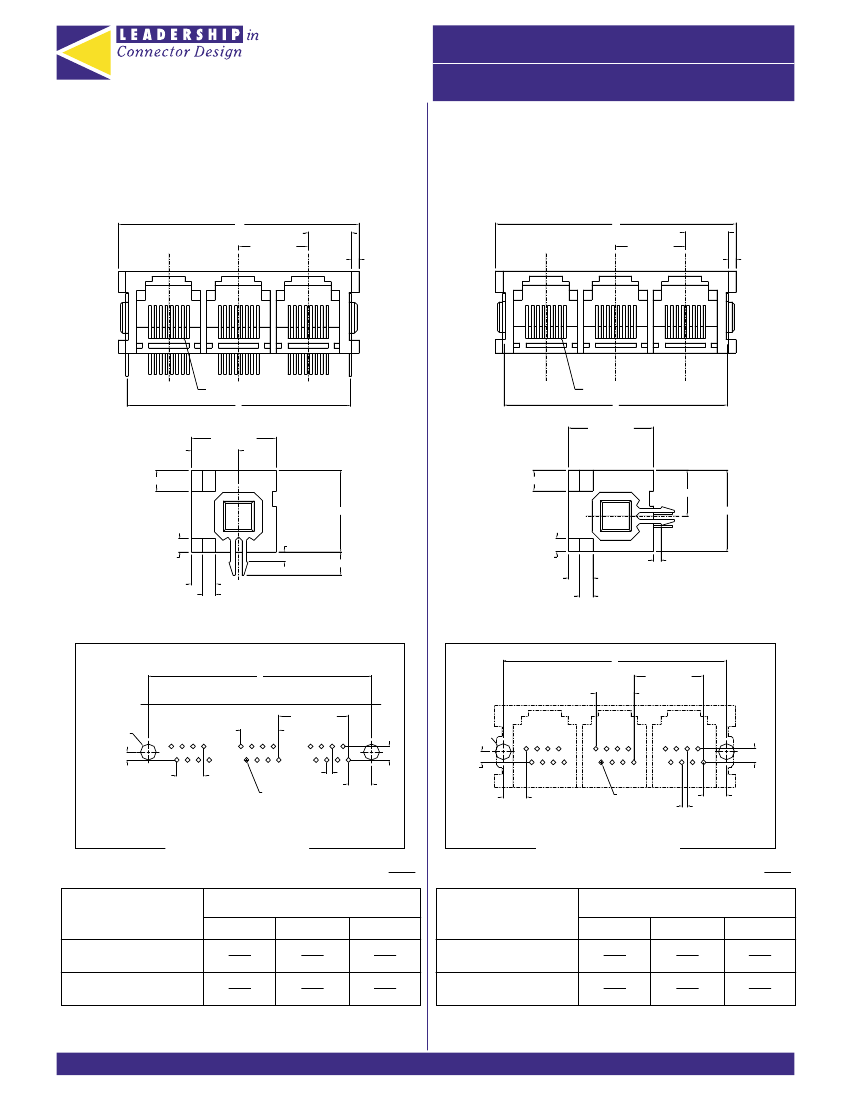

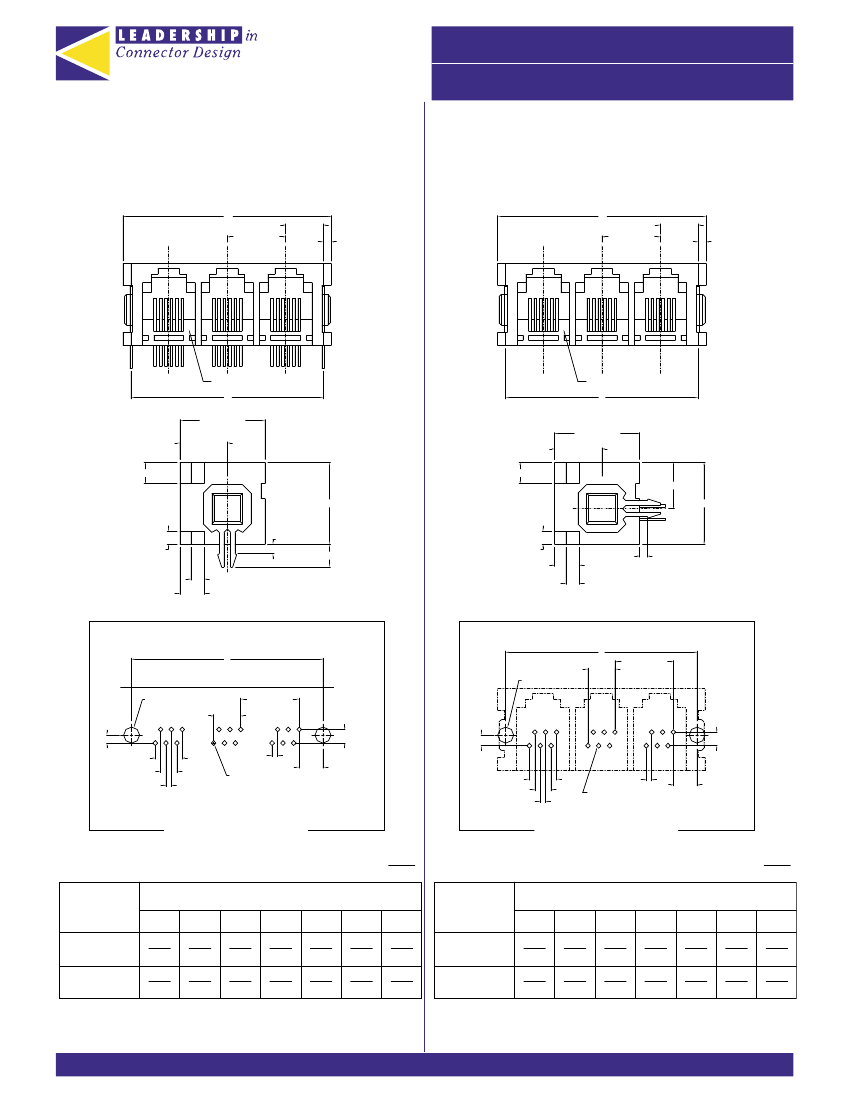

GA/GP Series Gang
Jacks Right Angle and
Perpendicular PCB Mount
Size of Ports
6-6 Positions (Up to 8 Ports Maximum)
8-8 Positions (Up to 4 Ports Maximum)
Number of Contacts
2-2 Contacts
4-4 Contacts
6-6 Contacts
8-8 Contacts
Plating Options

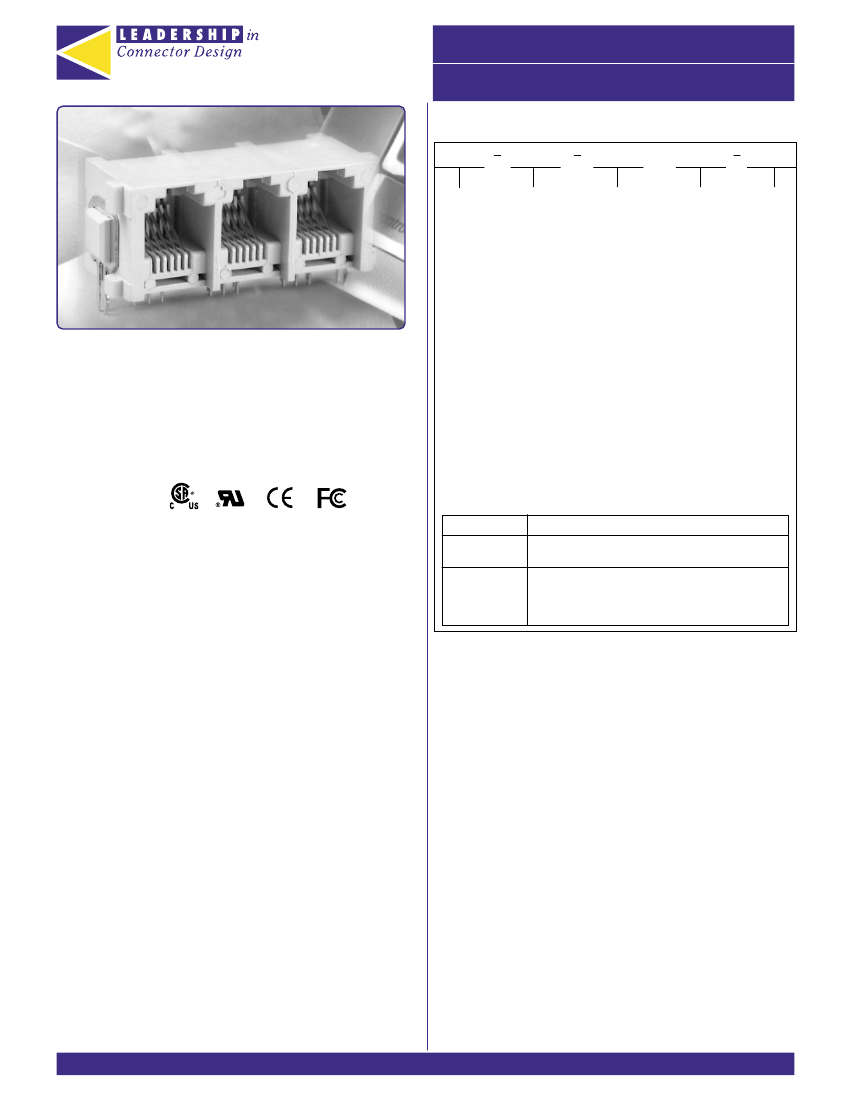

Features
LR78160
• Available in 6 and 8 Position Housings
• Available in Both Right Angle and Top Entry Versions
• Ribbed Pin Guides
• Metal Locking Brackets
• UL Recognized File No. E134345
• CSA/NRTL Certified File No. LR78160
Designator
Standard
50
Plating Description
Contacts are Plated with 0.0001 Nickel, Selective
Plating 0.000015 Gold on Contact Area
Contacts are Plated with 0.0001 Nickel, Selective
Plating 0.000050 Gold on Contact Area to Comply
with FCC Requirements Under #47 C.F.R. Part 68
Subpart F
Performance Specifications
Materials and Finish
Housing Material
PBT Thermoplastic, UL 94V-0 Rated, Gray Color
Contact Material
Phosphor Bronze
Electrical Characteristics
Insulation Resistance
500 Megohms Min
Dielectric Withstanding Voltage
1000V AC for 1 Minute
Contact Resistance
20 Milliohms Max
Current Rating
1.5 Amps
