Obsolete - Not Recommended for New Designs
U63764
CapStore
8K x 8 nvSRAM
Features
Description
The U63764 has two separate
modes of operation: SRAM mode
and nonvolatile mode. In SRAM
mode, the memory operates as an
ordinary static RAM. In non-volatile
operation, data is transferred in
parallel from SRAM to EEPROM or
from EEPROM to SRAM. In this
mode SRAM functions are disab-
led.
The U63764 is a static RAM with a
non-volatile electrically erasable
PROM (EEPROM) element incor-
porated in each static memory cell.
The SRAM can be read and written
an unlimited number of times, while
independent nonvolatile data resi-
des in EEPROM. Data transfers
from the SRAM to the EEPROM
(the STORE operation) take place
automatically upon power down
using charge stored in an integra-
ted capacitor. Transfers from the
EEPROM to the SRAM (the
RECALL operation) take place
automatically on power up. The
U63764 combines the ease of use
of an SRAM with nonvolatile data
integrity.
Pin Description
STORE cycles also may be initia-
ted under user control via a soft-
ware sequence.
Once a STORE cycle is initiated,
further input or output are disabled
until the cycle is completed.
Because a sequence of addresses
is used for STORE initiation, it is
important that no other read or
write accesses intervene in the
sequence or the sequence will be
aborted.
RECALL cycles may also be initia-
ted by a software sequence.
Internally, RECALL is a two step
procedure. First, the SRAM data is
cleared and second, the nonvola-
tile information is transferred into
the SRAM cells.
The RECALL operation in no way
alters the data in the EEPROM
cells. The nonvolatile data can be
recalled an unlimited number of
times.
The U63764 is pin compatible with
standard SRAMs and standard bat-
tery backed SRAMs.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
CMOS non- volatile static RAM
8192 x 8 bits
70 ns Access Time
35 ns Output Enable Access Time
I
CC
= 15 mA at 200 ns Cycle Time
Unlimited Read and Write Cycles
to SRAM
Automatic STORE to EEPROM
on Power Down using charge
stored in an integrated capacitor
Software initiated STORE
Automatic STORE Timing
10
5
STORE cycles to EEPROM
10 years data retention in
EEPROM
Automatic RECALL on Power Up
Software RECALL Initiation
Unlimited RECALL cycles from
EEPROM
Single 5 V
±
10 % Operation
Operating temperature range:
0 to 70
°C
-40 to 85
°C
QS 9000 Quality Standard
ESD protection > 2000 V
(MIL STD 883C M3015.7)
RoHS compliance and Pb- free
Package: PDIP28 (600 mil)
Pin Configuration
n.c.
A12
A7
A6
A5
A4
A3
A2
A1
A0
DQ0
DQ1
DQ2
VSS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
VCC
W
n.c.
A8
A9
A11
G
A10
E
DQ7
DQ6
DQ5
DQ4
DQ3
Signal Name
A0 - A12
DQ0 - DQ7
E
G
W
VCC
VSS
Signal Description
Address Inputs
Data In/Out
Chip Enable
Output Enable
Write Enable
Power Supply Voltage
Ground
PDIP
21
20
19
18
17
16
15
Top View
March 31, 2006
STK Control #ML0055
1
Rev 1.0
U63764

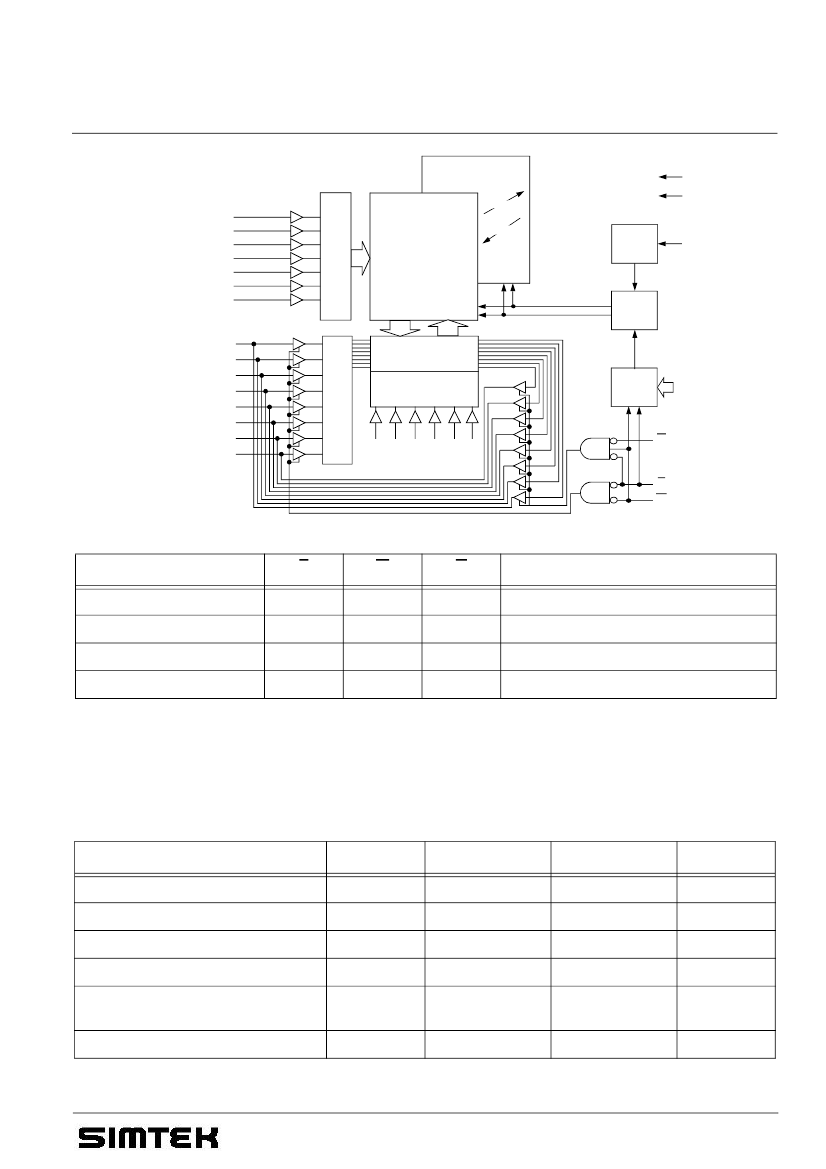

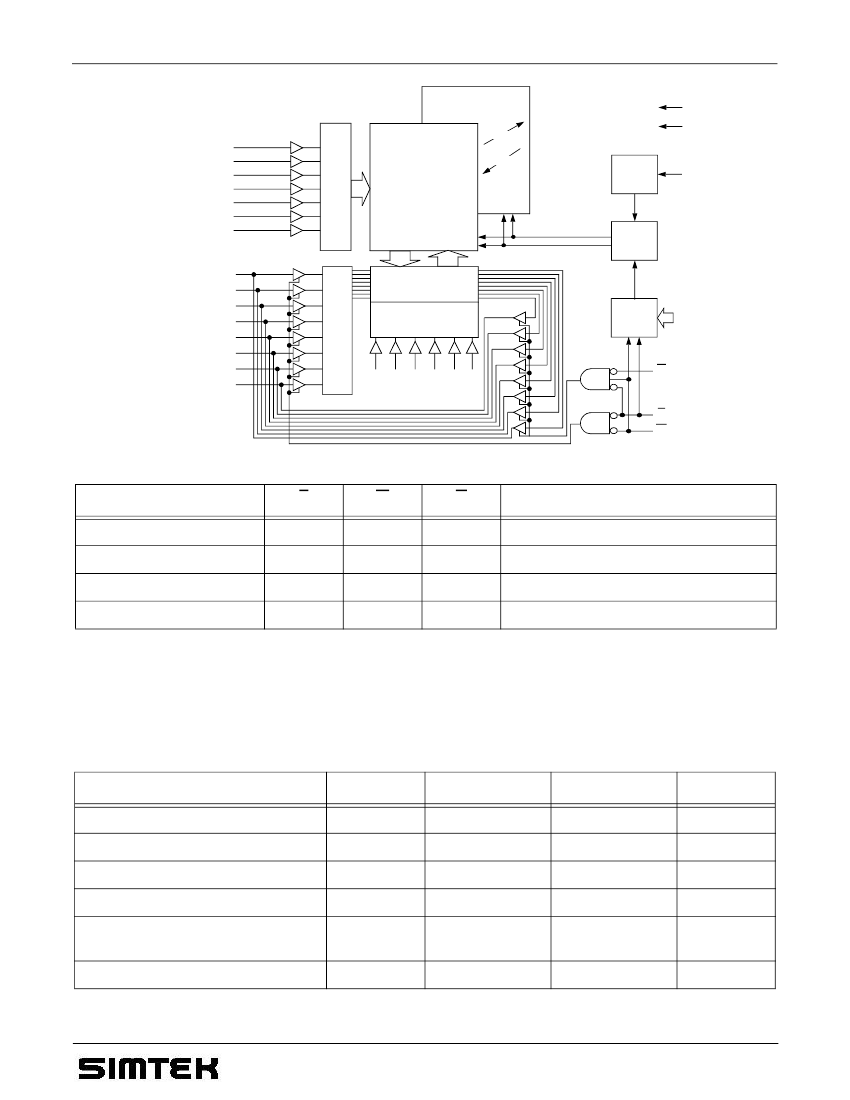

Block Diagram
EEPROM Array
128x (64 x 8)
STORE
A5
A6
A7
A8
A9
A11
A12
Row Decoder
SRAM
Array
128Rows x
64 x 8 Columns
Store/
Recall
Control
V
CC
V
SS
RECALL
Power
Control
V
CC
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
Input Buffers
Column I/O
Column Decoder
Software
Detect
A0 - A12
A0 A1 A2 A3 A4 A10
G
E
W
Truth Table for SRAM Operations
Operating Mode
Standby/not selected
Internal Read
Read
Write
*
H or L
Characteristics
All voltages are referenced to V
SS
= 0 V (ground).
All characteristics are valid in the power supply voltage range and in the operating temperature range specified.
Dynamic measurements are based on a rise and fall time of
≤
5 ns, measured between 10 % and 90 % of V
I
, as well as
input levels of V
IL
= 0 V and V
IH
= 3 V. The timing reference level of all input and output signals is 1.5 V,
with the exception of the t
dis
-times and t
en
-times, in which cases transition is measured
±
200 mV from steady-state voltage.
E
H
L
L
L
W
*
G
*
DQ0 - DQ7
High-Z
High-Z
Data Outputs Low-Z
Data Inputs High-Z
H
H
L
H
L
*
Absolute Maximum Ratings
a
Power Supply Voltage
Input Voltage
Output Voltage
Power Dissipation
Operating Temperature
Storage Temperature
a:
Symbol
V
CC
V
I
V
O
P
D
Min.
-0.5
-0.3
-0.3
Max.
7
V
CC
+0.5
V
CC
+0.5
1
Unit
V
V
V
W
°C
°C
°C
C-Type
K-Type
T
a
T
stg
0
-40
-65
70
85
150
Stresses greater than those listed under „Absolute Maximum Ratings“ may cause permanent damage to the device. This is a stress
rating only, and functional operation of the device at condition above those indicated in the operational sections of this specification is
not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
STK Control #ML0055
2
Rev 1.0
March 31, 2006
U63764
C-Type
DC Characteristics
Symbol
V
CC
I
OH
I
OL
V
CC
V
OH
V
OL
V
CC
High
Low
Output Leakage Current
High at Three-State- Output
Low at Three-State- Output
I
OHZ
I
OLZ
I
IH
I
IL
V
IH
V
IL
V
CC
V
OH
V
OL
Conditions
Min.
Output High Voltage
Output Low Voltage
Output High Current
Output Low Current
Input Leakage Current
V
OH
V
OL
I
OH
I
OL
= 4.5 V
=-4 mA
= 8 mA
= 4.5 V
= 2.4 V
= 0.4 V
= 5.5 V
= 5.5 V
= 0V
= 5.5 V
= 5.5 V
= 0V
1
-1
-1
1
μA
μA
1
-1
-1
1
μA
μA
2.4
0.4
-4
8
8
Max.
Min.
2.4
0.4
-4
Max.
V
V
mA
mA
K-Type
Unit
SRAM Memory Operations
Switching Characteristics
No.
Read Cycle
1
2
3
4
5
6
7
8
9
Read Cycle Time
f
Address Access Time to Data Valid
g
Chip Enable Access Time to Data Valid
Output Enable Access Time to Data Valid
E HIGH to Output in High-Z
h
G HIGH to Output in High-Z
h
E LOW to Output in Low-Z
G LOW to Output in Low-Z
Output Hold Time after Address Change
Symbol
Min.
Alt.
t
AVAV
t
AVQV
t
ELQV
t
GLQV
t
EHQZ
t
GHQZ
t
ELQX
t
GLQX
t
AXQX
t
ELICCH
t
EHICCL
IEC
t
cR
t
a(A)
t
a(E)
t
a(G)
t
dis(E)
t
dis(G)
t
en(E)
t
en(G)
t
v(A)
t
PU
t
PD
5
0
3
0
70
70
70
70
35
25
25
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Max.
Unit
10 Chip Enable to Power Active
e
11 Chip Disable to Power Standby
d, e
e:
f:
g:
h:
Parameter guaranteed but not tested.
Device is continuously selected with E and G both Low.
Address valid prior to or coincident with E transition LOW.
Measured
±
200 mV from steady state output voltage.
STK Control #ML0055
4
Rev 1.0
March 31, 2006
U63764
Read Cycle 1: Ai-controlled (during Read cycle: E = G = V
IL
, W = V
IH
)
f
t
cR
(1)
Ai
DQi
Output
Previous Data Valid
t
v(A)
(9)
Address Valid
t
a(A)
(2)
Output Data Valid
Read Cycle 2: G-, E-controlled (during Read cycle: W = V
IH
)
g
t
cR
(1)
Ai
E
G
DQi
Output
Address Valid
t
a(A)
(2)
t
a(E)
(3)
t
en(E)
(7)
t
a(G)
(4)
t
en(G)
(8)
High Impedance
t
PU
(10)
ACTIVE
STANDBY
Output Data Valid
t
dis(E)
(5)
t
PD
(11)
t
dis(G)
(6)
I
CC
Switching Characteristics
No.
Write Cycle
12 Write Cycle Time
13 Write Pulse Width
14 Write Pulse Width Setup Time
15 Address Setup Time
16 Address Valid to End of Write
17 Chip Enable Setup Time
18 Chip Enable to End of Write
19 Data Setup Time to End of Write
20 Data Hold Time after End of Write
21 Address Hold after End of Write
22 W LOW to Output in High-Z
h, i
23 W HIGH to Output in Low-Z
Symbol
Min.
Alt. #1 Alt. #2
t
AVAV
t
WLWH
t
WLEH
t
AVWL
t
AVWH
t
ELWH
t
ELEH
t
DVWH
t
WHDX
t
WHAX
t
WLQZ
t
WHQX
t
DVEH
t
EHDX
t
EHAX
t
AVEL
t
AVEH
t
AVAV
IEC
t
cW
t
w(W)
t
su(W)
t
su(A)
t
su(A-WH)
t
su(E)
t
w(E)
t
su(D)
t
h(D)
t
h(A)
t
dis(W)
t
en(W)
5
70
55
55
0
55
55
55
30
0
0
25
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Max.
Unit
March 31, 2006
STK Control #ML0055
5
Rev 1.0
