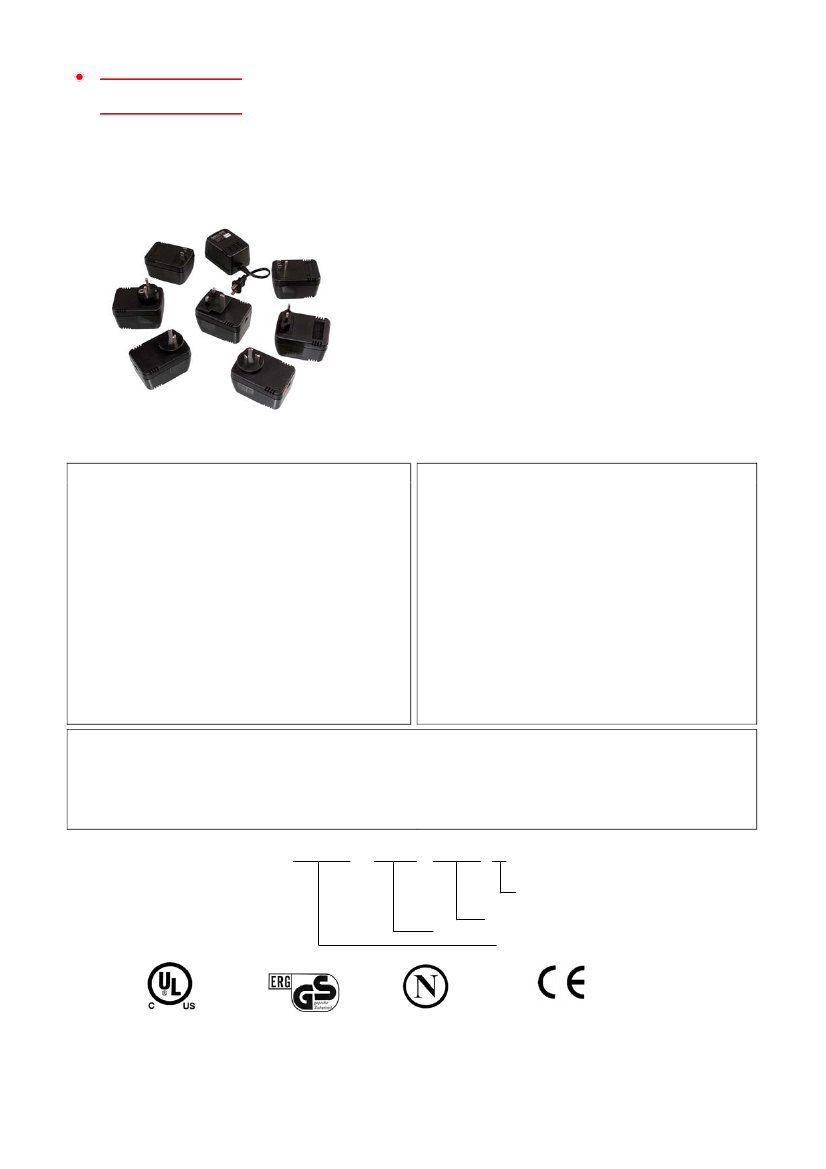

H HiTRON

AC TO DC EXTERNAL UN-REGULATED WALLMOUNT & DESKTOP

ADAPTOR DIVERSE AC PLUGS SINGLE OUTPUT 12.0-15.6 WATTS

LINEAR POWER ADAPTORS HEA-48 SERIES

FEATURES:

LOW COST UN-REGULATED ADAPTORS

WORLDWIDE DIVERSE AC PLUGS

MEET USA OR EUROPEAN STANDARD

LOW NOISE LEVEL MEET EMI NORM

CE MARKING COMPLIANCE

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Nominal 100/110/120Vac or

220/230/240Vac. Custom Vac available.

Input Range:

Typical ±8.0%.

Input Connector:

Wallmount Format: WM1,2(USA/Japan)/ WM3

(Euro-stecker) / WM4 (Schuko-stecker)/

WM5 (UK)/ WM6, 6G(Australia).

Desktop Format: PT1,2,3,4,5,6,

Input Frequency:

60Hz.for nominal 100/110/120Vac.

50Hz.for nominal 220/230/240Vac.

Input Current:

0.25A @120Vac/60Hz typical.

0.15A @220-240Vac/50Hz typical.

Dielectric Withstand:

Meet IEC 950.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Wattage:

Typ.12.5-15.6VA @ 120Vac/60Hz input.

Typ.9.0-12.0VA @ 230Vac/50Hz input.

Output Connector:

Optional.

Noise & Ripple:

Typ.20% peak to peak.

Overload Protection:

None, only by thermal protection.

Thermal Protection:

Thermal fuse installed in side the

input transformer.

EMI:

Inherent low conducted and radiated noise level,

meet EN 55022 & FCC Class B.

Operating Temperature:

0 ~ +40°C.

Storage Temperature:

-20 to +85°C.

Cooling:

Free air convection.

Construction:

Impact resistant plastic enclosure case.

Wallmount & Desktop Format:

In EI-48 case.

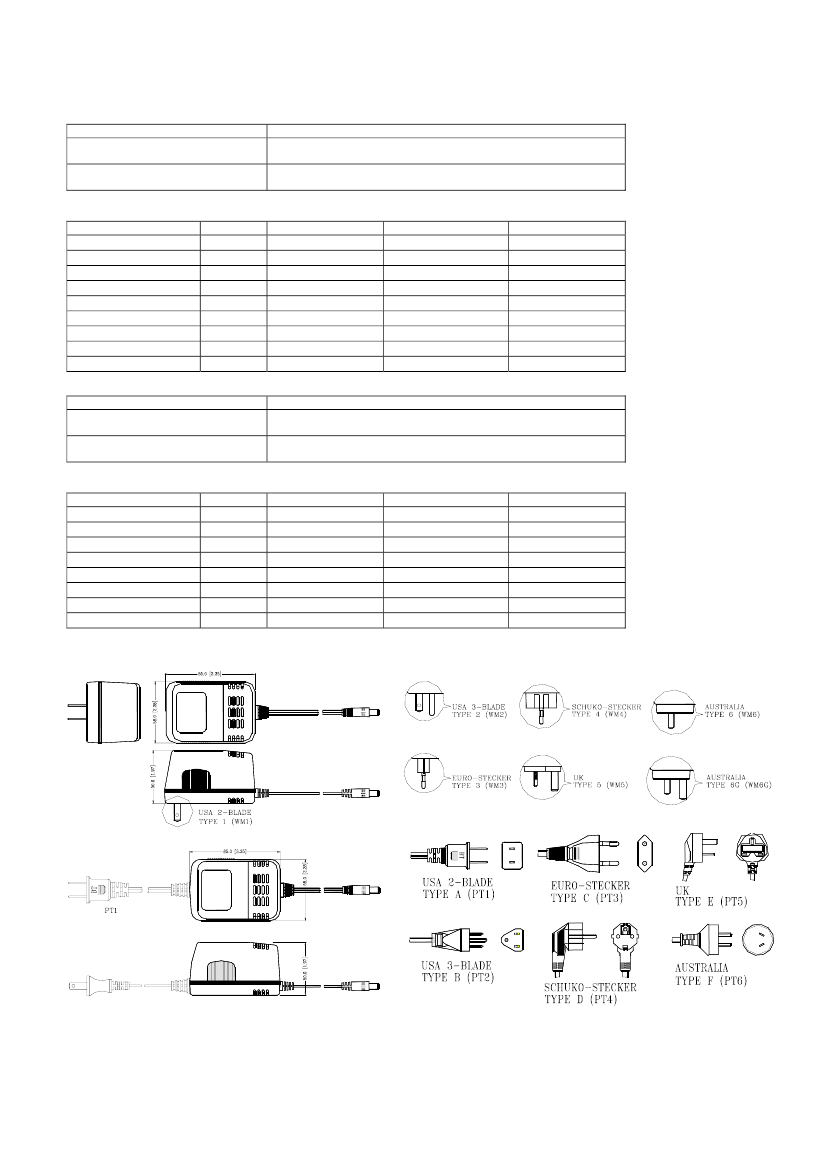

AC PLUG TYPE:

[1] WM1, [2] WM2, [3] WM3, [4] WM4, [5] WM5,

[6] WM6, [6G] WM6G

[A] PT1, [B] PT2, [C] PT3, [D] PT4, [E] PT5, [F] PT6.

GENERAL SPECIFICATION

Circuit Topology:

Line frequency lamination

steel transformer circuit.

Safety Standard:

UL1950 & CSN C22.2 NO.950 or

IEC 950 Class I & II.

MODEL NO. DESCRIPTION:

HEA-48

—

X X X Y Y Y - N

OUTPUT CURRENT

OUTPUT VOLTAGE

SERIES NAME IN EI-48 X’FORMER SIZE

-47-
