MBR3035PT THRU MBR3060PT
Reverse Voltage -
35 to 60 Volts
TO-247AD
0.645 (16.4)
0.625 (15.9)
0.203 (5.16)
0.193 (4.90)
0.245 (6.2)
0.225 (5.7)
0.323 (8.2)
0.313 (7.9)
10
o
30
o
0.078 REF
(1.98)
SCHOTTKY RECTIFIER
Forward Current -
30.0 Amperes
FEATURES
0.170
(4.3)
0.840 (21.3)
0.820 (20.8)
10
o
TYP.
BOTH SIDES
0.142 (3.6)
0.138 (3.5)
1
2
3
0.086 (2.18)
0.076 (1.93)
1
o
REF.
BOTH SIDES
0.118 (3.0)
0.108 (2.7)
0.127 (3.22)
0.160 (4.1)
0.140 (3.5)
0.795 (20.2)
0.775 (19.6)
0.117 (2.97)
♦
Plastic package has Underwriters Laboratory Flammability
Classifications 94V-0
♦
Dual rectifier construction, positive center-tap
♦
Metal silicon junction,
majority carrier conduction
♦
Low power loss,
high efficiency
♦
High current capability, low forward voltage drop
♦
High surge capability
♦
For use in low voltage, high frequency inverters,
free-wheeling, and polarity protection applications
♦
Guardring for overvoltage protection
♦
High temperature soldering guaranteed:
250°C/10 seconds, 0.17” (4.3mm) from case
MECHANICAL DATA
0.048 (1.22)
0.225 (5.7)
0.205 (5.2)
0.044 (1.12)
0.030 (0.76)
0.020 (0.51)
PIN 2
CASE
PIN 1
PIN 3
Dimensions in inches and (millimeters)
Case:
JEDEC TO-247AD molded plastic body
Terminals:
Lead solderable per MIL-STD-750,
Method 2026
Polarity:
As marked
Mounting Position:
Any
Mounting Torque:
10 in.- lbs. max.
Weight:
0.2 ounce, 5.6 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
MBR3035PT
MBR3045PT
MBR3050PT
MBR3060PT
UNITS
Maximum repetitive peak reverse voltage
Maximum working peak reverse voltage
Maximum DC blocking voltage
Maximum average forward rectified current
(SEE FIG. 1)
V
RRM
V
RWM
V
DC
I
(AV)
I
FRM
I
FSM
I
RRM
35
35
35
45
45
45
30.0
30.0
200.0
2.0
_
50
50
50
60
60
60
Volts
Volts
Volts
Amps
Amps
Amps
Peak repetitive forward current per leg at T
C
=105°C
(rated V
R
, square wave, 20 KH
Z
)
Peak forward surge current, 8.3ms single
half sine-wave superimposed on rated load
(JEDEC Method)
Peak repetitive reverse surge current
(NOTE 2)
1.0
0.75
0.65
_
_
5.0
100.0
1.4
10,000
-65 to +150
-65 to +175
Amps
Maximum instantaneous forward voltage
per leg at:
I
F
=20A, T
C
=25°C
I
F
=20A, T
C
=125°C
(NOTE 1)
I
F
=30A, T
C
=25°C
I
F
=30A, T
C
=125°C
Maximum instantaneous reverse current
at rated DC blocking voltage
T
C
=25°C
per leg (
NOTE 2
)
T
C
=125°C
Maximum thermal resistance (
NOTE 3
)
Voltage rate of change at (rated V
R
)
Operating junction temperature range
Storage temperature range
NOTES:
(1) 2.0µs pulse width, f=1.0 KH
Z
(2) Pulse test: 300µs pulse width, 1% duty cycle
(3) Thermal resistance from junction to case per leg
V
F
0.60
0.76
0.72
1.0
60.0
Volts
I
R
R
ΘJC
dv/dt
T
J
T
STG
mA
°C/W
V/µs
°C
°C
4/98

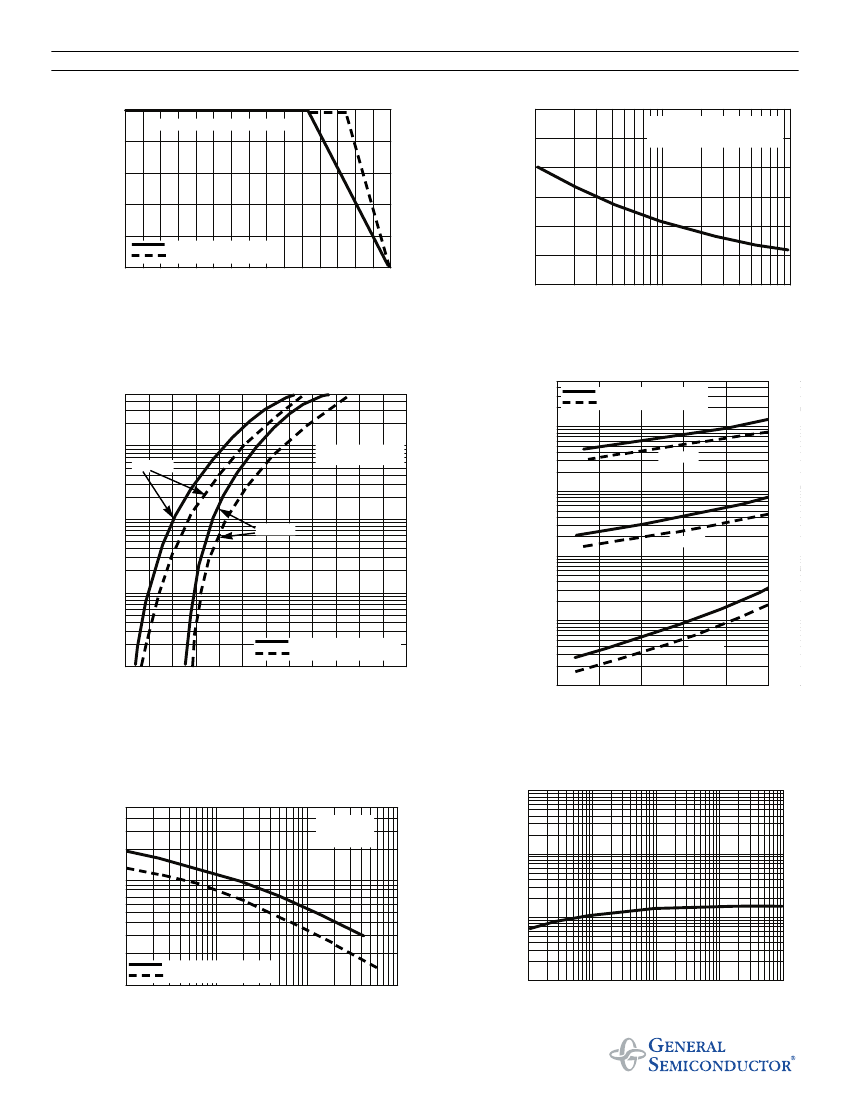

RATINGS AND CHARACTERISTIC CURVES MBR3035PT THRU MBR3060PT
FIG. 1 - FORWARD CURRENT DERATING CURVE
PEAK FORWARD SURGE CURRENT,
AMPERES
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT PER LEG
30
AVERAGE FORWARD CURRENT,
AMPERES
RESISTIVE OR INDUCTIVE LOAD
300
250
200
150
100
50
0
1
10
NUMBER OF CYCLES AT 60 Hz
T
J
=T
J
max.
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
24
18
12
6
0
MBR3035PT - MBR3045PT
MBR3050PT & MBR3060PT
0
50
100
150
CASE TEMPERATURE, °C
100
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
PER LEG
FIG. 3 - TYPICAL REVERSE CHARACTERISTICS PER LEG
50
MBR3035PT - MBR3045PT
MBR3050PT & MBR3060PT
50
10
INSTANTANEOUS FORWARD CURRENT,
AMPERES
INSTANTANEOUS REVERSE CURRENT,
MILLIAMPERES
10
T
J
=150°C
PULSE WIDTH=300µs
T
J
=125°C
1
1
T
J
=25°C
T
J
=75°C
0.1
0.1
0.01
T
J
=25°C
MBR3035PT - MBR3045PT
MBR3050PT & MBR3060PT
0.01
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
0.001
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE, %
5,000
JUNCTION CAPACITANCE, pF
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
TRANSIENT THERMAL IMPEDANCE,
°C/W
FIG. 5 - TYPICAL JUNCTION CAPACITANCE PER LEG
100
FIG. 6 - TYPICAL TRANSIENT THERMAL IMPEDANCE
PER LEG
10
1,000
1
100
0.1
MBR3035PT - MBR3045PT
MBR3050PT & MBR3060PT
1
10
100
0.1
0.01
0.1
1
10
100
t, PULSE DURATION, sec.
REVERSE VOLTAGE, VOLTS
