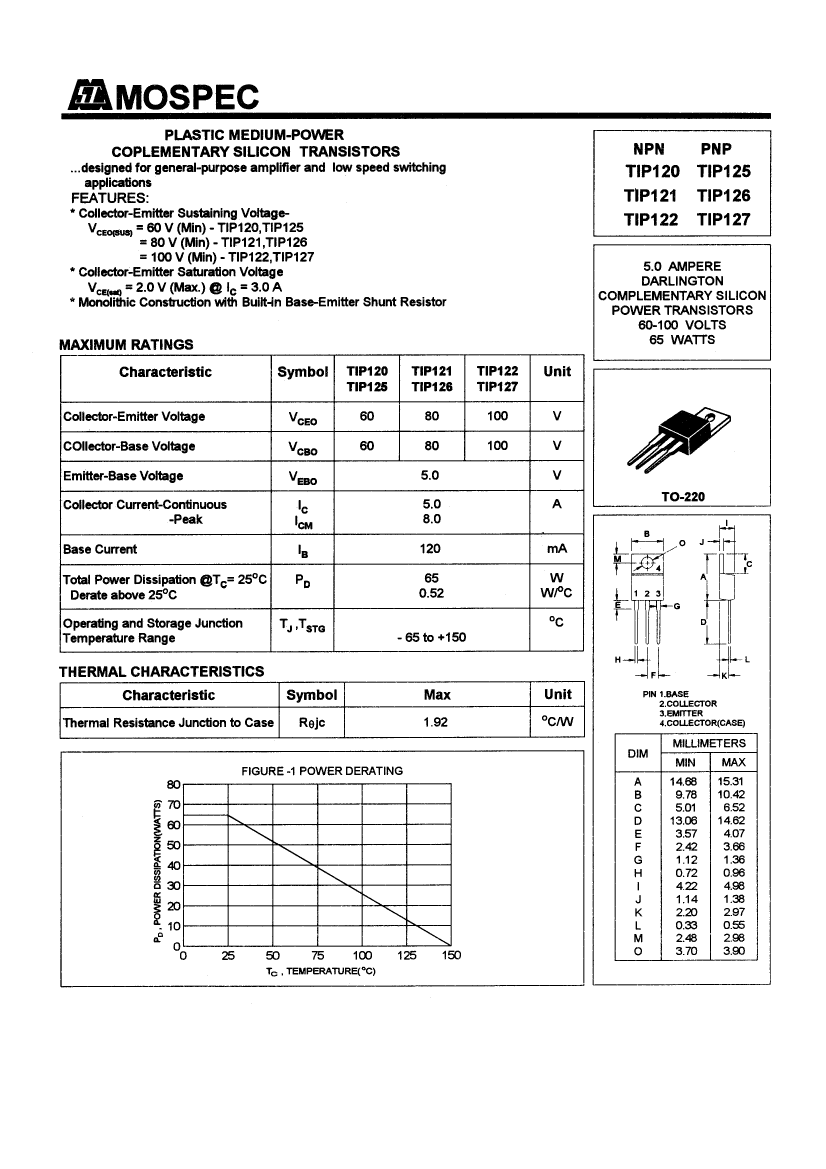

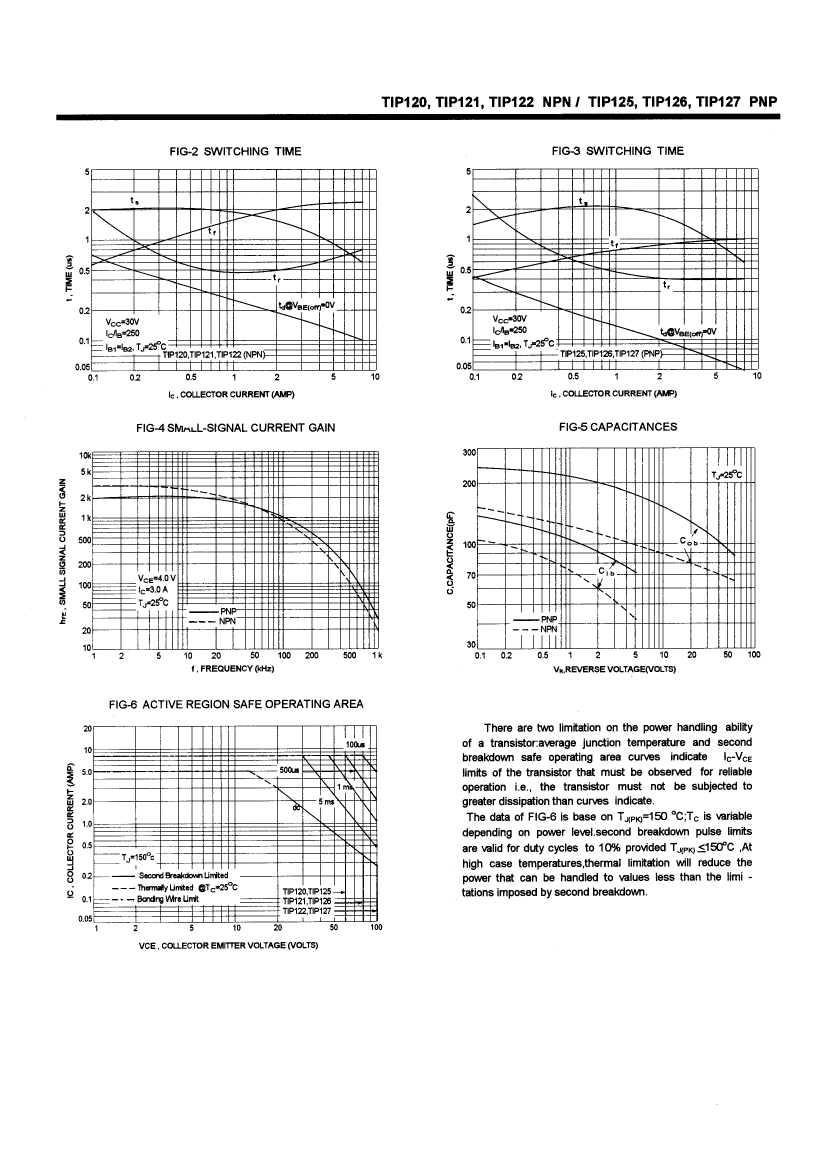

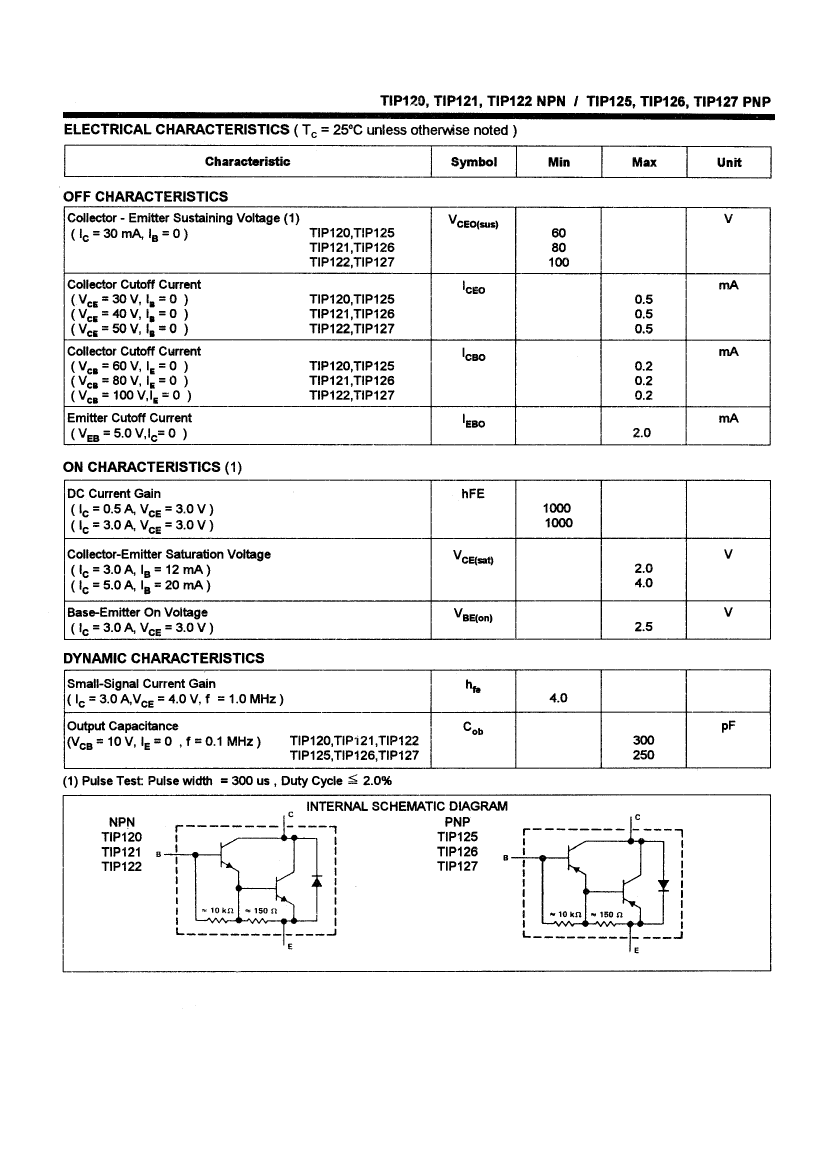

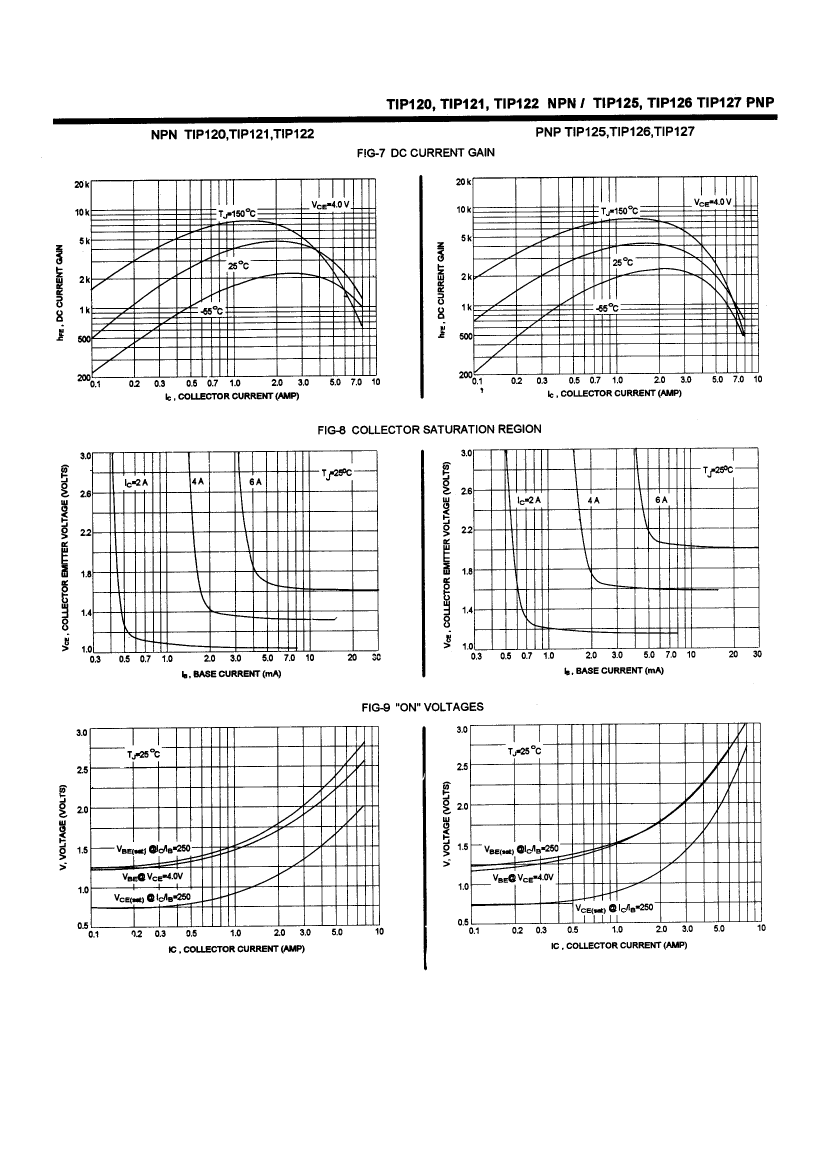

power transistors(5.0A,60-100v,65w)
| Parameter Name | Attribute value |
| Parts packaging code | TO-220AB |
| package instruction | FLANGE MOUNT, R-PSFM-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 5 A |
| Collector-emitter maximum voltage | 60 V |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR |
| Minimum DC current gain (hFE) | 1000 |
| JEDEC-95 code | TO-220AB |
| JESD-30 code | R-PSFM-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Polarity/channel type | NPN |
| Maximum power dissipation(Abs) | 65 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |
| TIP120 | TIP125 | TIP122 | TIP121 | |
|---|---|---|---|---|
| Description | power transistors(5.0A,60-100v,65w) | power transistors(5.0A,60-100v,65w) | power transistors(5.0A,60-100v,65w) | power transistors(5.0A,60-100v,65w) |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Maximum collector current (IC) | 5 A | 5 A | 5 A | 5 A |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON | DARLINGTON |
| Minimum DC current gain (hFE) | 1000 | 1000 | 1000 | 1000 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C |
| Polarity/channel type | NPN | PNP | NPN | NPN |
| Maximum power dissipation(Abs) | 65 W | 65 W | 65 W | 65 W |
| surface mount | NO | NO | NO | NO |
| Maker | - | MOSPEC | MOSPEC | MOSPEC |
