FREQUENCY
QEA95 / QEA95V
SMD 9.6x11.4 TCXO / VC-TCXO – Communications equipment applications
Specification (Rev-E)
Electrical Characteristics ......................................................P01
Environmental Specifications ................................................P02
Mechanical Characteristics ...................................................P02
Ordering Information .............................................................P03
Test Circuit............................................................................P03
Packaging Drawing ...............................................................P04
Suggested Reflow Soldering.................................................P05
Frequency
QEA95 / QEA95V
SMD 9.6x11.4 TCXO / VC-TCXO – Communications equipment applications
Specification (rev-E)
March 16
th
, 2006
Electrical Characteristics
□
Output : Clipped SineWave
□
Load : 10KΩ//10pF
□
Standard frequency : 10.0 – 12.8 – 13.0 – 14.4 – 14.7456 – 16.384 – 19.2 – 19.44 – 20.0 – 21.4 MHz
Electrical Parameters
Frequency Range
Operating Temperature
Range
Storage Temperature
Range
Power supply
Frequency Adjustment
-
-
-
-
-
-
type QEA95
type QEA95V
type QEA95V1
type QEA95
type QEA95V
type QEA95V1
Unit
MHz
°C
°C
V
± ppm
Minimum
9.6
Typical
Maximum
40
Test conditions
-30 to 75
-40
3.0
3.0
3.0
Trimmerless
-40 to 85
85
5.0
Refer to Ordering
Information
Refer to Ordering
Information
Mechanical Trimmer
Preset Frequency
± ppm
± ppm
± ppm
± ppm
± ppm
mA
Vp-p
-
5
8
-90
-128
-147
-148
2.5
0.5
0.5
2.0
At 25°C ± 2°C
Stability vs Operating
Temperature Range
Stability vs voltage
variation (± 5%)
Stability vs load variation
(± 10%)
Refer to Ordering
Information
0.3
0.3
1.0
1.5
2.0
0.8
0.7
-
10
14
For frequency less than
28MHz (see Note 2)
With load 10KΩ//10pF
For frequency less than
28MHz (see Note 1)
Aging
(First year at 25°C)
Supply Current
9.6MHz
≤
Fo < 16.000MHz
16.0MHz
≤
Fo
≤
40.000MHz
Output voltage
9.6MHz
≤
Fo < 16.000MHz
16.0MHz
≤
Fo
≤
40.000MHz
Clipped Sine DCcut
5V => Vc=2.50 ± 2.00V
3.3V=> Vc=1.65 ± 1.35V
3.0V=> Vc=1.50 ± 1.00V
Pulling Range
-
type QEA95
-
type QEA95V
-
type QEA95V1
Phase Noise
ppm
offset 10Hz
offset 100Hz
offset 1KHz
offset 10KHz
dBc/Hz
Typical value for 10MHz
TCXO.
Note 1
: for frequency
≥
28MHz, stability vs voltage variation (± 5%) is ± 1.0ppm max
Note 2
: for frequency
≥
28MHz, aging first year ± 2.0ppm max
1
TEMEX reserves the right to modify herein specifications and informations at any time when necessary to provide optimum performance and cost.
Frequency
QEA95 / QEA95V
SMD 9.6x11.4 TCXO / VC-TCXO – Communications equipment applications
Specification (rev-E)
March 16
th
, 2006
Environmental Specifications
Item
Vibration Test
Shock Test
Humidity
Specifications
Freq : 10 ~ 55Hz
Cycle : 2.00mm, 3 directions each 2 hours
Random drop onto concrete 10 times from height of 75 cm
RH : 90% at 40degC during 200 hours

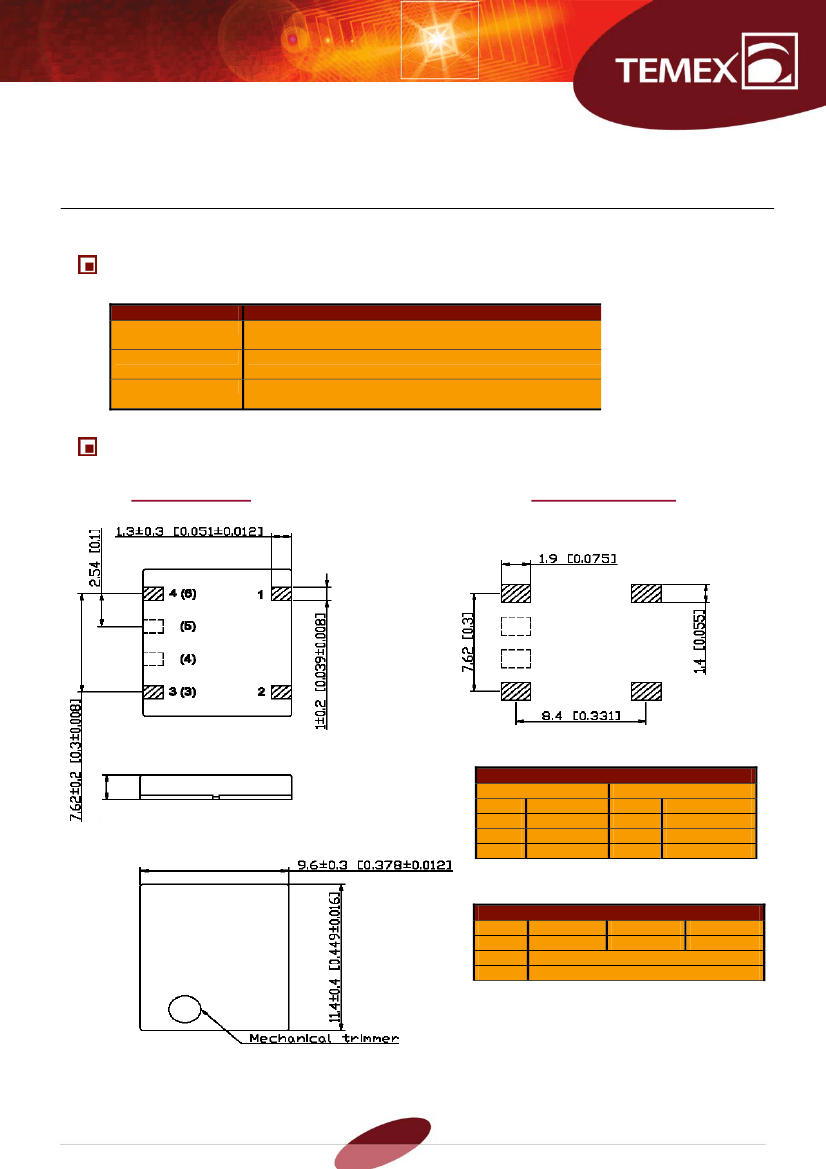

Mechanical Characteristics
BOTTOM VIEW
SUGGESTED PAD
H
Hmax
= 2.00 mm
Pin connections
4 pins version
6 pins version
#1
Vcont or NC
#5
Vcont or NC
#2
GND
#1,2,4
GND
#3
Output
#3
Output
#4
Vcc
#6
Vcc
Line 1
Line 2
Line 3
Marking
QEA95
QEA95V
QEA95V1
E2 AA0*
G2 AA0*
H2 AA0*
Frequency in MHz (6 digits)
Date code (YYWW) – Manuf. code
* : see letters for Temperature stability, supply
voltage and output
Example for QEA95 AA0 / 10.000MHz
Line 1 : E2 AA0
Line 2 : 10.000
Line 3 : 0610-R
2
TEMEX reserves the right to modify herein specifications and informations at any time when necessary to provide optimum performance and cost.
Frequency
QEA95 / QEA95V
SMD 9.6x11.4 TCXO / VC-TCXO – Communications equipment applications
Specification (rev-E)
March 16
th
, 2006
Ordering Information
Part numbering system
QEA95
V
A
E
O
12.800MHZ
Package type
SMD Package
QEA95 :
SMD
9.6x11.4
Voltage Control
Temperature Stability
Supply
voltage
Output
0
: Clipped sine
wave
Nominal
Frequency (MHz)
Please enter the
nominal frequency
Blank
:
TCXO with trimmer
V
:
V1
:
VC-TCXO trimmerless
VC-TCXO with trimmer
D
: ± 5.0ppm vs –40 to +85°C
A
:
± 2.5ppm vs –30 to +75°C
A
: + 5.0V
B
: ± 1.5ppm vs –20 to +70°C
D :
+3.3V
C
: ± 3.5ppm vs –40 to +85°C
E
: + 3.0V
E
: ± 2.0ppm vs –20 to +70°C

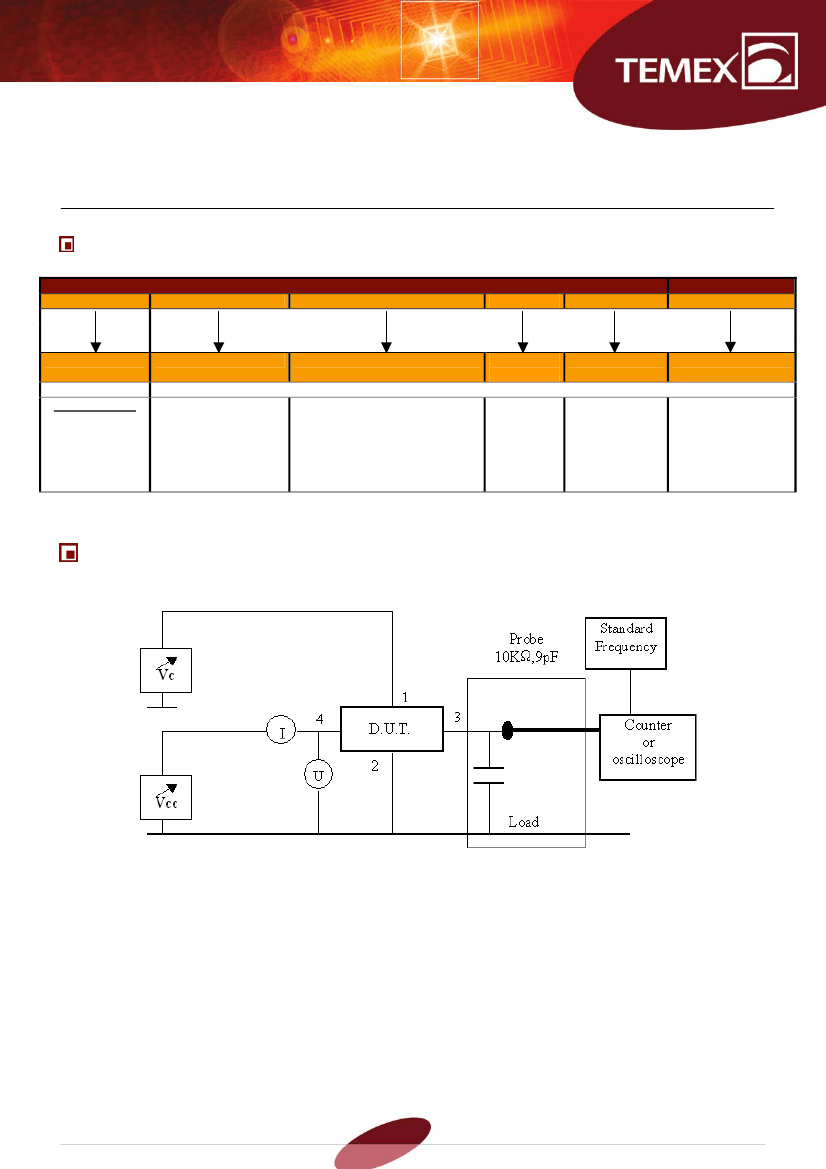

Test Circuit
3
TEMEX reserves the right to modify herein specifications and informations at any time when necessary to provide optimum performance and cost.
Frequency
QEA95 / QEA95V
SMD 9.6x11.4 TCXO / VC-TCXO – Communications equipment applications
Specification (rev-E)
March 16
th
, 2006

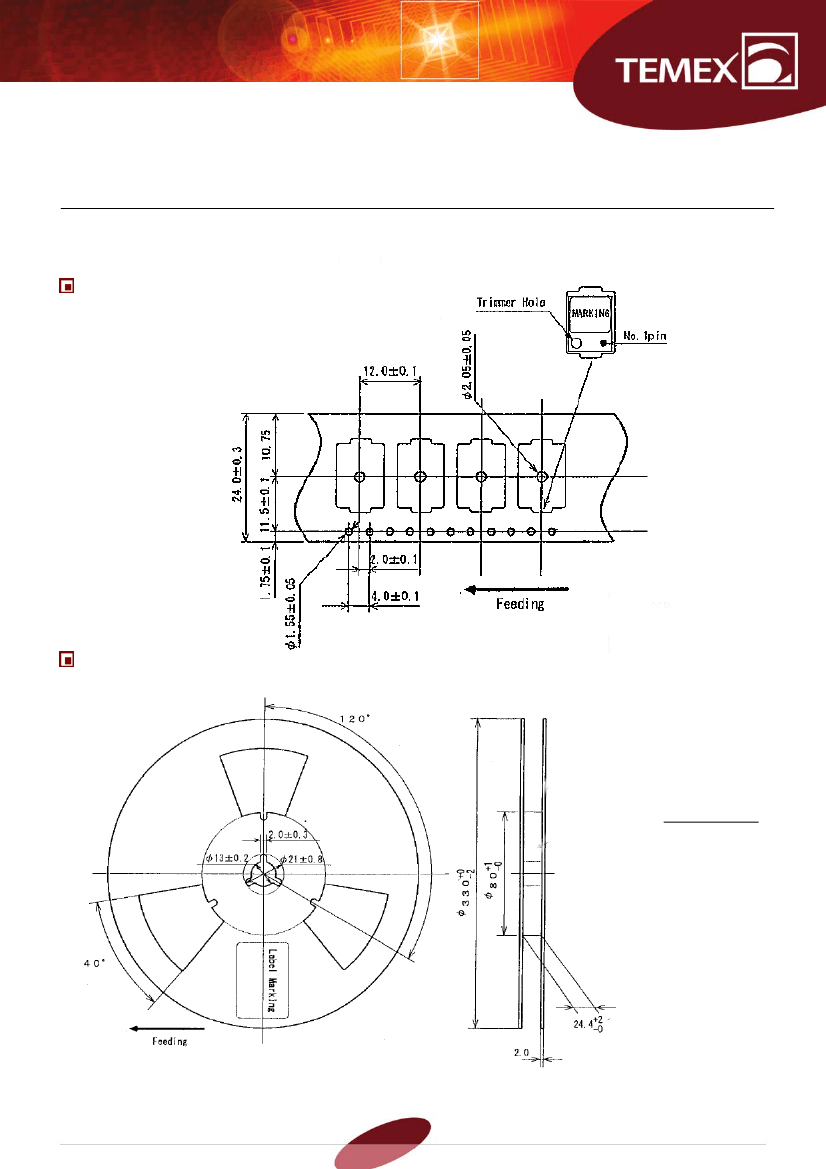

Tape Drawing
Reel Drawing
Multiple
: 1Kpcs per Reel
Unit : mm
4
TEMEX reserves the right to modify herein specifications and informations at any time when necessary to provide optimum performance and cost.
