Formosa MS
FM120-M-R THRU FM1100-M-R
Chip Schottky Barrier Diodes
Silicon epitaxial planer type
Features
Plastic package has Underwriters Laboratory
Flammability Classification 94V-O Utilizing Flame
Retardant Epoxy Molding Compound.
For surface mounted applications.
Exceeds environmental standards of MIL-S-19500 /
228
Low leakage current.
0.063(1.6)
0.055(1.4)
SOD-123
0.161(4.1)
0.146(3.7)
0.012(0.3) Typ.
0.071(1.8)
0.055(1.4)
0.126(3.2)
0.110(2.8)
0.035(0.9) Typ.
0.035(0.9) Typ.
Dimensions in inches and (millimeters)
Mechanical data
Case : Molded plastic, JEDE SOD-123 / MI I SMA
C
N
Terminals : Solder plated, s olderable per MIL-STD-750,
Method 2026
Polarity : Indicated by cathode band
Mounting P
osition : Any
Weight : 0.04 gram
o
MAXIMUM RATINGS
(AT T
A
=25 C unless otherwise noted)
PARAMETER
Forward rectified current
Forward surge current
See Fig.1
8.3ms single half sine-wave superimposed on
rate load (JEDEC methode)
V
R
= V
RRM
T
A
=
25
o
C
I
R
Rq
JA
C
J
T
STG
-55
98
120
+150
CONDITIONS
Symbol
I
O
I
FSM
MIN.
TYP.
MAX.
1.0
30
0.1
2.0
o
UNIT
A
A
mA
mA
C / w
pF
o
Reverse current
Thermal resistance
Diode junction capacitance
Storage temperature
V
R
= V
RRM
T
A
= 125
o
C
Junction to ambient
f=1MHz and applied 4vDC reverse voltage
C
SYMBOLS
MARKING
CODE
12
13
14
15
16
18
10
V
RRM
20
30
40
50
60
80
*1
V
RMS
14
21
28
35
42
56
70
*2
V
R
*3
V
F
*4
Operating
temperature
(
o
C)
(V)
FM120-M-R
FM130-M-R
FM140-M-R
FM150-M-R
FM160-M-R
FM180-M-R
FM1100-M-R
(V)
(V)
20
30
40
50
60
80
100
(V)
0.50
-55 to +125
*1 Repetitive peak reverse voltage
0.70
-55 to +150
0.85
*2 RMS voltage
*3 Continuous reverse voltage
*4 Maximum forward voltage
100

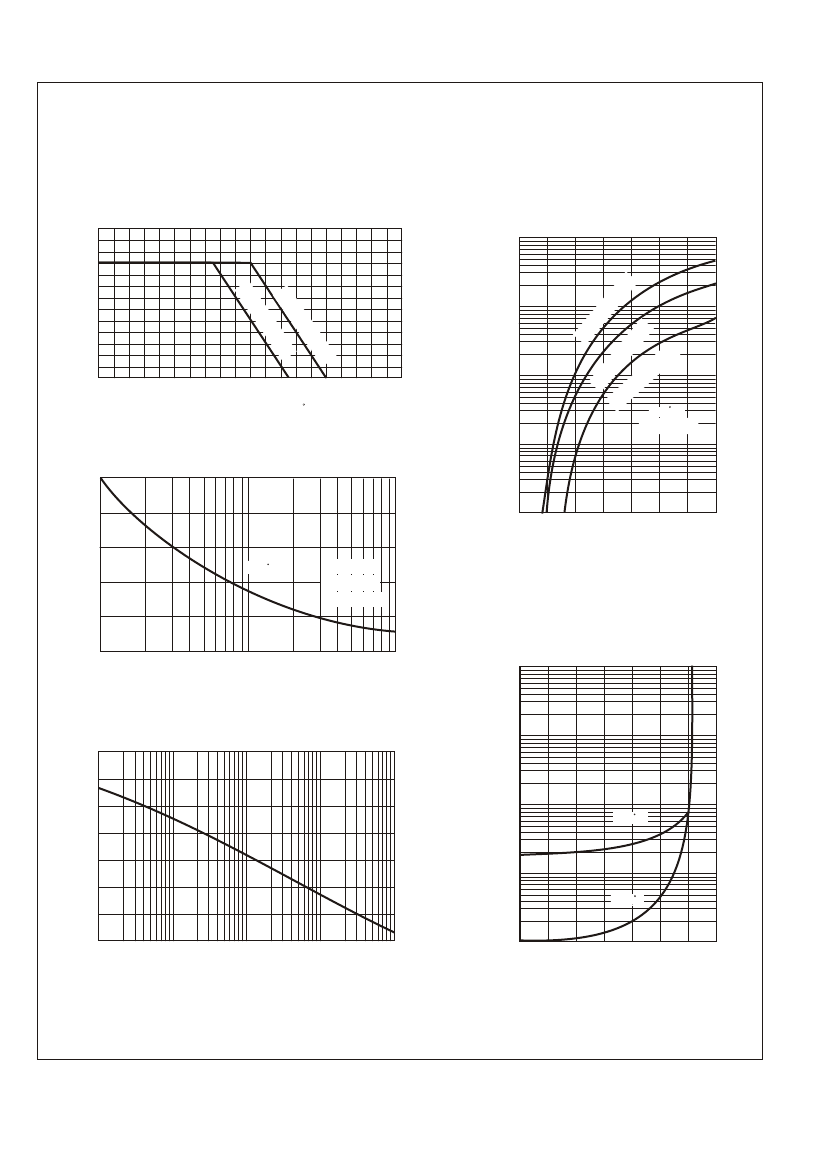

RATING AND CHARACTERISTIC CURVES (FM120-M-R THRU FM1100-M-R)
FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD
CHARACTERISTICS
1.2
1.0
50
INSTANTANEOUS FORWARD CURRENT,(A)
FM
12
0-
M
FM
-R
15
~F
0-
M
M
14
-R
0-
~F
M
M
-R
16
0-
M
-R
0.8
15
FM
12
FM
0.6
0.4
0.2
0
0
20
40
60
80
10
3.0
1.0
0-
100
AMBIENT TEMPERATURE,( C)
FIG.3-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
30
0-
R
M-
4
M1
~F
0-
0
11
FM
R~
M-
R
M-
0-
R
M-
120
140
160
180
200
0
18
FM
00
11
M
~F
-R
-M
-R
-M
Tj=25 C
Pulse Width 300us
1% Duty Cycle
0.1
PEAK FORWARD SURGE CURRENT,(A)
24
.01
.1
.3
.5
.7
.9
1.1
1.3
1.5
18
Tj=25 C
8.3ms Single Half
Sine Wave
JEDEC method
FORWARD VOLT
AGE,(V)
12
6
FIG.5 - TYPICAL REVERSE
0
1
5
10
50
100
CHARACTERISTICS
100
NUMBER OF CYCLES AT 60Hz
FIG.4-TYPICAL JUNCTION CAPACITANCE
350
300
250
200
150
100
50
0
JUNCTION CAPACITANCE,(pF)
REVERSE LEAKAGE CURRENT, (mA)
10
1.0
Tj=75 C
.1
Tj=25 C
.01
.05
.1
.5
1
5
10
50
100
.01
0
20
40
60
80
100 120 140
REVERSE VOLTAGE,(V)
PERCENT OF RATED PEAK REVERSE VOLTAGE,(%)
