• Low Profile for Building Automation
• 5V to 24V Outputs
• Wide Range AC Input
• -25 to +71°C Operation
• Convection Cooled
• UL1310 Class 2
• Class II Double Insulation
Key Market Segments & Applications

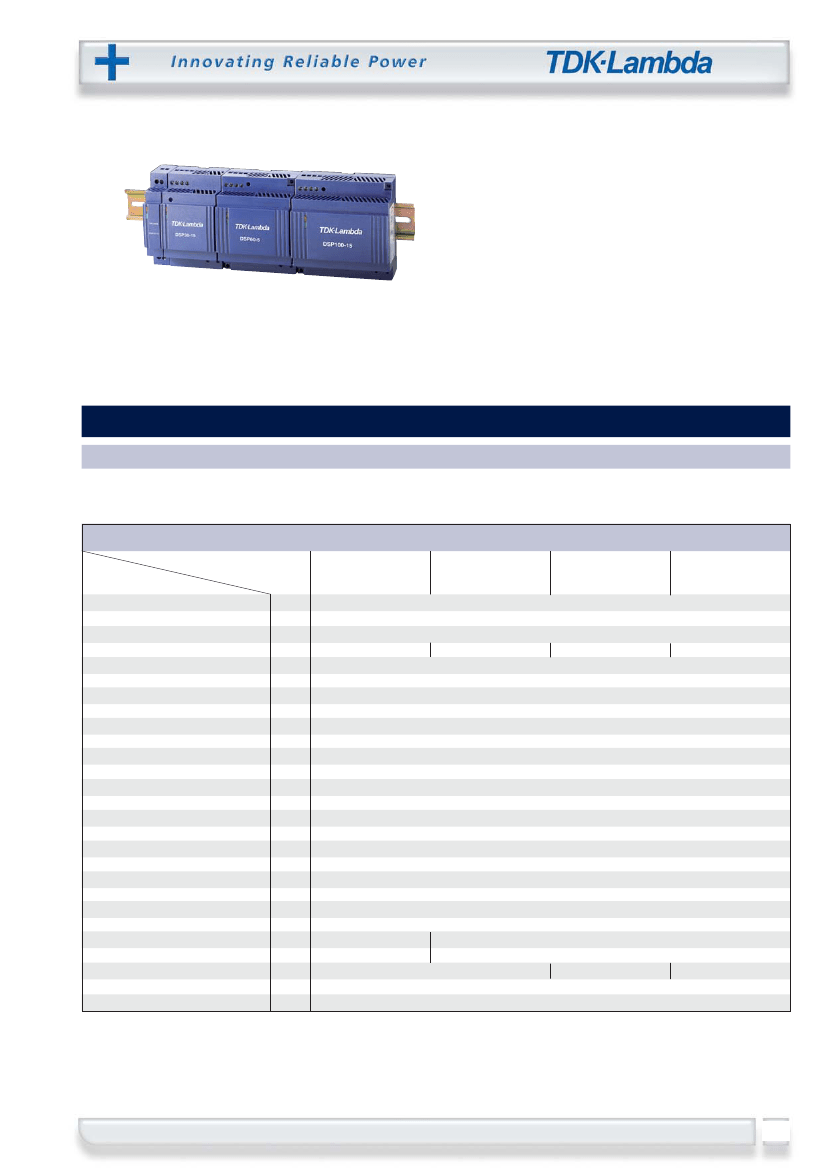

DSP Series
7.5W to 100W Low Profile
Din Rail Mount Power Supplies
DSP Features and Benefits
Features
• Low 56mm Profile
• Wide Range AC
• Full Power at 61˚C
Building Services
Automation:
Alarms and Security,
Access and Fire Safety Systems,
Lighting and Environment Control
Systems.
Benefits
• Fits into wall mounted cabinets
• Global use with no input selector switches
• No derating needed
Specifications
MODEL
ITEMS
AC Input Voltage range
Input Frequency
DC Input Voltage range
Inrush Current (115 / 230VAC)
Power Factor
Output Voltage Accuracy
Line Regulation
Load Regulation
Ripple and Noise (20MHz BW)
Overcurrent Protection (Typ)
Overvoltage Protection
Hold Up Time (115VAC input)
LED Indicators
Operating Temperature
Temperature Coefficient
Storage Temperature
Operating Humidity
Cooling
Withstand Voltage
Isolation Resistance
Safety Agency Approvals
Immunity
Conducted & Radiated EMI
Weight (Typ)
Size (WxHxD)
Case material
Warranty
VAC
Hz
VDC
A
%
%
%
mV
-
V
ms
-
-
%/°C
-
-
-
-
-
-
-
-
g
mm
-
yrs
DSP10
DSP30
DSP60
DSP100
90 - 264VAC, Class II double insulated (No ground connection required)
47 - 63Hz
120 - 370VDC
15 / 30A
25 / 50A
30 / 60A
30 / 60A
Meets EN61000-3-2, EN61000-3-3
±1% of Nominal
1%
1%
50mV
(1)
110 - 160%, fold forward under short circuit (DSP100-24/C2 102-108%)
120 - 145%
See Model Selector
Green LED = On, Red LED = DC Output Low
-25 to +71°C (Derate linearly 2.5%/°C from 55 to 71°C)
±0.02%/°C
-25 to +85°C
20 - 95% RH (non condensing)
Convection
Input to Output 3kVAC for 1 min.
>100M at 25C & 70%RH, Output to Ground 500VDC
UL1310 Class 2
(2)
, UL508 Listed, UL60950-1, EN60950-1, CE
EN61000-4-2, -3, -4, -5, -6, -8 & -11
EN55022 class B
EN55022 class A
60
200
250
320

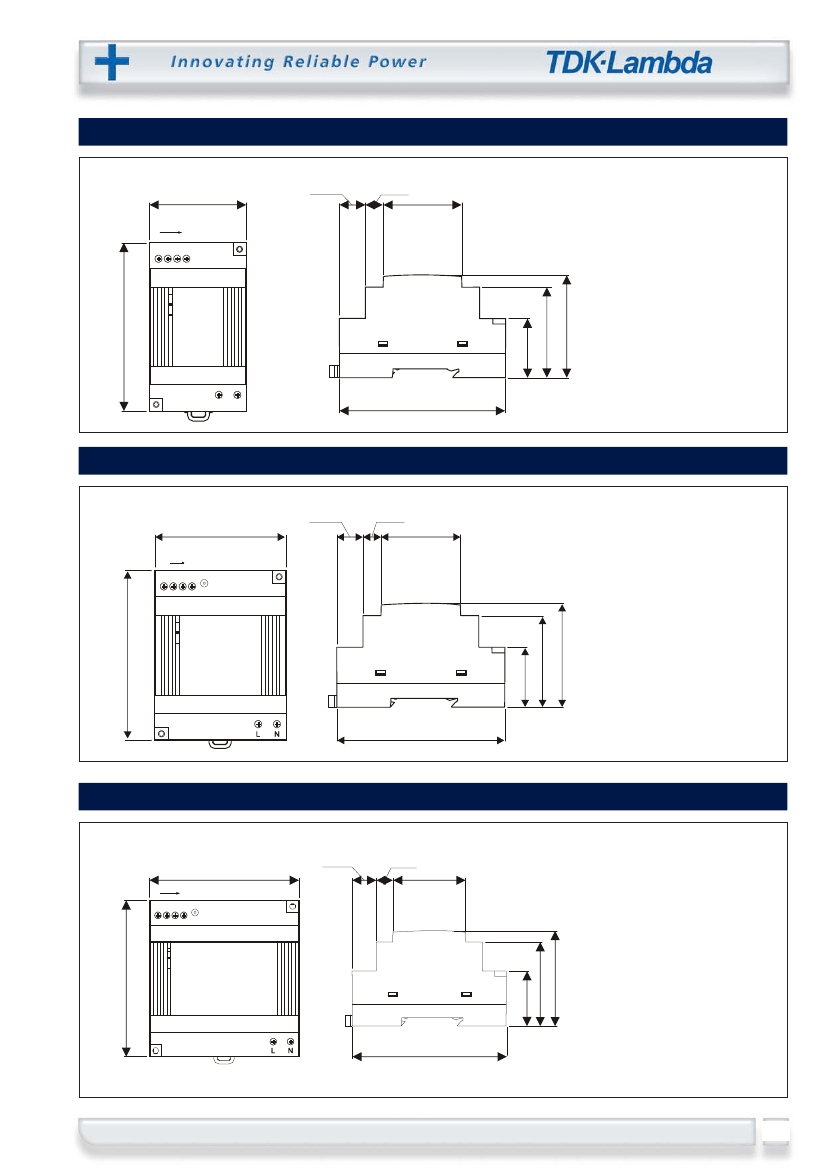

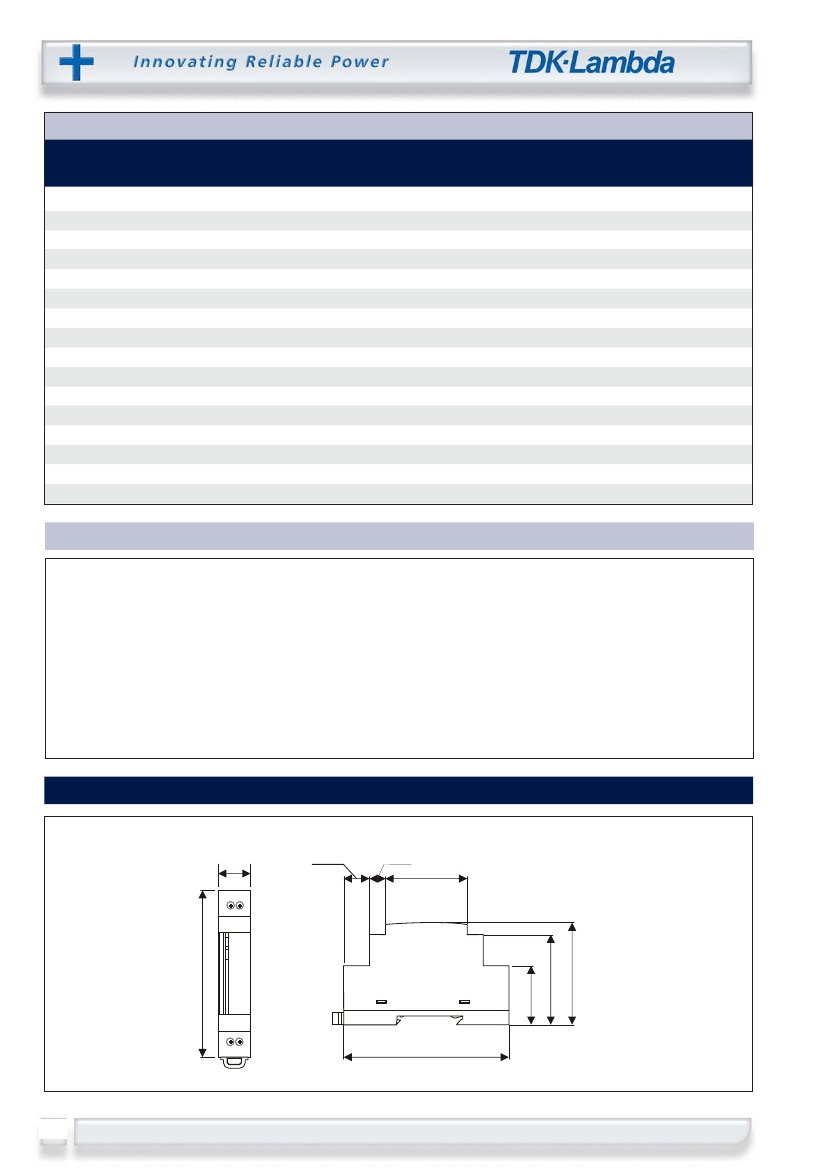

18 x 91 x 55.6
53 x 91x 55.6
71 x 91 x 55.6
90 x 91 x 56.8
Plastic
Two years
Note 1:
For DSP100-24/C2 Ripple & Noise measured with Vin 115- 230 Vac
Note 2:
Excludes Models: DSP60-5, DSP60-12, DSP100-12, DSP100-15, DSP100-24
