42118
POSITIVE HIGH TEMPERATURE
FIXED VOLTAGE REGULATOR
Designed for use in high temperature environments
Mii
HYBRID MICROELECTRONICS
PRODUCTS DIVISION
Features:
•
•
•
•
•
Operating temperature +200
º
C
Output current to 1.0 A
Input voltage to +30 V
Internal short circuit protection, foldback and
current limiting
Isolated TO-258 package
Applications:
•
•
Military and Hi Rel Industrial harsh environment
applications where hermetically sealed product is
required
Down hole applications
DESCRIPTION
The 42118 series of fixed voltage regulators covers the output voltage range from +5 VDC through +30 VDC. These voltage
regulators are fabricated using hybrid techniques and will operate at temperatures up to +200
º
C. These devices are
complete with internal short circuit protection, which includes voltage shutdown and current foldback. The 42118 series
voltage regulators normally do not require any additional components. However, for good design practice, an external filter
cap of 2
µ
F should be installed at the input, as close to the case as possible.
ABSOLUTE MAXIMUM RATINGS AT 200°C CASE TEMPERATURE
Output Current (I
OUT
) ............................................................................................................................................................ 1.0 A
Input Voltage (V
IN
) ........................................................................................................................................................ +38 VDC
Storage Temperature (T
STG
)............................................................................................................................................. +250°C
Power Dissipation (Pd) ........................................................................................................................................................... 8 W
Typical Connection Diagram
D1
HEADER
RECTIFIED
INPUT
V
IN
V
OUT
REGULATED
OUTPUT
2
+
AS REQUESTED
2uf
COMMON
+
AS REQUESTED
Note: D1 should be installed for input safety.
Micropac Industries
cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac
reserves the right to make changes at any time in order to improve design and to supply the best product possible.
MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION
•
905 E. Walnut St., Garland, TX 75040
•
(972) 272-3571
•
Fax (972) 494-2281
www.micropac.com
E-MAIL:
hybridsales@micropac.com
08/03/01
42118
POSITIVE HIGH TEMPERATURE, FIXED VOLTAGE REGULATOR
ELECTRICAL CHARACTERISTICS
PARAMETER
*Output voltage
*Line regulation
Load regulation
Ripple rejection at 120 Hz
Standby current
Short circuit current
Short circuit current
Foldback current (knee)
Foldback current (knee)
Noise output
Differential voltage
(
∆
V= V
IN
– V
OUT
)
*V
IN
= 10V Min
TEST CONDITIONS
I
OUT
= 1.0 A
V
IN
= V
OUT
+3 VDC
V
IN
= (V
OUT
+3 VDC)
to +38 DC
I
OUT
= 50 mA
V
IN
= V
OUT
+5 VDC
I
OUT
= 0.05 to 1.0 A
V
IN
= V
OUT
+5 VDC
I
L
= 300 mA
V
IN
= V
OUT
+5 VDC
I
OUT
= 0
V
IN
= V
OUT
+5 VDC
V
IN
= V
OUT
+5 VDC
V
IN
= V
OUT
+5 VDC
V
IN
= V
OUT
+5 VDC
V
IN
= V
OUT
+5 VDC
I
OUT
= 300 mA
I
OUT
= 300 mA
TEMPERATURE
+25°C to +200°C
+25°C to +200°C
+25°C to +200°C
+25°C
+25°C
+25°C
+200°C
+25°C
+200°C
+25°C
+25°C to +200°C
TYPICAL
V
OUT
±1.0%
V
OUT
±0.5%
V
OUT
±0.5% @ 25ºC
± 1.0% @ 200ºC
-50 dB
30 mA
400 mA
200 mA
2A
1.5 A
2 mVRMS
3 VDC MIN
TYPE
TABLE 1 (see note)
MAX I
OUT
(amps)
V
OUT
(volts)
1.0
1.0
1.0
1.0
1.0
1.0
42118-005
5
42118-012
12
42118-015
15
42118-018
18
42118-024
24
42118-030
30
NOTE: Under condition (V
IN
– V
OUT)
x l
OUT
≤
8 watts at 200°C
Option: 1) Other output voltage available
2) MIL-STD-883 type screening available
I
KNEE
TYP
(amps at
25
°
C)
2.0
2.0
2.0
2.0
2.0
2.0
Micropac Industries
cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac
reserves the right to make changes at any time in order to improve design and to supply the best product possible.
MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION
•
905 E. Walnut St., Garland, TX 75040
•
(972) 272-3571
•
Fax (972) 494-2281
www.micropac.com
E-MAIL:
hybridsales@micropac.com
08/03/01
42118
POSITIVE HIGH TEMPERATURE, FIXED VOLTAGE REGULATOR

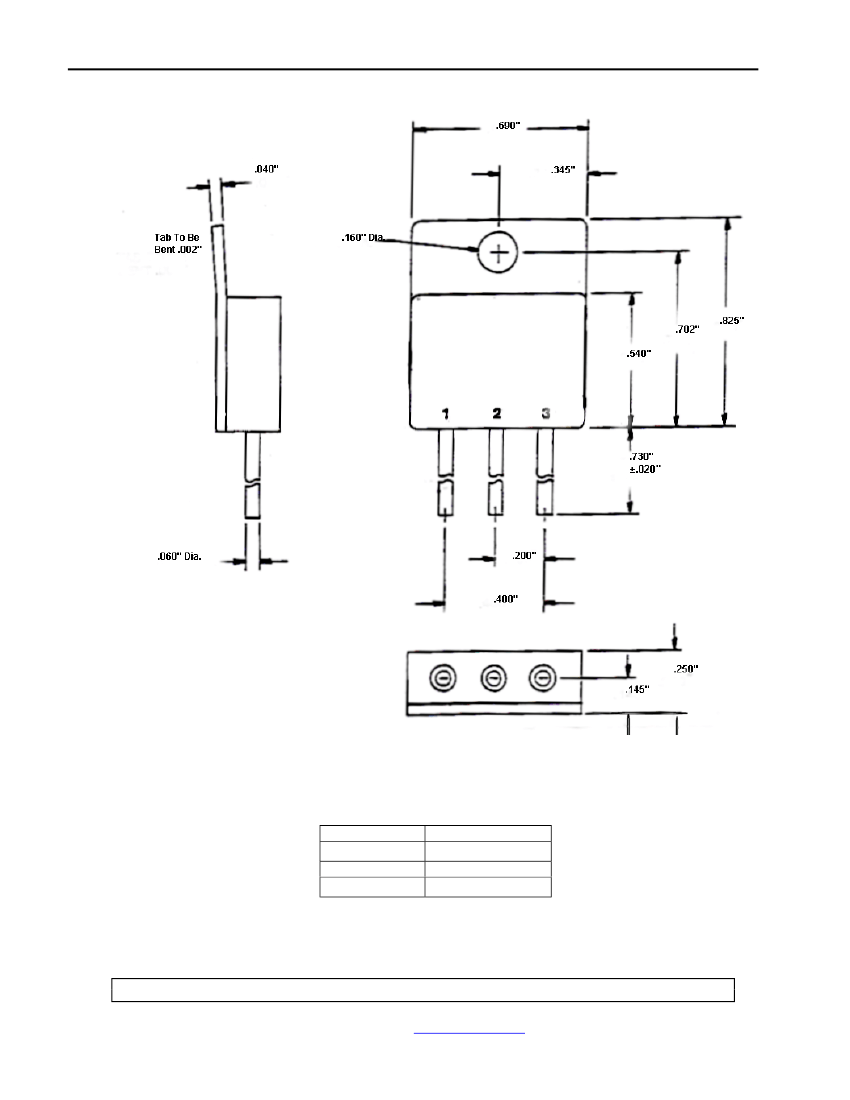

Mechanical Configuration
All dimensions in inches
Pin
1
2
3
Function
V
OUT
Common
V
IN
Micropac Industries
cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac
reserves the right to make changes at any time in order to improve design and to supply the best product possible.
MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION
•
905 E. Walnut St., Garland, TX 75040
•
(972) 272-3571
•
Fax (972) 494-2281
www.micropac.com
E-MAIL:
hybridsales@micropac.com
08/03/01
