PHOTOCOUPLER
PS2525-1,-2,-4,PS2525L-1,-2,-4
LARGE FORWARD INPUT TYPE
AC INPUT RESPONSE TYPE
MULTI PHOTOCOUPLER SERIES
−NEPOC
Series−
DESCRIPTION
The PS2525-1, -2, -4 and PS2525L-1, -2, -4 are optically coupled isolators containing GaAs light emitting diodes
and an NPN silicon phototransistor.
The PS2525-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2525L-1, -2, -4 are lead bending type
(Gull-wing) for surface mount.
FEATURES
• Large forward input current (I
F
=
±150
mA)
• AC input response
• High Isolation voltage (BV = 5 000 Vr.m.s.)
• High collector to emitter voltage (V
CEO
= 80 V)
• High-speed switching (t
r
= 3
µ
s TYP., t
f
= 5
µ
s TYP.)
• Ordering number of tape product: PS2525L-1-E3, E4, F3, F4, PS2525L-2-E3, E4
• Safety standards
• UL approved: File No. E72422 (S)
• CSA approved: No. CA 101391
APPLICATIONS
• Exchange equipment
• FAX/MODEM
• LCR adapter
Document No. PN10231EJ01V0DS (1st edition)
(Previous No. P11433EJ4V0DS00)
Date Published February 2003 CP(K)
The mark
shows major revised points.
PS2525-1,-2,-4,PS2525L-1,-2,-4

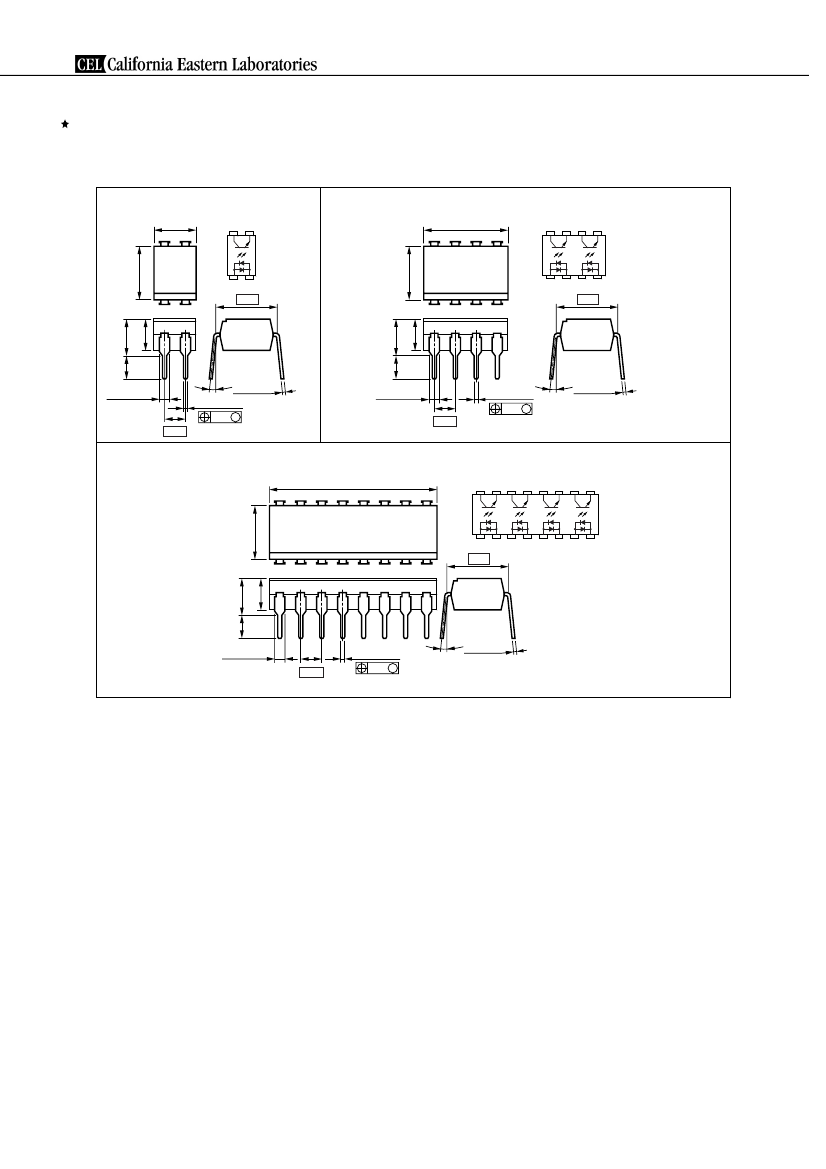

PACKAGE DIMENSIONS (Unit : mm)
DIP Type
PS2525-1
4.6±0.5
4
TOP VIEW
3
1. Anode,
Cathode
2. Cathode,
Anode
3. Emitter
4. Collector
PS2525-2
9.7±0.5
8
7
TOP VIEW
6
5
1, 3. Anode, Cathode
2, 4. Cathode, Anode
5, 7. Emitter
6, 8. Collector
6.5±0.5
6.5±0.5
1
2
7.62
1
2
3 4
7.62
3.3±0.5 4.15±0.4
3.3±0.5 4.15±0.4
3.5±0.3
3.5±0.3
1.25±0.15
0 to 15˚
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
+0.1
0.25
–0.05
PS2525-4
19.8±0.5
TOP VIEW
16 15 14 13 12 11 10 9
6.5±0.5
1
7.62
2
3
3.3±0.5 4.15±0.4
3.5±0.3
4 5 6 7 8
1, 3, 5, 7. Anode, Cathode
2, 4, 6, 8. Cathode, Anode
9, 11, 13, 15. Emitter
10, 12, 14, 16. Collector
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
+0.1
0.25
–0.05
2
Data Sheet PN10231EJ01V0DS
PS2525-1,-2,-4,PS2525L-1,-2,-4

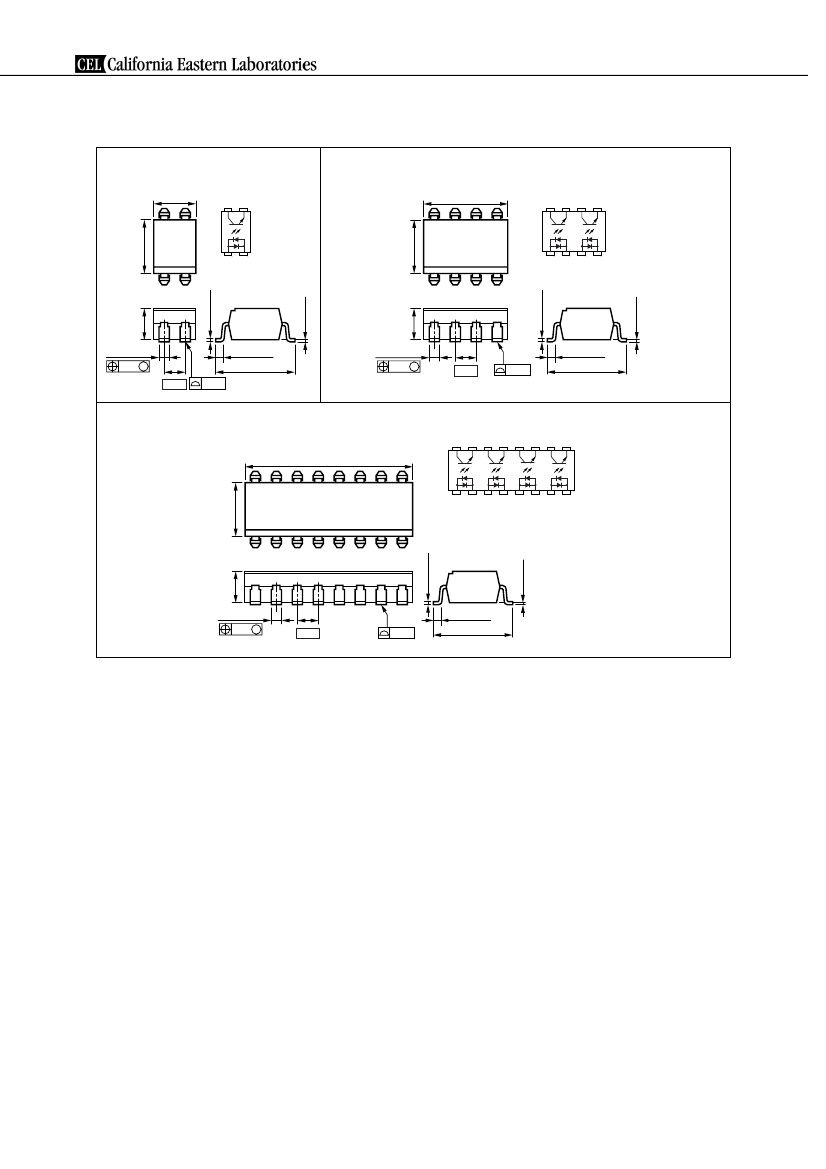

Lead Bending Type
PS2525L-1
4.6±0.5
PS2525L-2
1. Anode,
Cathode
2. Cathode,
Anode
3. Emitter
4. Collector
9.7±0.5
TOP VIEW
4
3
TOP VIEW
8
7
6
5
1, 3. Anode, Cathode
2, 4. Cathode, Anode
5, 7. Emitter
6, 8. Collector
1
2
3
4
6.5±0.5
1
2
6.5±0.5
0.25
+0.1
–0.05
0.25
+0.1
–0.05
0.1
+0.1
–0.05
3.5±0.3
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
PS2525L-4
19.8±0.5
TOP VIEW
16 15 14 13 12 11 10 9
6.5±0.5
0.25
+0.1
–0.05
1 2 3 4 5 6 7 8
1, 3, 5, 7. Anode, Cathode
2, 4, 6, 8. Cathode, Anode
9, 11, 13, 15. Emitter
10, 12, 14, 16. Collector
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
0.1
+0.1
–0.05
0.1
+0.1
–0.05
Data Sheet PN10231EJ01V0DS
3
PS2525-1,-2,-4,PS2525L-1,-2,-4
MARKING EXAMPLE
PS2525-1
No. 1 pin
Mark
No. 1 pin
Mark
PS2525-2, -4
2525
M 003
Assembly Lot
PS2525-2
M 003
Country Assembled
Type Number
Assembly Lot
M
0 03
M
0 03
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
CTR Rank Code
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
CTR Rank Code
Package
Standard PKG
New PKG
Made in Japan Made in Taiwan
Package
Standard PKG
New PKG
Made in Japan Made in Taiwan
Blank
Blank
4
Data Sheet PN10231EJ01V0DS
PS2525-1,-2,-4,PS2525L-1,-2,-4
ORDERING INFORMATION (Solder Contains Lead)
Part Number
PS2525-1
PS2525L-1
PS2525L-1-E3
PS2525L-1-E4
PS2525L-1-F3
PS2525L-1-F4
PS2525-2
PS2525L-2
PS2525L-2-E3
PS2525L-2-E4
PS2525-4
PS2525L-4
16-pin DIP
Magazine case 20 pcs
PS2525-4
Embossed Tape 1 000 pcs/reel
8-pin DIP
Magazine case 45 pcs
PS2525-2
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Package
4-pin DIP
Packing Style
Magazine case 100 pcs
Application Part Number
PS2525-1
*1
*1
For the application of the Safety Standard, following part number should be used.
ORDERING INFORMATION (Pb-Free)
Part Number
PS2525-1-A
PS2525L-1-A
PS2525L-1-E3-A
PS2525L-1-E4-A
PS2525L-1-F3-A
PS2525L-1-F4-A
PS2525-2-A
PS2525L-2-A
PS2525L-2-E3-A
PS2525L-2-E4-A
PS2525-4-A
PS2525L-4-A
16-pin DIP
Magazine case 20 pcs
PS2525-4
Embossed Tape 1 000 pcs/reel
8-pin DIP
Magazine case 45 pcs
PS2525-2
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Package
4-pin DIP
Packing Style
Magazine case 100 pcs
Application Part Number
PS2525-1
*1
*1
For the application of the Safety Standard, following part number should be used.
Data Sheet PN10231EJ01V0DS
5
