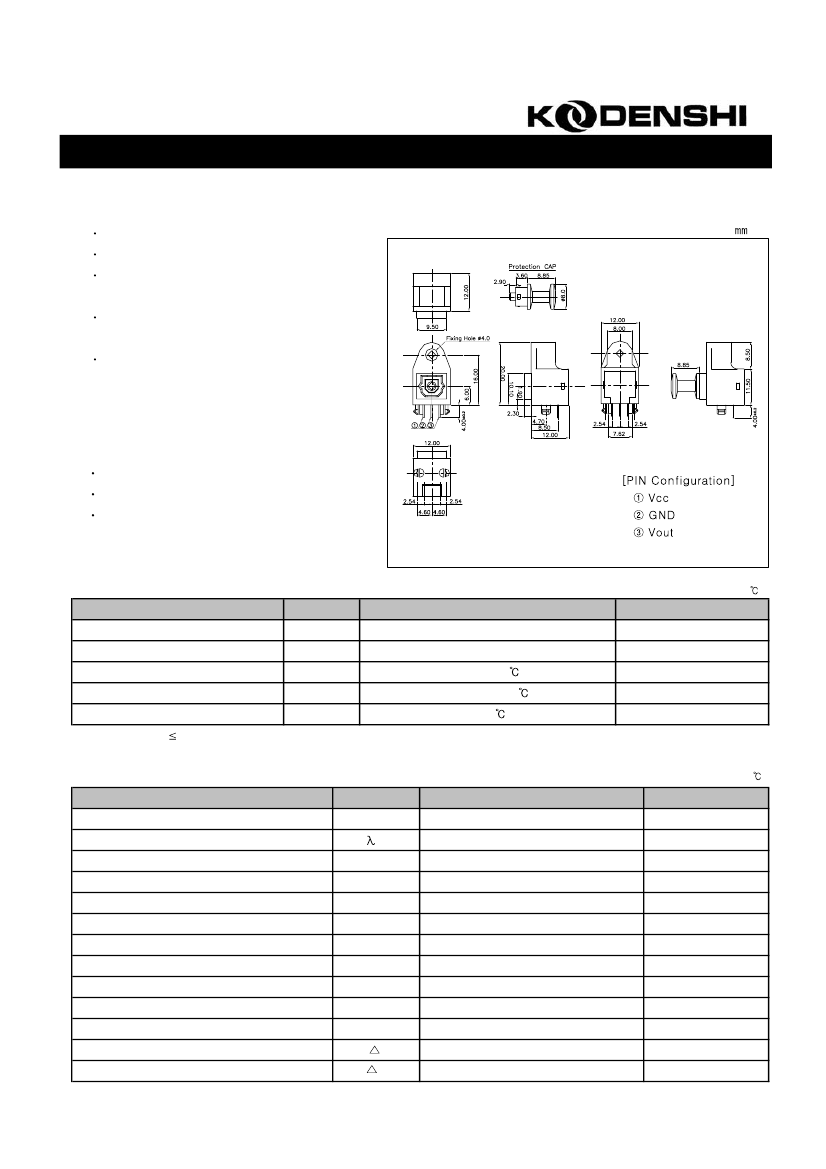

Fiber Optic Receiving Module
KFO-RX16CB
Features
High PD Sensitivity Optimized for Red Light
Data Rate between 100Kbps and 16Mbps
Low Power Comsumption for
Extended Battery Life
Built-in Threshold Control for
Improved Noise Margin
2 pin Cap Housing
Dimensions
(Unit :
)
Applications
Digital Optical Data-Links
Dolby AC-3 Digital Audio Interface
Amplifier
Absolute Maximum Ratings
Description
Power Supply Voltage
Input Voltage
Operating Temperature
Storage Temperature
Soldering Temperature *1
*1 : Soldering Time
[Ta = 25
]
Symbol
V
cc
V
IN
T
opr
V
stg
T
sol
Ratings
-0.5 ~ +7.0
Vcc+0.3V
-20 ~ +70
- 30 ~ + 80
260
Condition
-
-
-
-
-
10 seconds(At a distance of 1mm from the package)
[Vcc= 5V, Ta= 25
]
Electro-Optical Characteristics
Parameter
Operating Supply Voltage
Peak Emission Wavelength
Data Rate
Optical Output Coupling with Fiber
Current Consumption
High Level Output Voltage
Low Level Output Voltage
Propagation Delay Time ( H -> L )
Propagation Delay Time ( L -> H )
Rise Time
Fall Time
Pulse Width Distortion
Jitter
Symbol
Vcc
p
T
Pc
I
CC
V
OH
V
OL
t
pHL
t
pLH
tr
tr
tw
tj
Characteristics
4.75 ~ 5.25 V
TYP 700 nm
TYP 16 Mbps
MIN -24 dBm
MAX 6.0 mA
MIN 2.4 V
MAX 0.4 V
MAX 100 ns
MAX 100 ns
MAX 15 ns
MAX 15 ns
MAX 15 ns
MAX 25 ns
Condition
-
-
-
-
-
-
-
-
-
-
-
-
-
1/1
