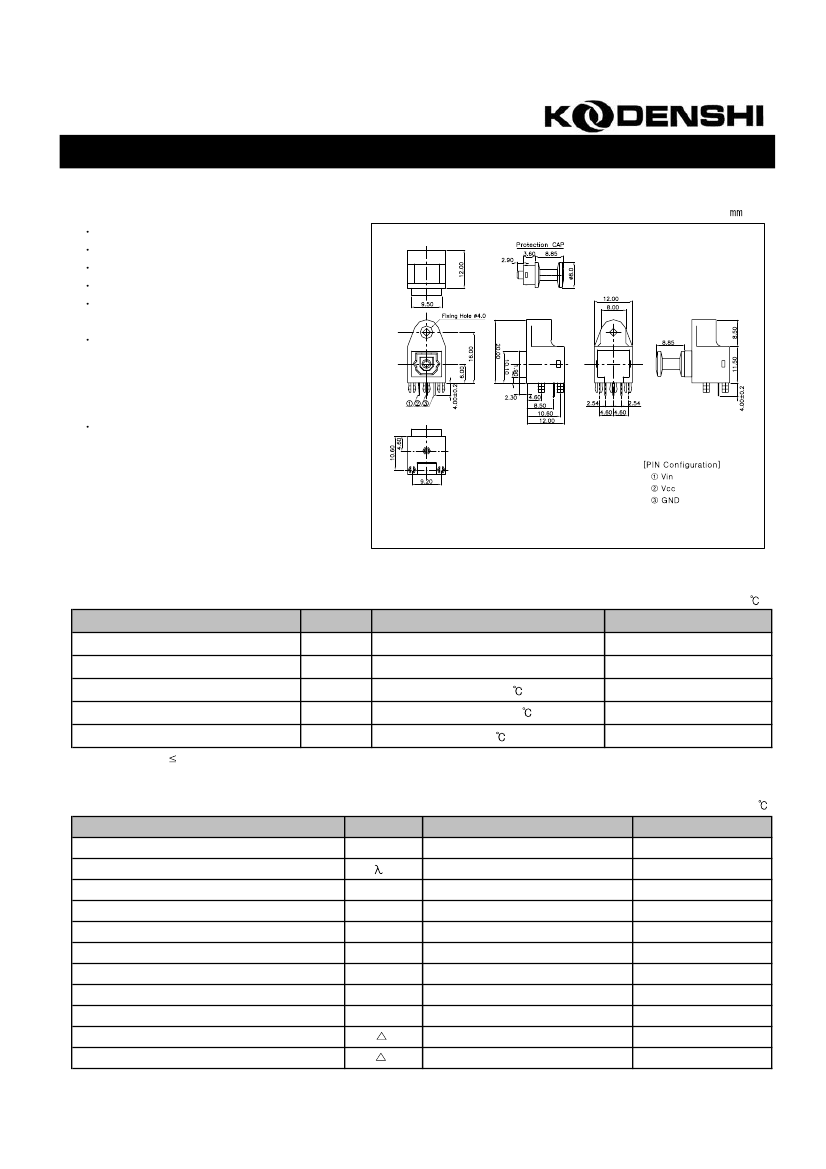

Fiber Optic Transmitting Module
KFO-TX08CA
Features
Dimensions
(Unit :
)
Low Jitter Output
Operating Voltage : 4.75 ~ 5.25V
TTL Interface
Signal Transmission Speed : 8Mbps
A Self-tapping Hole for Easy Attachment to
Audio Equipment Panels
3 pin Cap Houging
Applications
Digital Audio Equipment(CD,MD),
STB, DVDP, etc
Absolute Maximum Ratings
Description
Power Supply Voltage
Input Voltage
Operating Temperature
Storage Temperature
Soldering Temperature *1
*1 : Soldering Time
[Ta = 25
Symbol
V
cc
V
N
I
T
opr
V
stg
T
sol
Ratings
-0.5 ~ +7.0
Vcc+0.5V
-20 ~ +70
- 30 ~ + 80
260
Condition
-
-
-
-
-
]
10 seconds(At a distance of 1mm from the package)
Electro-Optical Characteristics
Parameter
Operating Supply Voltage
Peak Emission Wavelength
Data Rate
Optical Output Coupling with Fiber
Current Consumption
Input High Level
Input Low Level
Propagation Delay Time ( H -> L )
Propagation Delay Time ( L -> H )
Pulse Width Distortion
Jitter
Symbol
Vcc
p
T
Pc
I
CC
V
IH
V
IL
t
pHL
t
pLH
tw
tj
Characteristics
4.75 ~ 5.25 V
TYP 660 nm
MAX 8 Mbps
MIN -21 dBm
MAX 10.0 mA
MIN 2.0 V
MAX 0.8 V
MAX 100 ns
MAX 100 ns
MAX 10 ns
MAX 15 ns
[Vcc= 5V, Ta= 25
Condition
-
-
-
-
-
-
-
-
-
-
-
]
1/1
