OPA
132
OPA
2132
OPA
4132
OPA
132
OPA
2132
OPA
413
2
OPA132
OPA2132
OPA4132

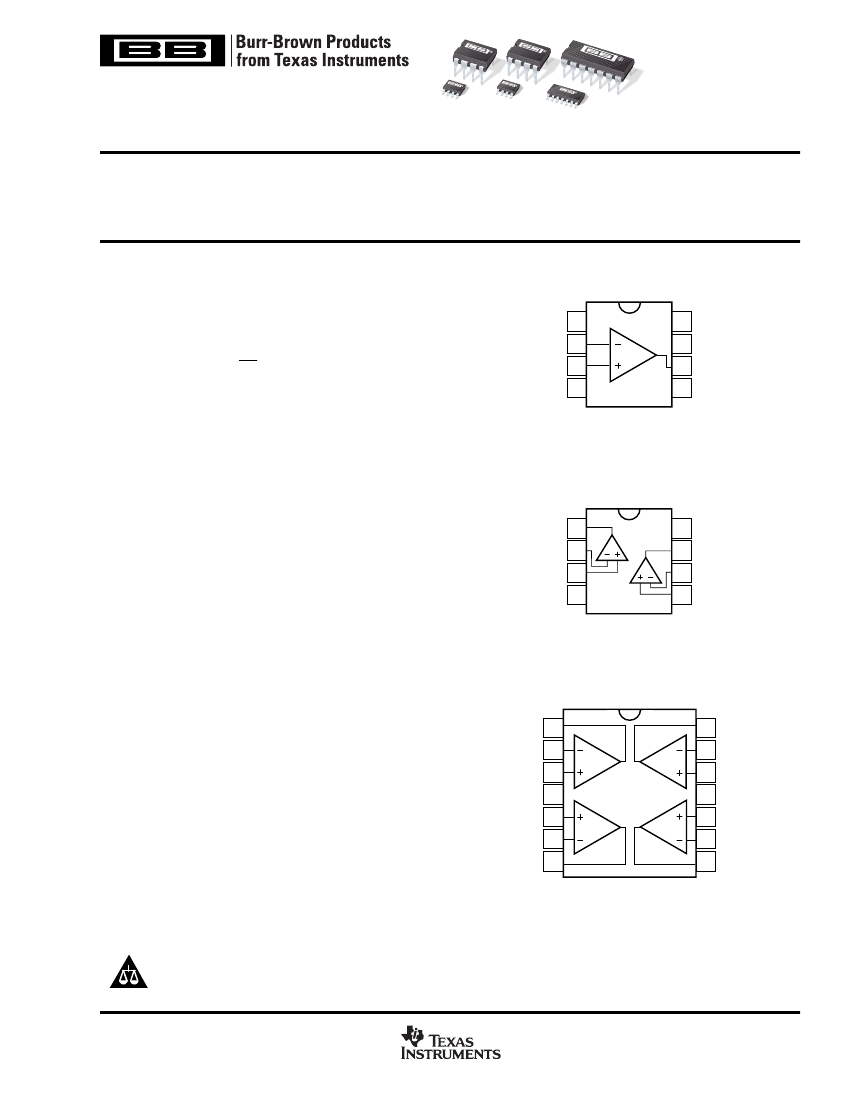

SBOS054A – JANUARY 1995 – REVISED JUNE 2004
High-Speed
FET-INPUT OPERATIONAL AMPLIFIERS
FEATURES
q
FET INPUT: I
B
= 50pA max
q
WIDE BANDWIDTH: 8MHz
q
HIGH SLEW RATE: 20V/µs
q
LOW NOISE: 8nV/√Hz (1kHz)
q
LOW DISTORTION: 0.00008%
q
HIGH OPEN-LOOP GAIN: 130dB (600Ω load)
q
WIDE SUPPLY RANGE:
±
2.5 to
±
18V
q
LOW OFFSET VOLTAGE: 500µV max
q
SINGLE, DUAL, AND QUAD VERSIONS
OPA2132
Offset Trim
–In
+In
V–
1
2
3
4
8-Pin DIP, SO-8
8
7
6
5
Offset Trim
V+
Output
NC
OPA132
DESCRIPTION
The OPA132 series of FET-input op amps provides high-
speed and excellent dc performance. The combination of
high slew rate and wide bandwidth provide fast settling time.
Single, dual, and quad versions have identical specifications
for maximum design flexibility. High performance grades
are available in the single and dual versions. All are ideal for
general-purpose, audio, data acquisition and communica-
tions applications, especially where high source impedance
is encountered.
OPA132 op amps are easy to use and free from phase
inversion and overload problems often found in
common FET-input op amps. Input cascode circuitry pro-
vides excellent common-mode rejection and
maintains low input bias current over its wide input voltage
range. OPA132 series op amps are stable in unity gain and
provide excellent dynamic behavior over a wide range of
load conditions, including high load capacitance. Dual and
quad versions feature completely independent circuitry for
lowest crosstalk and freedom from interaction, even when
overdriven or overloaded.
Single and dual versions are available in 8-pin DIP and
SO-8 surface-mount packages. Quad is available in 14-pin
DIP and SO-14 surface-mount packages. All are specified
for –40°C to +85°C operation.
Out A
–In A
+In A
V–
1
2
3
4
8-Pin DIP, SO-8
A
B
8
7
6
5
V+
Out B
–In B
+In B
OPA4132
Out A
–In A
+In A
V+
+In B
–In B
Out B
1
2
A
3
4
5
B
6
7
14-Pin DIP
SO-14
C
9
8
–In C
Out C
D
12
11
10
+In D
V–
+In C
14
13
Out D
–In D
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright © 1995-2004, Texas Instruments Incorporated
www.ti.com
ABSOLUTE MAXIMUM RATINGS
Supply Voltage, V+ to V– .................................................................... 36V
Input Voltage ..................................................... (V–) –0.7V to (V+) +0.7V
Output Short-Circuit
(1)
.............................................................. Continuous
Operating Temperature .................................................. –40°C to +125°C
Storage Temperature ..................................................... –55°C to +125°C
Junction Temperature ...................................................................... 150°C
Lead Temperature (soldering, 10s) ................................................. 300°C
NOTE: (1) Short-circuit to ground, one amplifier per package.
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Texas
Instruments recommends that all integrated circuits be
handled with appropriate precautions. Failure to ob-
serve proper handling and installation procedures can
cause damage.
ESD damage can range from subtle performance deg-
radation to complete device failure. Precision inte-
grated circuits may be more susceptible to damage
because very small parametric changes could cause
the device not to meet its published specifications.
PACKAGE/ORDERING INFORMATION
For the most current package and ordering information,
see the Package Option Addendum located at the end
of this data sheet.
2
OPA132, 2132, 4132
www.ti.com
SBOS054A
SPECIFICATIONS
At T
A
= +25°C, V
S
=
±15V,
unless otherwise noted.
OPA132P, U
OPA2132P, U
PARAMETER
OFFSET VOLTAGE
Input Offset Voltage
vs Temperature
(1)
vs Power Supply
Channel Separation (dual and quad)
INPUT BIAS CURRENT
Input Bias Current
(2)
vs Temperature
Input Offset Current
(2)
NOISE
Input Voltage Noise
Noise Density, f = 10Hz
f = 100Hz
f = 1kHz
f = 10kHz
Current Noise Density, f = 1kHz
INPUT VOLTAGE RANGE
Common-Mode Voltage Range
Common-Mode Rejection
INPUT IMPEDANCE
Differential
Common-Mode
OPEN-LOOP GAIN
Open-Loop Voltage Gain
(V–)+2.5
96
CONDITION
MIN
TYP
±0.25
±2
5
0.2
MAX
±0.5
±10
15
MIN
OPA132PA, UA
OPA2132PA, UA
OPA4132PA, UA
TYP
±0.5
✻
✻
✻
✻
✻
✻
MAX
±2
✻
30
UNITS
mV
µV/°C
µV/V
µV/V
pA
pA
Operating Temperature Range
V
S
=
±2.5V
to
±18V
R
L
= 2kΩ
V
CM
= 0V
V
CM
= 0V
+5
±50
See Typical Curve
±2
±50
✻
✻
23
10
8
8
3
±13
100
10
13
|| 2
10
13
|| 6
110
110
110
120
126
130
8
±20
0.7
1
0.5
0.00008
0.00009
(V+)–1.2
(V–)+0.5
(V+)–1.5
(V–)+1.2
(V+)–2.5
(V–)+2.2
(V+)–0.9
(V–)+0.3
(V+)–1.2
(V–)+0.9
(V+)–2.0
(V–)+1.9
±40
See Typical Curve
±15
±4
✻
✻
✻
✻
✻
✻
104
104
104
(V+)–2.5
✻
86
✻
✻
✻
✻
✻
✻
94
✻
✻
✻
120
120
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
±18
±4.8
+85
+125
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
✻
nV/√Hz
nV/√Hz
nV/√Hz
nV/√Hz
fA/√Hz
V
dB
Ω
|| pF
Ω
|| pF
dB
dB
dB
MHz
V/µs
µs
µs
µs
%
%
V
V
V
V
V
V
mA
V
CM
= –12.5V to +12.5V
V
CM
= –12.5V to +12.5V
R
L
= 10kΩ, V
O
= –14.5V to +13.8V
R
L
= 2kΩ, V
O
= –13.8V to +13.5V
R
L
= 600Ω, V
O
= –12.8V to +12.5V
FREQUENCY RESPONSE
Gain-Bandwidth Product
Slew Rate
Settling Time: 0.1%
0.01%
Overload Recovery Time
Total Harmonic Distortion + Noise
G = –1, 10V Step, C
L
= 100pF
G = –1, 10V Step, C
L
= 100pF
G =
±1
1kHz, G = 1, V
O
= 3.5Vrms
R
L
= 2kΩ
R
L
= 600Ω
R
L
= 10kΩ
R
L
= 2kΩ
R
L
= 600Ω
OUTPUT
Voltage Output, Positive
Negative
Positive
Negative
Positive
Negative
Short-Circuit Current
Capacitive Load Drive (Stable Operation)
POWER SUPPLY
Specified Operating Voltage
Operating Voltage Range
Quiescent Current (per amplifier)
TEMPERATURE RANGE
Operating Range
Storage
Thermal Resistance,
θ
JA
8-Pin DIP
SO-8 Surface-Mount
14-Pin DIP
SO-14 Surface-Mount
✻
Specifications same as OPA132P, OPA132U.
±2.5
I
O
= 0
–40
–40
V
V
mA
°C
°C
°C/W
°C/W
°C/W
°C/W
100
150
80
110
NOTES: (1) Guaranteed by wafer test. (2) High-speed test at T
J
= 25°C.
OPA132, 2132, 4132
SBOS054A
www.ti.com
3

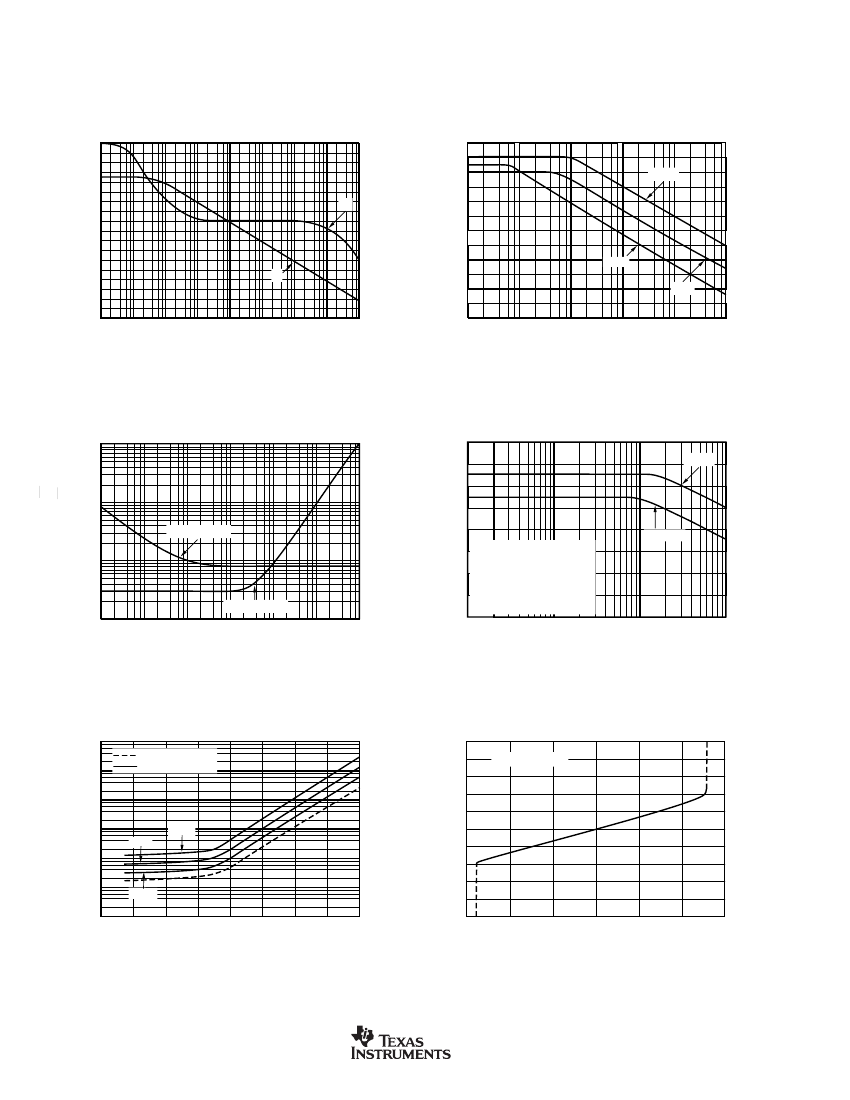

TYPICAL PERFORMANCE CURVES
At T
A
= +25°C, V
S
=
±15V,
R
L
= 2kΩ, unless otherwise noted.
OPEN-LOOP GAIN/PHASE vs FREQUENCY
160
140
0
POWER SUPPLY AND COMMON-MODE REJECTION
vs FREQUENCY
120
100
–PSR
120
–45
Voltage Gain (dB)
80
60
40
20
0
–20
0.1
1
10
100
1k
10k
100k
1M
G
–90
Phase Shift (°)
100
PSR, CMR (dB)
φ
80
60
40
20
+PSR
CMR
–135
–180
0
10M
10
100
1k
10k
100k
1M
Frequency (Hz)
Frequency (Hz)
INPUT VOLTAGE AND CURRENT NOISE
SPECTRAL DENSITY vs FREQUENCY
1k
CHANNEL SEPARATION vs FREQUENCY
160
R
L
=
∞
Channel Separation (dB)
Voltage Noise (nV/√Hz)
Current Noise (fA/√Hz)
140
100
Voltage Noise
10
120
Dual and quad devices.
G = 1, all channels.
Quad measured channel
A to D or B to C—other
combinations yield improved
rejection.
100
1k
Frequency (Hz)
R
L
= 2kΩ
100
Current Noise
1
1
10
100
1k
Frequency (Hz)
10k
100k
1M
80
10k
100k
INPUT BIAS CURRENT vs TEMPERATURE
100k
10k
High Speed Test
Warmed Up
Input Bias Current (pA)
INPUT BIAS CURRENT
vs INPUT COMMON-MODE VOLTAGE
10
9
8
7
6
5
4
3
2
1
0
High Speed Test
Input Bias Current (pA)
1k
100
Dual
10
1
0.1
–75
–50
–25
0
25
50
75
100
125
Ambient Temperature (°C)
Single
Quad
–15
–10
–5
0
5
10
15
Common-Mode Voltage (V)
4
OPA132, 2132, 4132
www.ti.com
SBOS054A
TYPICAL PERFORMANCE CURVES
(Cont.)
At T
A
= +25°C, V
S
=
±15V,
R
L
= 2kΩ, unless otherwise noted.
A
OL
, CMR, PSR vs TEMPERATURE
130
Quiescent Current Per Amp (mA)
4.3
QUIESCENT CURRENT AND SHORT-CIRCUIT CURRENT
vs TEMPERATURE
60
A
OL
, CMR, PSR (dB)
120
Open-Loop
Gain
4.1
±I
SC
±I
Q
40
110
PSR
4.0
30
100
CMR
90
–75
–50
–25
0
25
50
75
100
125
Ambient Temperature (°C)
3.9
20
3.8
–75
–50
–25
0
25
50
75
100
125
Ambient Temperature (°C)
10
OFFSET VOLTAGE
PRODUCTION DISTRIBUTION
12
10
Percent of Amplifiers (%)
8
6
4
2
0
0
200
400
600
800
1000
1200
–1400
–1200
–1000
–800
–600
–400
–200
1400
Typical production
distribution of packaged
units. Single, dual and
quad units included.
12
10
Percent of Amplifiers (%)
OFFSET VOLTAGE DRIFT
PRODUCTION DISTRIBUTION
Typical production distribution
of packaged units. Single,
dual and quad units included.
8
6
4
2
0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
Offset Voltage (µV)
Offset Voltage Drift (µV/°C)
TOTAL HARMONIC DISTORTION + NOISE
vs FREQUENCY
0.01
R
L
2kΩ
600Ω
0.001
G = +10
Output Voltage (Vp-p)
THD+Noise (%)
MAXIMUM OUTPUT VOLTAGE
vs FREQUENCY
30
V
S
=
±15V
Maximum output voltage
without slew-rate
induced distortion
20
0.0001
G = +1
V
O
= 3.5Vrms
0.00001
10
100
1k
Frequency (Hz)
10k
100k
10
V
S
=
±5V
V
S
=
±2.5V
10k
100k
Frequency (Hz)
1M
10M
0
OPA132, 2132, 4132
SBOS054A
www.ti.com
5
Short-Circuit Current (mA)
4.2
50
