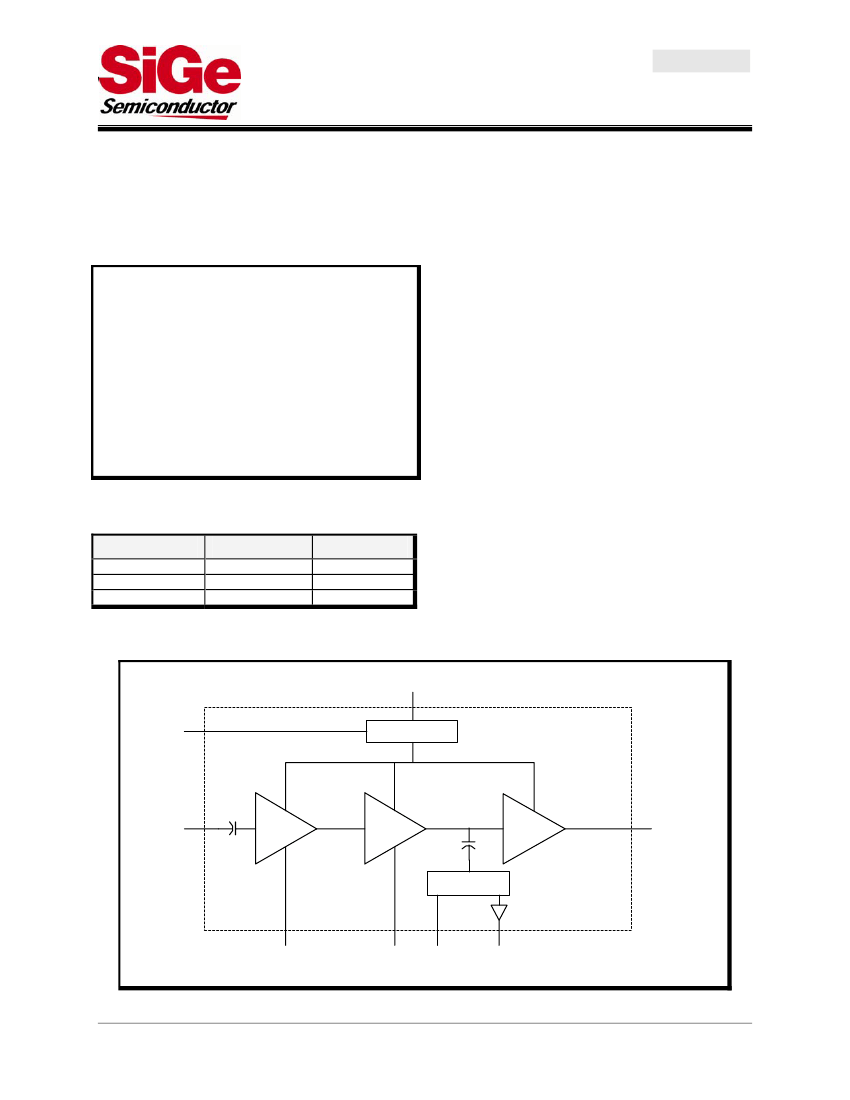

SE2523BU
2.4 GHz Power Amplifier with Power Detector
Preliminary
Applications
DSSS 2.4 GHz WLAN (IEEE802.11b)
OFDM 2.4 GHz WLAN (IEEE802.11g)
Portable and Battery WLAN Applications
Access Points, PCMCIA, PC cards
Product Description
The SE2523BU is a 2.4 GHz power amplifier
designed for use in the 2.4 GHz ISM band for wireless
LAN applications. The device incorporates two
selectable power detectors for closed loop monitoring
of the output power.
The SE2523BU includes a digital enable control for
device on/off control.
The SE2523BU temperature compensated power
detector has two selectable power detectors slopes,
positive and negative. This allows easy use with
multiple chipsets. The detector is also highly immune
to mismatch at its output with less than 1.5 dB of
variation with a 2:1 mismatch.
Features
Single 3.3 V Supply Operation
18.5 dBm, EVM = 3 %, 802.11g, OFDM 54 Mbps
23 dBm, ACPR < -32 dBc, 802.11b
32 dB Gain
Selectable Power Detector Slope for use with
multiple chipsets (Negative and Positive)
Integrated power amplifier enable pin (V
EN
)
Lead Free and RoHS Compliant
Ultra thin package: 0.5 mm
Small package, 16 pin 3 mm x 3 mm x 0.5 mm
QFN
Ordering Information
Part Number
SE2523BU
SE2523BU-R
SE2523BU-EK1
Package
16 Pin QFN
16 Pin QFN
Evaluation Kit
Remark
Samples
Tape and Reel
Standard
Functional Block Diagram
V
CC0
V
EN
Bias Generator
IN
Stage 1
Stage 2
Stage 3
OUT/V
CC3
Detector
(with Switch)
V
CC1
V
CC2
SLOPE
SEL
V
DET
OUT
Figure 1: Functional Block Diagram
192-DST-01
Rev 1.3
May-26-2009
QA041206
1 of 2
SE2523BU
2.4 GHz Power Amplifier with Power Detector
Preliminary
http://www.sige.com
Email: sales@sige.com
Customer Service Locations:
North America:
1050 Morrison Drive, Suite 100
Ottawa ON K2H 8K7 Canada
Phone: +1 613 820 9244
Fax: +1 613 820 4933
Hong Kong
Phone: +852 3428 7222
Fax: +852 3579 5450
San Diego
Phone: +1 858 668 3541 (ext. 226)
Fax: +1 858 668 3546
United Kingdom
Phone: +44 1279 464217
Fax: +44 1279 464201
Product Preview
The datasheet contains information from the product concept specification. SiGe Semiconductor, Inc. reserves the right to change
information at any time without notification.
Preliminary Information
The datasheet contains information from the design target specification. SiGe Semiconductor, Inc. reserves the right to change
information at any time without notification.
Production testing may not include testing of all parameters.
Information furnished is believed to be accurate and reliable and is provided on an “as is” basis. SiGe Semiconductor, Inc. assumes
no responsibility or liability for the direct or indirect consequences of use of such information nor for any infringement of patents or
other rights of third parties, which may result from its use. No license or indemnity is granted by implication or otherwise under any
patent or other intellectual property rights of SiGe Semiconductor, Inc. or third parties. Specifications mentioned in this publication
are subject to change without notice. This publication supersedes and replaces all information previously supplied. SiGe
Semiconductor, Inc. products are NOT authorized for use in implantation or life support applications or systems without express
written approval from SiGe Semiconductor, Inc.
Copyright 2009 SiGe Semiconductor, Inc.
All Rights Reserved
192-DST-01
Rev 1.3
May-26-2009
QA041206
2 of 2
