1N6375 Overview

1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE

Preview

Download Datasheet

View All

MDE Semiconductor, Inc.

78-150 Calle Tampico, Unit 210, La Quinta, CA. U.S.A. 92253 Tel: 760-564-8656 • Fax: 760-564-2414

ICTE5.0 to ICTE15C MPTE-5 to MPTE-45

1N6373 to 1N6381 and 1N6382 to 1N6389

GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

STANDOFF VOLTAGE- 5.0 to 45.0V

1500 Watt Peak Power

FEATURES

• Plastic package has Underwriters Laboratory

Flammability Classification 94 V-O

• Glass passivated chip junction in Molded Plastic package

• 1500W surge capability at 1ms

• Excellent clamping capability

• Low zener inpedance

• Fast response time: typically less than

1.0 ps from 0 volts to BV min.

• Typical IR less than 1µA above 10V

• High temperature soldering guaranteed:

250°C/10 seconds/ .375", (9.5mm) lead

length, 5lbs., (2.3kg) tension

• Includes 1N6373 thru 1N6385

MECHANICAL DATA

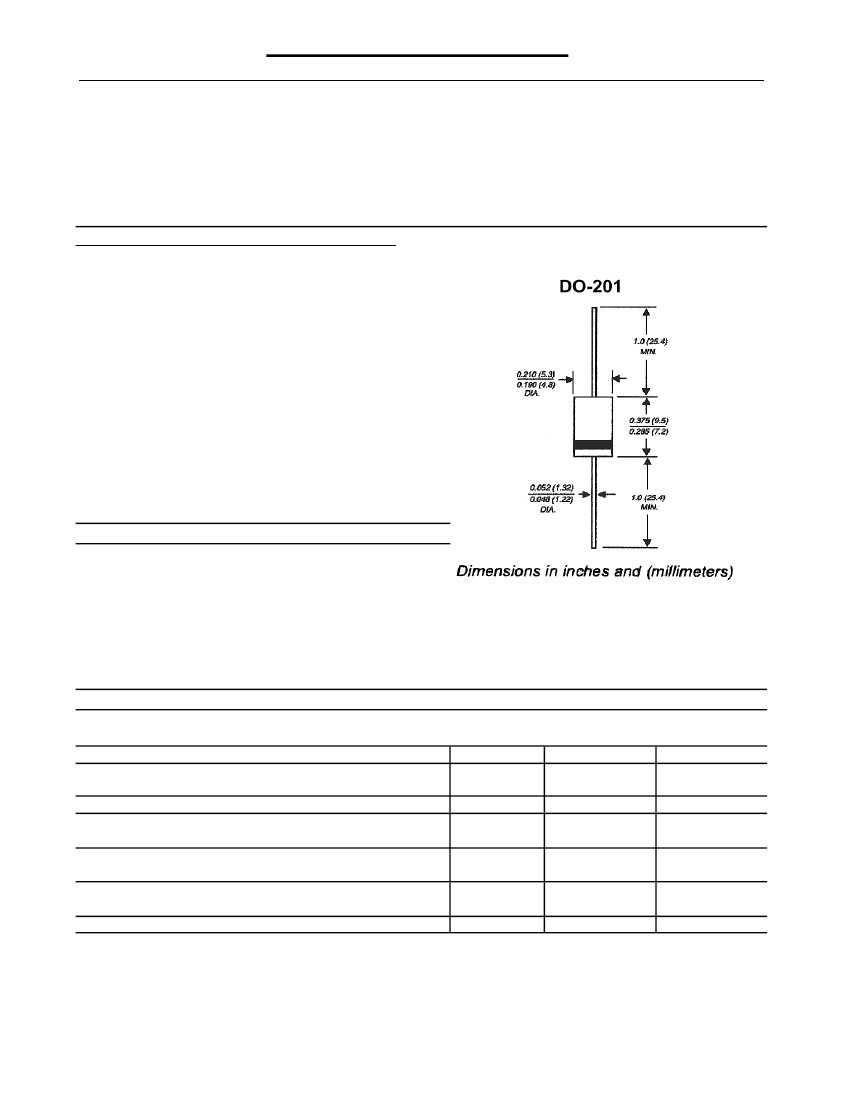

Case: JEDEC DO-201 Molded plastic

Terminals: Plated Axial leads, solderable per

MIL-STD-750, Method 2026

Polarity: Color band denoted positive end (cathode)

except Bipolar

Mounting Position: Any

Weight: 0.045 ounces, 1.2 grams

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

RATING

Peak Pulse Power Dissipation at TA = 25 °C, TP = 1ms

(NOTE 1)

SYMBOL

ppm

Ippm

VALUE

Minimum 1500

SEE TABLE 1

5.0

200

3.5

-55 +175

UNITS

Watts

Amps

Watts

Amps

Volt

°C

Peak Pulse Current of on 10/1000 µs waveform

(Note 1)

Steady State Power Dissipation at

= 75°C

Lead lengths .375", 9.5mm

(Note 2)

Peak Forward Surge Current, 8.3ms Single Half Sine-wave

Superimposed on Rated Load,

(JEDEC Method)(Note 3)

Maximum instantaneous forward voltage at 100A for

unidirectional only

Operatings and Storage Temperature Range

m(AV)

FSM

Tj, Tstg

NOTES:

1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.

2. Mounted on Copper Pad area of 0.8x0.8" (20x20mm) per Fig.5.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum.

8/6/2002
