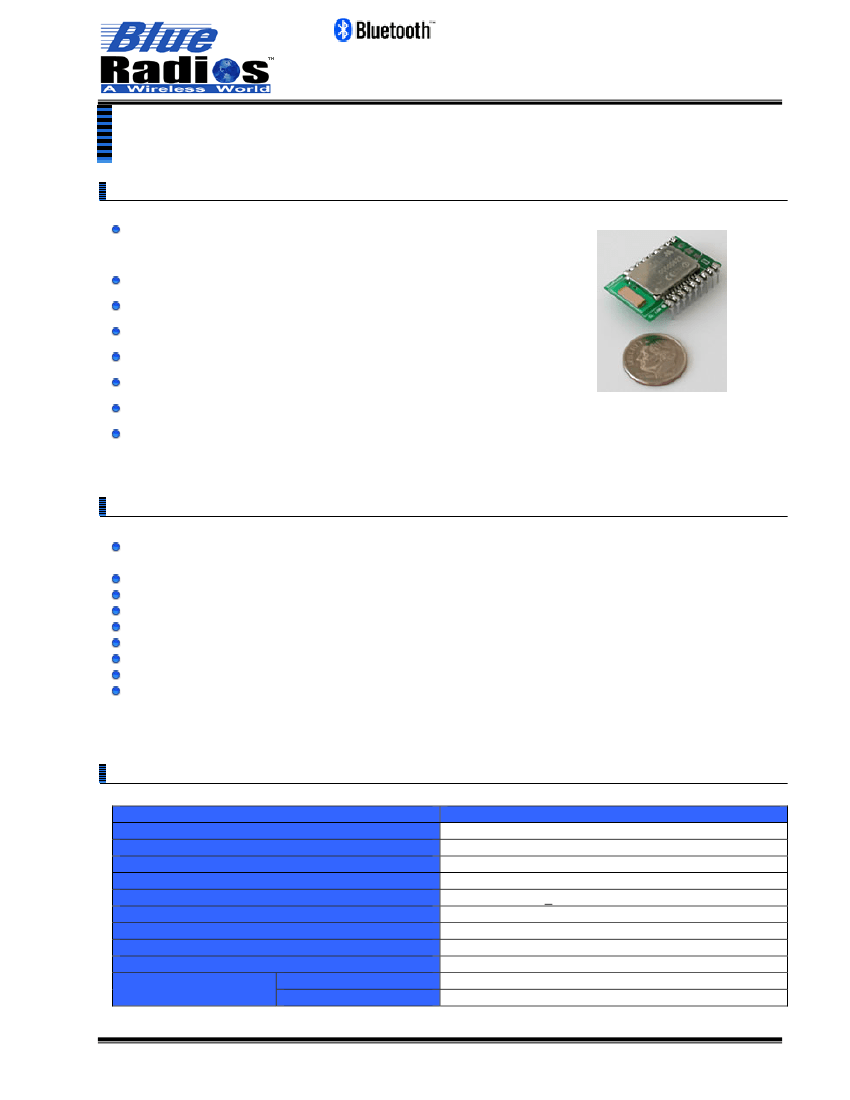

Blue
Stamp
®
Module
BR-SC40A Class1, 2, and 3
Bluetooth
®
ver2.0
OUTLINE
AT HOME. AT WORK. ON THE ROAD.
USING BLUETOOTH WIRELESS TECHNOLOGY
MEANS TOTAL FREEDOM FROM THE CONSTRAINTS AND CLUTTER OF WIRES IN
YOUR LIFE.
Wireless communications module certified to
Bluetooth
®
ver2.0.
With ceramic RF chip antenna provided.
FCC, IC, CE, and
Bluetooth
®
certified ISM 2.4GHz band module.
UART data interface (2-wire or 4-wire with CTS/RTS).
13-bit PCM, 8k samples/s, synchronous bidirectional audio interface
Includes integrated software stack, profiles, and AT modem like commands.
Embedded
Bluetooth
Stack Profiles Included
(requires no host MCU stack):
SPP, DUN, LAN, Headset, HFP, eSCO, SCO, Audio Gateway, FTP Client/Server, OBEX, OPP – Push/Pull, GAP SDP,
RFCOMM, and L2CAP protocols.
FEATURES
The
BlueStamp
serial radio modems can be configured, commanded, and controlled through
simple ASCII strings over the
Bluetooth
RF link or directly through the hardware serial UART.
Dedicated PCM voice channel for audio applications, and eSCO for exceptional audio clarity
UART baud rate speeds: 1200bps up to 921.6Kbps, and customized
+100 meter (330 feet) distance
Software adjustable transmitter power from short to long range applications
Low power consumption
(80mA TX, 40mA RX, 1.4mA idle mode, and 30uA deep sleep)
Small-form factor 18 Pin DIP radio modem package (0.1” pitch X 0.8” socket width)
Operating temperature range: -40~+70ºC.
Secure and robust communication link
FHSS (Frequency Hopping Spread Spectrum)
Encryption and 16 alphanumeric Personal Identification Number (PIN)
Error correction schemes for guaranteed packet delivery
SPECIFICATIONS
Item
Frequency
Modulation
Channel intervals
Number of channels
Power supply voltage
Current consumption
Transmission rate (over the air)
Receive sensitivity
Output level (variable)
Dimensions
With Antenna
Specifications
2402 ~ 2480MHz
FHSS/GFSK
1MHz
79CH
3.3Vdc + 0.1V and 10mVp-p max. noise
120mA worst case peak
721kbps
-83dBm typ.
12dBm max.
20.3(W) X 31.8(L) X 5.0(H)mm
8310 S. Valley Highway, Suite 275
•
Englewood, CO 80112
•
USA
•
Tel (303) 957-1003
www.BlueRadios.com
Secure, Versatile
and Award Winning
Network Radio Devices.
Blue
Stamp
®
Module

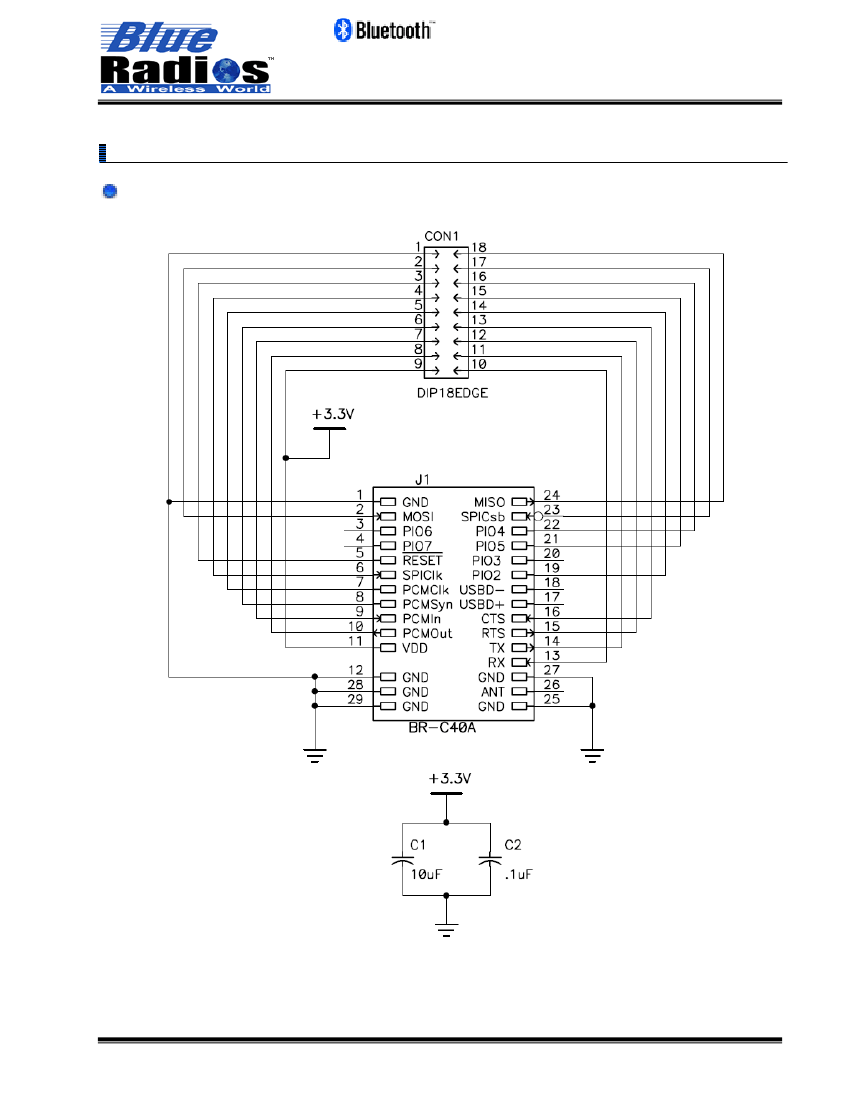

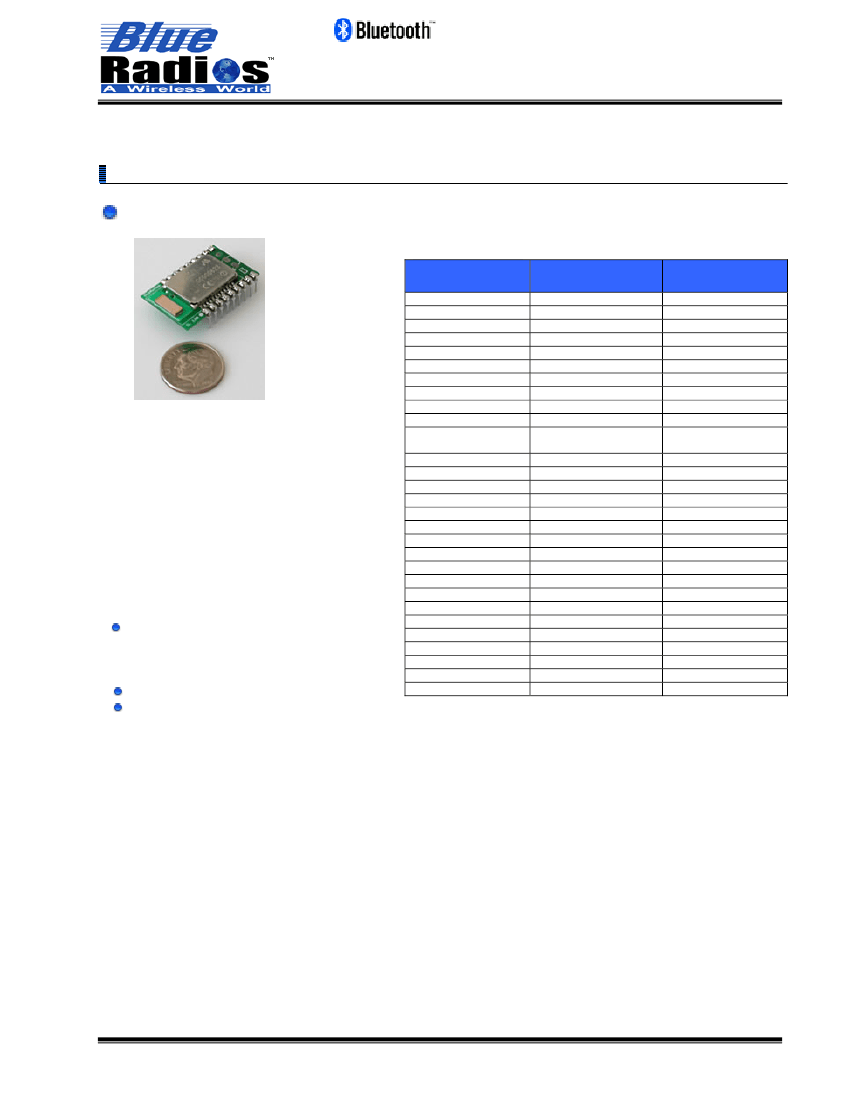

PIN DEFINITIONS
BR-SC40A (With Antenna)
make from BR-C40A
BR-SC40A (DIP)
BlueStamp
1. GND
2. SPI_MOSI
NC
NC
3. RESET
4. SPI_CLK
5. PCM_CLK
6. PCM_SYNC
7. PCM_IN
8. PCM_OUT
9. VDD (3.3Vdc)
GND
10. UART_RX
11. UART_TX
12. UART_RTS
13. UART_CTS
NC
NC
14. PIO[2]
NC
15. PIO[5]
16. PIO[4]
17. SPI_CSB
18. SPI_MISO
GND
NC
1.
1.
1.
BR-C40A (SMT)
BlueRadios
1. GND
2. SPI_MOSI
3. PIO[6]
4. PIO[7]
5. RESET
6. SPI_CLK
7. PCM_CLK
8. PCM_SYNC
9. PCM_IN
10. PCM_OUT
11. VDD (3.3Vdc)
12. GND
13. UART_RX
14. UART_TX
15. UART_RTS
16. UART_CTS
17. Not Used
18. Not Used
19
.
PIO[2]
20.PIO[3]
21. PIO[5]
22. PIO[4]
23. SPI_CSB
24. SPI_MISO
25. GND
26. NC
27. GND
28. GND
29. GND
Misc. Info.
All Connected
Reserved
Reserved
Note:
SPI is for BlueRadios internal use only.
Part is not 5Vdc tolerant.
Reset is active
low;
pulse >5msec.
PIO Sink Current is 4mA max.
Unused pins can float accept for PIO(4), tie
to ground if not used or disable via software.
±0.1Vdc,
max. 10mVpp ripple
0-3.3Vdc logic levels
0-3.3Vdc logic levels
0-3.3Vdc logic levels
0-3.3Vdc logic levels
USB_D+
USB_D-
Bluetooth Connection
Radio Status
Factory Default Reset
Reserved
Reserved
Firmware Options
AT Command
- Multi-point
- Point-to-point
- Repeater
HCI or BCSP
Custom
