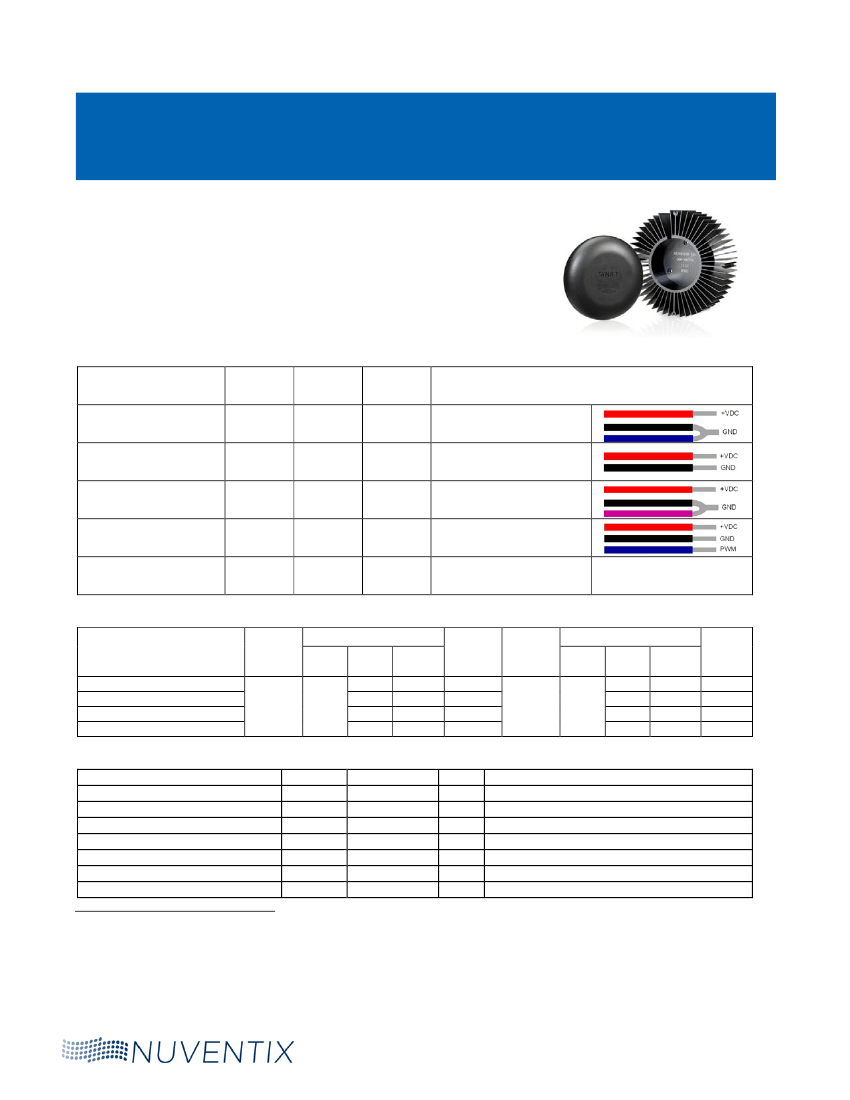

PRODUCT DATASHEET
SynJet Spotlight Cooler 60W
SynJet cooling technology provides the most reliable thermal
management solution available. This LED cooler has been developed
by Nuventix for cooling downlight and spotlight modules and arrays.
•
•
•
Cools up to 60 W
4
Reliable 100K Hours Lifetime
Energy Efficient
•
•
•
5 Yr Warranty
Small Form Factor
Quiet Acoustics
®
Specifications
1
Thermal & Acoustic
SynJet Setting
Mid Performance
Standard Performance
Silent Performance
PWM at 100% duty cycle
Heatsink Only
2
Θs-a
Cu / Al
0.55 / 0.60
0.60 / 0.65
0.70 / 0.75
0.50 / 0.55
1.50 / 1.55
3
TDP (W)
Cu / Al
55 / 50
50 / 46
43 / 40
60 / 55
20 / 19
4
SPL
5
(dBA)
25
22
19
28
N/A
Wire Connections
Red to +VDC
Black & Blue to Ground
Red to +VDC
Black only to Ground
Red to +VDC
Black & Purple to Ground
Red to +VDC
Black only to Ground
Blue to PWM Signal
N/A
N/A
Electrical
SynJet Setting
2
Voltage
(VDC)
+/- 10%
5
Current (mA)
Imin
20
Iavg
120
80
60
160
6
Mid
Standard
Silent
PWM at 100% duty cycle
Ipeak
240
160
120
320
Pavg
(mW)
600
400
300
800
Voltage
(VDC)
+/- 10%
12
Current (mA)
Imin
10
Iavg
67
50
40
82
6
Ipeak
134
100
80
164
Pavg
(mW)
800
600
480
980
Environmental
All Settings
Operating Temperature
Storage Temperature
Storage Altitude
Operating Relative Humidity
Weight
Reliability
Regulatory Compliance
1
2
Min
-40
-50
5
Max
70
95
15K
95
600
100K
Units
°C
°C
m
%
g
hrs
Conditions
Air temperature surrounding cooler
Air temperature surrounding cooler
Above sea level
Non-condensing
SynJet with Al heat sink and Cu mounting plate
L10 @ 60°C
RoHS, UL, FCC Part 15 Class B, CE
All values are typical at 25ºC unless otherwise stated.
The Level Select model should be used for discrete performance settings. Follow the instructions in the Product Design Guide for adjusting settings.
3
Thermal resistance values are given as reference only and are measured in free air without airflow obstructions. Thermal resistance is measured from the bottom
middle of the heat sink to ambient air measured at the inlet to the SynJet, with a heat source at least 15cm
2
using the 60 W reference heat sink. Actual thermal
performance may vary by application and final product design should be tested to assure proper thermal performance.
4
Thermal Design Power is based on a 30ºC temperature rise of heat sink mounting surface above ambient temperature around cooler.
5
Sound Pressure Level is measured at 1 meter distance per ISO 7779.
6
The SynJet has a time varying current. The current waveform is sinusoidal and the average current (Iavg) is used to calculate the average power consumption
(Pavg) at nominal input voltage (VDC). See the Electrical section in the Product Design Guide for a detailed explanation.
4635 Boston Lane
Austin, TX 78735
Phone: 512-382-8100
www.nuventix.com
MKTG-DOC-000104
Revision
A01
Aug 2012
PRODUCT DATASHEET

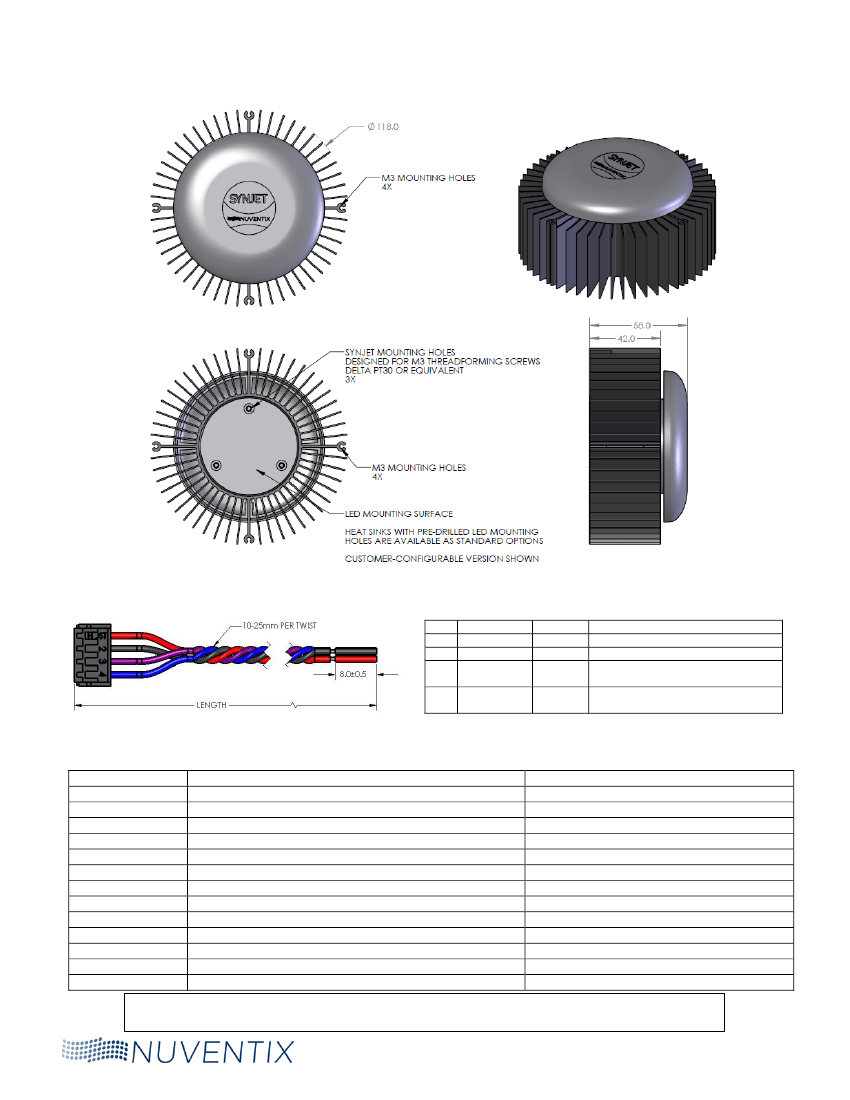

Mechanical - SynJet Cooling Solution shown with Al Configurable heat sink
All dimensions are nominal and in mm unless otherwise stated. See product drawings for more detail.
SynJet Wire Harness
Connector Pinout
Pin
1
2
3
4
Wire Color
Red
Black
Purple
Blue
Symbol
+VDC
GND
CTRL2
CTRL1
Description
5 V or 12 V depending on model
Ground
Input for Level Select model
Status signal for PWM model
Input for Level Select model
PWM input for PWM model
IMPORTANT: SynJets should be completely wired to the power supply before the power supply is energized. The power supply should be
turned off before the SynJet Cooler is disconnected. SynJet Coolers are not designed for “hot swap” or “hot plug” applications.
Part Numbers
Part Number
NX200100
NX200101
NX200102
NX200103
NX300100
NX300101
NX300102
NX300103
NX300104
NX300105
NX300128
WALLS-C4150-001
WALLS-C4600-001
Description
SynJet, ZFlow 90, Level Select, 5V, Black
SynJet, ZFlow 90, PWM, 5V, Black
SynJet, ZFlow 90, Level Select, 12V, Black
SynJet, ZFlow 90, PWM, 12V, Black
Heatsink, 60W, Configurable, Black, Al insert
Heatsink, 60W, Philips SLM, Vossloh-Schwabe, Black, Al insert
Heatsink, 60W, Osram PrevaLed, Black, Al insert
Heatsink, 60W, BridgeLux RS, Black, Al insert
Heatsink, 60W, Philips SLM, Vossloh-Schwabe, Black, Cu insert
Heatsink, 60W, Spotlight Cooler, Zhaga B3, Tridonic, Al, Black
Heatsink, 60W, Spotlight Cooler, Xicato, Al, Black
Wire Harness, 4-Wire, 150 mm Length
Wire Harness, 4-Wire, 600 mm Length
Notes
Configurable to discrete performance settings
Use with PWM input to control performance setting
Configurable to discrete performance settings
Use with PWM input to control performance setting
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other heatsink options
Contact sales for other wire harness options
Contact sales for other wire harness options
Nuventix reserves the right to make changes to the products or information contained herein without notice. No
liability is assumed as a result of their use or applications. For additional information, please contact Nuventix directly.
4635 Boston Lane
Austin, TX 78735
Phone: 512-382-8100
www.nuventix.com
MKTG-DOC-000104
Revision
A01
Aug 2012
