DTM10C-N: Description10A Bidirectional Thyristor　　; CategoryAnalog mixed-signal IC Trigger device; File Size104KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

DTM10C-N Overview

10A Bidirectional Thyristor　　

DTM10C-N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Critical rise rate of commutation voltage - minimum value	10 V/us
Maximum DC gate trigger current	30 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	50 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum leakage current	2 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	10 A
Off-state repetitive peak voltage	200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC
Base Number Matches	1

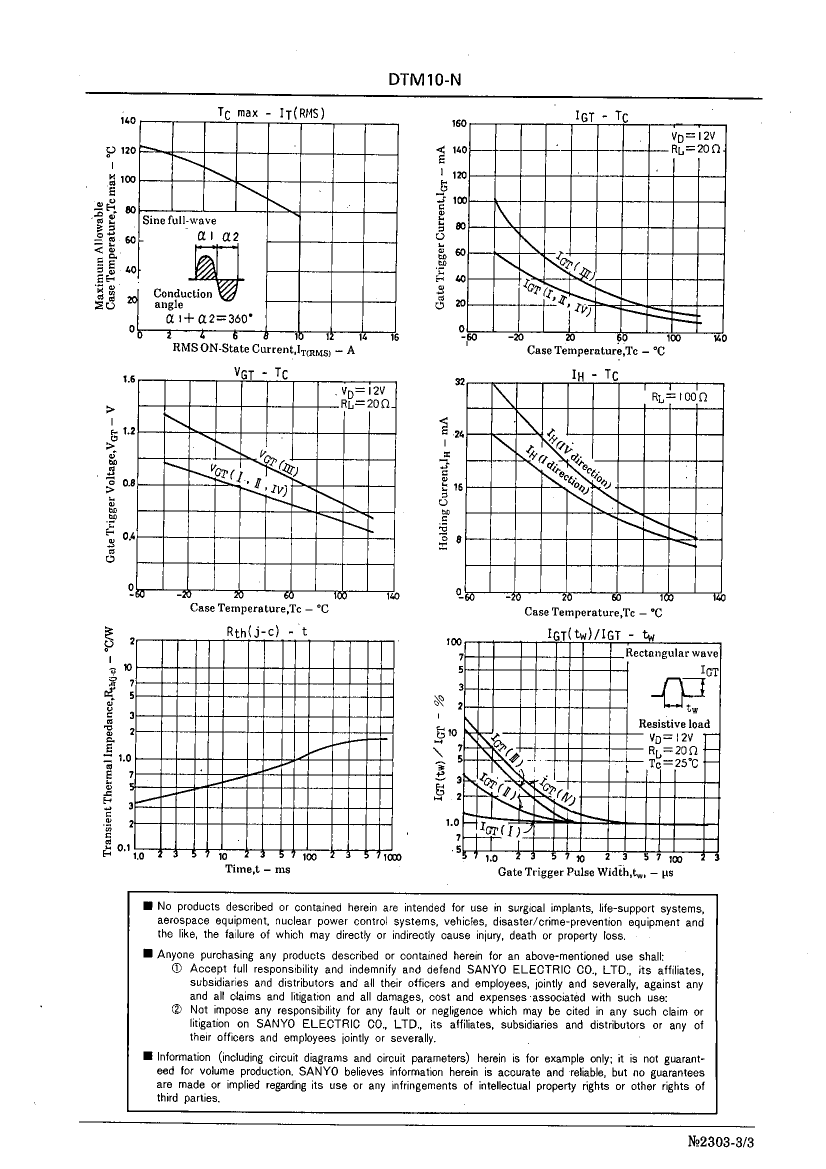

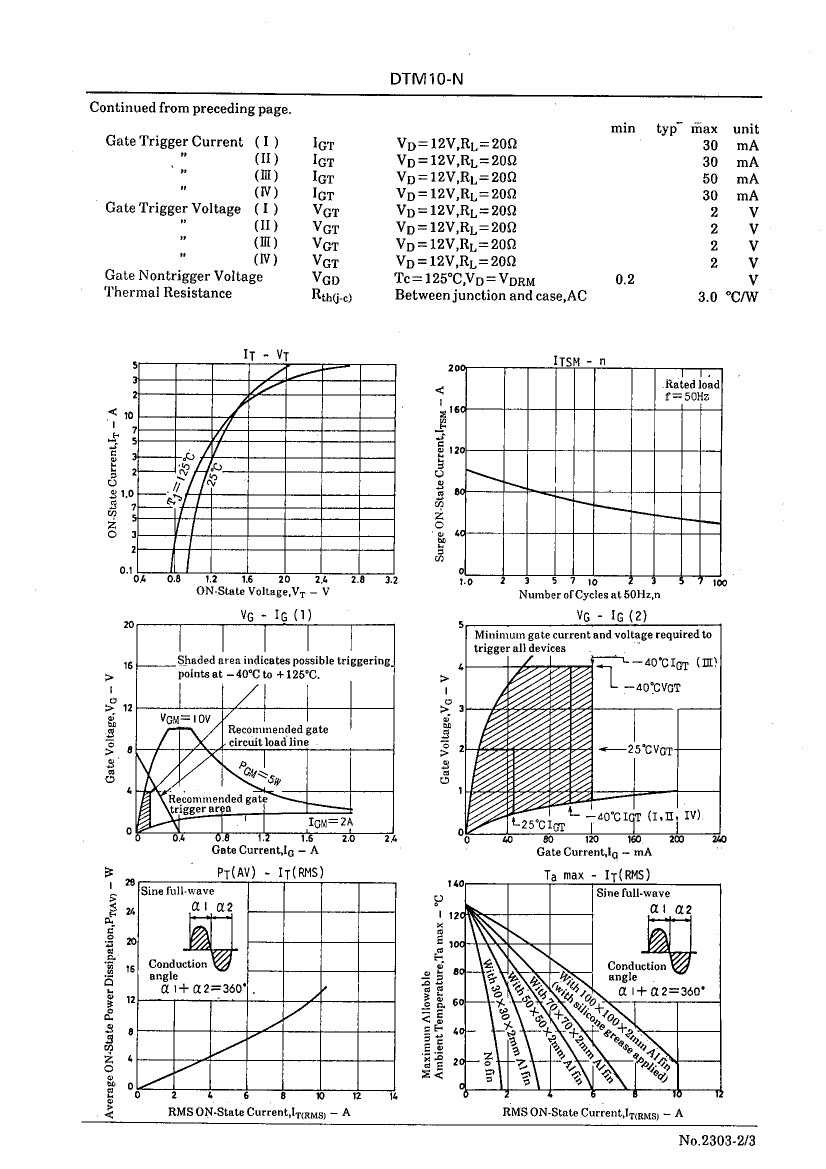

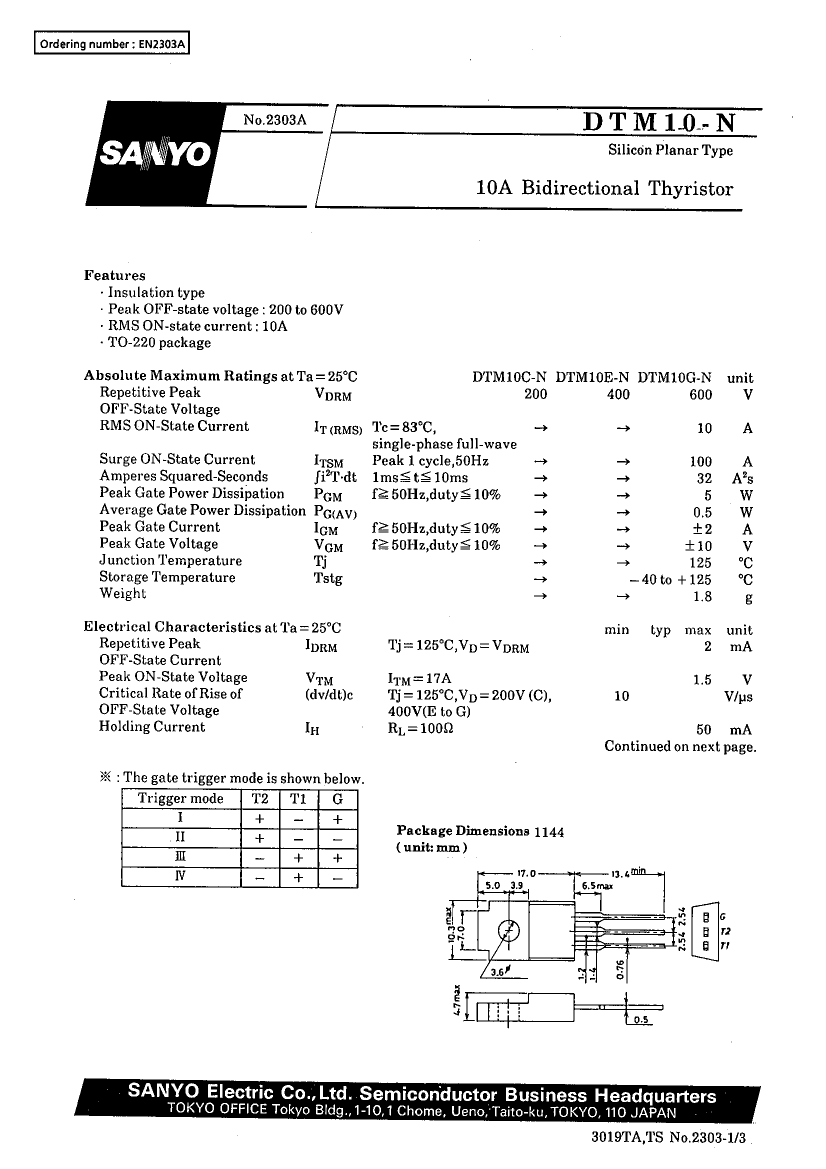

Preview

Download Datasheet

View All

DTM10C-N Related Products

	DTM10C-N	DTM10E-N	DTM10G-N	DTM10-N
Description	10A Bidirectional Thyristor	10A Bidirectional Thyristor	10A Bidirectional Thyristor	10A Bidirectional Thyristor
Parts packaging code	SFM	SFM	SFM	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3	ISOLATED TO-220, 3 PIN	ISOLATED TO-220, 3 PIN	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3
Reach Compliance Code	unknow	unknow	unknow	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	30 mA	30 mA	30 mA	30 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V
Maximum holding current	50 mA	50 mA	50 mA	50 mA
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	10 A	10 A	10 A	10 A
Off-state repetitive peak voltage	200 V	400 V	600 V	200 V
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	TRIAC
Is it Rohs certified?	incompatible	incompatible	incompatible	-
Shell connection	ISOLATED	ISOLATED	ISOLATED	-
Critical rise rate of commutation voltage - minimum value	10 V/us	10 V/us	10 V/us	-
JESD-609 code	e0	e0	e0	-
Maximum leakage current	2 mA	2 mA	2 mA	-
Maximum operating temperature	125 °C	125 °C	125 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Base Number Matches	1	1	1	-
