China Electronics Technology Group Corporation
No.26 Research Institute
82.5MHz SAW Filter
10MHz Bandwidth
Part Number: LBN08302
www.sipatsaw.com
SIPAT Co., Ltd.
Specifications
Parameter
Center Frequency
Insertion Loss
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
50 dB Bandwidth
Passband Variation
Absolute Delay
f0±5.45MHz
f0±5.65MHz
Ultimate Rejection
f0±6.05MHz
f0±10.05MHz
f0±15MHz
Material Temperature coefficient
Ambient Temperature
Package Size
Unit
MHz
dB
MHz
MHz
MHz
MHz
dB
usec
Minimum
82.4
-
-
10
-
-
-
-
35
45
50
55
55
Typical
82.5
23.8
9.94
10.12
10.86
10.93
0.4
3.68
60
61
61
65
65
-7.755
25
Maximum
82.6
26
-
-
-
-
1.2
4
-
-
-
-
-
dB
dB
dB
dB
dB
KHz/°C
°C
DIP3512 (35.0x12.8x4.7mm3)
Notes:
1. All specifications are based on the test circuit shown
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure
electrical compliance over temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift
and manufacturing tolerances
4. This is the optimum impedance in order to achieve the performance show
Matching Configuration
INPUT
50
Ω
OUTPUT
50
Ω
Source/Load Impedance=50 ohm
Notes - Component values may change depending
on board layout.
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
LBN08302
2006-8-25
1.0
Page
1/3
Phone: +86-23-62808818
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
82.5MHz SAW Filter
10MHz Bandwidth
Part Number: LBN08302
www.sipatsaw.com
SIPAT Co., Ltd.

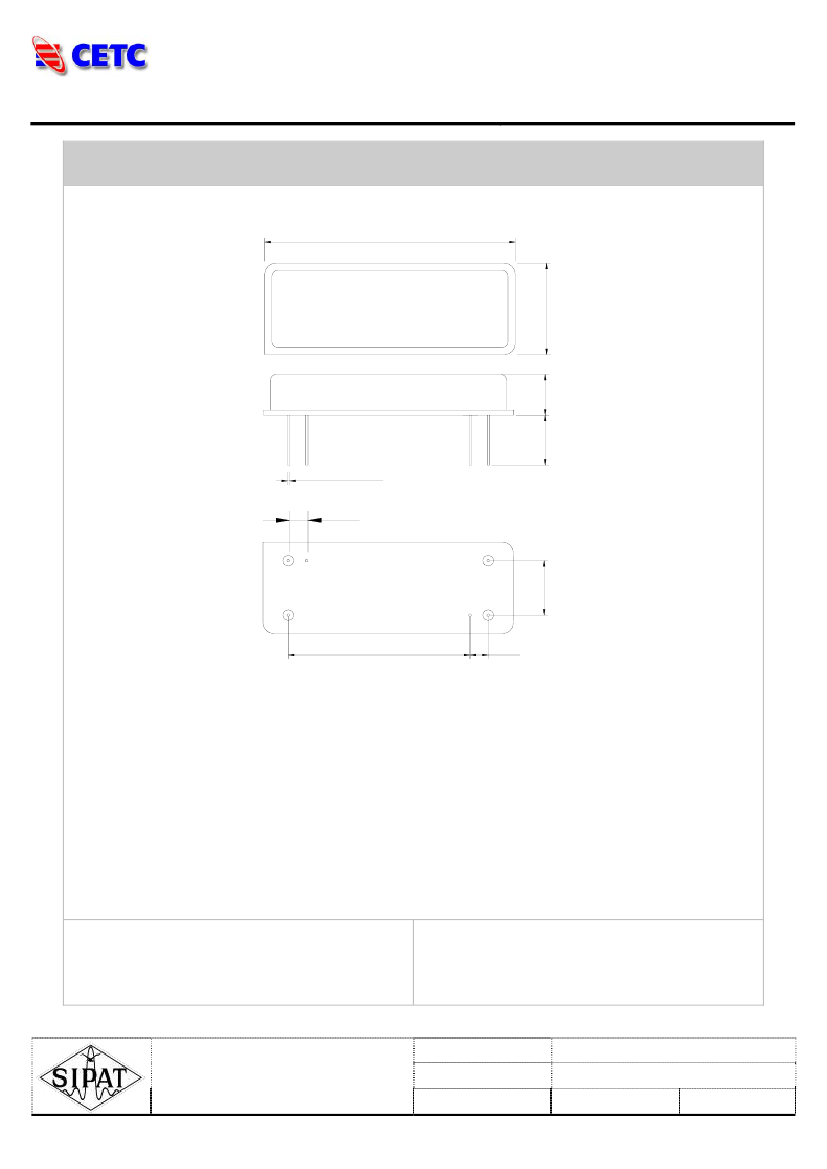

Package Dimension
35.00
±
0.5
12.80
±
0.5
4.7
4.5
0.45
±
0.05
2.54
±
0.2
7.62
±
0.2
3
6
2
1
4
5
25.40
±
0.2
2.54
±
0.2
Input
Output
Ground
1
5
2,3,4,6
Package: DIP3512
Unit: mm
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
LBN08302
2006-8-25
1.0
Page
2/3
Phone: +86-23-62808818
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
82.5MHz SAW Filter
10MHz Bandwidth
Part Number: LBN08302
www.sipatsaw.com
SIPAT Co., Ltd.

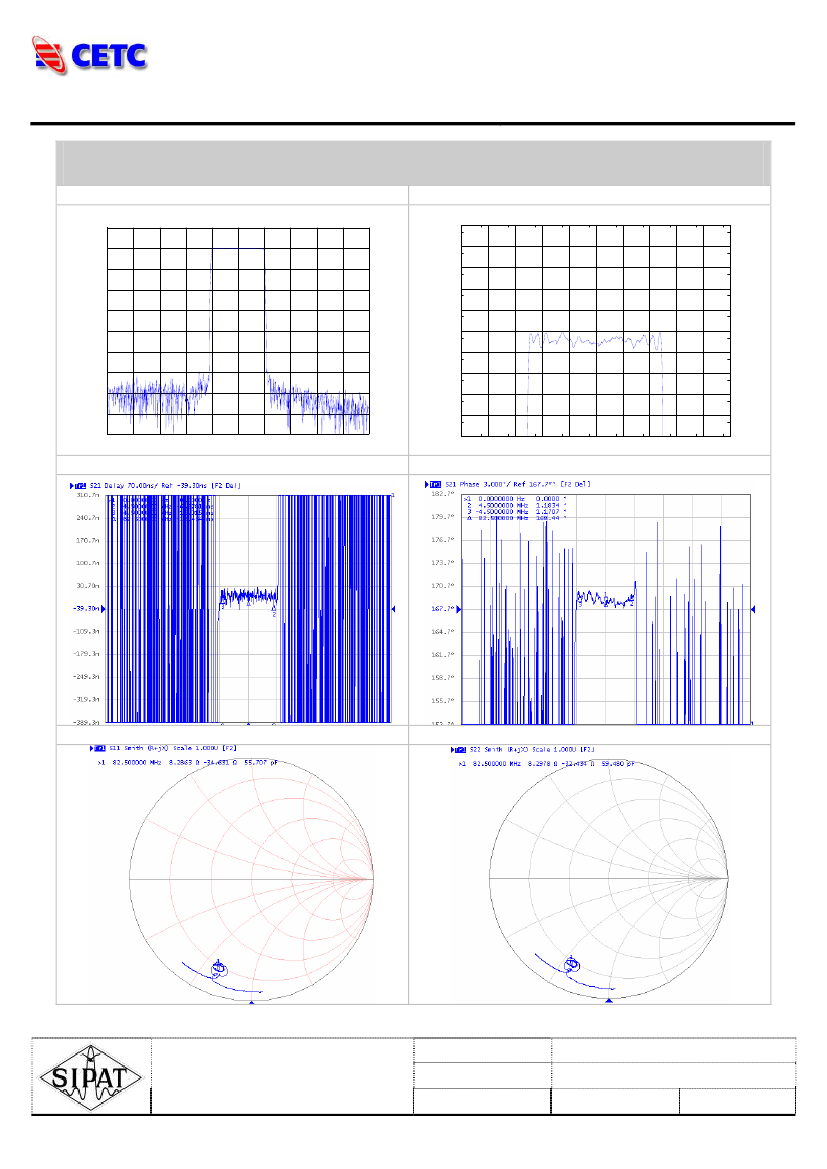

Typical Performance
Frequency Respond
-13.8299
Passband Respond
-21.5
-23.8299
-22
-33.8299
-22.5
-43.8299
-23
-53.8299
-23.5
-63.8299
-24
-73.8299
-24.5
-83.8299
-25
-93.8299
-25.5
-103.8299
-26
-113.8299
57.5
62.5
67.5
72.5
77.5
82.5
87.5
92.5
97.5
102.5
107.5
74
76
78
80
82
84
86
88
90
92
Group Delay Variation(f0±4.5MHz)
Phase Linearity(f0±4.5MHz)
Smith Chart S11
Smith Chart S22
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
LBN08302
2006-8-25
1.0
Page
3/3
Phone: +86-23-62808818
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
