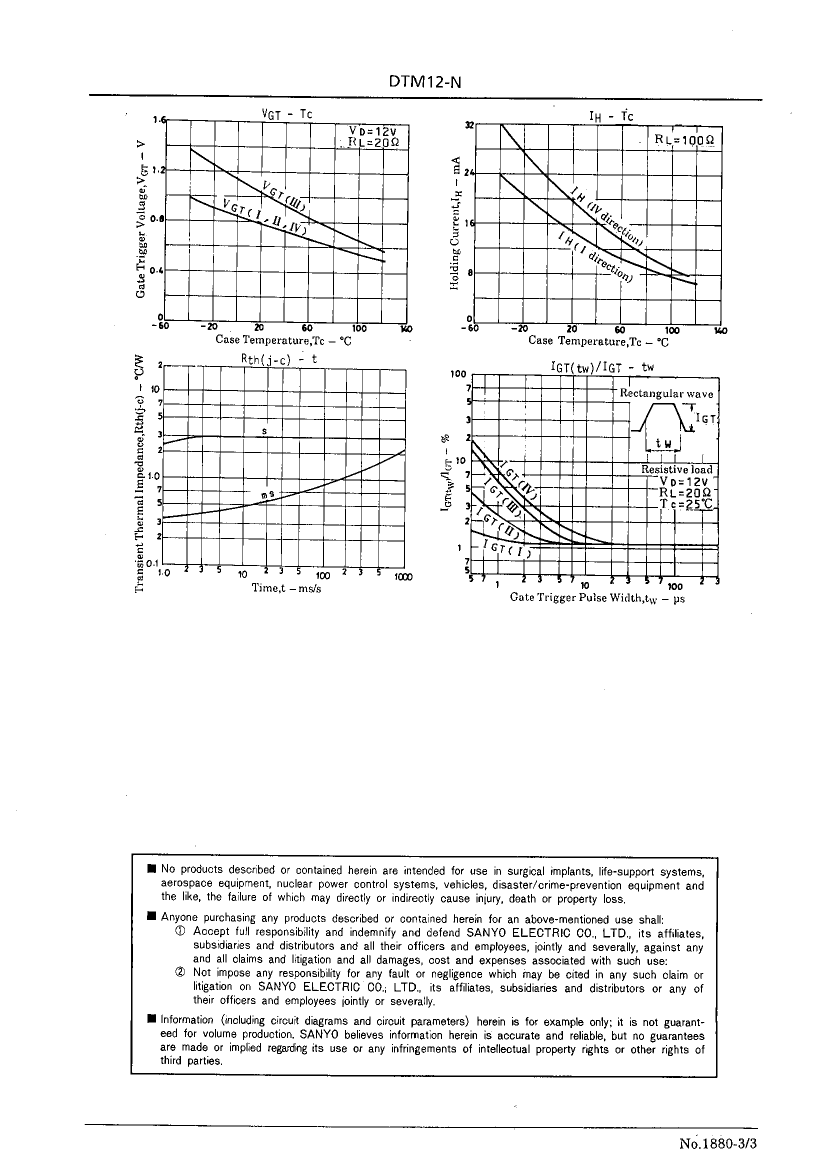

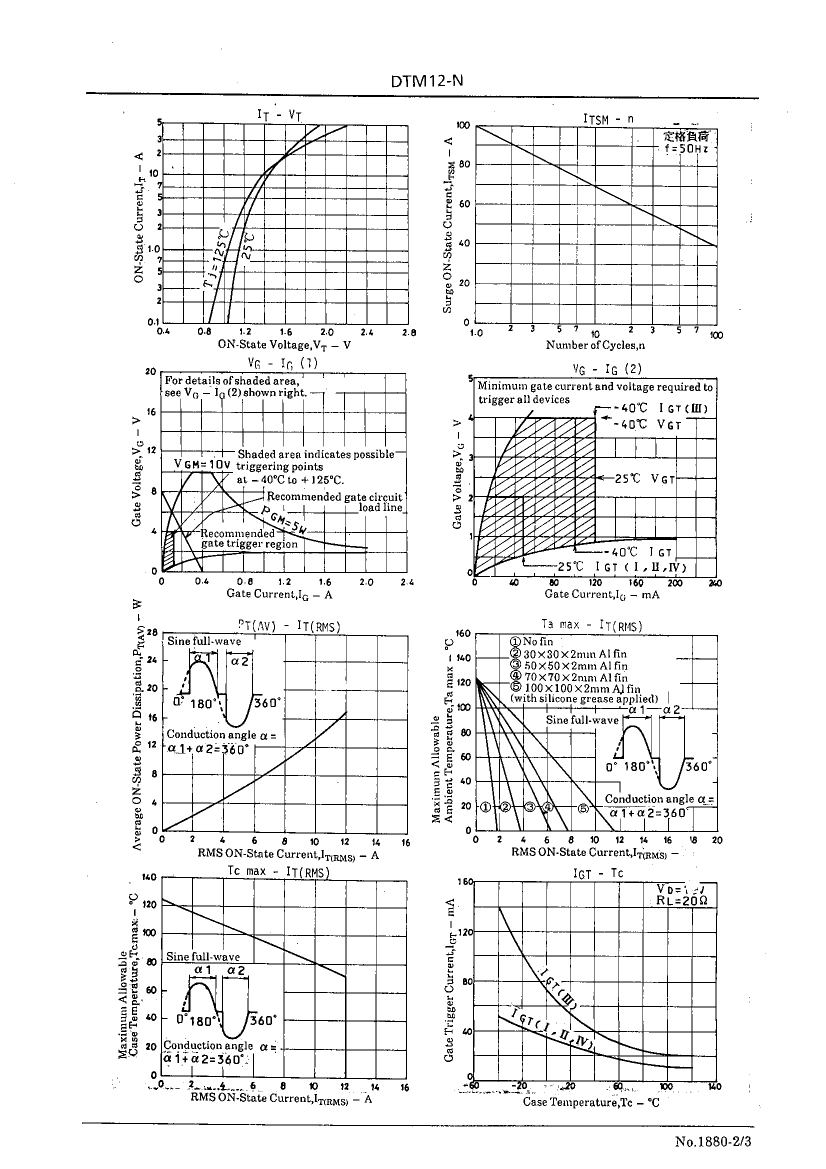

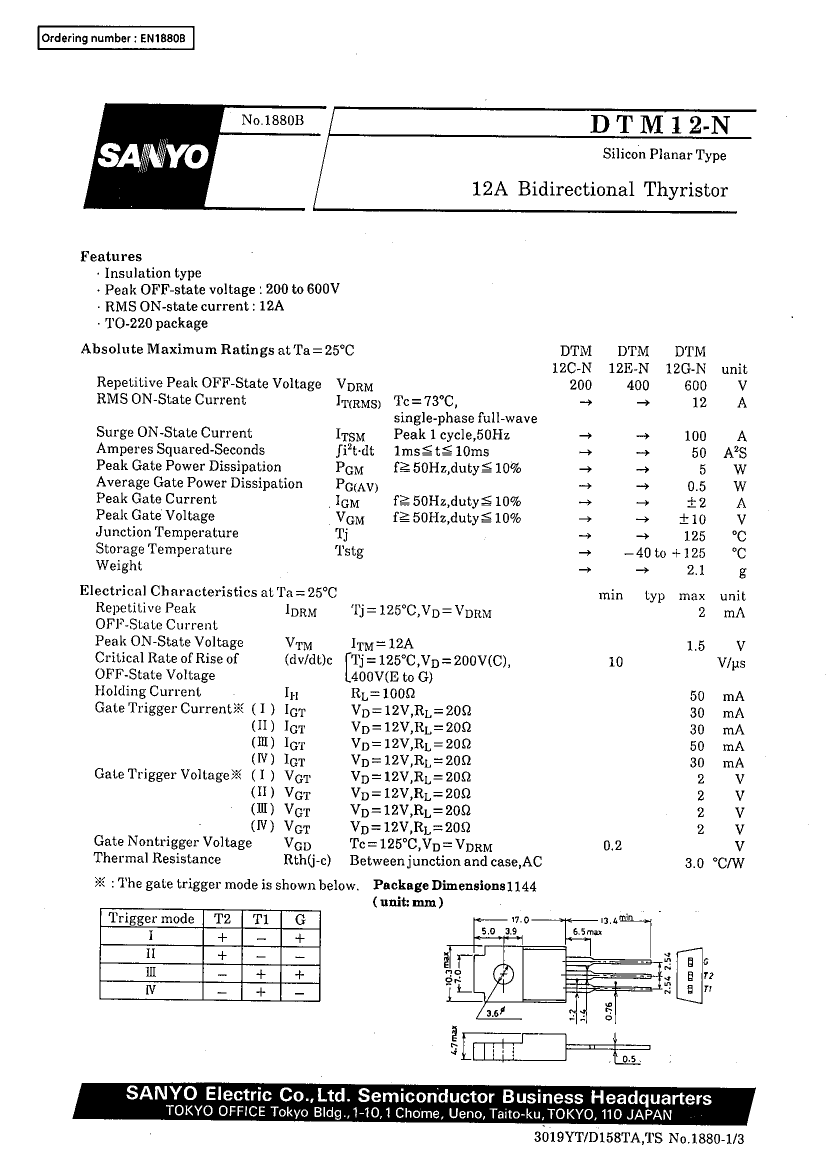

Preview

DTM12E-N: Description12A Bidirectional Thyristor　　; CategoryAnalog mixed-signal IC Trigger device; File Size102KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

DTM12E-N Overview

12A Bidirectional Thyristor　　

DTM12E-N Parametric

Parameter Name	Attribute value
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
Shell connection	ISOLATED
Configuration	SINGLE
Critical rise rate of commutation voltage - minimum value	10 V/us
Maximum DC gate trigger current	30 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	50 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum leakage current	2 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	400 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC
Base Number Matches	1

Preview

Download Datasheet

View All

DTM12E-N Related Products

	DTM12E-N	DTM12-N	DTM12C-N	DTM12G-N
Description	12A Bidirectional Thyristor	12A Bidirectional Thyristor	12A Bidirectional Thyristor	12A Bidirectional Thyristor
Parts packaging code	TO-220AB	SFM	TO-220AB	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3
Reach Compliance Code	unknow	unknow	unknow	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	30 mA	30 mA	30 mA	30 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V
Maximum holding current	50 mA	50 mA	50 mA	50 mA
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	12 A	12 A	12 A	12 A
Off-state repetitive peak voltage	400 V	200 V	200 V	600 V
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC
Shell connection	ISOLATED	-	ISOLATED	ISOLATED
Critical rise rate of commutation voltage - minimum value	10 V/us	-	10 V/us	10 V/us
Maximum leakage current	2 mA	-	2 mA	2 mA
Maximum operating temperature	125 °C	-	125 °C	125 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C
Base Number Matches	1	-	1	1
