DTM6G-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> DTM6G-N

DTM6G-N: Description6A Bidirectional Thyristor　; CategoryAnalog mixed-signal IC Trigger device; File Size105KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

DTM6G-N Overview

6A Bidirectional Thyristor　

DTM6G-N Parametric

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
Shell connection	ISOLATED
Configuration	SINGLE
Critical rise rate of commutation voltage - minimum value	10 V/us
Maximum DC gate trigger current	30 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	50 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum leakage current	2 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	6 A
Off-state repetitive peak voltage	600 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

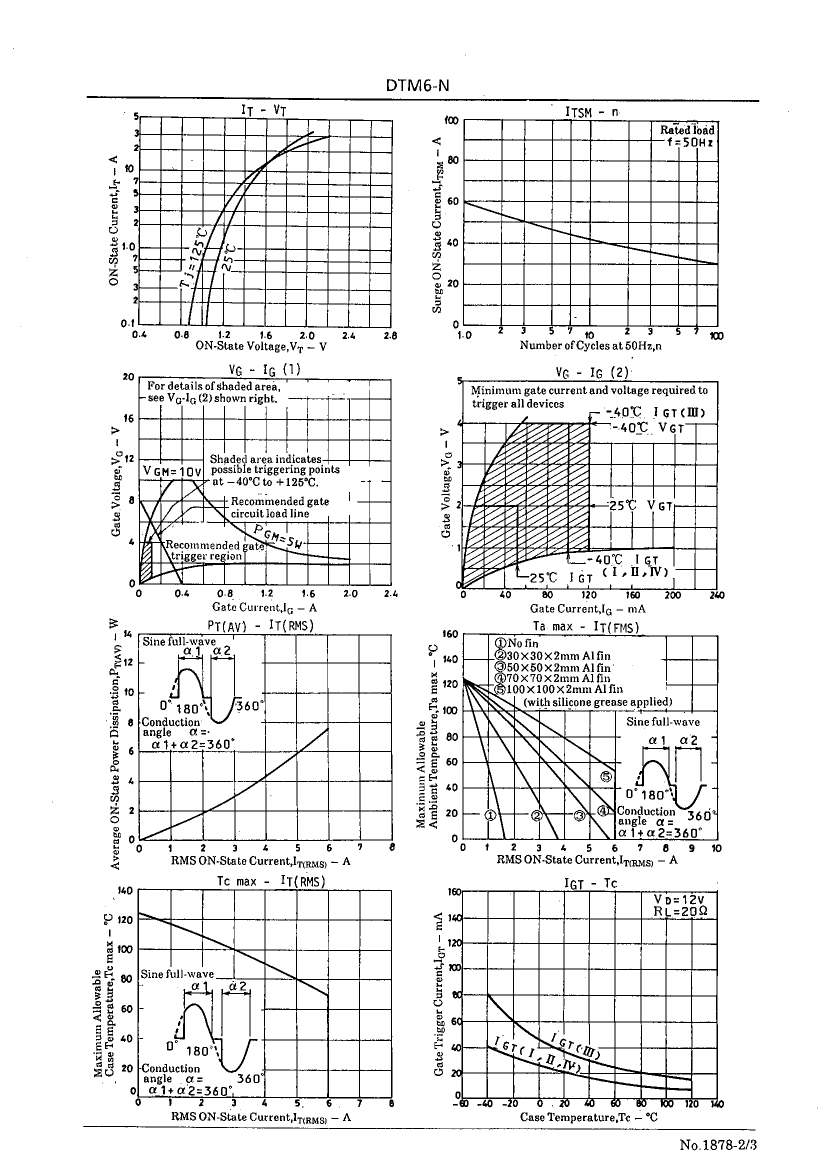

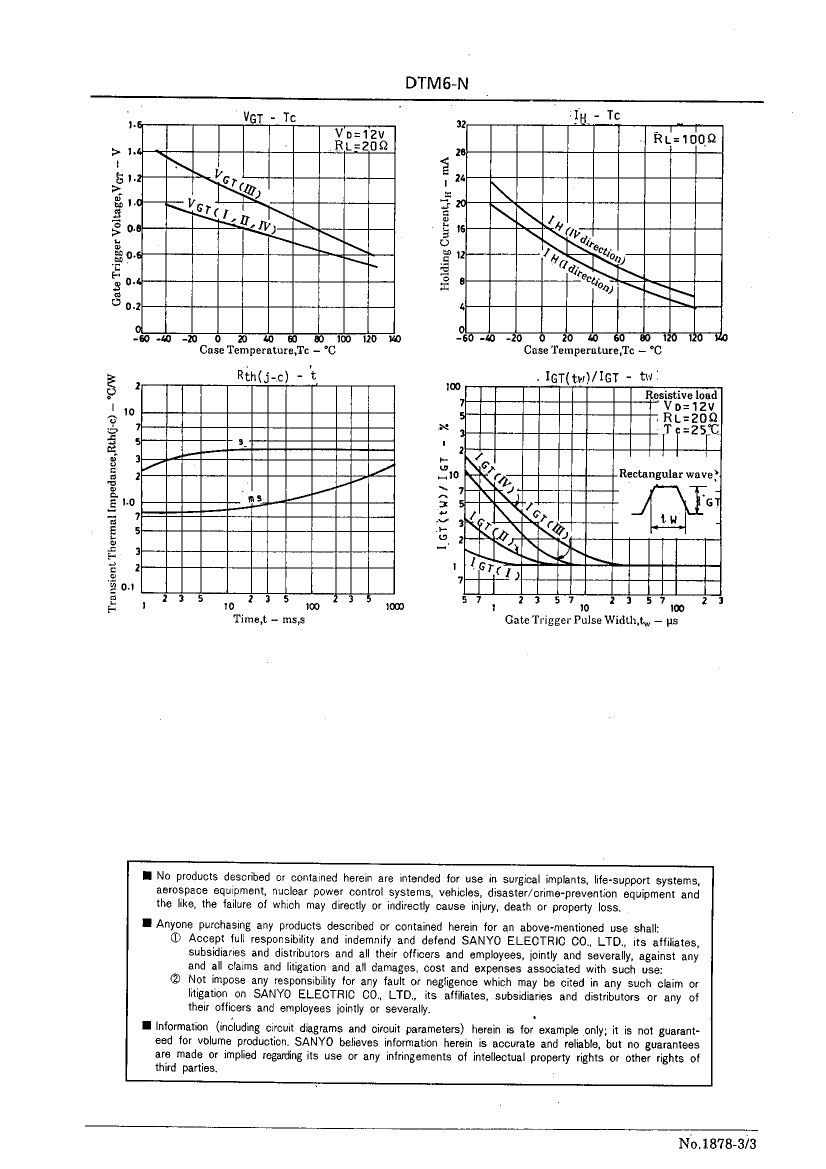

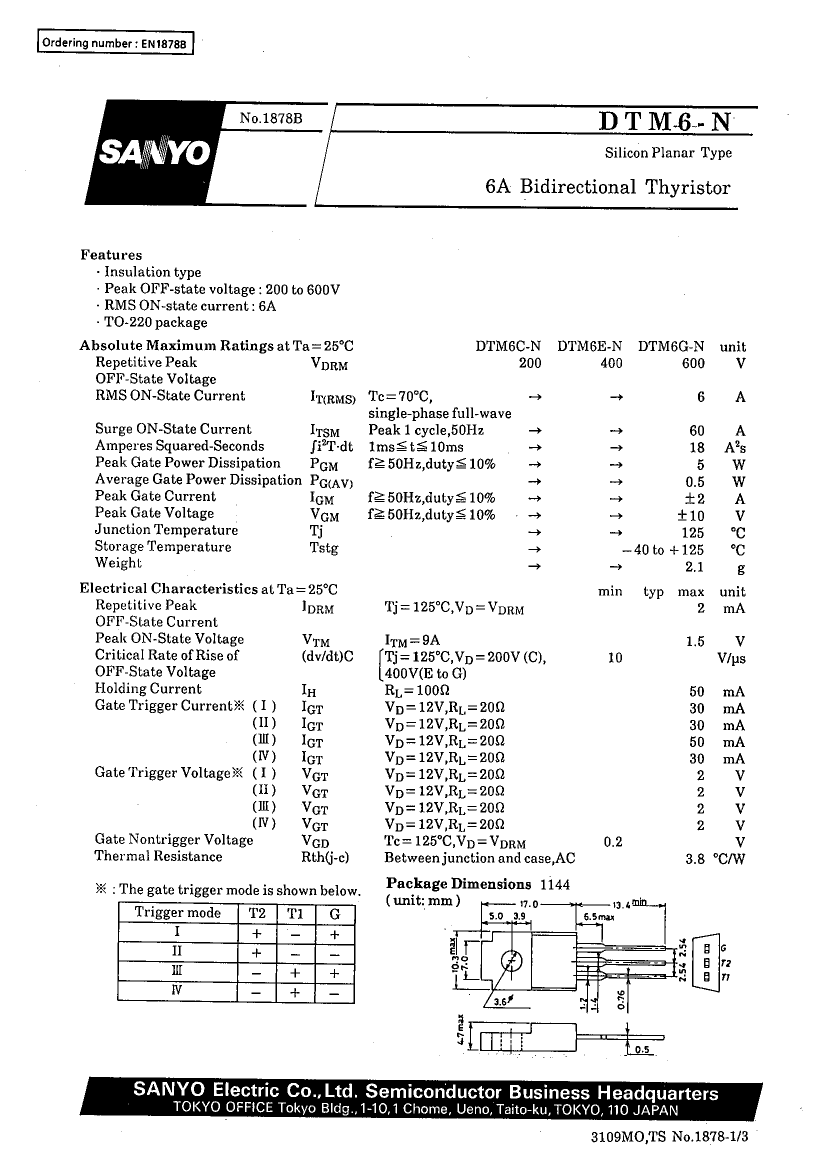

Preview

Download Datasheet

View All

DTM6G-N Related Products

	DTM6G-N	DTM6-N	DTM6C-N	DTM6E-N
Description	6A Bidirectional Thyristor	6A Bidirectional Thyristor	6A Bidirectional Thyristor	6A Bidirectional Thyristor
Maker	SANYO	SANYO	SANYO	SANYO
Parts packaging code	SFM	SFM	SFM	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	TO-220, 3 PIN
Contacts	3	3	3	3
Reach Compliance Code	unknow	unknow	unknow	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	30 mA	30 mA	30 mA	30 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V
Maximum holding current	50 mA	50 mA	50 mA	50 mA
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	6 A	6 A	6 A	6 A
Off-state repetitive peak voltage	600 V	200 V	200 V	400 V
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC
Shell connection	ISOLATED	-	ISOLATED	ISOLATED
Critical rise rate of commutation voltage - minimum value	10 V/us	-	10 V/us	10 V/us
Maximum leakage current	2 mA	-	2 mA	2 mA
Maximum operating temperature	125 °C	-	125 °C	125 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C
