836BN-0076Z

Description
variable coils for surface mounting
CategoryPassive components    inductor
File Size22KB,2 Pages
ManufacturerTOKO, INC.
Websitehttps://www.murata.com/
Environmental Compliance
Download Datasheet Parametric View All

836BN-0076Z Overview

variable coils for surface mounting

836BN-0076Z Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTOKO, INC.
package instruction2322
Reach Compliance Codeunknown
ECCN codeEAR99
uppercase and lowercase codes2322
structureMolded Chip
Nominal inductance(L)2 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeVARIABLE INDUCTOR
Manufacturer's serial numberFSDV
Number of functions1
Number of terminals5
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package height5.3 mm
Package length5.8 mm
Package formSMT
Package width5.6 mm
Minimum quality factor (at nominal inductance)40
series836BN
Shape/Size DescriptionPCB MOUNT, VERTICAL ADJUSTER
shieldNO
special characteristicsINDUCTANCE IS ADJUSTABLE OVER 3% FROM NOMINAL VALUE
surface mountYES
Terminal locationDUAL IN-LINE
Terminal shapeJ BEND
Test frequency7.96 MHz
Tolerance3%
Base Number Matches1
102
TYPE
FSDV

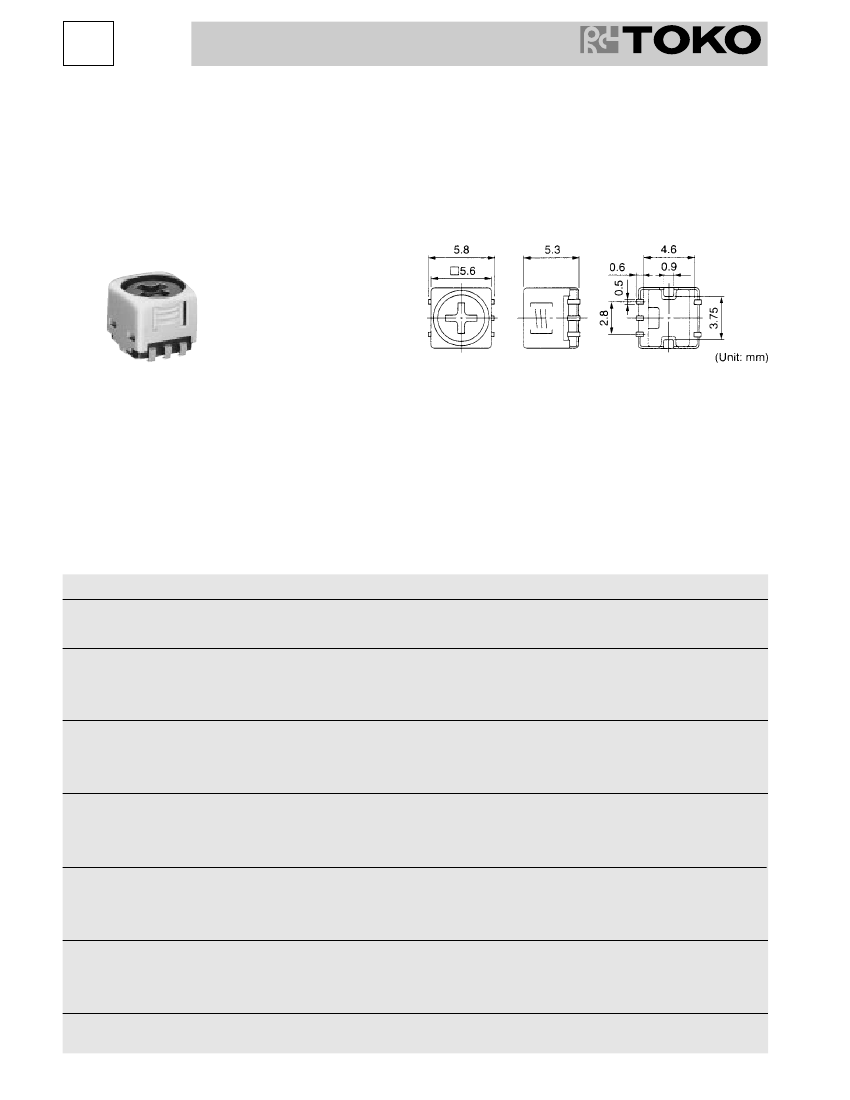

Variable Coils for Surface Mounting
Meeting Your Needs
TYPE FSDV
For Reflow Soldering
Frequency Range:
0.2-15MHz
Inductance Range:
1µH-7mH
Q:60 at 455kHz
Temperature Range:
–40°C ~ +150°C
Features
• Reliability guaranteed to 1000 hour min.
• Pin flatness guaranteed at 0.1mm max.
• Application: AM, FM car radio. communication equipment
(Base Station) Car electronics, etc.
STANDARD COILS SELECTION GUIDE
TYPE FSDV
TOKO
Part
Number
836BN-0075Z
836BN-0076Z
836BN-0077Z
836BN-0078Z
836BN-0079Z
836BN-0080Z
836BN-0081Z
836BN-0082Z
836BN-0083Z
836BN-0084Z
836BN-0085Z
836BN-0086Z
836BN-0087Z
836BN-0088Z
836BN-0089Z
836BN-0090Z
836BN-0091Z
836BN-0092Z
836BN-0093Z
836BN-0094Z
836BN-0095Z
836BN-0096Z
836BN-0097Z
836BN-0098Z
836BN-0099Z
836BN-0100Z
836BN-0101Z
1.800.PIK.TOKO
Inductance
(µH)
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
6.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
Q
(min.)
40
40
40
40
55
55
55
55
55
55
60
60
60
60
60
65
65
65
50
50
50
50
50
50
50
50
50
www.tokoam.com
Test
Frequency
(MHz)
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
Inductance
Adjustable Range
(%)
±3
±3
±3
±6
±3
±3
±3
±4
±4
±4
±4
±4
±4
±4
±4
±4
±4
±4
±5
±5
±5
±5
±5
±5
±5
±5
±5
continued on next page
