DPS-081104
CHIP BEADS
Power Line Series
v
Features
•
High impedance characteristics
•
Low Rdc, High Current characteristics
•
Good reliability (Monolithic structure)
•
Magnetically shielded
•
Fast mounting speed
•
RoHS compliant
W
L
v
Dimensions
B
(unit : mm)
T
v
Applications
•
PDP/LCD Monitor, Digital TV/VCR etc.
Size
1005
1608
2012
L
1.0±0.10
1.6±0.15
2.0±0.20
3.2±0.20
4.5±0.25
4.5±0.25
W
0.5±0.10
0.8±0.15
1.25±0.2
1.6±0.20
1.6±0.20
3.2±0.25
T
0.5±0.10
0.8±0.15
0.85±0.2
1.1±0.20
1.3±0.20
1.5±0.25
B
0.25±0.1
0.3±0.2
0.5±0.3
0.5±0.3
0.5±0.3
0.5±0.3
v
General Code
CB
1
3216
2012
2
P
3
J
4
601
5
T
6
4516
4532
1
2
3
4
5
6
Series Code
CB : Chip Ferrite Beads
Dimension Code
The first two digits : length(mm)
The last two digits : width(mm)
Application Code
G : Signal Line
P : High Current Line
U : Ultra High Current Line
Material Code
A: General Frequency
K,J: Medium Frequency
M: High Frequency
V: Very High Frequency
Impedance Value Code
The first two digits represents significant
The last digit is the number of zeros following
ex) 601 = 600 (Ω)
Packaging Code
T : Reel paper packaging
E : Reel embossed tape packaging
v
Temperature Range
•
Operating Temp. -55 ~ +125℃
•
Storage Temp. -10 ~ +40
℃
v
Typical Material Characteristics
High
μ
(Low RXCP)
Low
μ
(High RXCP)
V
M
J,K
A
This description in the this catalogue is subject to change without notice
http://www.samwha.com/chip
SAMWHA ELECTRONICS CO., LTD
DPS-081104
CHIP BEADS,
For Power Line
v
1608 SIZE
Impedance
(Ω)
±25%
10
30
60
120
180
10
30
60
120
180
30
60
120
30
60
120
DC Resistance
(Ω) max.
0.05
0.05
0.08
0.10
0.12
0.05
0.05
0.08
0.10
0.12
0.05
0.10
0.12
0.06
0.08
0.12
Rated Current
(mA) max.
2000
2000
1000
800
800
2000
2000
Test Frequency
(MHz)
Samwha P/N
CB1608PA100
CB1608PA300
CB1608PA600
CB1608PA121
CB1608PA181
CB1608PK100
CB1608PK300
CB1608PK600
CB1608PK121
CB1608PK181
CB1608PJ300
CB1608PJ600
CB1608PJ121
CB1608PM300
CB1608PM600
CB1608PM121
CHIP BEAD, Power Line Series
1000
800
800
2000
1000
1000
1500
1000
800
100
※
Measuring Equipment
-. Z : HP4291B / E4991A
-. Rdc : HP4338B
This description in the this catalogue is subject to change without notice
http://www.samwha.com/chip
SAMWHA ELECTRONICS CO., LTD
DPS-081104
CHIP BEADS,
For Power Line
v

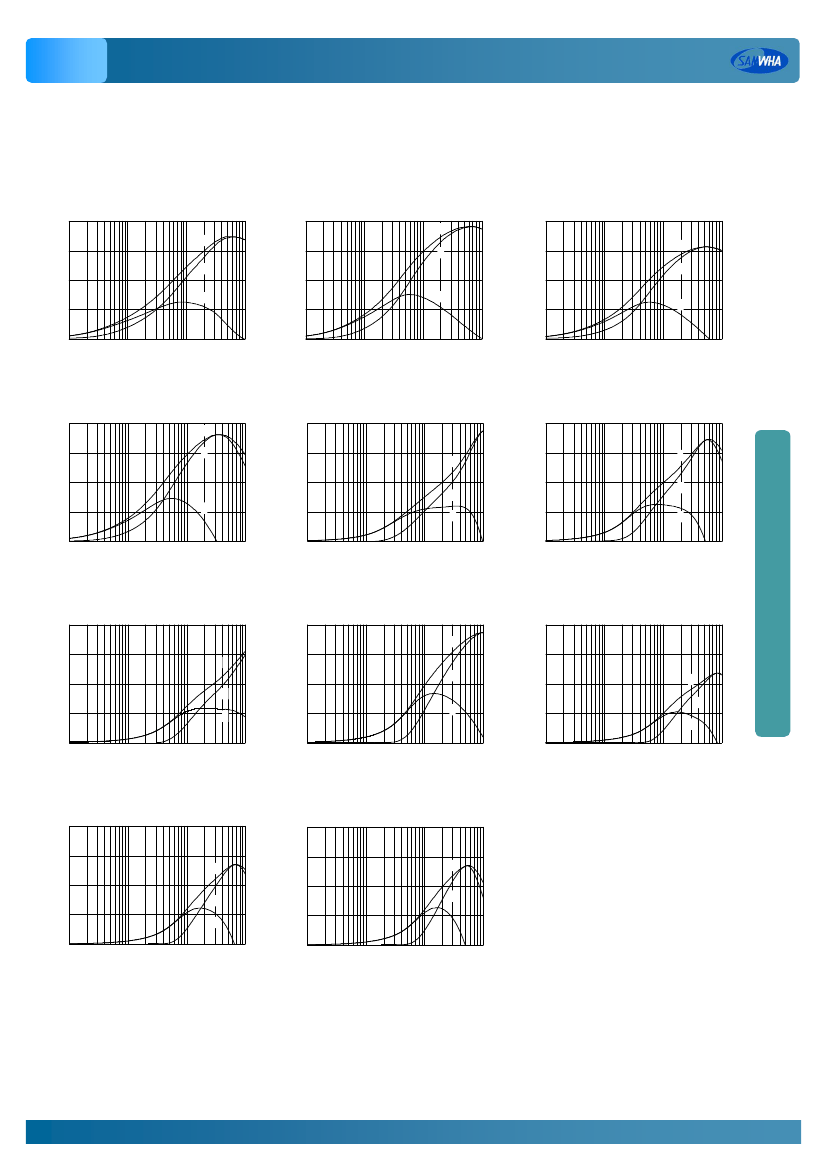

1608 SIZE
16
CB 1608 PA 100
Z
Impedance [
W
]
40
CB 1608 PA 300
Z
Impedance [
W
]
R
100
CB 1608 PA 600
Z
R
Impedance [
W
]
12
30
75
R
8
20
50
X
4
X
10
25
X
0
1
10
100
1000
0
1
10
100
1000
0
1
10
100
1000
Frequency [MHz]
Frequency [MHz]
Frequency [MHz]
160
CB 1608 PA 121
Z
Impedance [
W
]
R
160
CB 1608 PK 600
Impedance [
W
]
240
CB 1608 PK 121
CHIP BEAD, Power Line Series
Impedance [
W
]
120
120
Z
R
180
Z
R
X
1
10
100
1000
80
80
120
40
X
40
X
1
10
100
1000
60
0
1
10
100
1000
0
0
Frequency [MHz]
Frequency [MHz]
Frequency [MHz]
100
CB 1608 PJ 300
Impedance [
W
]
120
CB 1608 PJ 600
Z
Impedance [
W
]
120
CB 1608 PM 300
Impedance [
W
]
75
Z
R
90
90
50
60
R
X
60
Z
R
25
X
1
10
100
1000
30
30
X
0
1
10
100
1000
0
1
10
100
1000
0
Frequency [MHz]
Frequency [MHz]
Frequency [MHz]
200
CB 1608 PM 600
Impedance [
W
]
400
CB 1608 PM 121
Impedance [
W
]
150
300
Z
100
Z
200
R
50
R
100
X
1
10
100
1000
X
1
10
100
1000
0
0
Frequency [MHz]
Frequency [MHz]
This description in the this catalogue is subject to change without notice
http://www.samwha.com/chip
SAMWHA ELECTRONICS CO., LTD
DPS-081104
CHIP BEADS,
For Power Line
v
2012 SIZE
Impedance
(Ω)
±25%
11
30
60
120
220
300
600
15
30
60
120
180
220
300
600
1000
2000
600
800
60
120
220
300
600
DC Resistance
(Ω) max.
0.007
0.015
0.025
0.050
0.050
0.100
0.130
0.080
0.015
0.025
0.050
0.050
0.050
0.070
0.130
0.250
0.300
0.100
0.150
0.020
0.050
0.050
0.070
0.130
Rated Current
(mA) max.
3000
3000
3000
2500
2000
2000
1500
Test Frequency
(MHz)
Samwha P/N
CB2012PA110
CB2012PA300
CB2012PA600
CB2012PA121
CB2012PA221
CB2012PA301
CB2012PA601
CB2012PK150
CB2012PK300
CB2012PK600
CB2012PK121
CB2012PK181
CB2012PK221
CB2012PK301
CB2012PK601
CB2012PK102
CB2012PK202
CB2012PJ601
CB2012PJ801
CB2012PM600
CB2012PM121
CB2012PM221
CB2012PM301
CB2012PM601
CHIP BEAD, Power Line Series
2000
3000
3000
2500
2000
2000
2000
1500
1000
500
1500
1500
3000
2500
2000
2000
1500
100
70
100
※
Measuring Equipment
-. Z : HP4291B / E4991A
-. Rdc : HP4338B
This description in the this catalogue is subject to change without notice
http://www.samwha.com/chip
SAMWHA ELECTRONICS CO., LTD
DPS-081104
CHIP BEADS,
For Power Line
v

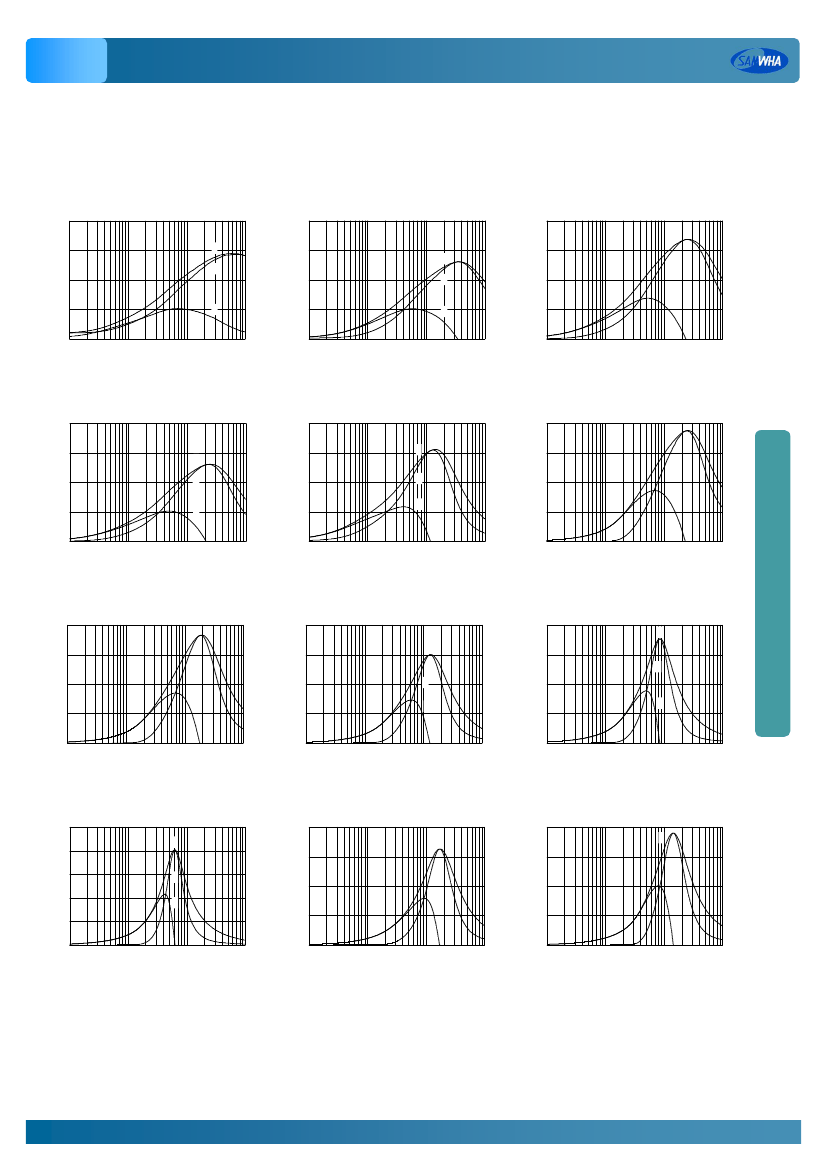

2012 SIZE
20
CB 2012 PA 110
Impedance [
W
]
Z
R
120
CB 2012 PA 600
Impedance [
W
]
160
CB 2012 PA 121
Z
Impedance [
W
]
15
90
Z
R
X
1
10
100
1000
120
R
80
10
60
5
X
30
40
X
0
1
10
100
1000
0
0
1
10
100
1000
Frequency [MHz]
Frequency [MHz]
Frequency [MHz]
400
CB 2012 PA 221
Impedance [
W
]
Z
R
X
1
10
100
1000
800
CB 2012 PA 601
Impedance [
W
]
Z
R
X
160
CB 2012 PK 121
Z
CHIP BEAD, Power Line Series
Impedance [
W
]
300
600
120
R
80
200
400
X
40
100
200
0
0
1
10
100
1000
0
1
10
100
1000
Frequency [MHz]
Frequency [MHz]
Frequency [MHz]
400
CB 2012 PK 301
Z
Impedance [
W
]
800
CB 2012 PK 601
Z
Impedance [
W
]
1200
CB 2012 PK 102
Z
R
Impedance [
W
]
300
600
900
R
200
400
X
100
R
X
600
X
300
200
0
1
10
100
1000
0
1
10
100
1000
0
1
10
100
1000
Frequency [MHz]
Frequency [MHz]
Frequency [MHz]
2500
CB 2012 PK 202
Z
Impedance [
W
]
1000
CB 2012 PJ 601
Z
Impedance [
W
]
1000
CB 2012 PJ 801
Z
2000
Impedance [
W
]
750
750
1500
R
X
R
500
R
500
1000
500
250
X
250
X
0
1
10
100
1000
0
1
10
100
1000
0
1
10
100
1000
Frequency [MHz]
Frequency [MHz]
Frequency [MHz]
This description in the this catalogue is subject to change without notice
http://www.samwha.com/chip
SAMWHA ELECTRONICS CO., LTD
