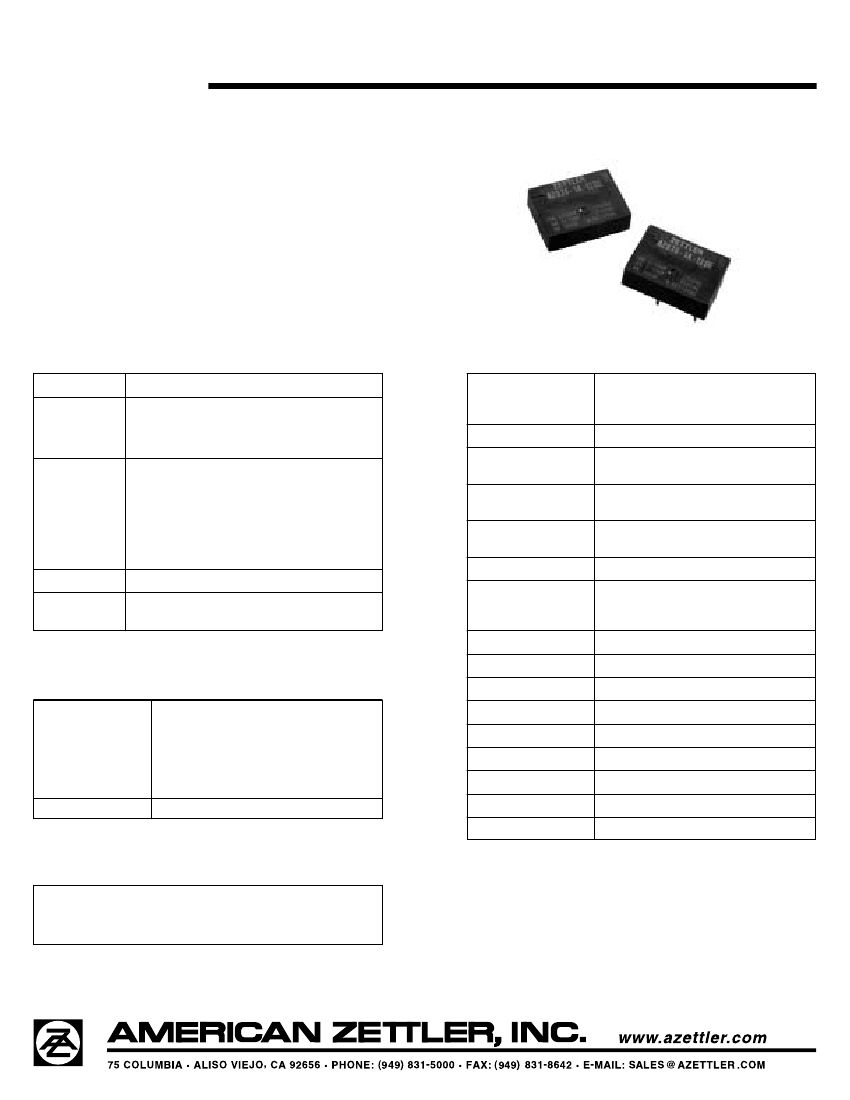

AZ936
10 AMP LOW PROFILE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
High power switching (2000 VA)
High sensitivity, 190 mW pickup
Low profile (less than .25" height)
SPST (1 Form A)
DC coils up to 100 VDC
UL file E44211, CSA file 702514
TÜV file BL991234205002
GENERAL DATA
SPST (1 Form A)
Resistive load:
Max. switched power: 240 W, 2000 VA
Max. switched current: 10 A
Max. switched voltage: 250 VAC/110 VDC
10 A at 125 VAC, resistive
8 A at 250/30 VDC, resistive
1
/
10
1
/
10
CONTACTS
Arrangement
Ratings
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 10 A 120 VAC Res.
10 ms at nominal coil voltage
2 ms at nominal coil voltage
(with no coil suppression)
Rated Load
UL, CSA
HP 125 VAC
HP 250 VAC
Dielectric Strength
1500 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms contact to contact
Insulation
Resistance
Dropout
1000 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 5% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 70°C (158°F)
-40°C (-42°F) to 115°C (239°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
5 grams
TÜV
Material
Resistance
10 A at 125 VAC, resistive
8 A at 250 VAC, 30 VDC, resistive
Silver tin oxide
< 100 milliohms initially
(6 V, 1 A voltage drop method)
Ambient Temperature
Operating
Storage
Vibration
Shock

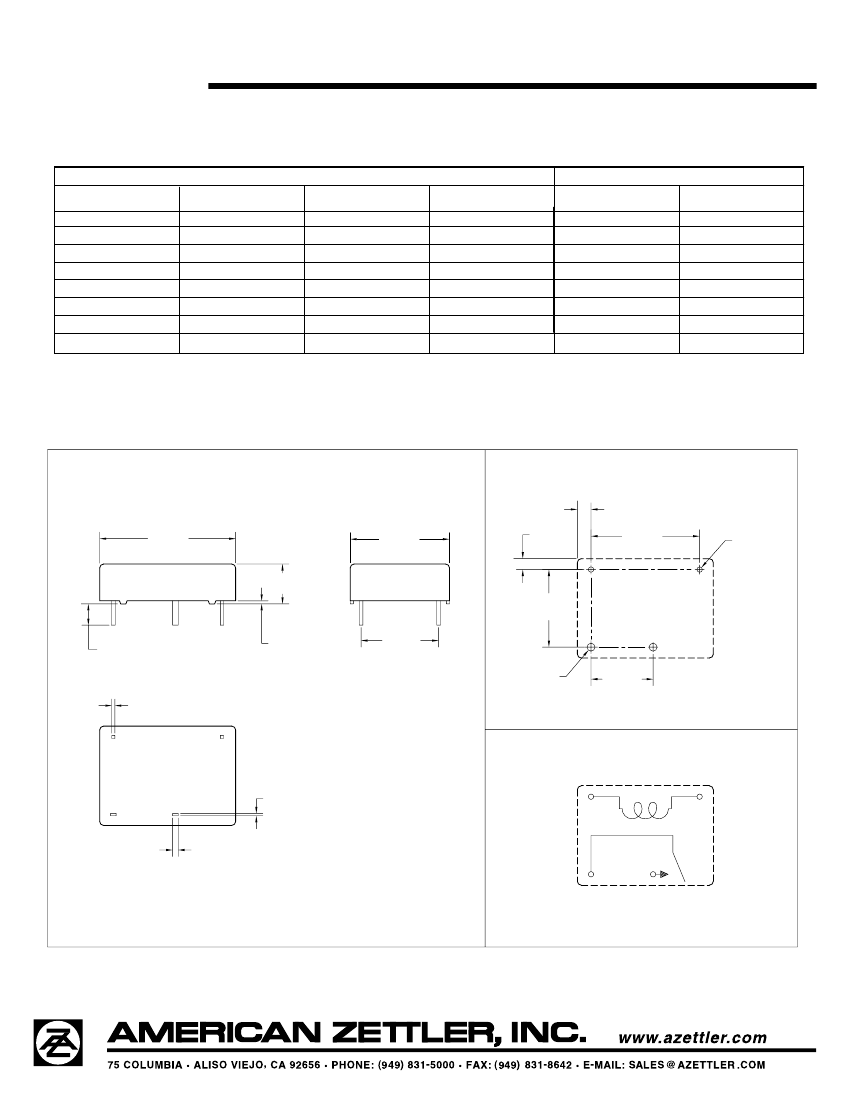

COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
Enclosure
Terminals
190 mW
1.2 W at 20°C (68°F)
20°C (36°F) at nominal coil voltage
Max. 115°C (239°F)
Max. Solvent Temp.
Max. Immersion Time
Weight
Max. Solder Temp.
Max. Solder Time
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
3/14/01W
